Merope 100 AD


Drive over uplight with adjustable light distribution

  • Drive over load of 7000 lbs

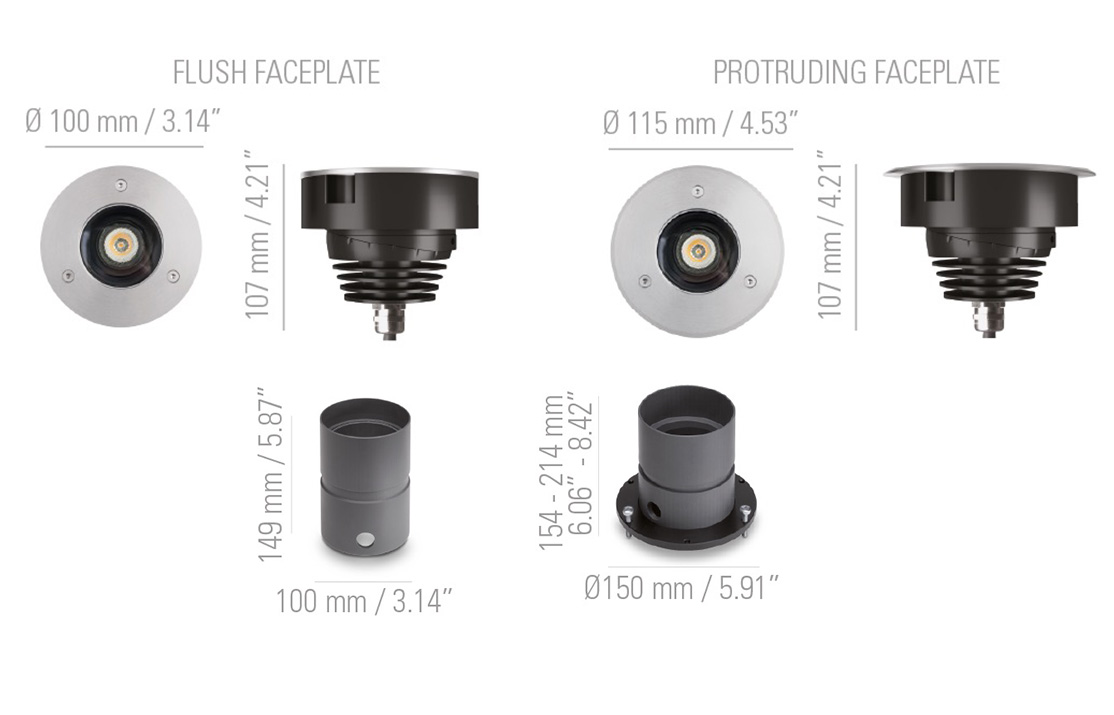

  • Diameter: flush faceplate 3.14”, protruding faceplate 4.53”
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture in installed without opening the optical compartment
  • Beam angles: 20°and 30°. External aiming system from 0° to 20°, without opening the fixture, complete with graduated scale
  • Available with color temperatures of 2200K CRI80, 2700K CRI93 or 3000K CRI93
  • Wattage: 5W at 24V DC
  • Built-in reverse polarity protection Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140° F
  • 2 wires dimming : 1-10V. Other dimming options: push button, potentiometer, 0-10V, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 1598, CSA C22.2
