Merope 100


Drive over uplight

  • Drive over load of 7000 lbs

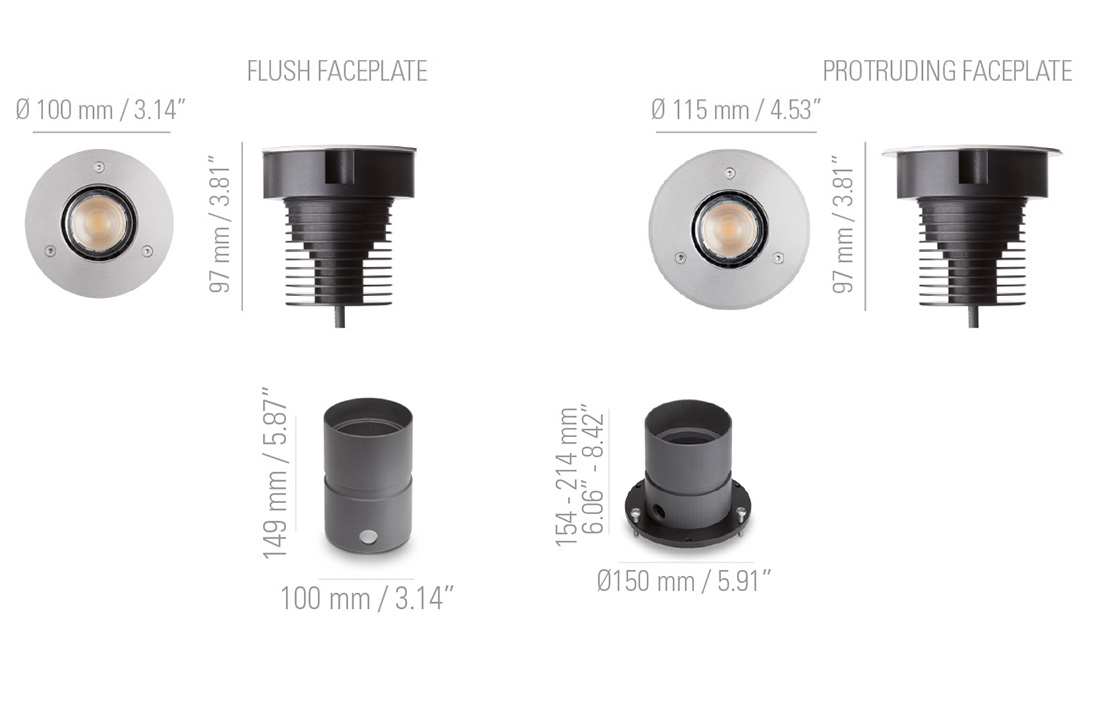

  • Diameter: flush faceplate 3.94”, protruding faceplate 4.53”
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture in installed without opening the optical compartment
  • Beam angles: 26°, 37°, 51°, honeycomb for visual comfort to be separately ordered as accessory
  • Available with colour temperature of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 12W at 350 mA
  • Dimming options: push button, potentiometer, 0-10V, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 1598, CSA C22.2
