Drive over glare free wallwasher, delivering asymmetric light distribution

  • Drive over load of 7,000 lbs

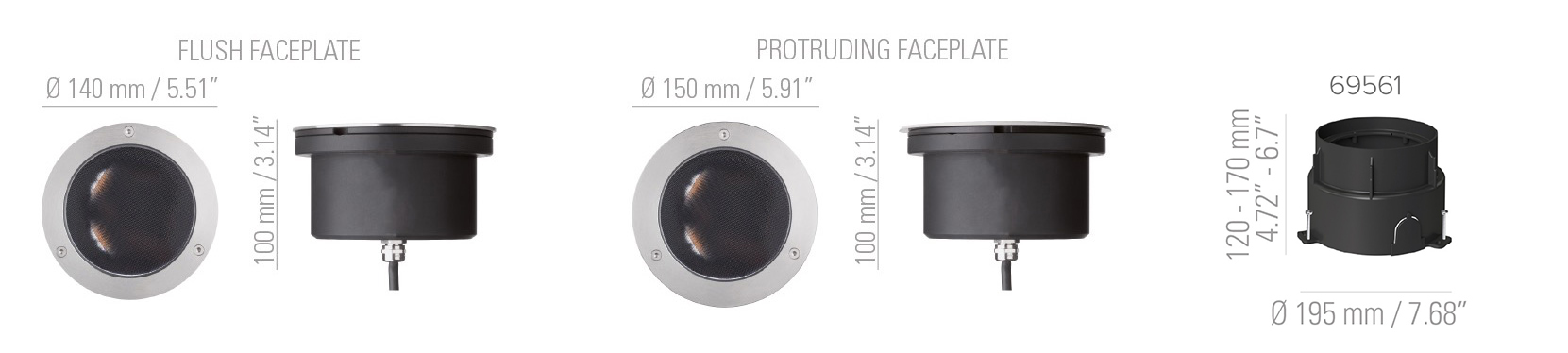

  • Diameter: flush faceplate 5.5″, protruding faceplate 5.9″
  • Thanks to the design of the reflector, the fixture is glare free offering a longitudinal cut-off and delivering homogeneous light distribution on the wall
  • The wall wash is achieved from the lower edge of the wall to be illuminated with no visible dark zones
  • Because the light is precisely focused towards the surface to be illuminated, light pollution is virtually eliminated
  • Available with colour temperature of 2200K CRI80, 2700K CRI93, 3000K CRI93 or 4000K CRI93
  • Wattage: 16W at 24V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140°F
  • Two wires dimming: 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Built in protection from water infiltration and moisture. To guarantee a tightness over time, the fixture is installed without opening the optical compartment
  • Standards: UL 2108, CSA C22.2
