Merope 140


Drive over uplight

  • Drive over load of 3,5 tonnes

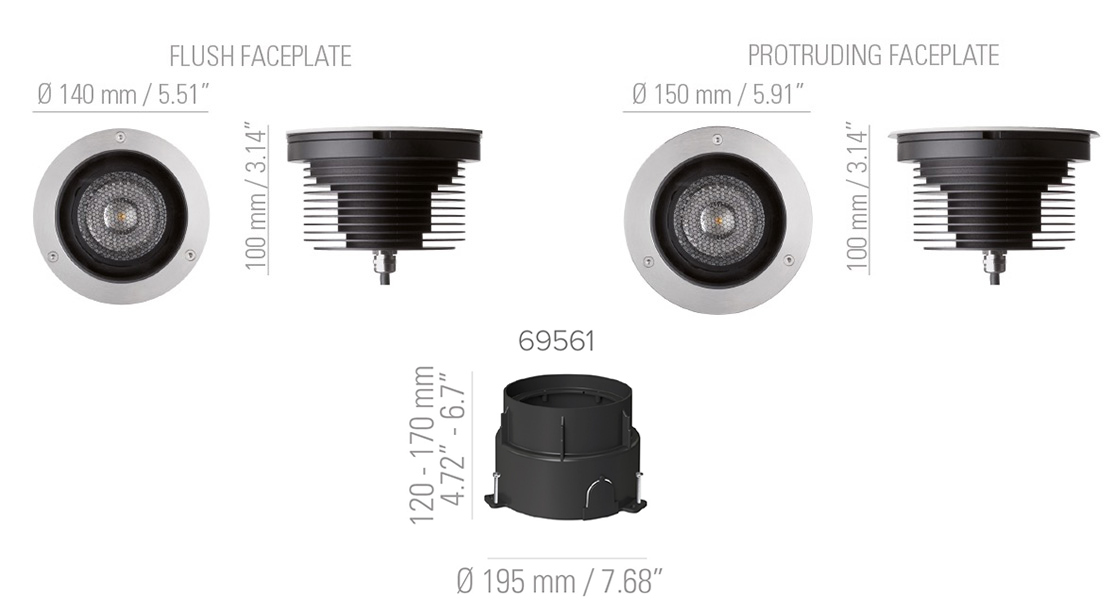

  • Diameter: flush faceplate 5.51”, protunding faceplate 5.91”
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture is installed into the housing without opening the optical compartment
  • Beam angles: 12°, 24°, 32°, honeycomb for visual comfort included
  • Available with colour temperature of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 20W at 700 mA
  • Dimming options: push button, potentiometer, 0-10V, DALI, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 1598, CSA C22.2
