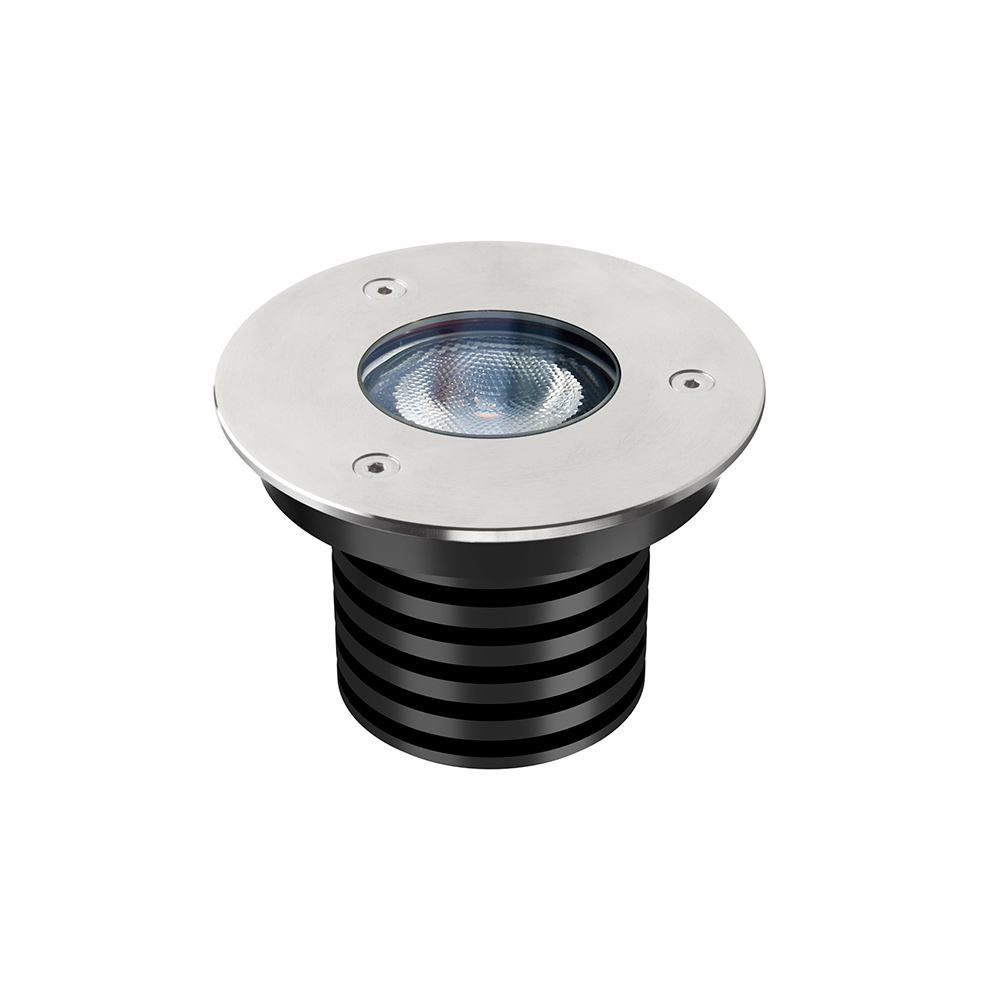

Merope 70


Drive over uplight

  • Drive over load of 7000 lbs

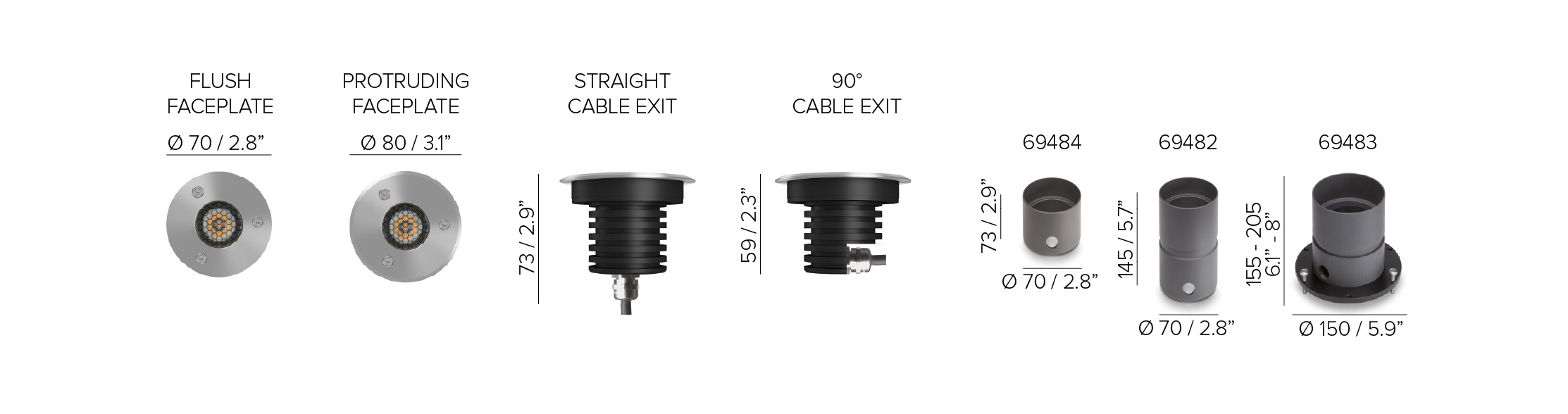

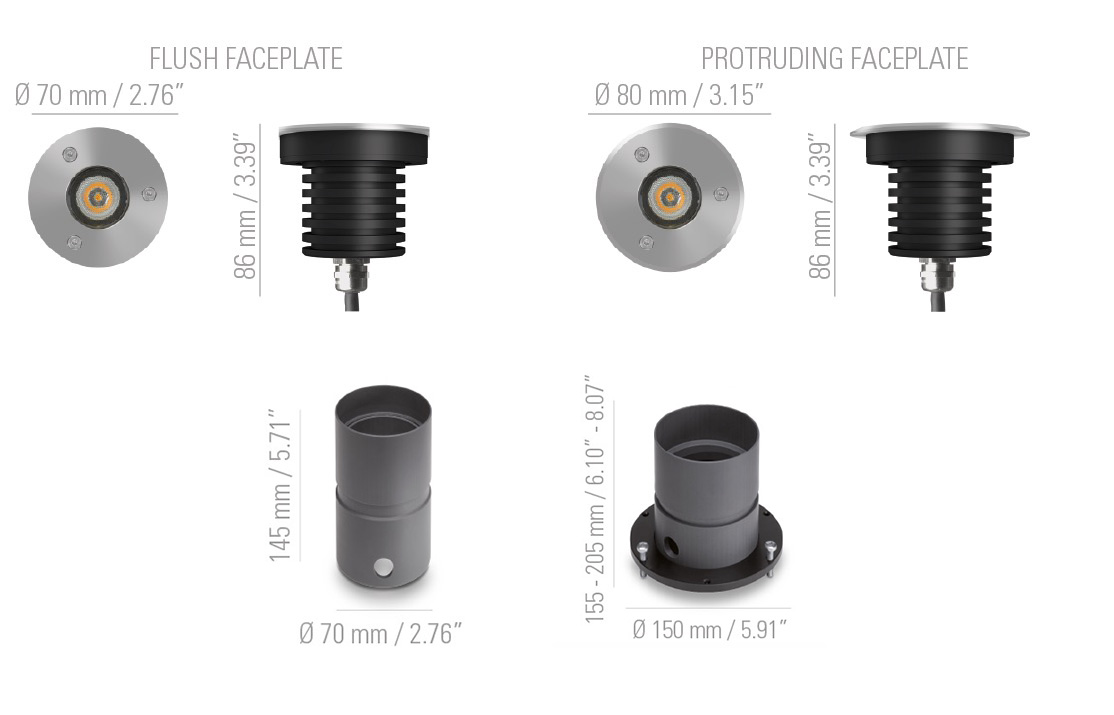

  • Diameter: flush faceplate 2.76”, protruding faceplate 3.15”
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture in installed without opening the optical compartment
  • Beam angles: 4°, 16°, 36°, 45°
  • Available with colour temperature of 2200K CRI80, 2700K CRI93 or 3000K CRI93
  • Wattage: 5W at 24V DC, 4W at 48V DC for model 4°
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140° F
  • Two wires dimming 1-10V. Other dimming options: push button, potentiometer, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 1598, CSA C22.2
