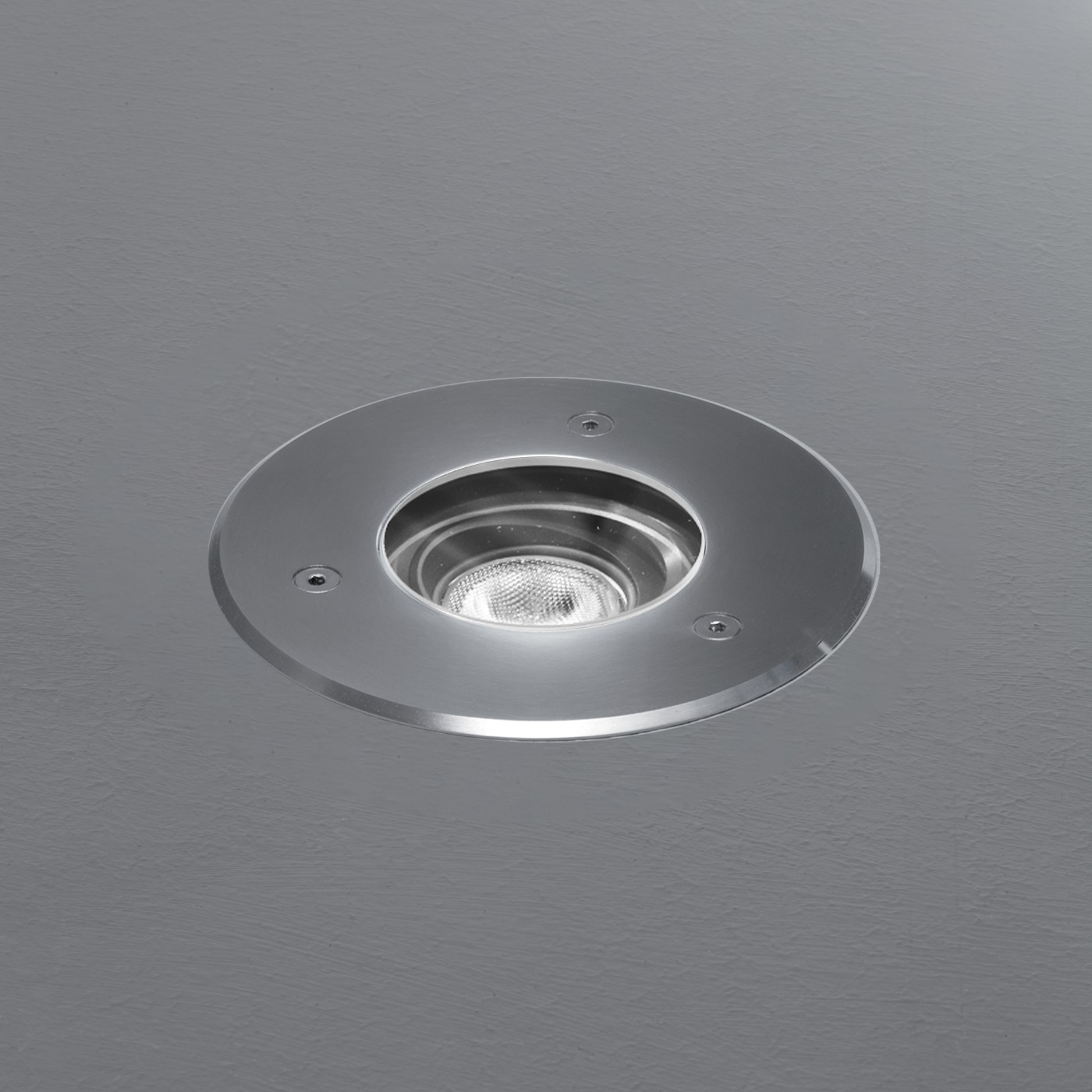

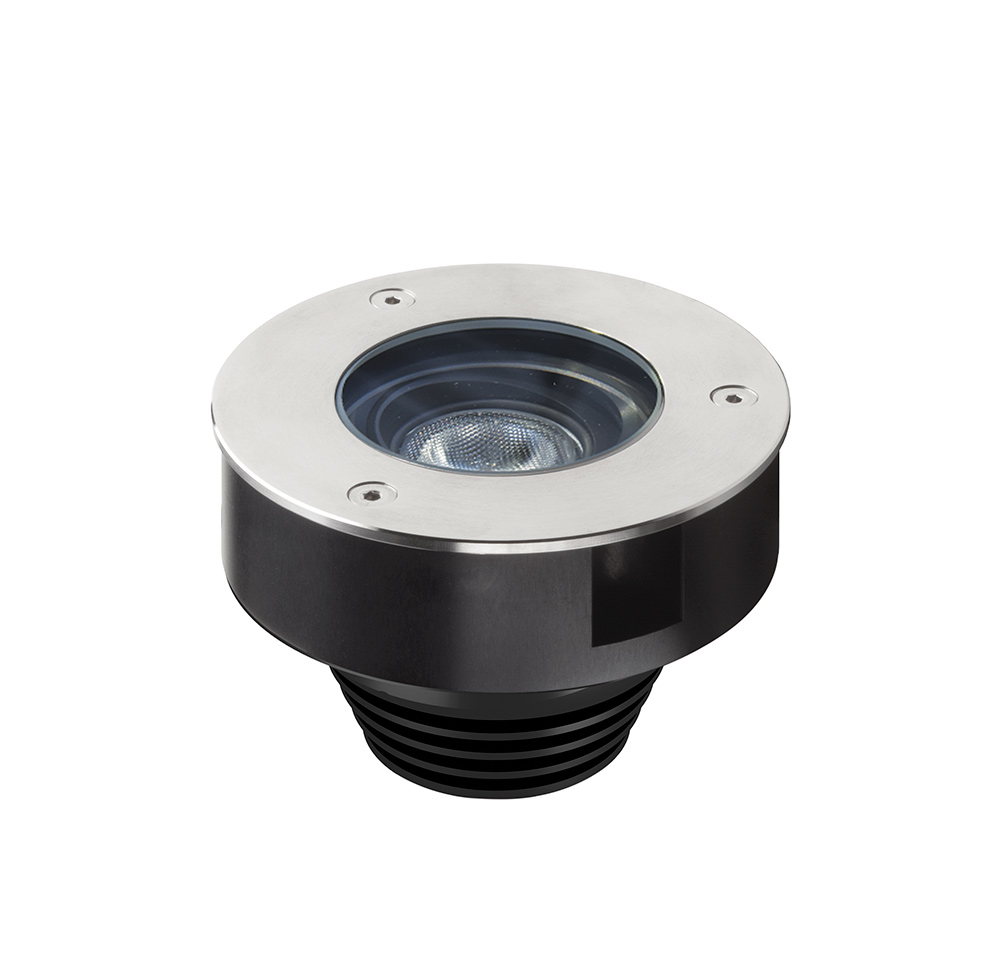

Merope 100 AD


Drive over uplight with adjustable light distribution

  • Drive over load of 3,5 tonnes

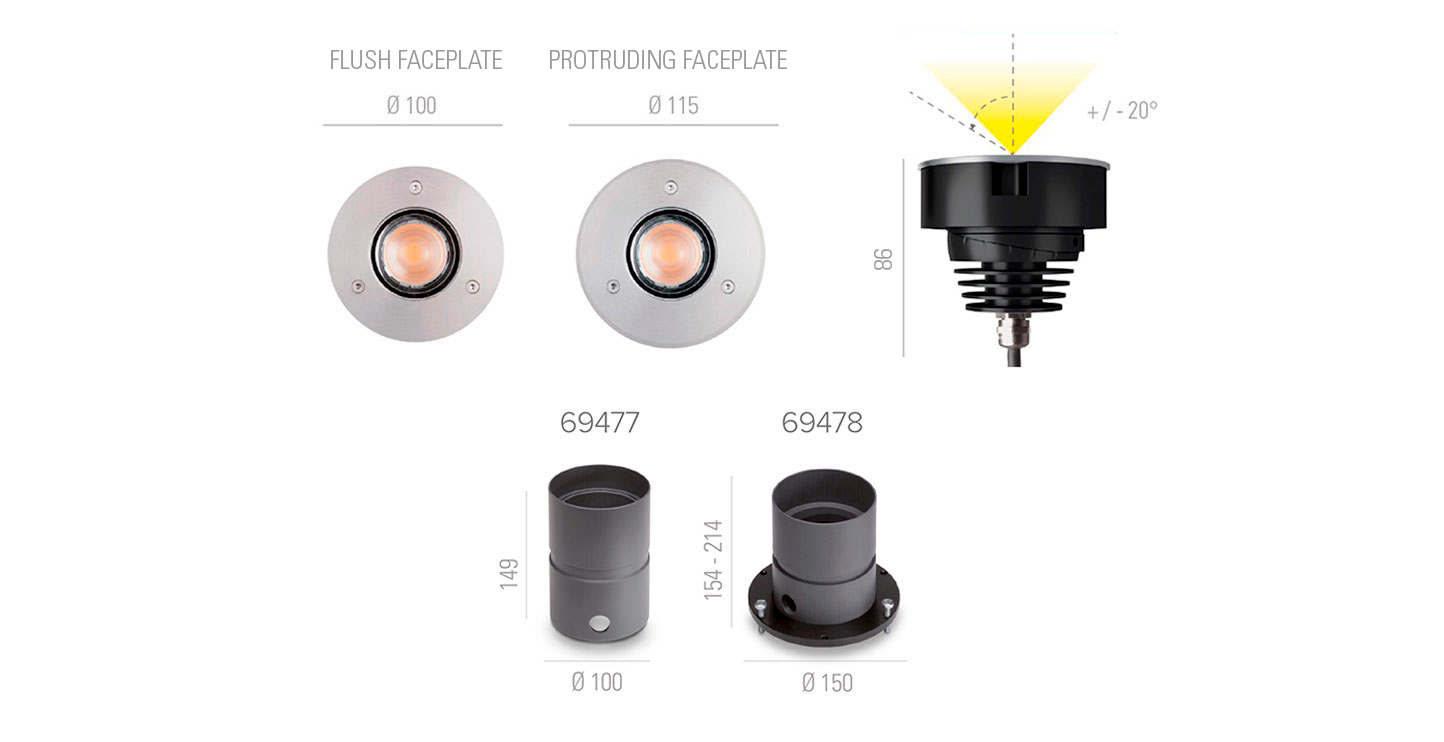

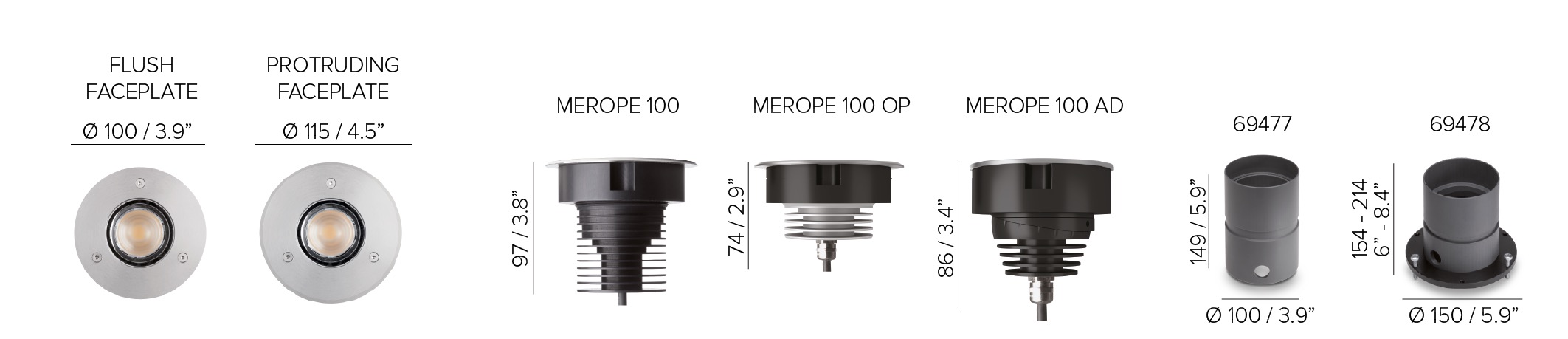

  • Diameter:flush faceplate 100 mm, protruding faceplate 115 mm
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture is installed without opening the optical compartment

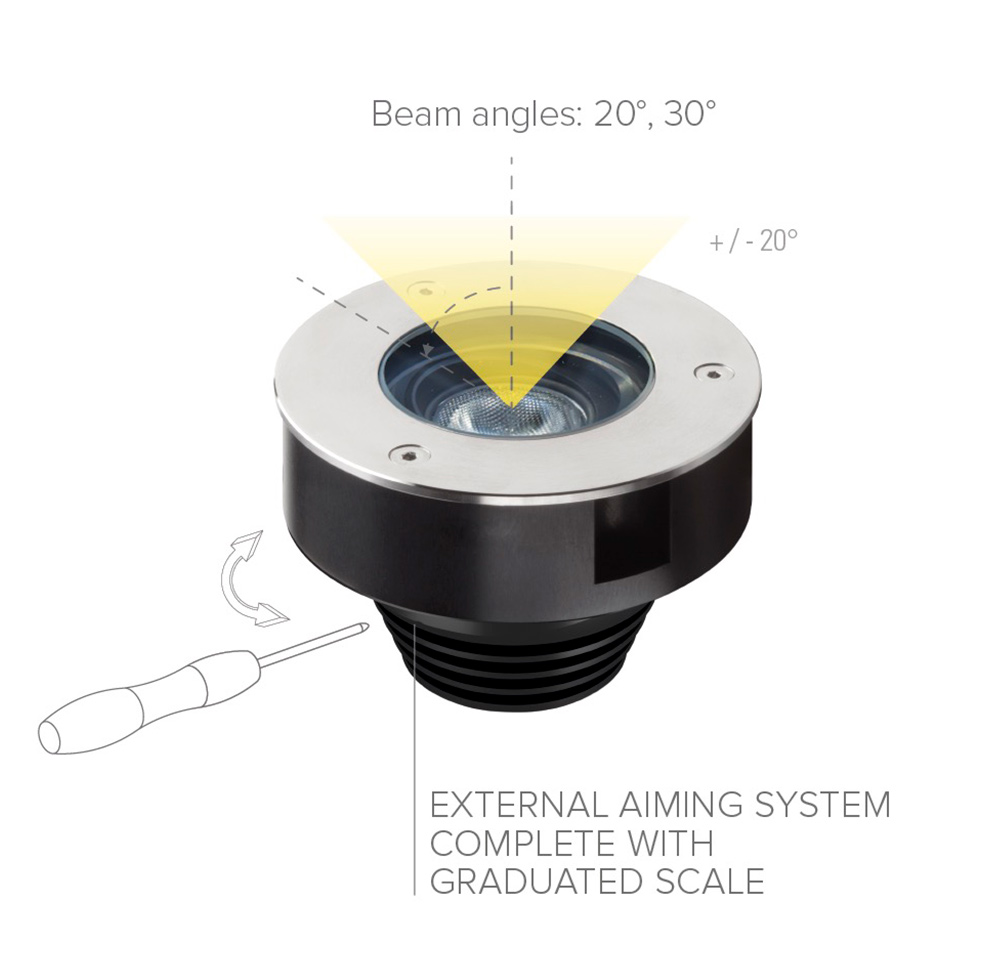

  • Beam angles: 20°and 30°. Tilt system from 0° to 20°allowing on site adjustment without opening the luminaire
  • Available color temperatures 2200K CRI80, 2700K CRI93 or 3000K CRI93
  • Wattage: 5W at 48V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60°C
  • 2 wires dimming : 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
