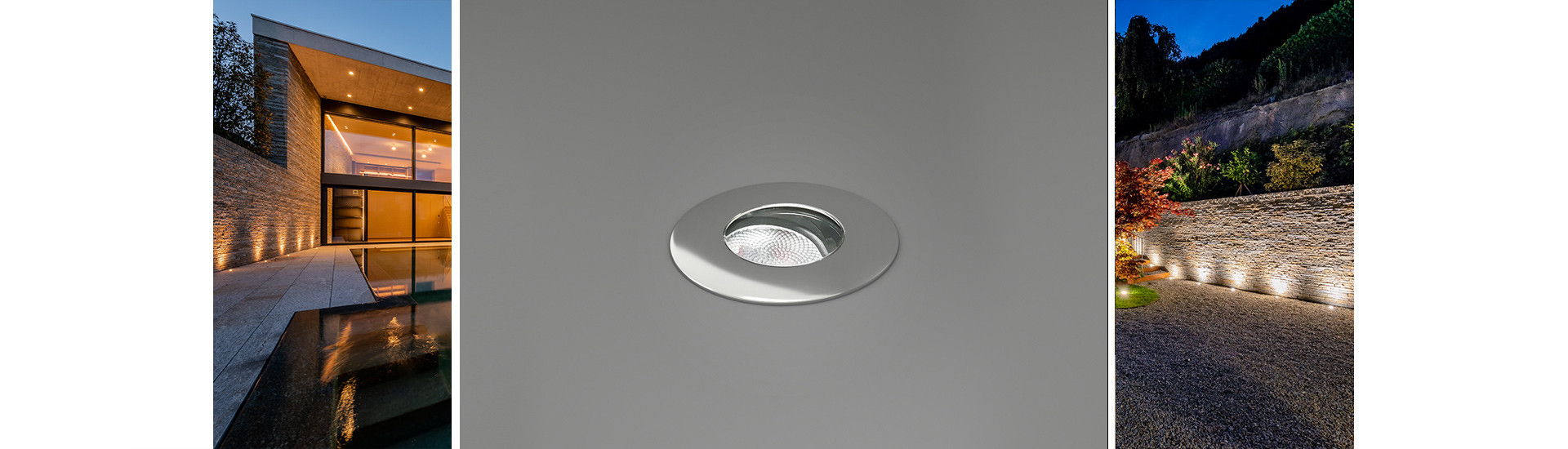

Walkover uplight with optics on a 10° tilt for low glare

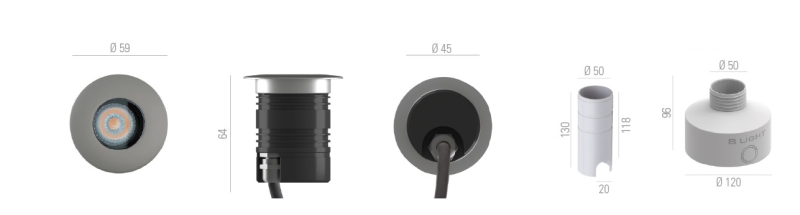

  • Diameter: 2.3″
  • Built in protection from water infiltration and moisture. Suitable for wet location
  • Beam angles: 20° and a 30°, on a 10° tilt for low glare. Honeycomb for visual comfort to be specifically ordered
  • Available with colour temperature of 2200K CRI80, 2700K CRI93 or 3000K CRI93
  • Wattage: 5W at 24V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140° F
  • Two wires dimming 0-10V. Other dimming options: push button, potentiometer, 0-10V, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 2108, CSA C22.2
