Merope 70

Drive over uplight

  • Drive over load of 3,5 tonnes

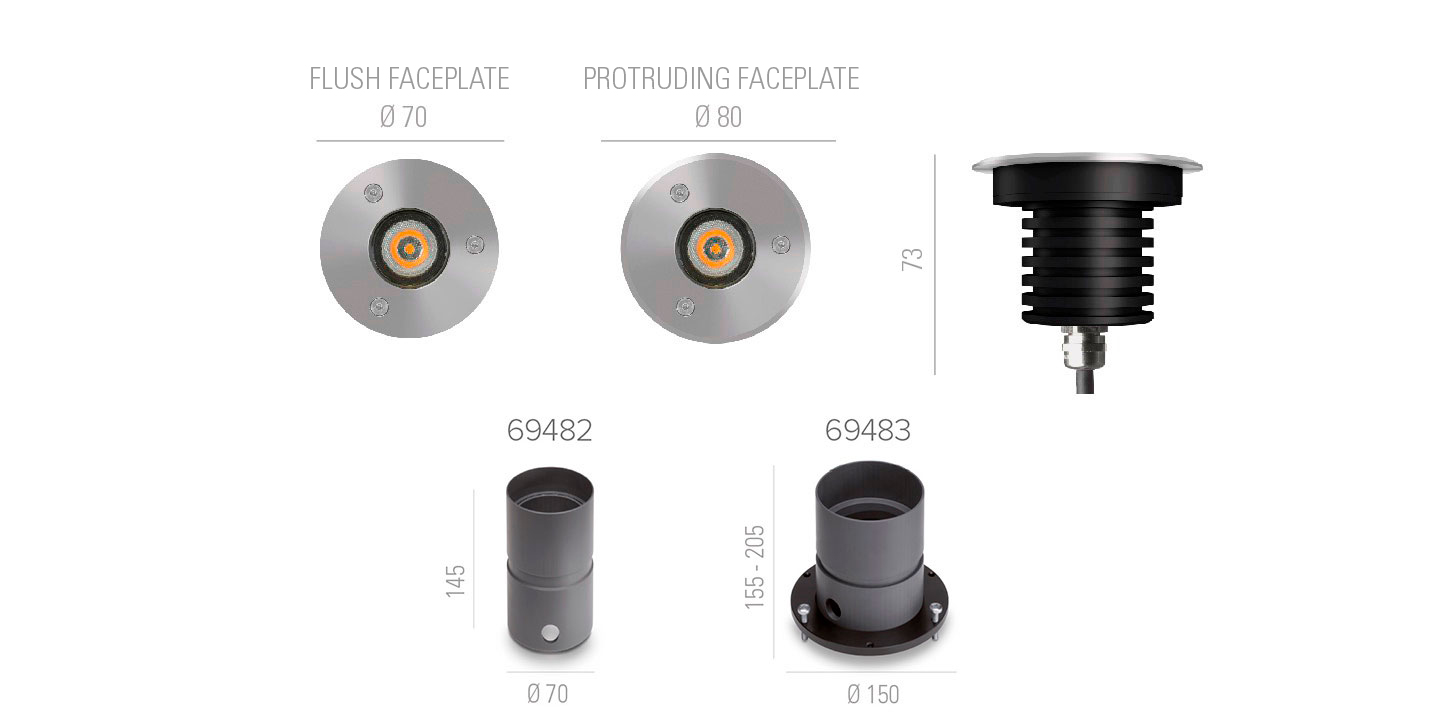

  • Diameter: flush faceplate 70 mm, protruding faceplate 80 mm
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture in installed without opening the optical compartment
  • Beam angles: 4°, 16°, 36°, 45°. Honeycomb for visual comfort included (4° with clear lens)
  • Available with colour temperature of 2200K CRI80, 2700K CRI93 or 3000K CRI93
  • Wattage: 5W at 48V DC, 4W at 48V DC for model 4°
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60° C
  • Two wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
