Inside 60 R

Glare free plaster-in downlight with symmetrical or asymmetrical reflector for indoor and outdoor use

  • Diameter 2.4’’
  • Height symmetrical model 2.8’’, height asymmetrical model 2.2’’
  • Mounting frame to be ordered separately, or height adjustable mounting frame for ceiling thickness from 0.4’’ to 1.2’’
  • Thanks to the design of the reflector, the luminaire is totally glare free

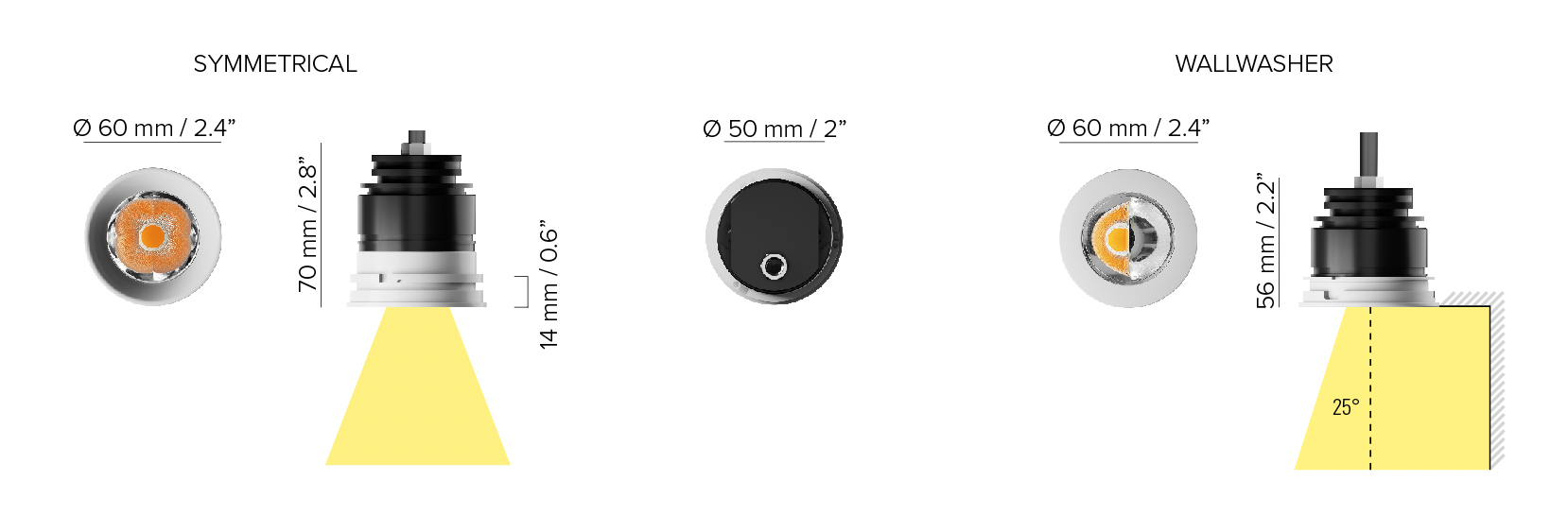

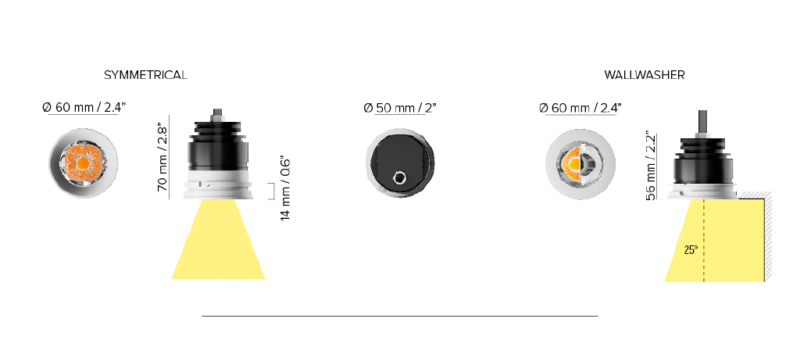

  • Available in two models: symmetrical reflector 50° (UGR < 19), 70° (UGR < 25) or asymmetrical reflector (wallwasher + 25°)
  • The asymmetrical model delivers 25° homogeneous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • The symmetrical model 50° or 70° concentrates 90% of the light within the aperture, delivering homogeneous light on the floor with no “corona effect” or visible double beam spreads
  • Extensive CCT range: 2200K CRI93, 2700K, CRI93, 3000K CRI93, Tunable White 1800K – 4000K
  • Wattage 6W at 350 mA
  • Dimming options – push button, potentiometer, 0-10V, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • Suitable for dry, damp or wet location
  • Standards: UL 1598, CSA C22.2
