Inside 80 SQ

Round plaster-in downlight with minimal visual impact. Indoor and outdoor use for a total integration with architecture

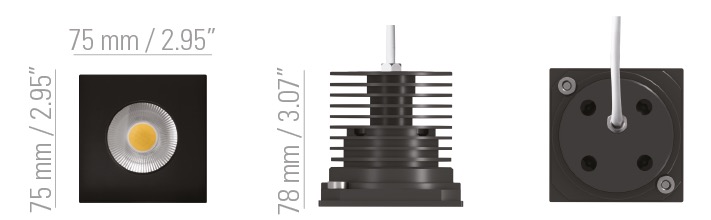

  • Dimension: 3.15”X3.15”
  • Completely trimless luminaire with recessed LED position and option of black internal reflector cup for minimal glare
  • Mounting frame for ceiling thickness of 1.18” to be separately ordered. Upon request mounting frame for plasterboard of different thickness
  • Features a selection of different optics: 28°, 38°, 50° with softening lens
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Lamp wattage: 12W at 48V DC and 350 mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to 140°F
  • Dimming options: push button, potentiometer, 0-10V, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Global IP40, optical housing IP44
  • Standards: UL 1598, CSA C22.2
