Inside 60 R

Round plaster-in downlight with minimal visual impact. Indoor and outdoor use for a total integration with architecture

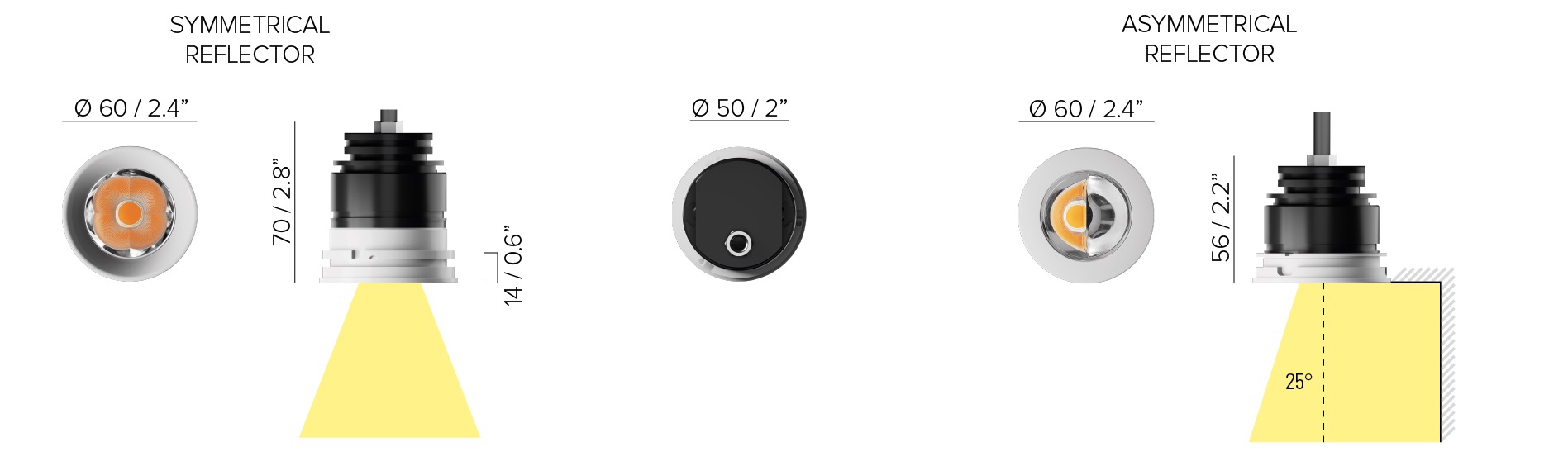

  • Diameter: 60 mm
  • Available in two models: INSIDE 60 R (IP40) e INSIDE 60 R (IP65)

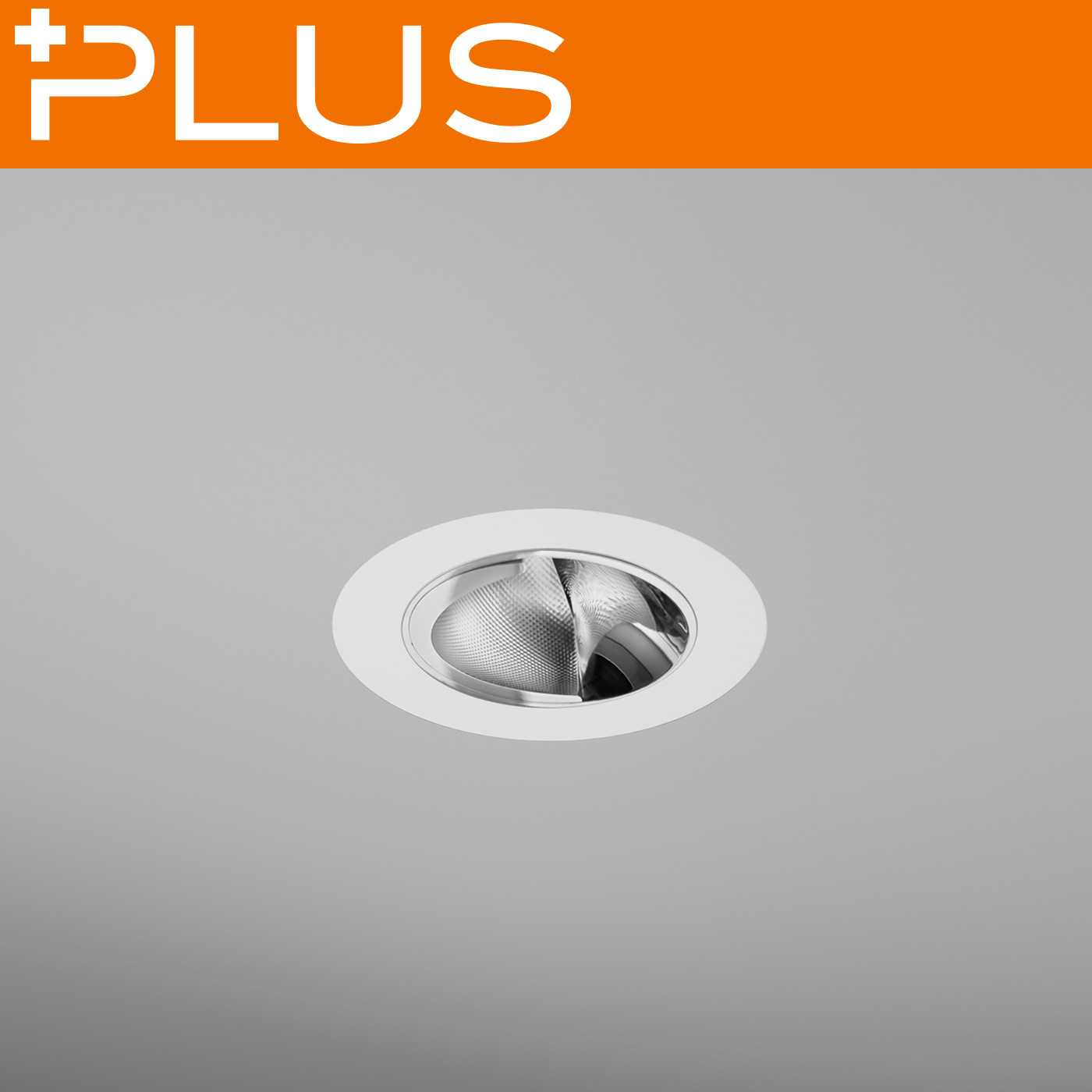

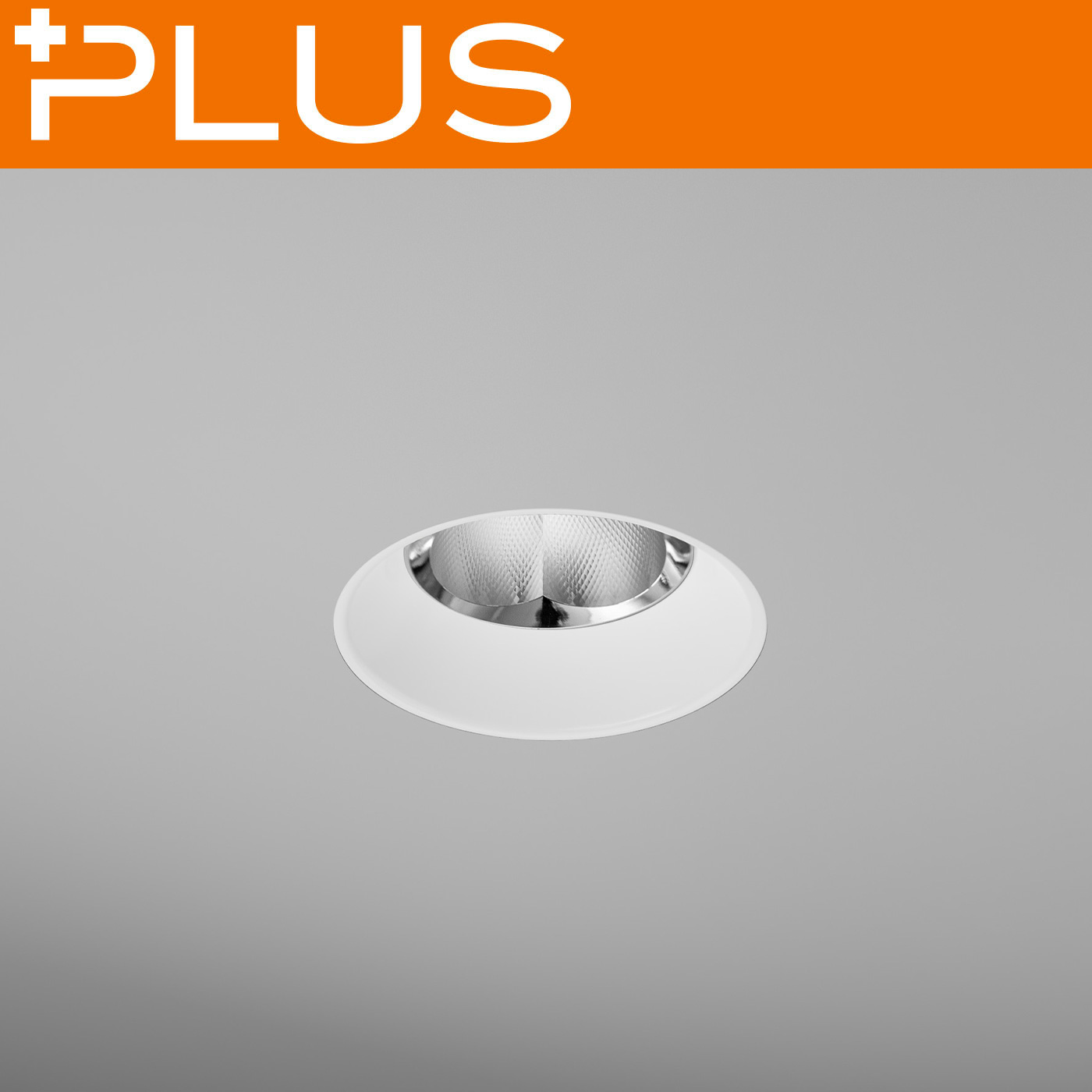

  • Completely trimless luminaire with recessed LED position and option of black internal reflector cup for minimal glare

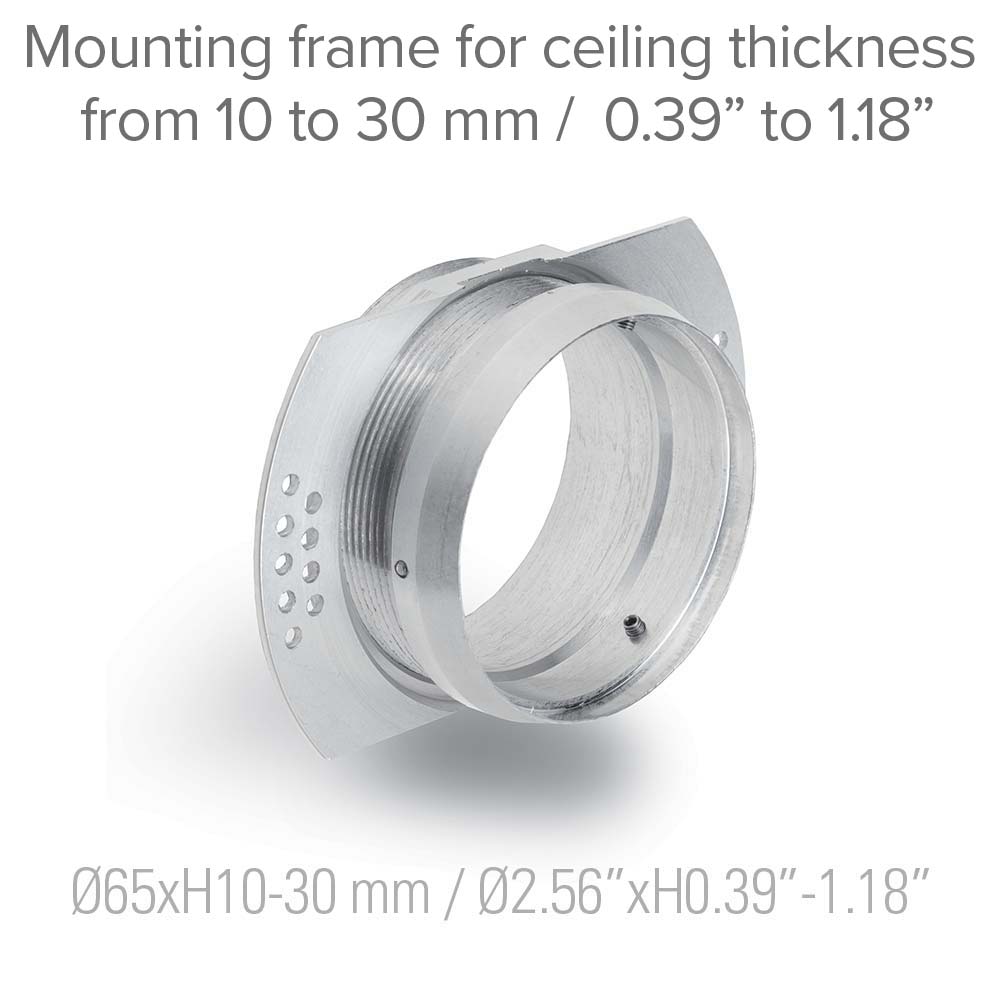

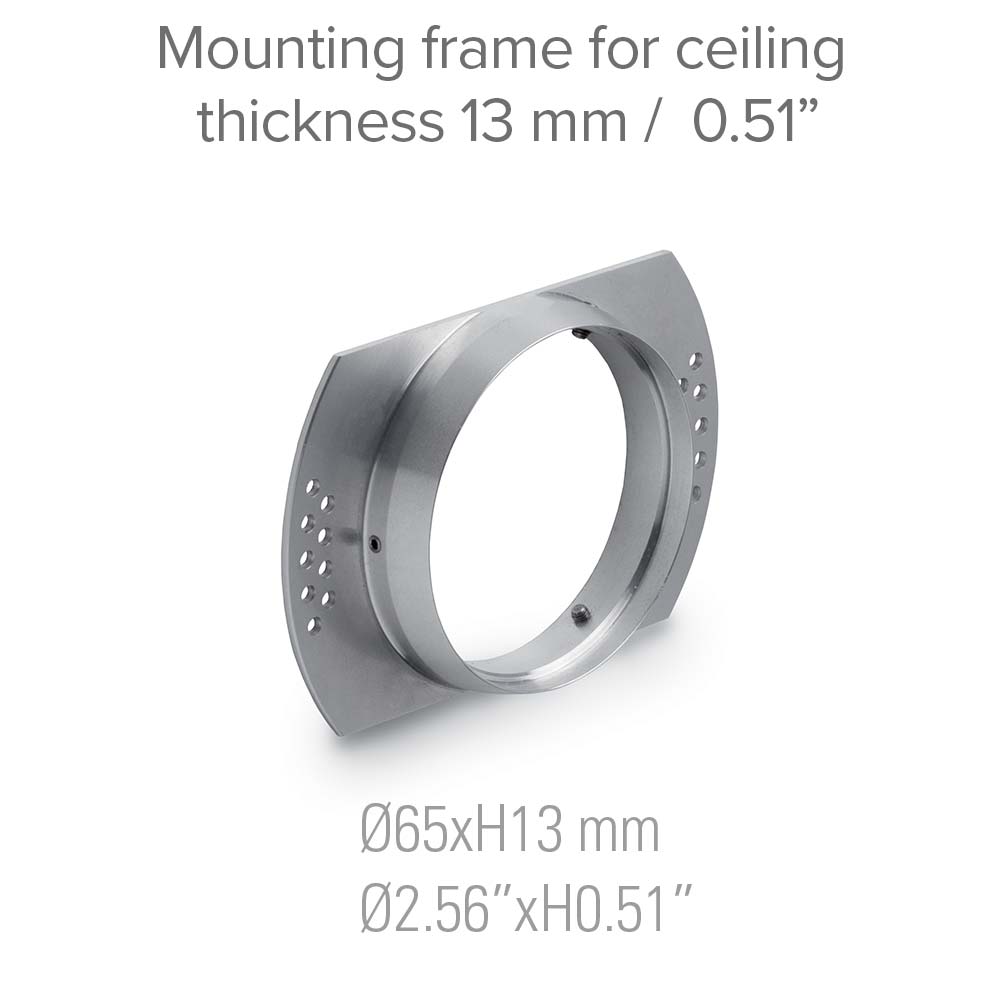

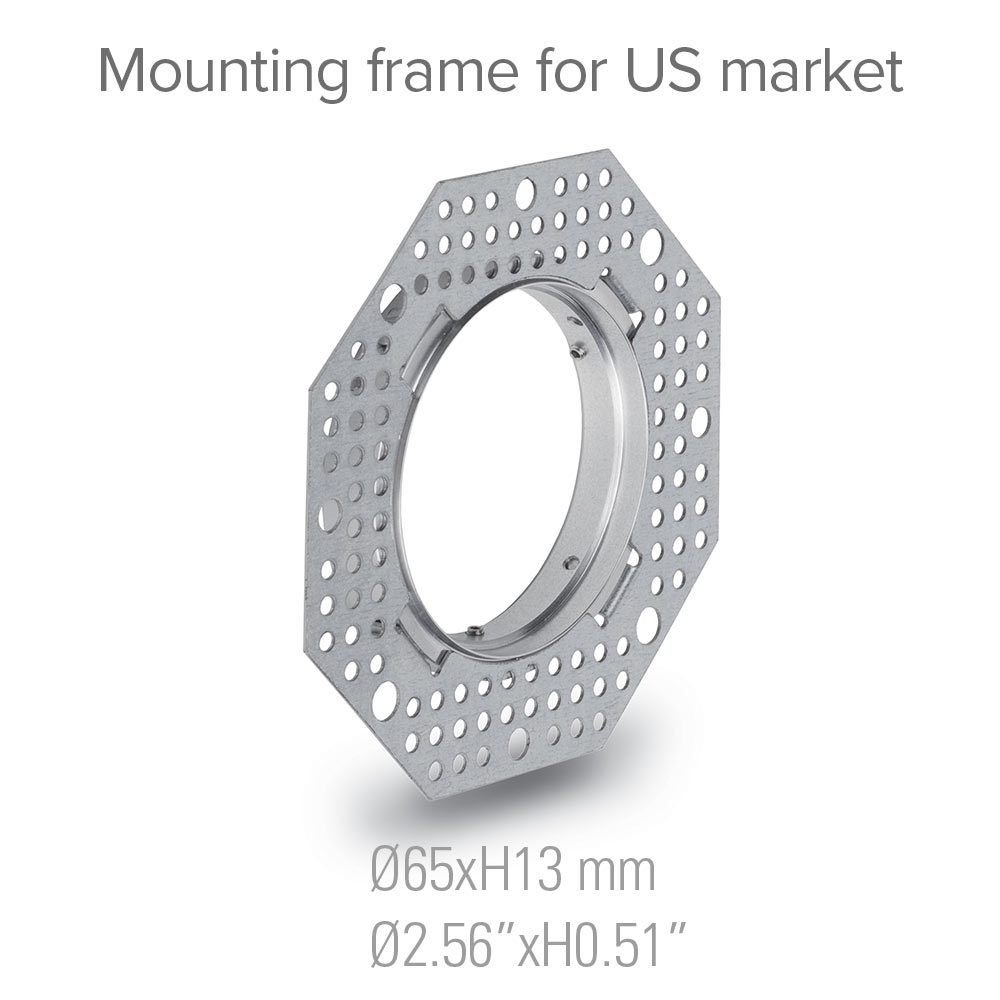

  • Mounting frame for ceiling thickness of 13 mm to be separately ordered. Upon request mounting frame for plasterboard of different thickness
  • Features a selection of different optics: 16°, 36° and 45°
  • Available in colour temperatures of 2200K CRI93, 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Lamp wattage: INSIDE 60 R (IP40): 6W at 48V DC and 500 mA – INSIDE 60 R (IP65): 4,5W at 48V DC and 350 mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C
  • Dimming options: push button, potentiometer, 0-10V, DALI, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP40/IP65
