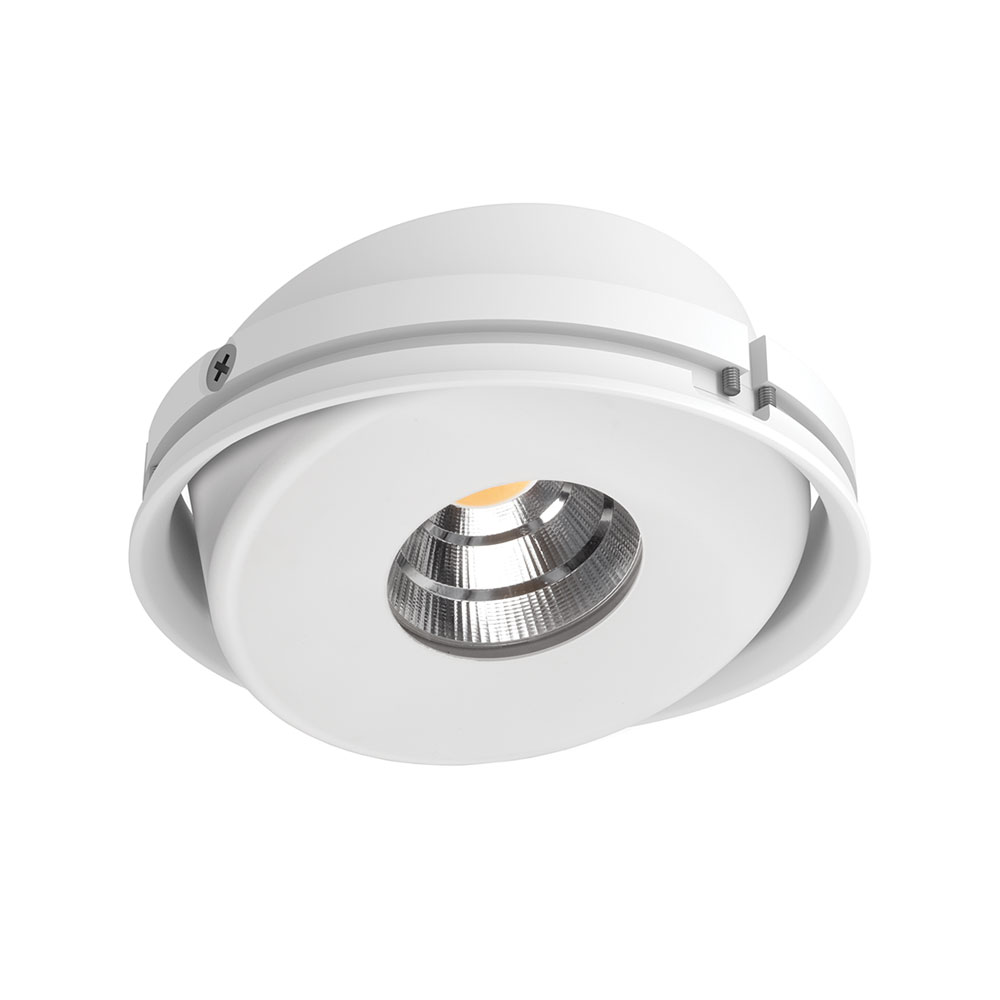

Mushroom Small PL

Trim-less adjustable downlight

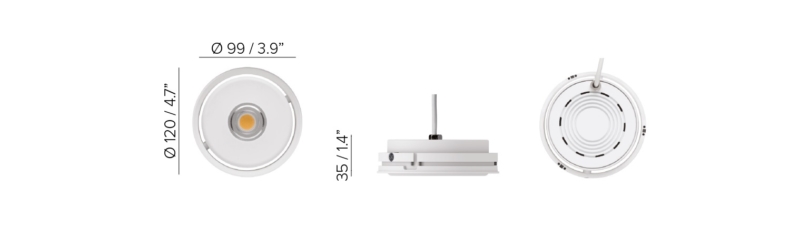

  • Diameter: 4.7”
  • Thanks to the height of only 1.4”, it is particularly suitable for ceilings with limited available depth
  • The optical system can be rotated by 120° around the vertical axis. Inclination angle adjustable from below 0° to 30°
  • Mounting in plasterboard or millwork using mounting frame
  • Features a selection of different optics: 24°, 32° and 50° with softening lens
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Lamp wattage: 12W at 48V DC and 350mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C
  • Dimming options: push button, potentiometer, 0-10V, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Suitable for dry location
  • Standards: UL 2108, CSA C22.2
