INSIDE 75 R


Glare free trim-less downlight with symmetrical or asymmetrical reflector for indoor and outdoor use

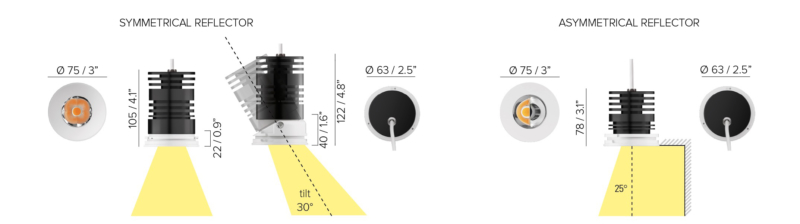

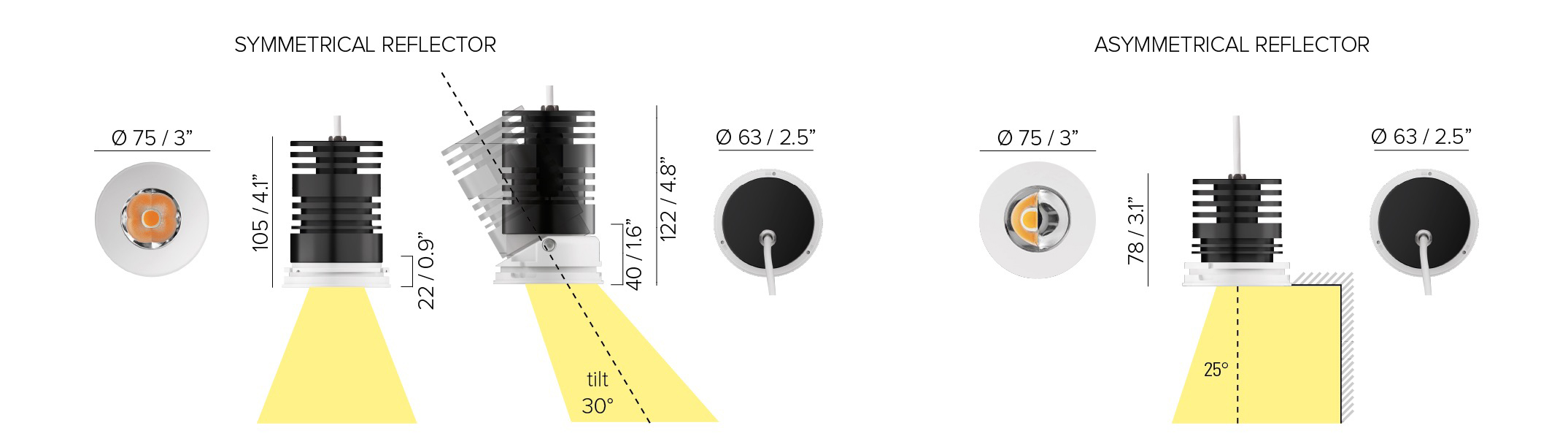

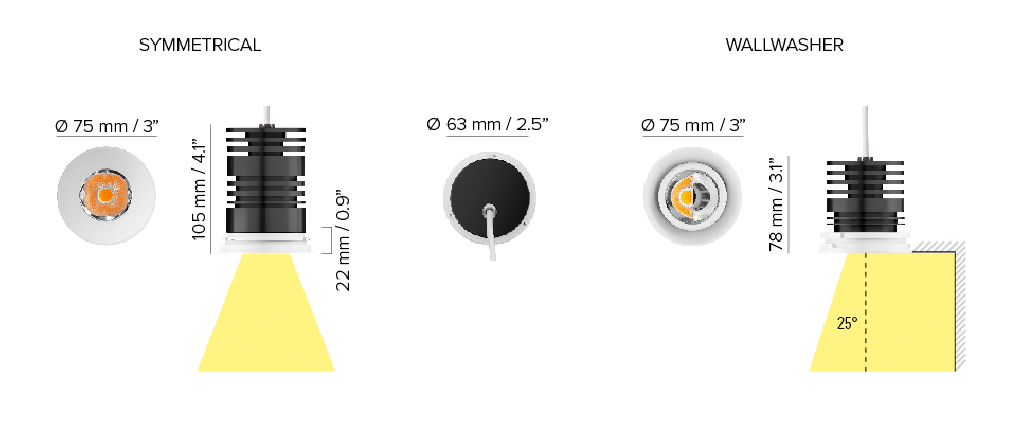

  • Diameter 2.9’’
  • Height symmetrical model 4.1’’, height asymmetrical model 3.1’’
  • Mounting in plasterboard or millwork using mounting frame
  • Thanks to the design of the reflector, the luminaire is totally glare free
  • Available in three models: symmetrical reflector 30° (UGR < 10), 50° (UGR < 19), 70° (UGR < 25),  asymmetrical reflector (25° + wallwasher) or adjustable up to 30° with symmetrical reflector 30° (UGR < 10)
  • The asymmetrical model delivers 25° homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • The symmetrical model 30°, 50° or 70° concentrates 90% of the light within the aperture, delivering homogeneous light on the floor with no “corona effect” or visible double beam spreads
  • Extensive CCT range: 2200K CRI93, 2700K, CRI93, 3000K CRI93, Tunable White 1800K – 4000K
  • Wattage 10W at 500 mA
  • Dimming options – push button, potentiometer, 0-10V, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • Suitable for dry, damp or wet location
  • Standards: UL 2108, CSA C22.2
