Agena

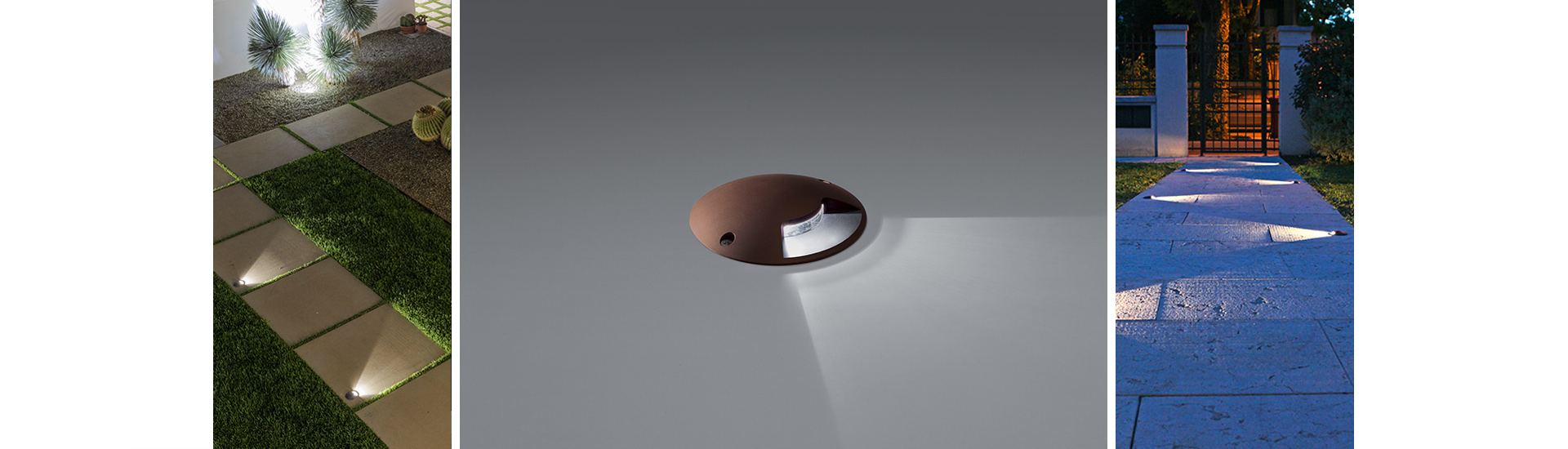

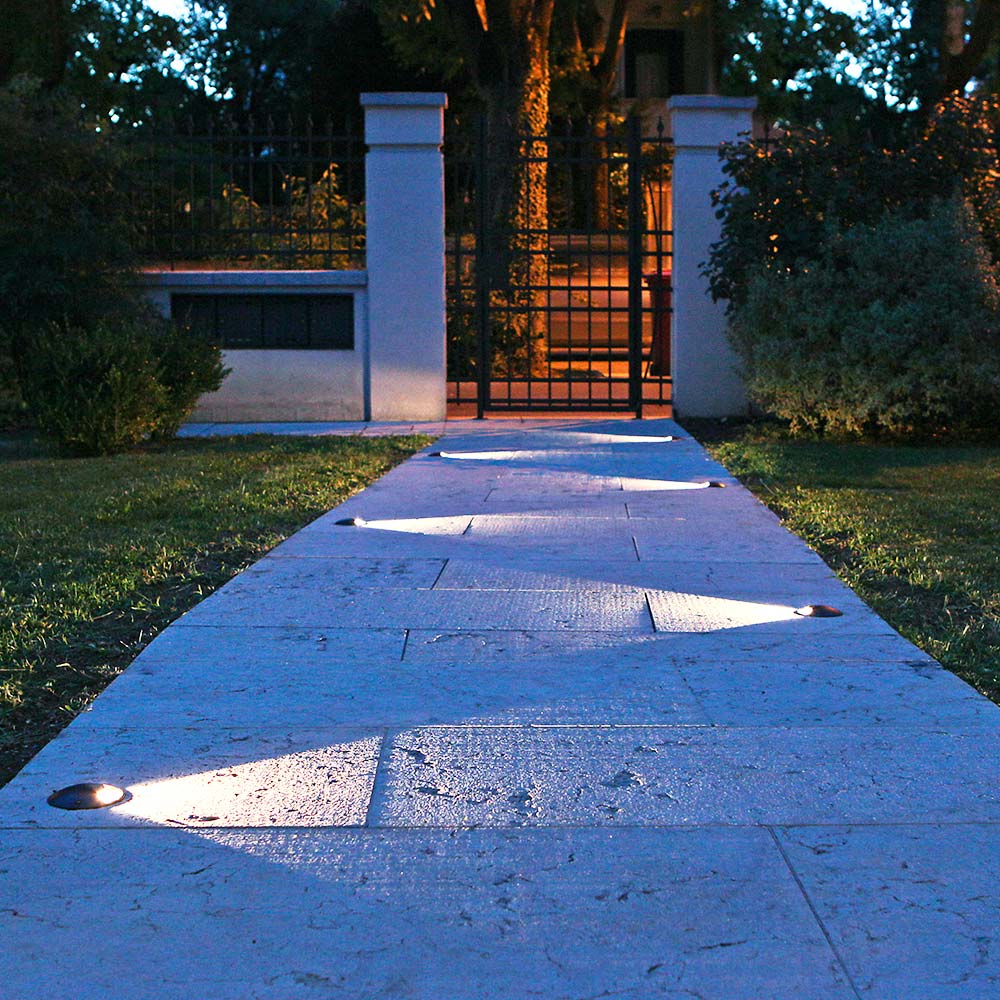

In-grade grazing luminaire with one light sector 90°, two light sectors 90°, one light sector 180°

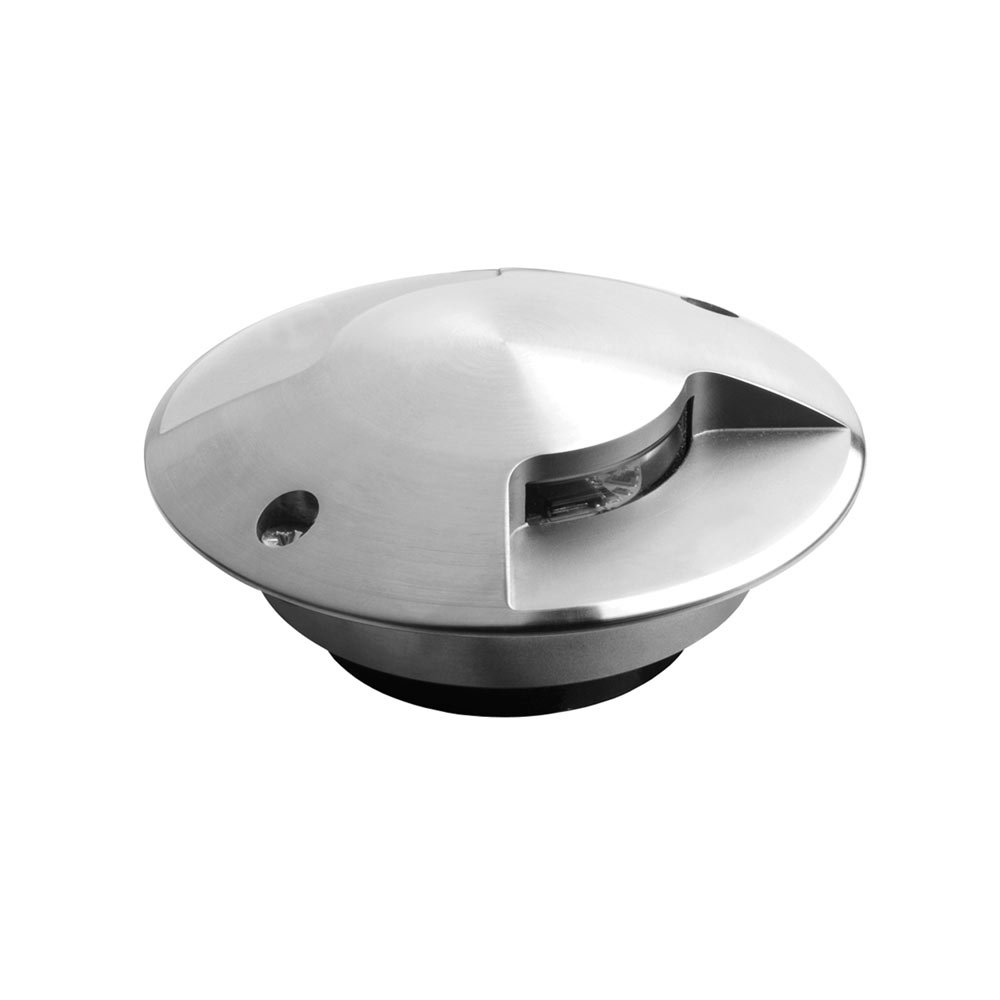

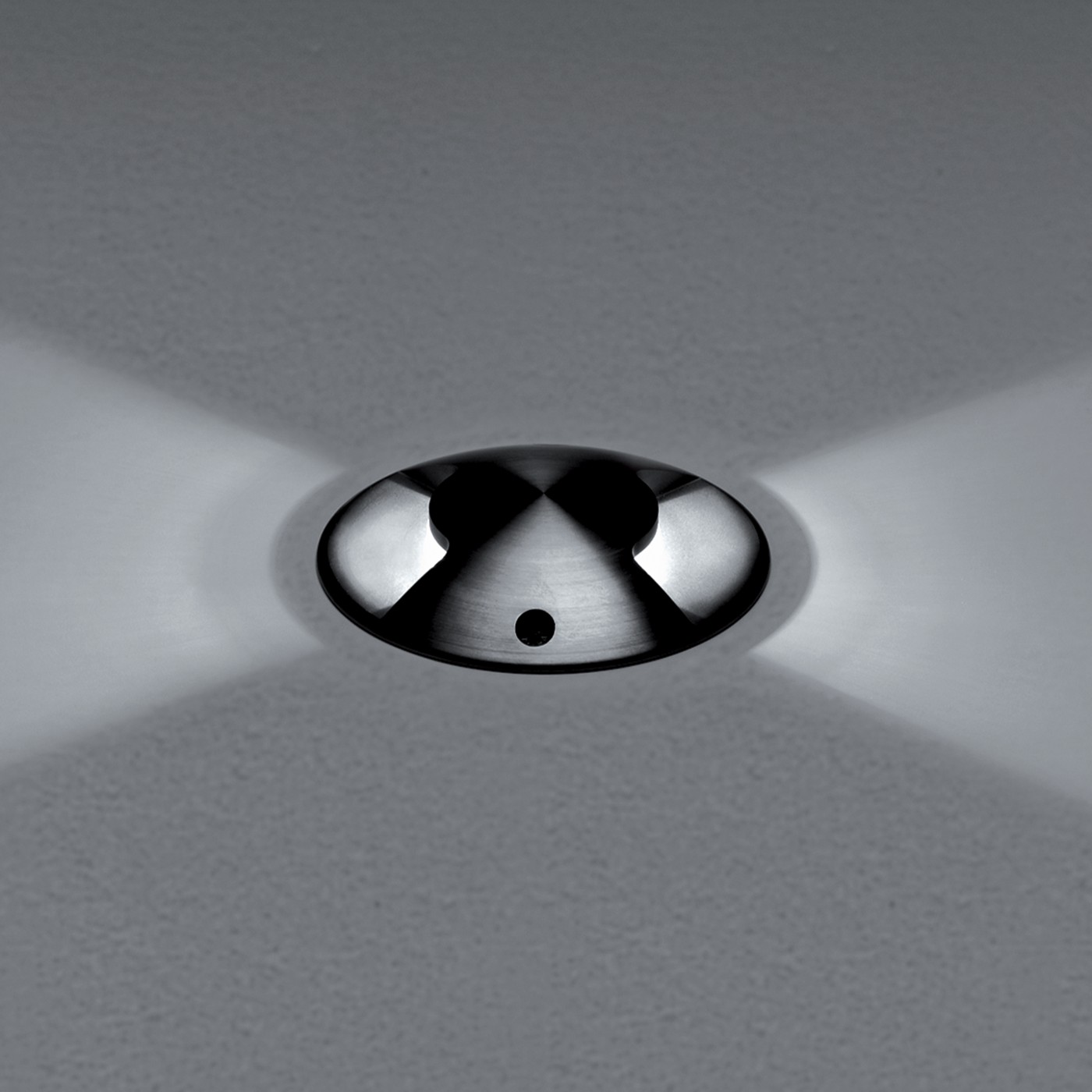

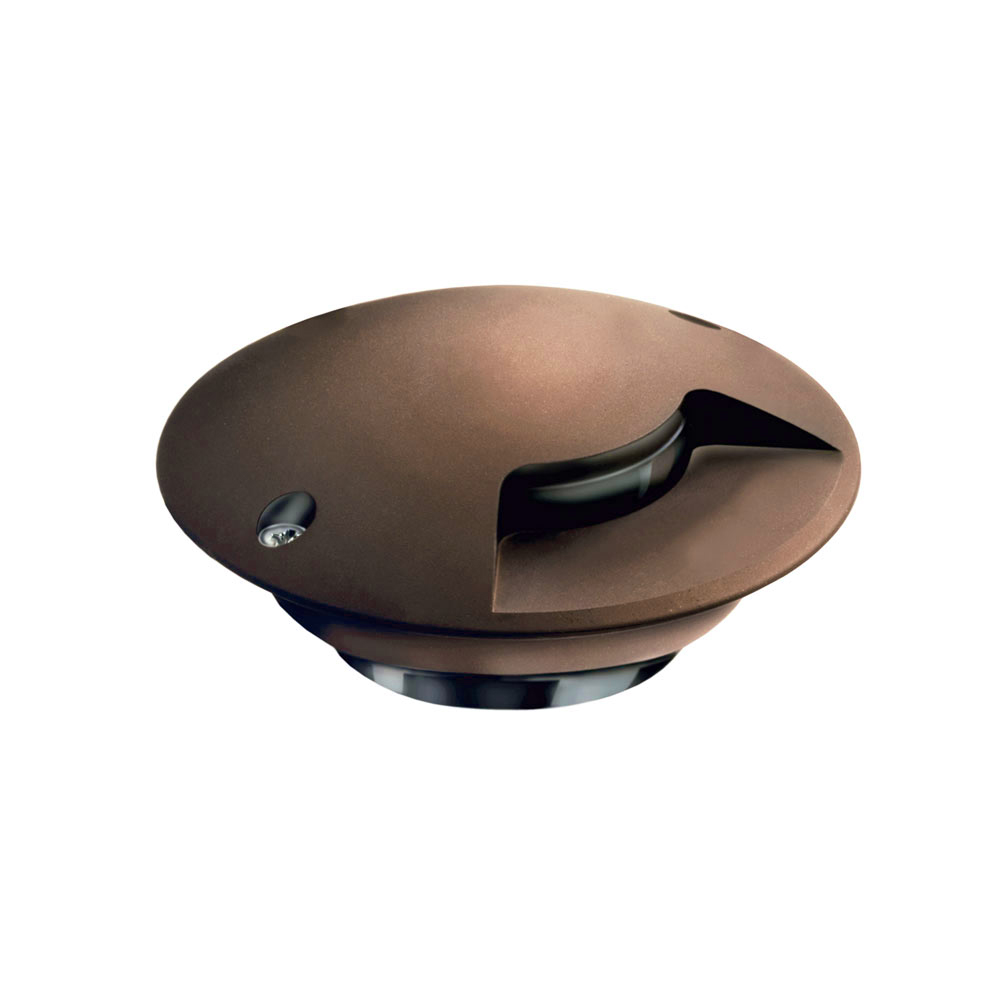

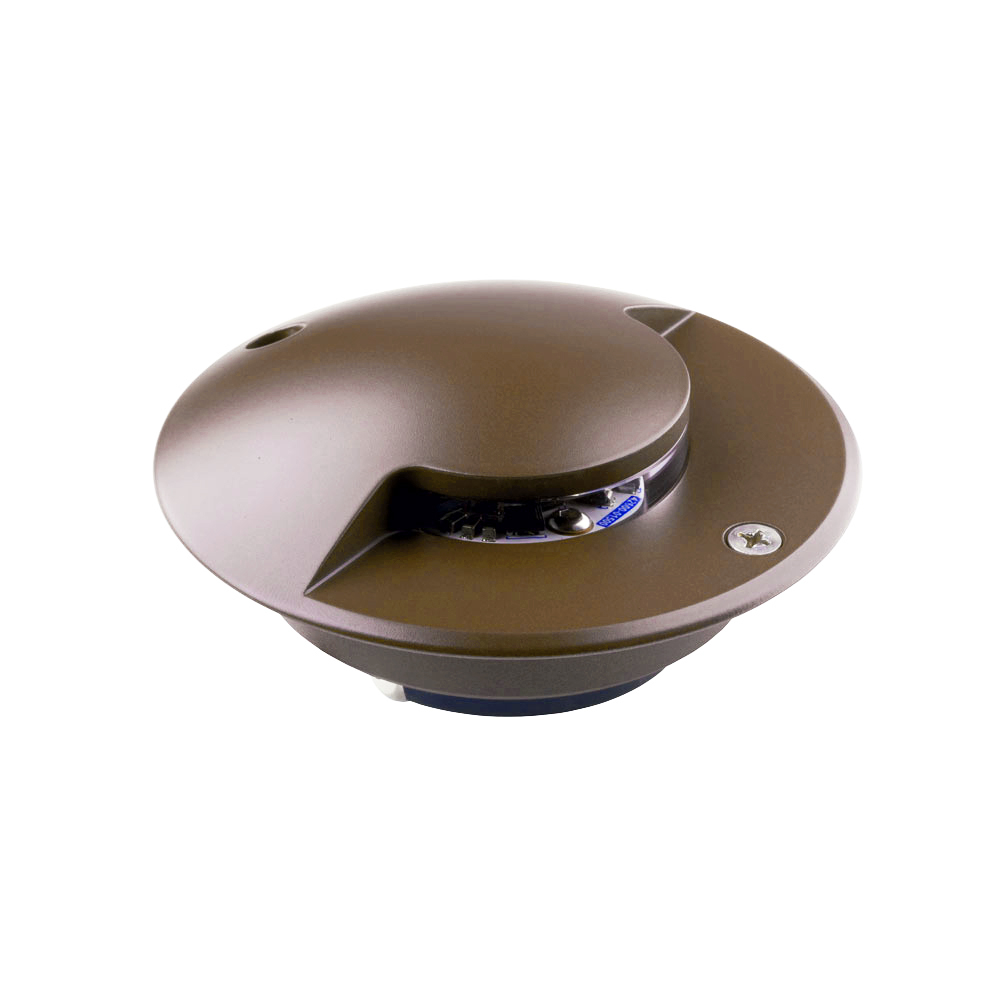

  • Available in three versions: AGENA 1 – one light sector 90°, AGENA 2 – two light sectors 90°, AGENA 180 – one light sector 180°
  • Drive over load of 4,000 lbs
  • Very shallow fixture, only 2″

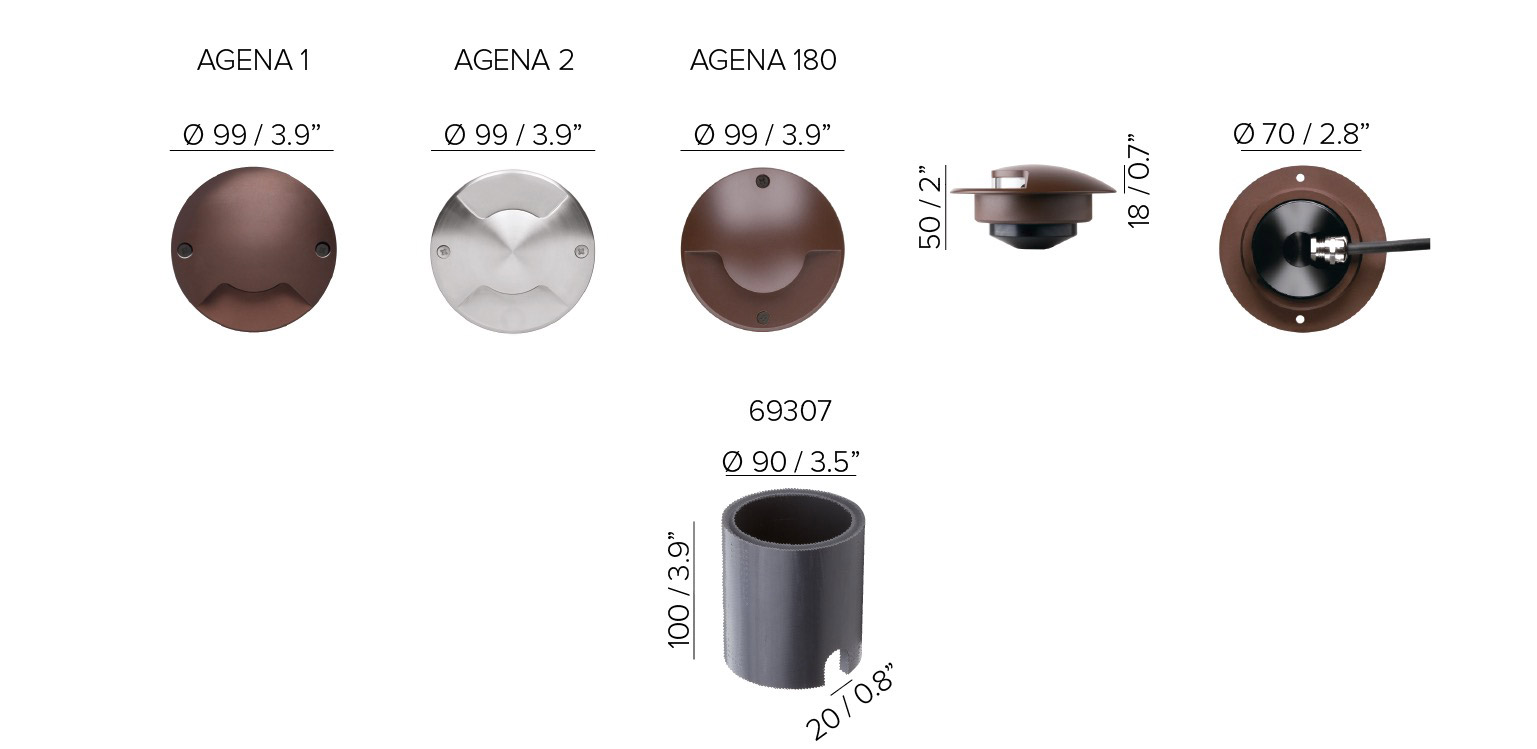

  • Diameter: 3.9”
  • Built in protection from water infiltration and moisture. Suitable for wet location
  • With the stainless steel finishing it can be installed in the most challenging exterior environments
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 3W at 24V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140° F
  • Two wires dimming: 0-10V, DALI. Other dimming options: push button, potentiometer, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 2108, CSA C22.2
