NICOLE

Innovative trimless downlight with symmetrical or wallwasher reflector specifically designed for corridors

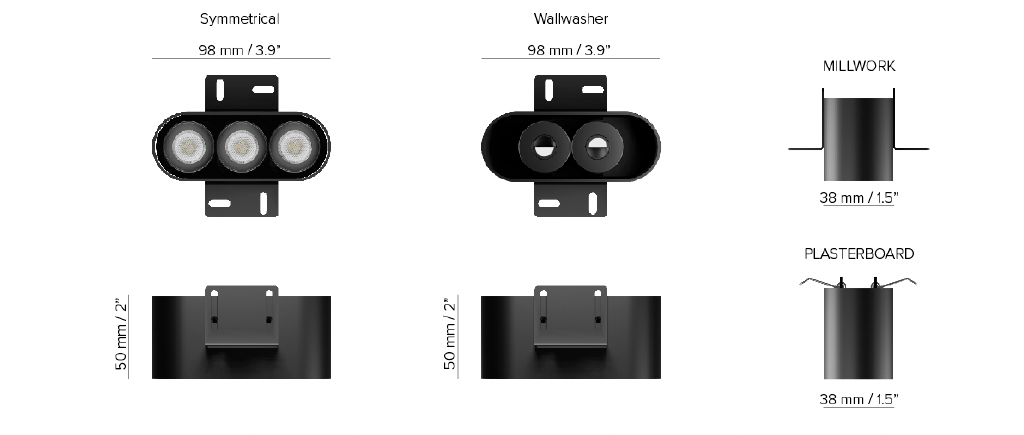

  • Width 3.8”, height 2”
  • Available in two models: for plasterboard using mounting frame to be installed from below or for wood, stone or composite materials mounting the fixture from above the ceiling
  • When mounting on wood, stone or composite materials, the fixture can be flush with the ceiling or protruding up to 0.3”
  • Available in two models: symmetrical 15°, 34°, 40° or wallwasher (25° and wallwasher)
  • The wallwasher model is ideal for corridors, which require both walls to be illuminated to give depth and improve the perception of space. Nicole delivers 25° on the floor and simultaneously a wallwasher effect on both vertical surfaces at the same time. The walls are perfectly illuminated from the upper edges, with no visible light scallops, giving the perception that the space is larger and more comfortable
  • Three options for the wallwasher model: two lights towards the same wall or two lights towards opposite walls or three lights towards three walls
  • 2700K CRI93, 3000K CRI93 or 4000K CRI93 static white options or red light for navigation
  • Wattage: 6W/9W at 900mA (3W per light aperture). 700mA for red light for navigation
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • Wallwasher: suitable for dry location. Symmetrical: suitable for dry, damp and wet location
  • Standards: UL 2108, CSA C22.2
