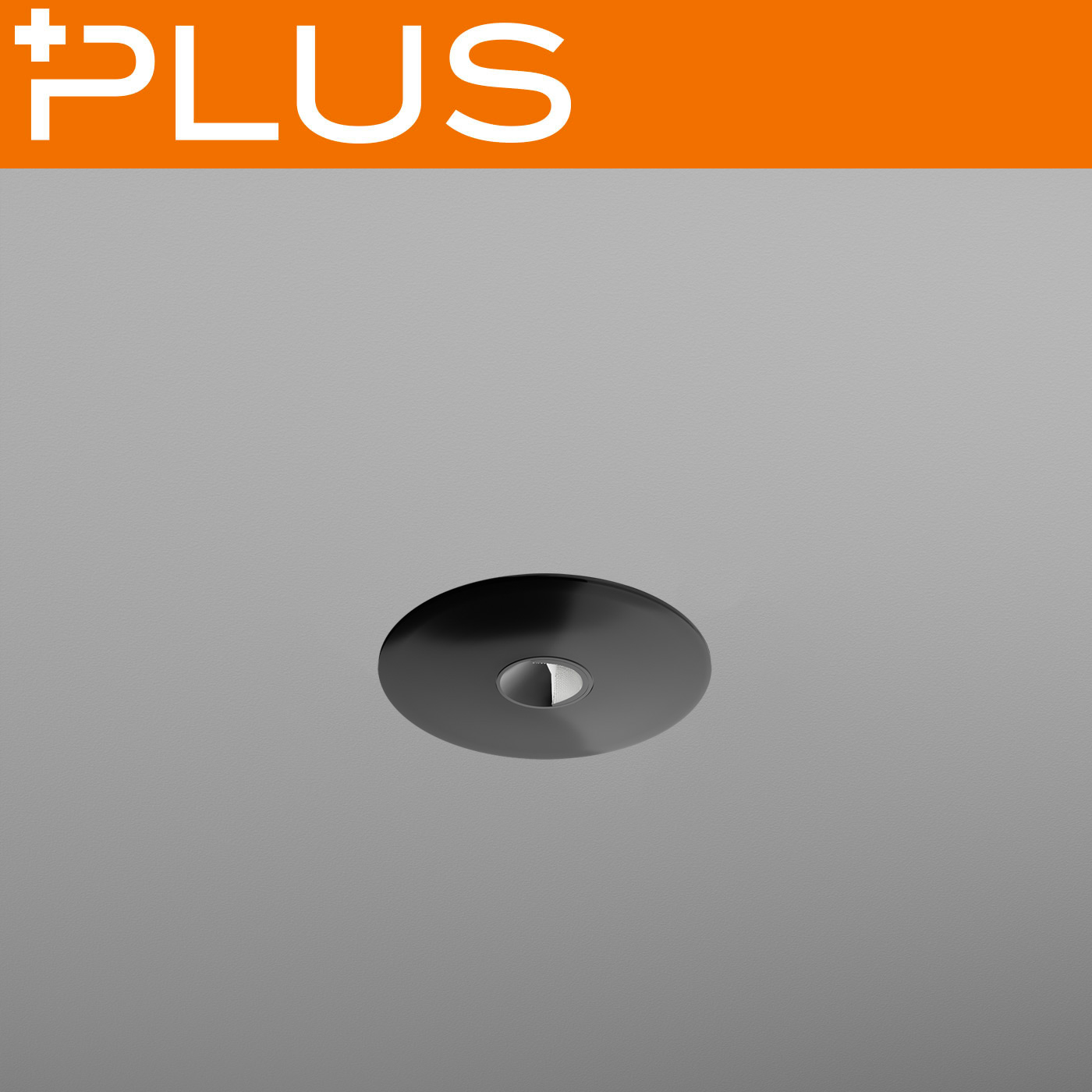

DOT 45

Compact glare free downlight with symmetrical or asymmetrical reflector

  • Diameter 45 mm, height 32 mm
  • The light aperture has a diameter of only 13 mm
  • Thanks to the design of the reflector, the luminaire is totally glare free

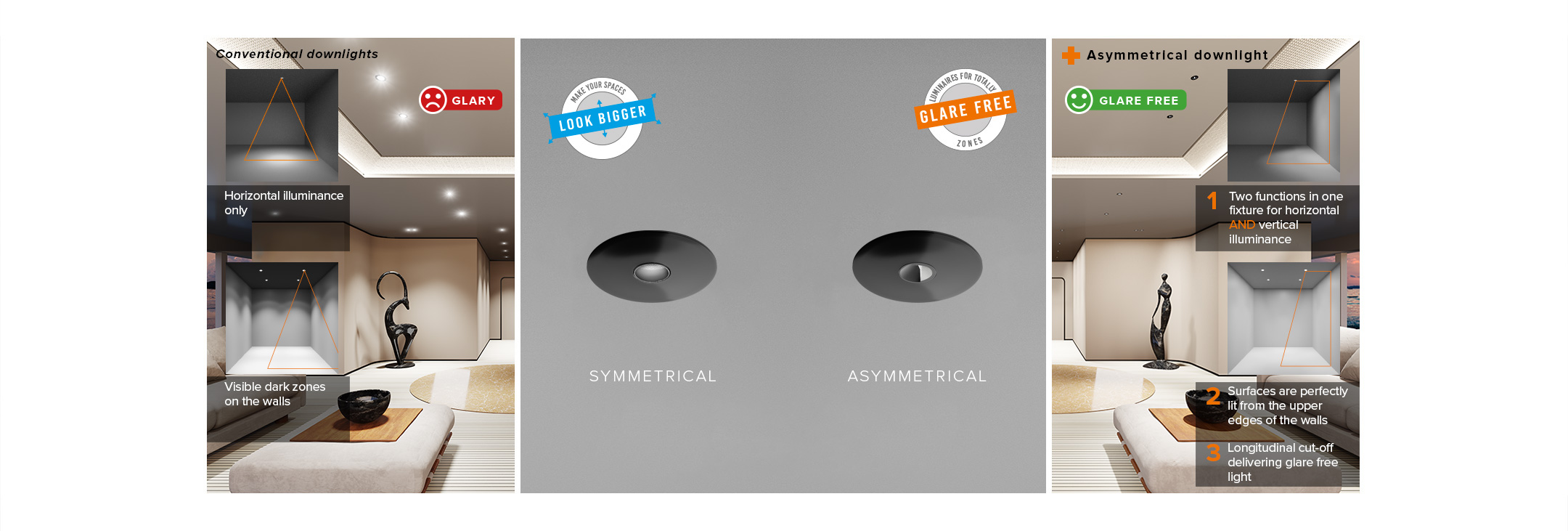

  • Available in two models: symmetrical reflector 40° (UGR < 19) or asymmetrical reflector (25° + wallwasher)
  • The asymmetrical model delivers homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • The symmetrical model 40° concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” or visible double beam spreads
  • Available with colour temperatures of 2700K CRI93, 3000K CRI93 or 4000K CRI93
  • Wattage 3W
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • IP30
