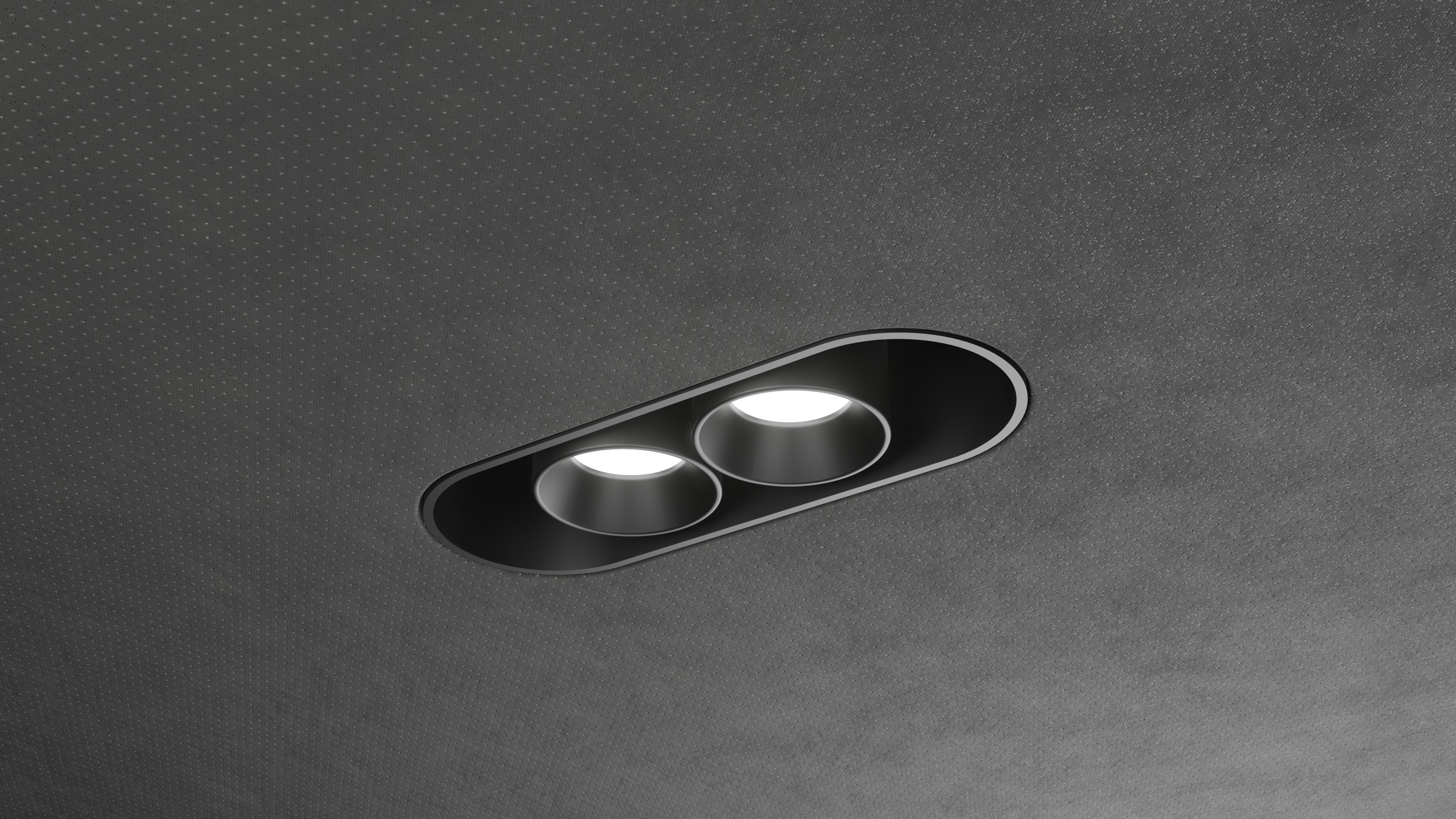

Trimless downlight for indoor and outdoor use

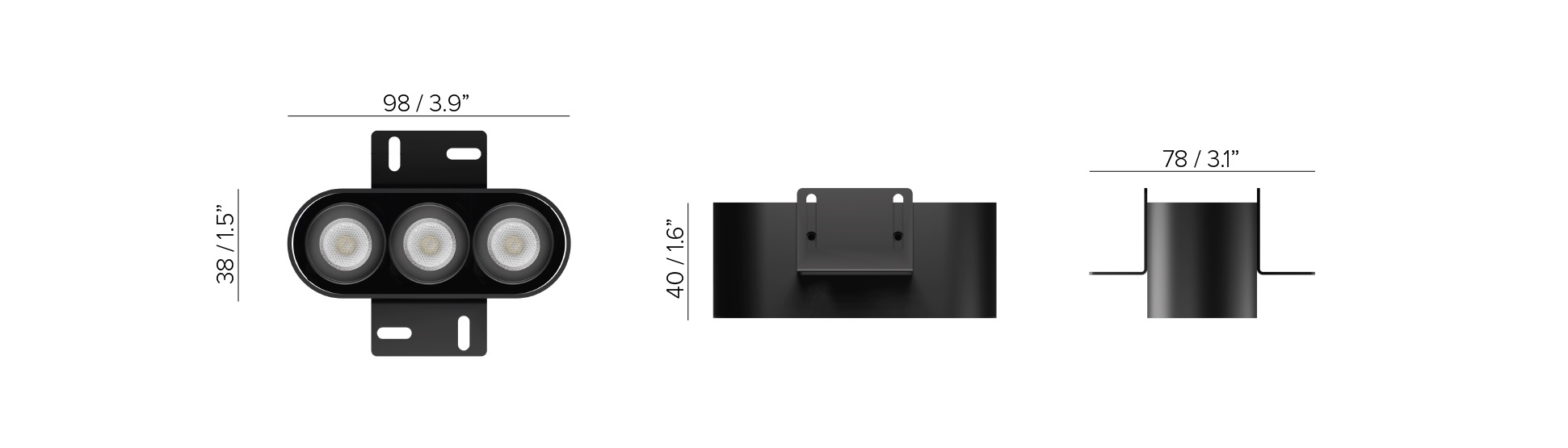

  • Width 98 mm, height 38 mm

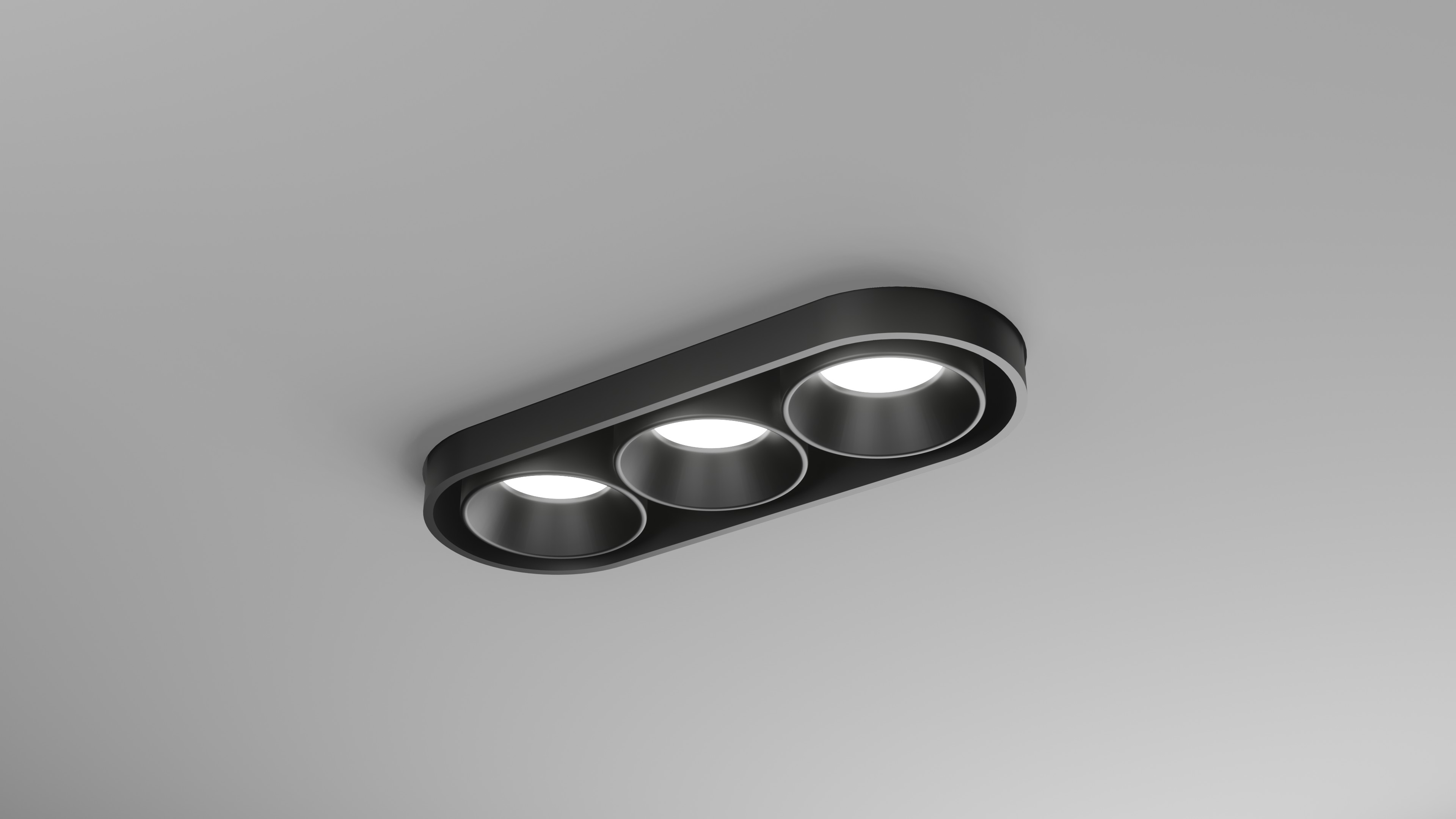

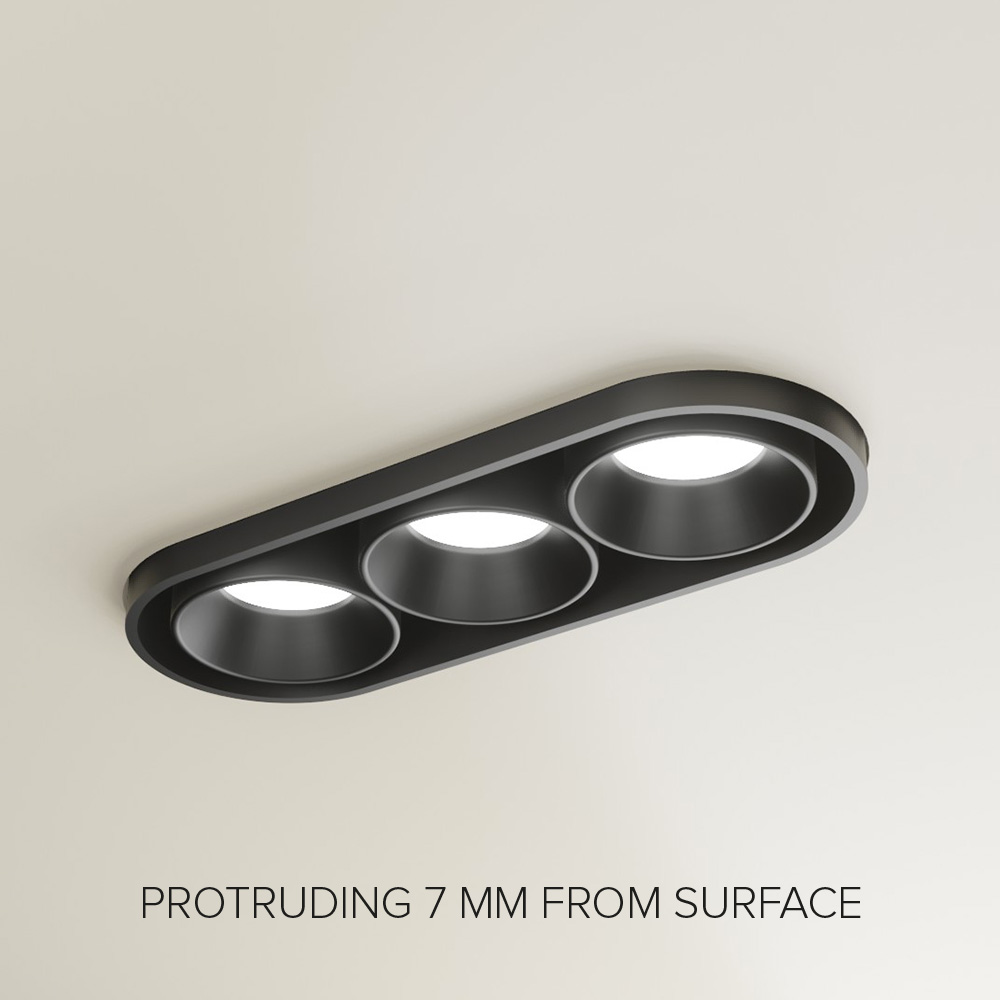

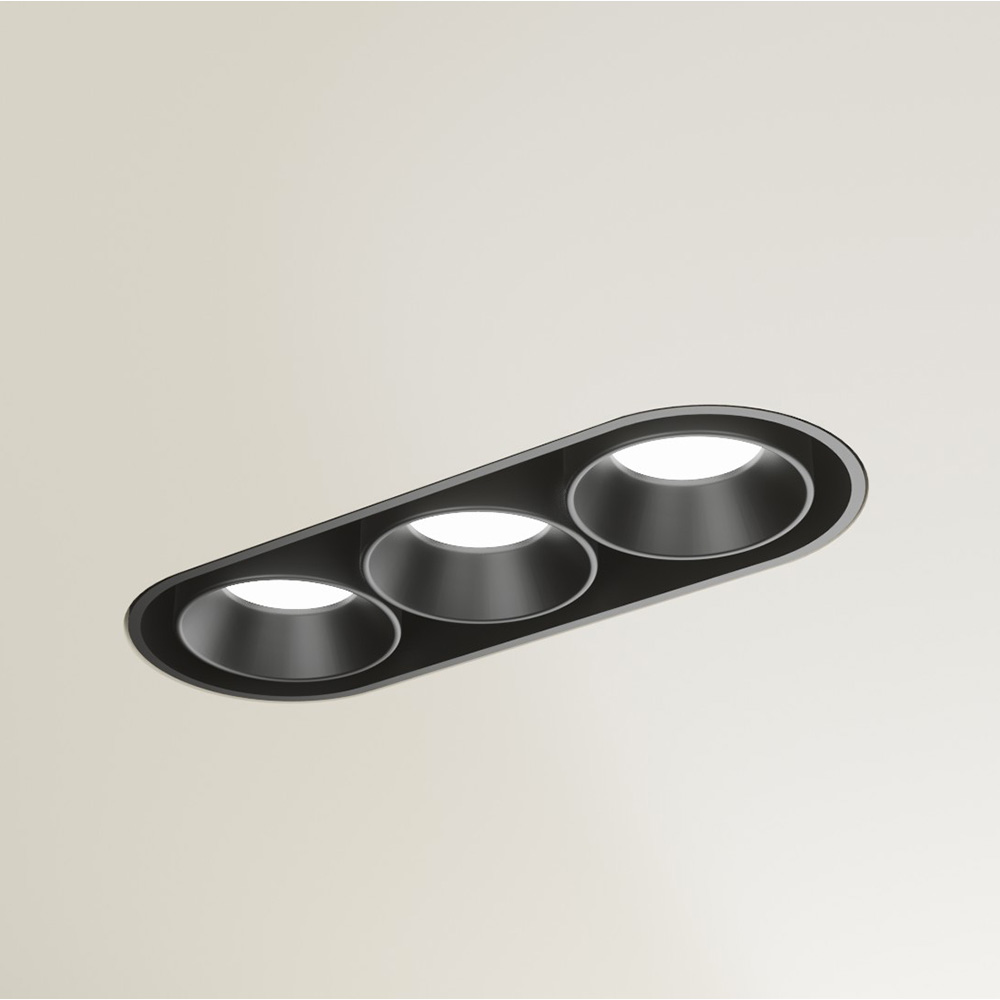

  • Mounting flush with the ceiling or protruding up to 7 mm

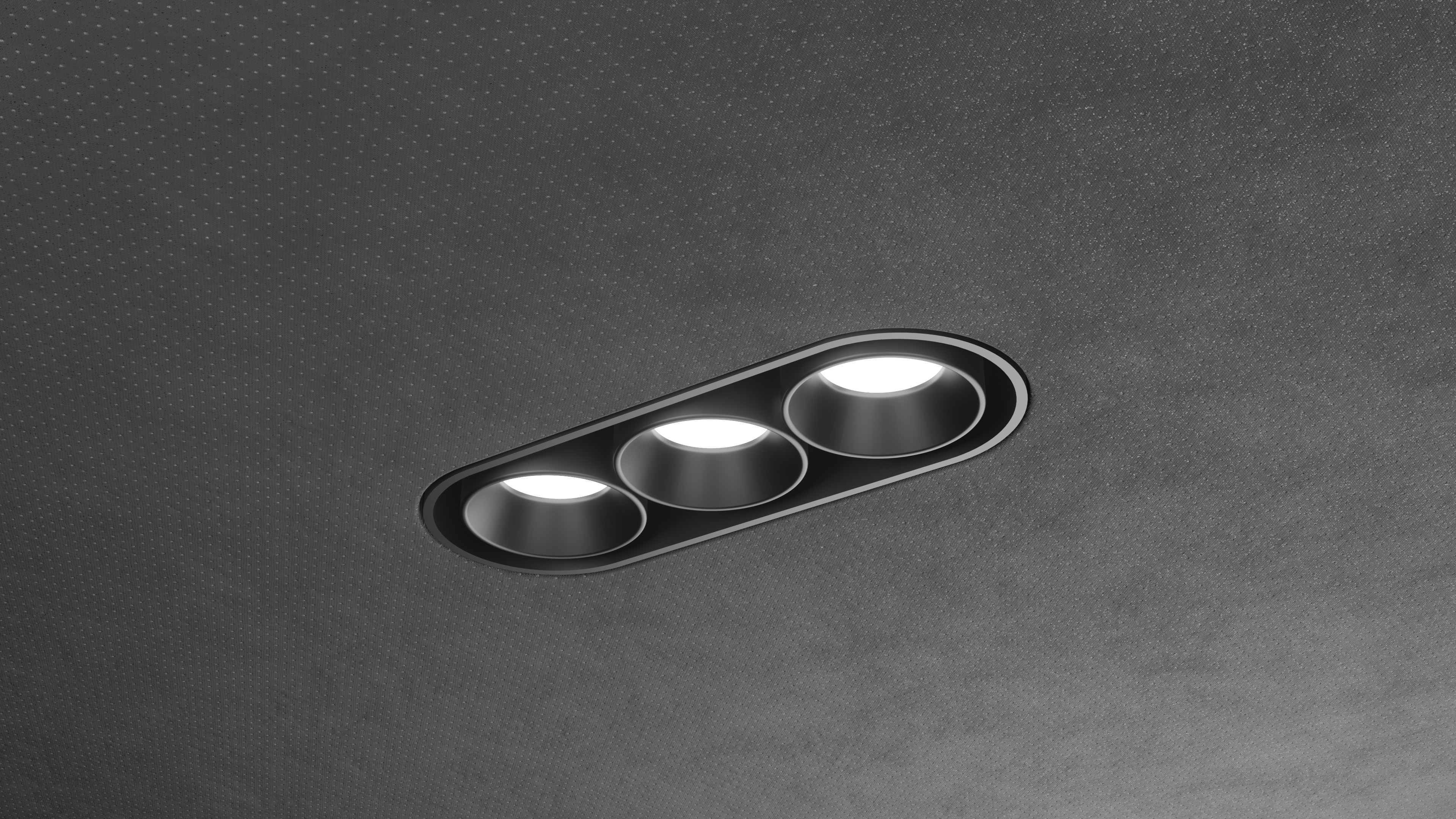

  • Available with one, two or three apertures and three beam angles: 15°, 34°, 40°
  • Color temperatures of 2700K CRI93, 3000K CRI93, 4000K CRI93 or red navigation light
  • Wattage: 9W at 24V DC (3W per light aperture). 24V DC: Min / max operating voltage: 20V – 30V
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • IP40 or IP65
Download text
