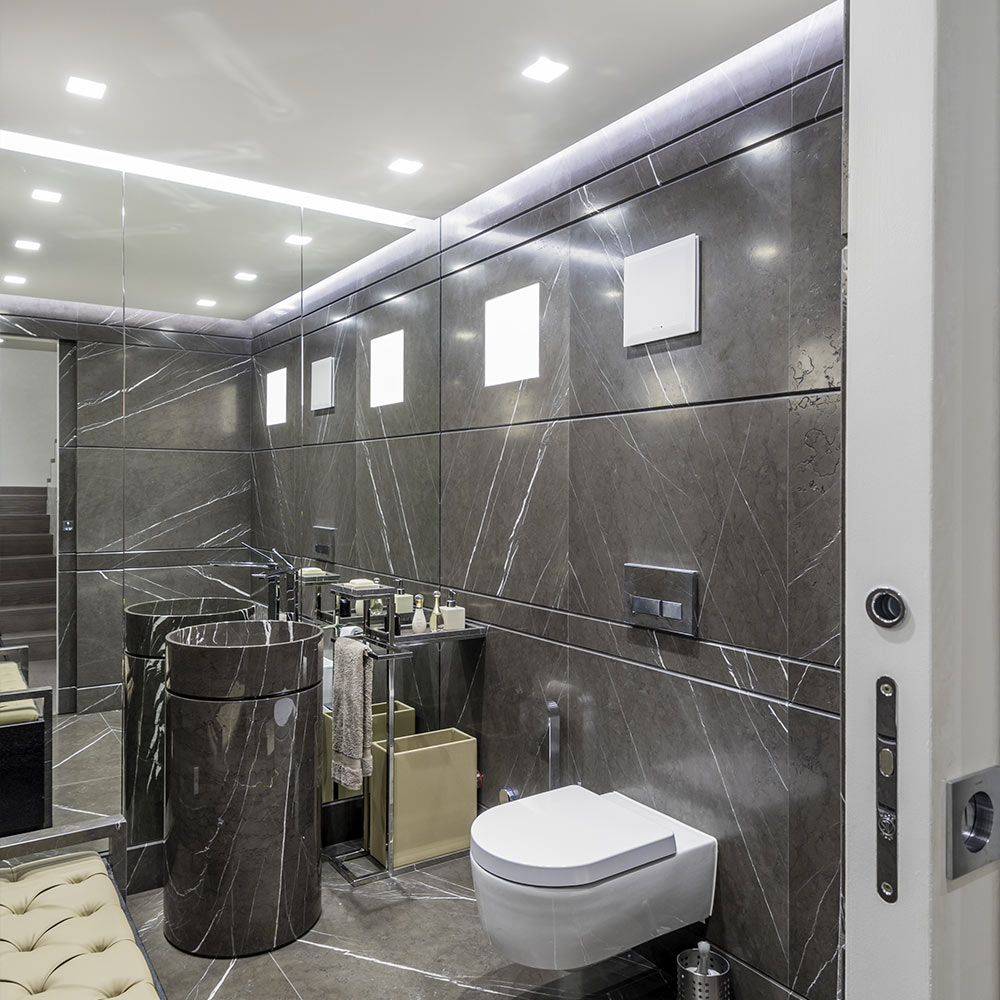

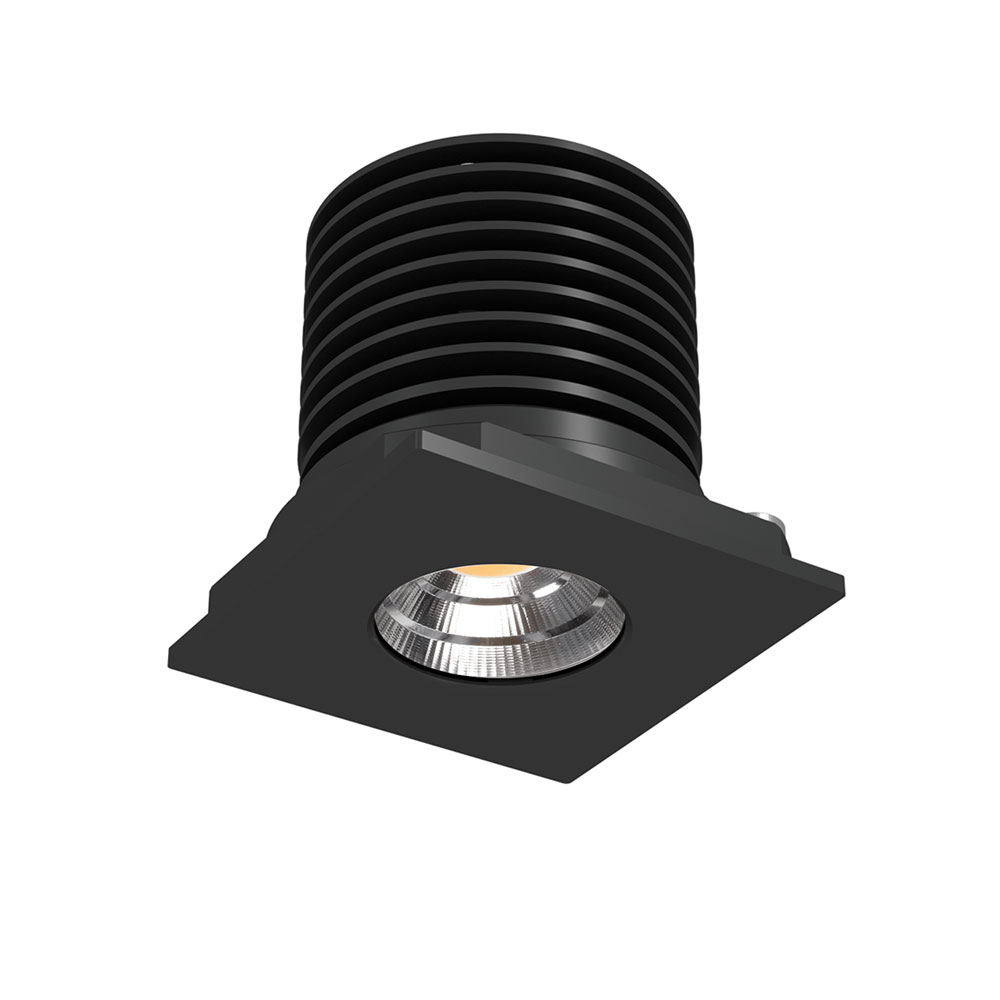

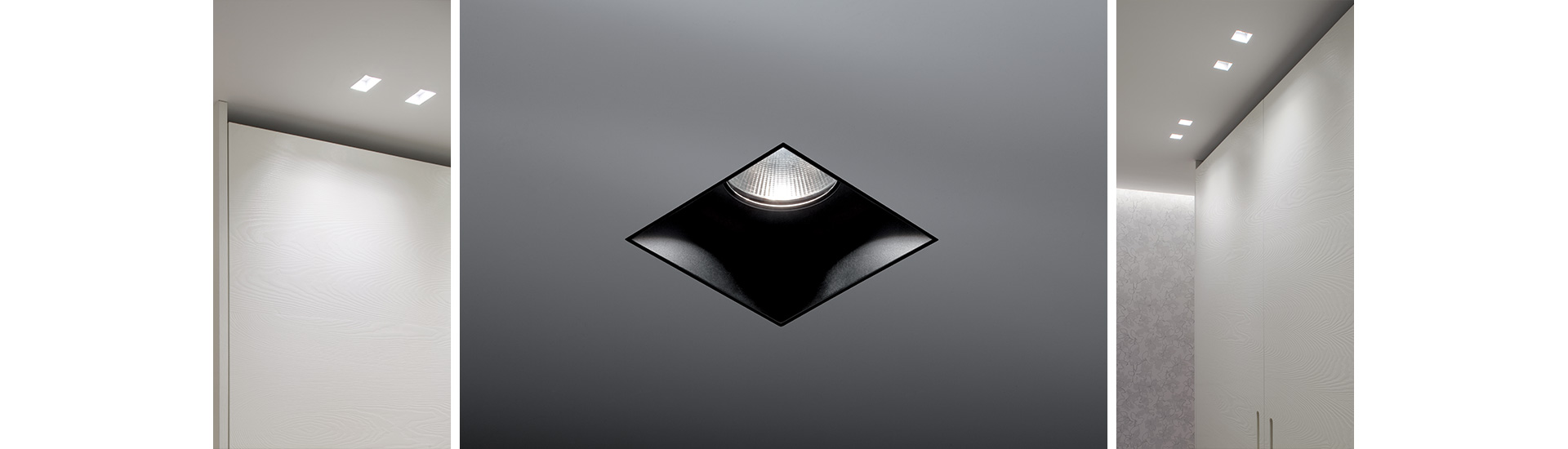

Square plaster-in downlight with minimal visual impact. Indoor and outdoor use for a total integration with architecture

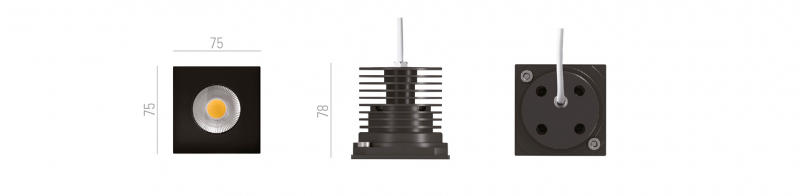

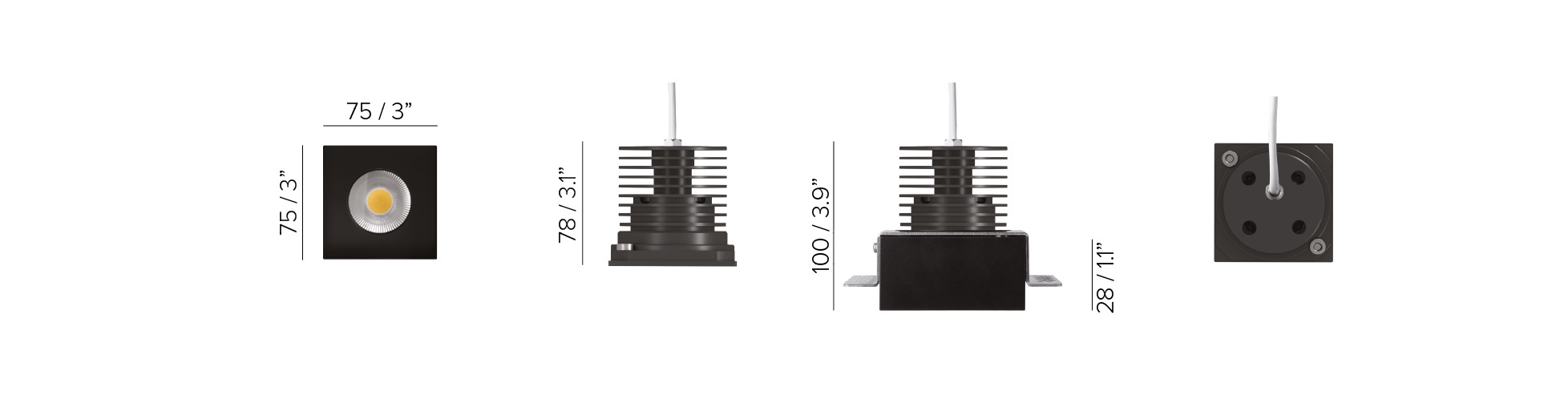

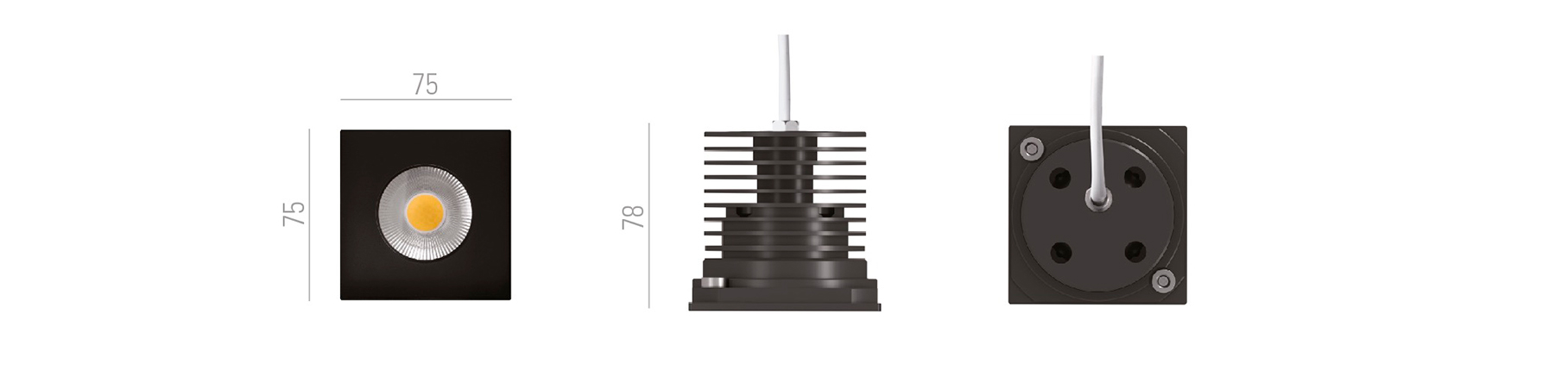

- Dimension: 60X60 mm

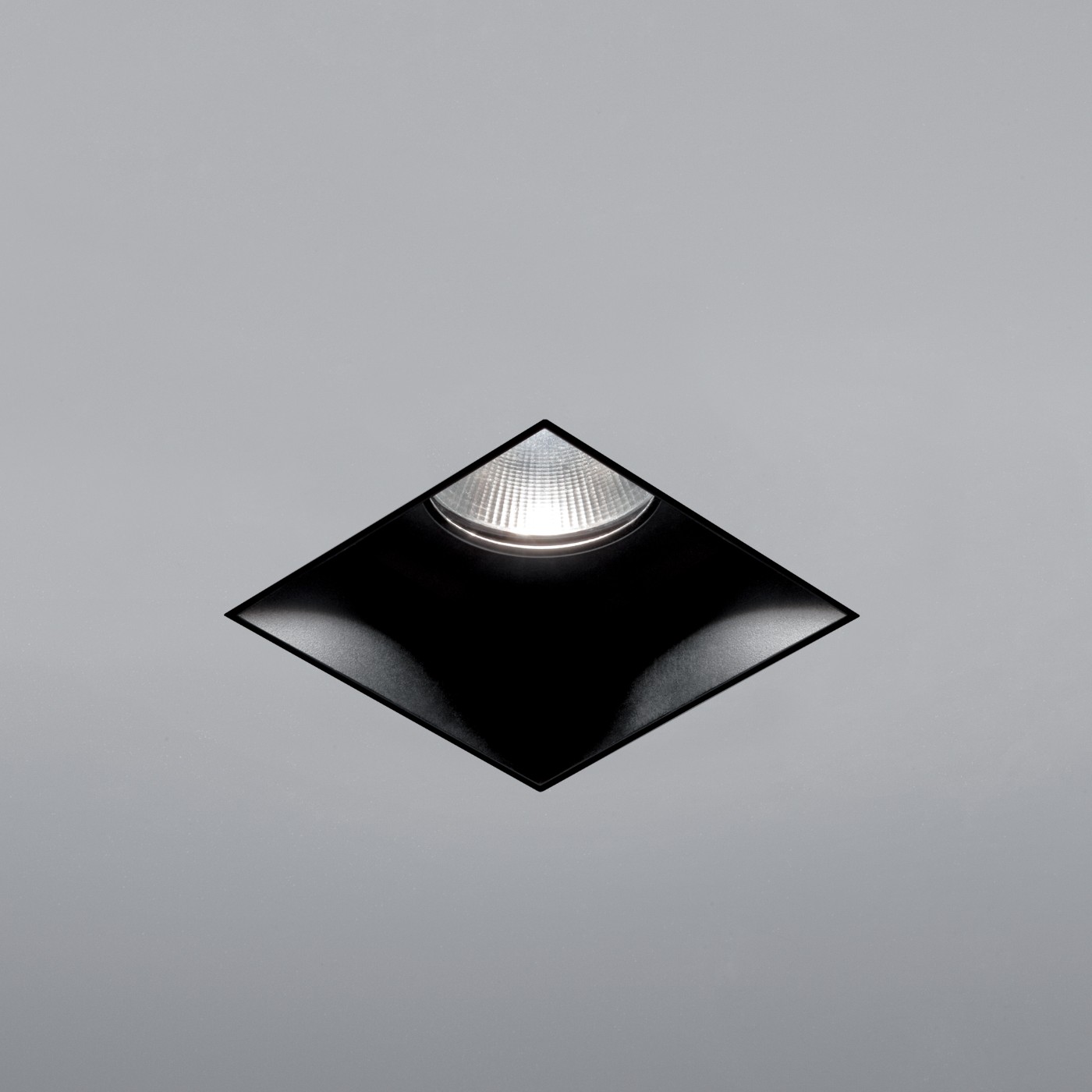

- Completely trimless luminaire with recessed LED position and option of black internal reflector cup for minimal glare

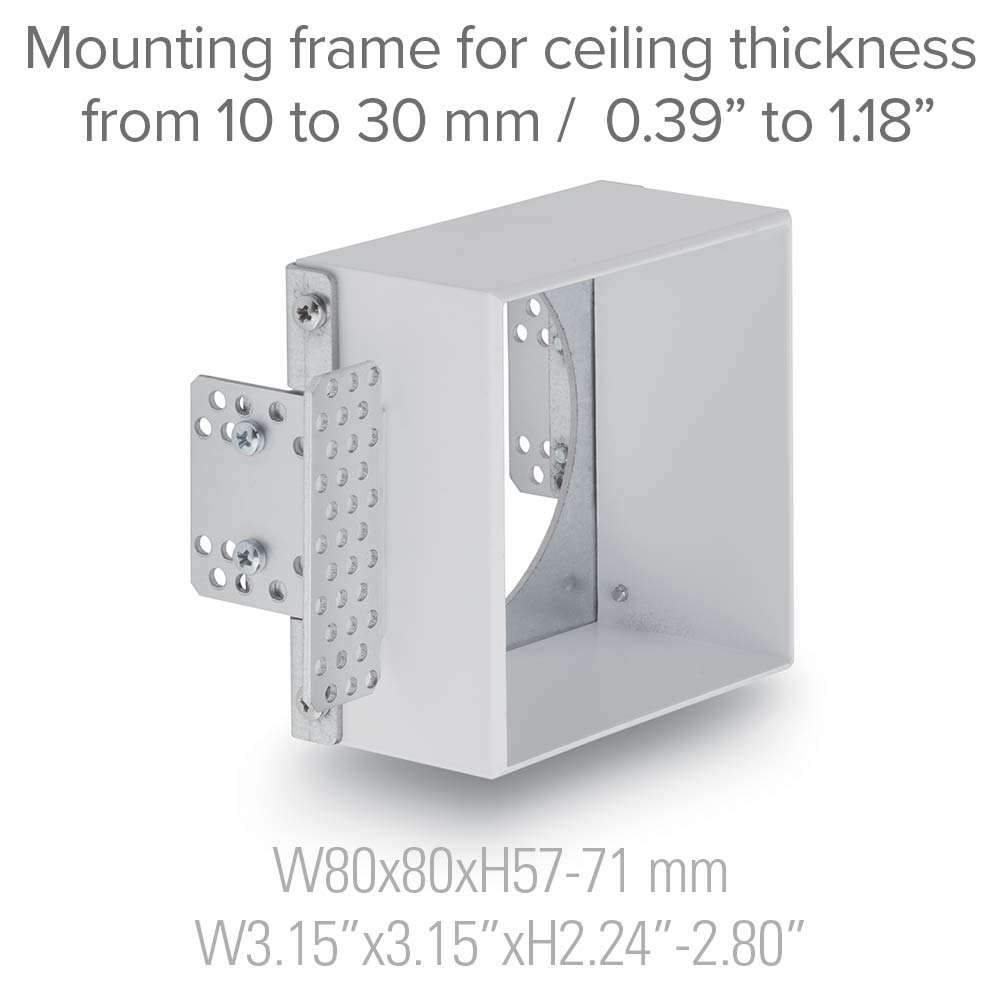

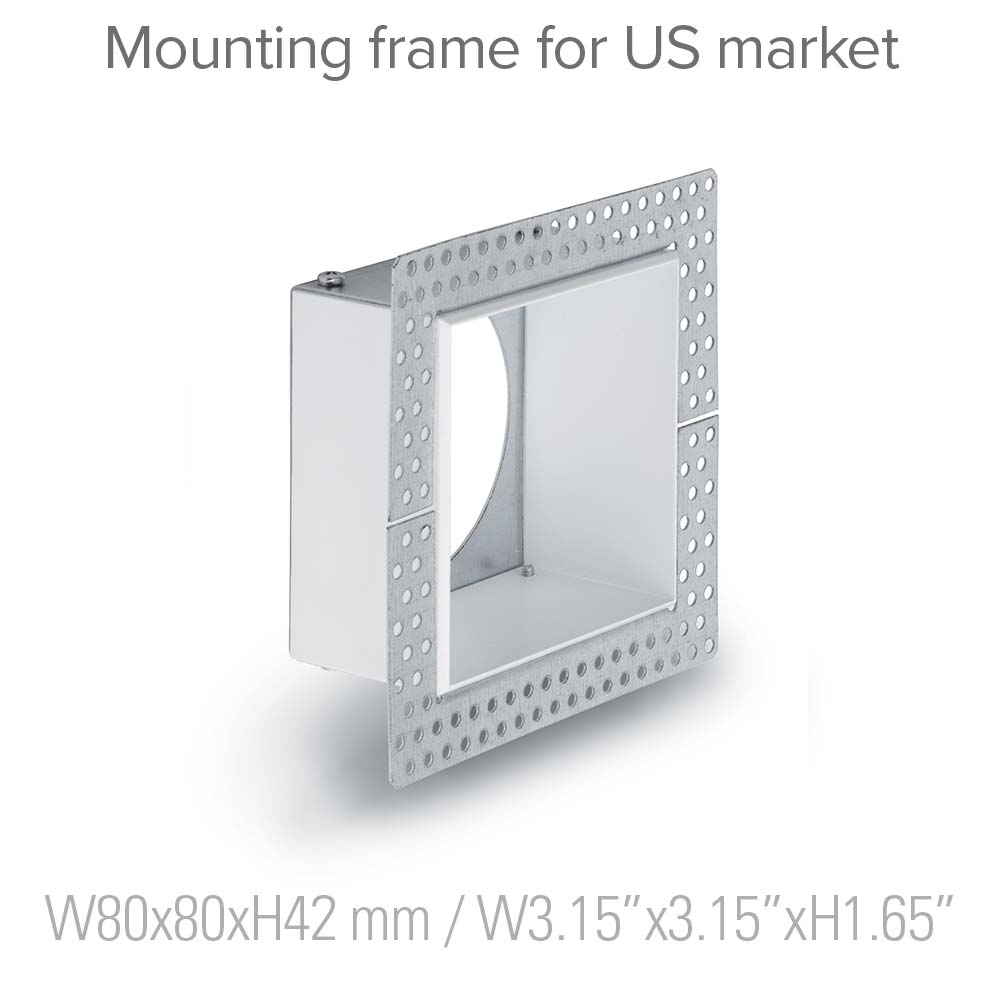

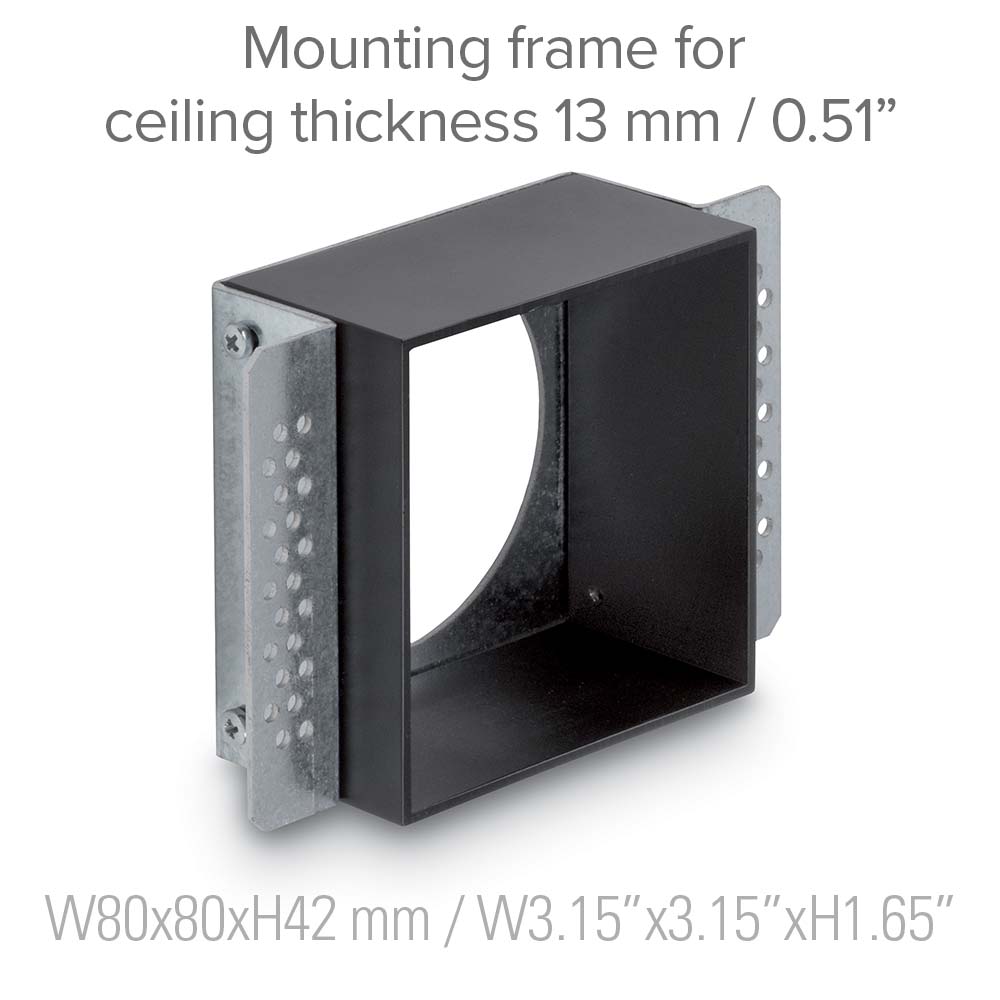

- Mounting frame for ceiling thickness of 13 mm to be separately ordered. Upon request mounting frame for plasterboard of different thickness
- Features a selection of different optics: 28°, 38°, 50° with softening lens
- Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
- Lamp wattage: 12W at 48V DC and 350 mA
- 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C
- Dimming options: push button, potentiometer, 0-10V, DALI, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
- Global IP40, optical housing IP44
