Inserto Mini T

Linear wall and ceiling mounted luminaire with a depth of only 0.5”

  • Even light distribution across the entire surface for the white LED model

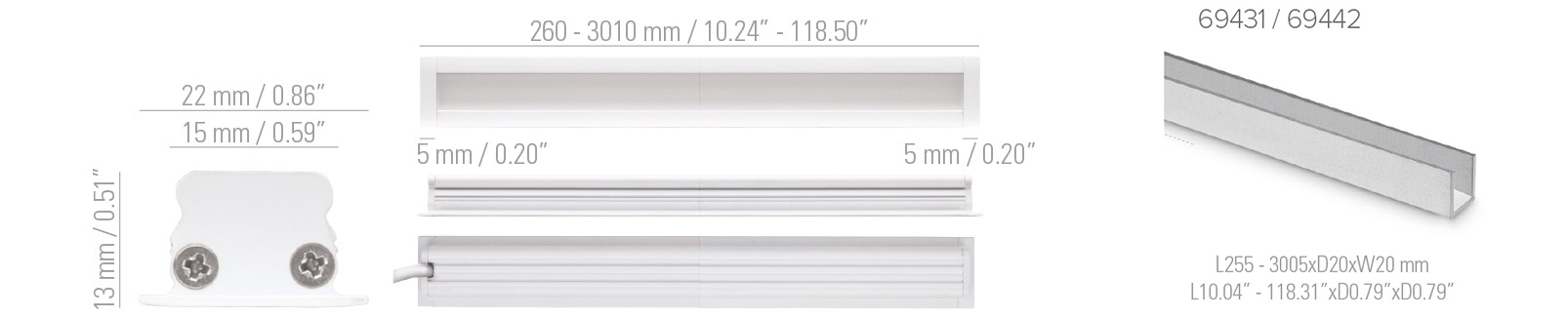

  • Available in increments of 9.8″: from 10.2” to 118.5”, custom made lengths available on request
  • Mounting in plasterboard using clips
  • Available with colour temperature 2700K CRI93, 3000K CRI93, 4000K CRI93 and RGB
  • Lamp wattage: 20W per meter at 24V DC, RGB 12W per meter at 24V DC. Features an board DC driver that ensures overcurrent protection and protection against wrong connections
  • Two wires dimming 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Suitable for dry location
  • Standards: UL 2108, CSA C22.2
