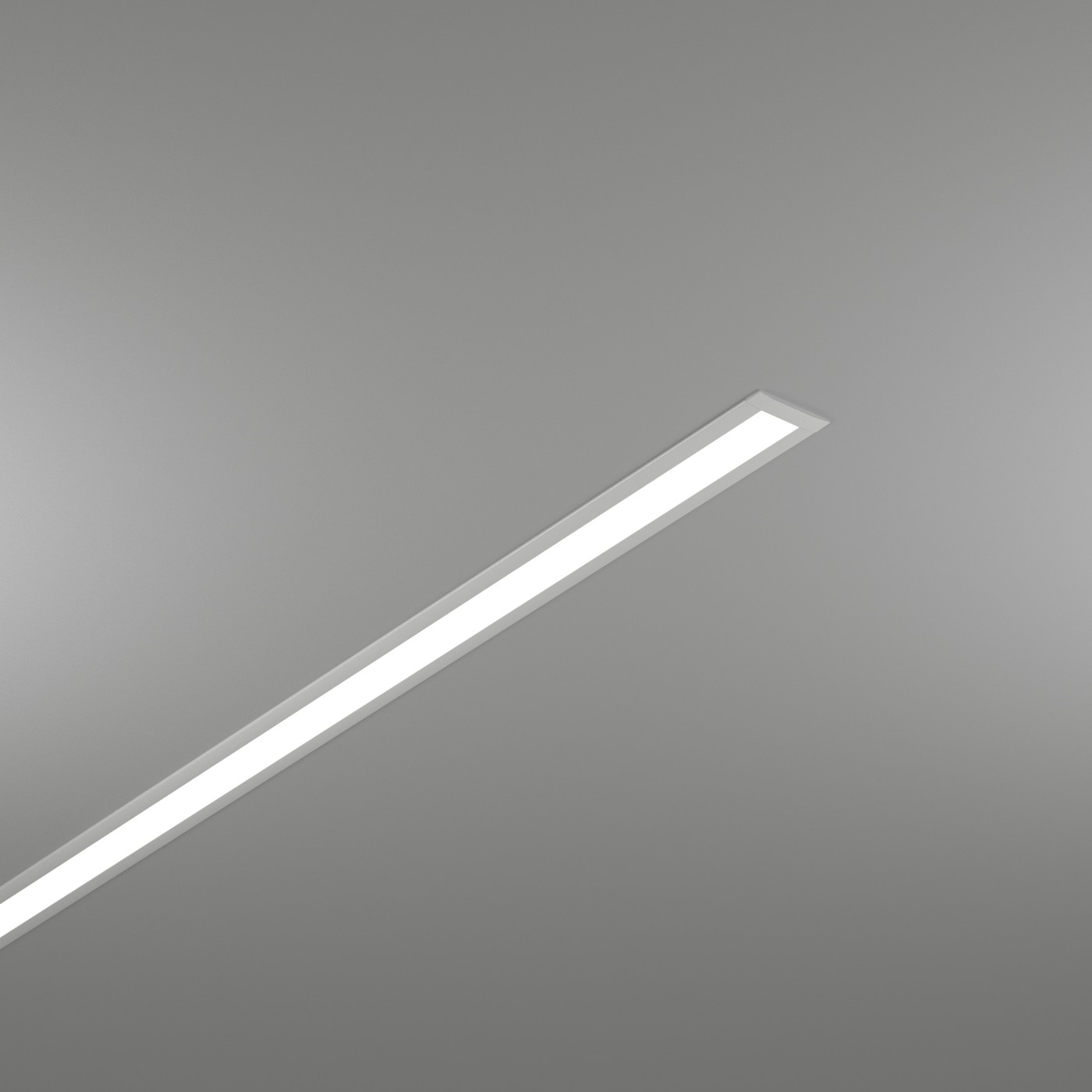

Inserto Mini T / Mini T-E

Linear wall and ceiling mounted luminaire with a depth of only 13 mm

  • Even light distribution across the entire surface for the white LED model

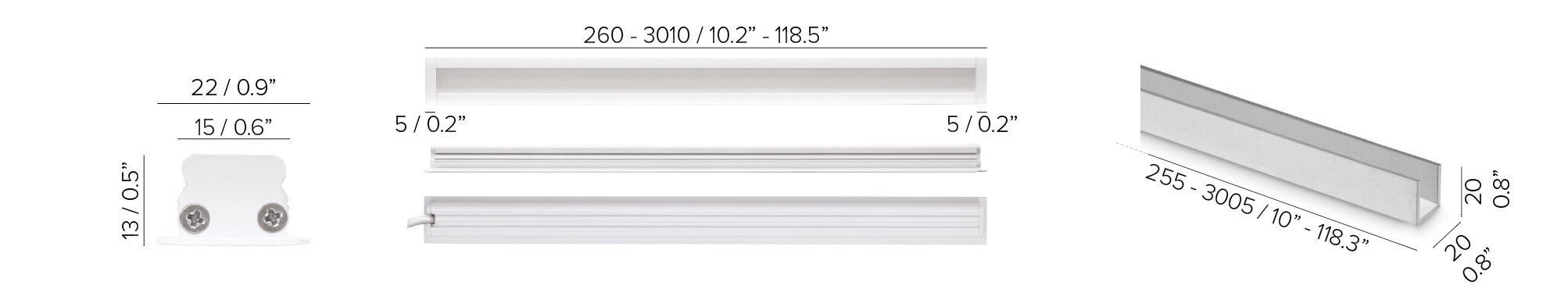

  • Available in increments of 250 mm: from 260 to 3010 mm, custom made lengths available on request
  • Mounting in plasterboard using clips
  • INSERTO MINI T: lamp wattage 20W per meter at 48V DC, RGB 12W per meter at 24V DC. Features an board DC driver that ensures overcurrent protection and protection against wrong connections
  • INSERTO MINI T-E: lamp wattage 23W per meter at 24V DC. Features protection against wrong connections
  • Available with colour temperature 2700K CRI93, 3000K CRI93, 4000K CRI93 (INSERTO MINI T-E: CRI90) and RGB
  • 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP40
