Inserto Medium 65 F / 65 F System

Linear recessed luminaire with minimal visual impact for a total integration with architecture

  • Mounting trimless in plasterboard or on concrete using a housing box to be ordered separately as accessory
  • With a even light distribution across the entire surface it is also available with recessed optics for visual confort

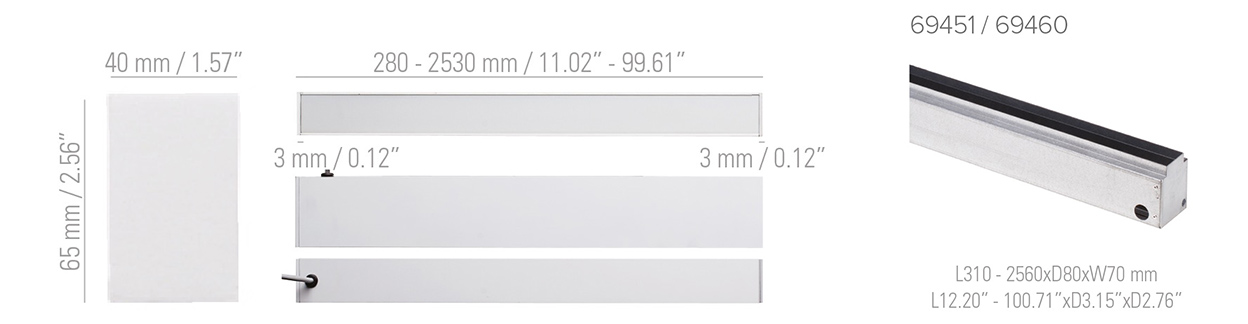

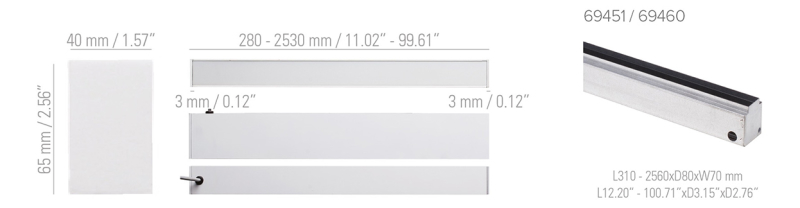

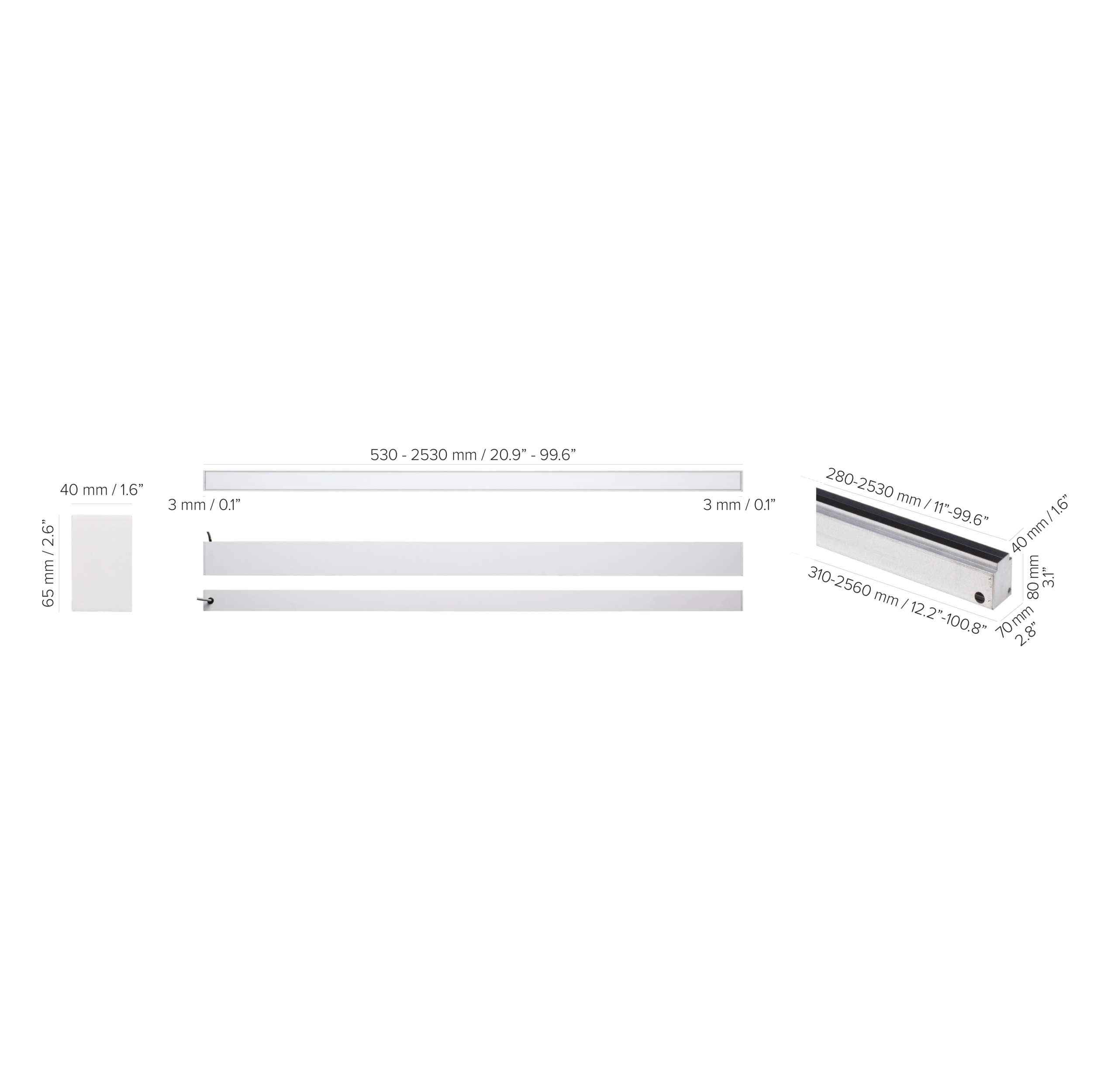

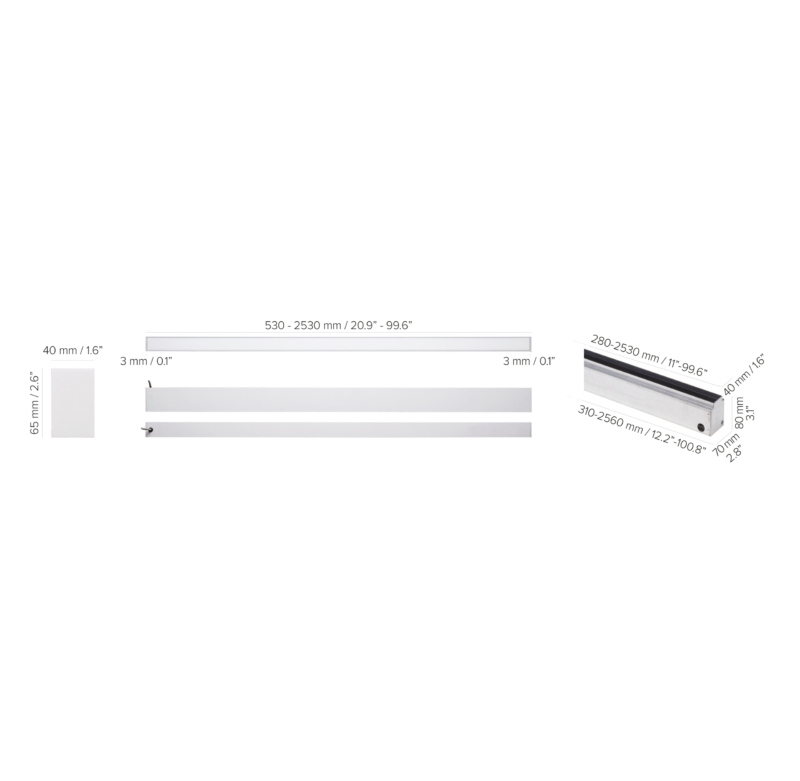

  • Available in increments of 9.84″ from 11.02” to 99.61” and upon request available with custom measurements. Available also in the system version (Inserto 65 F System) with corner modules
  • Colour temperatures: 2700K CRI93, 3000K CRI93, 4000K CRI93 and RGB
  • Lamp wattage 40W per meter at 24V DC (12W RGB at 24V DC). Features on board DC driver that ensures overcurrent protection and it is not polarity sensitive (protection against wrong connections for RGB)
  • 2 wires dimming 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP40
  • Standards: UL 1598, CSA C22.2
