Atlas X3 R

Glare free downlight for indoor use with symmetrical or asymmetrical light distribution

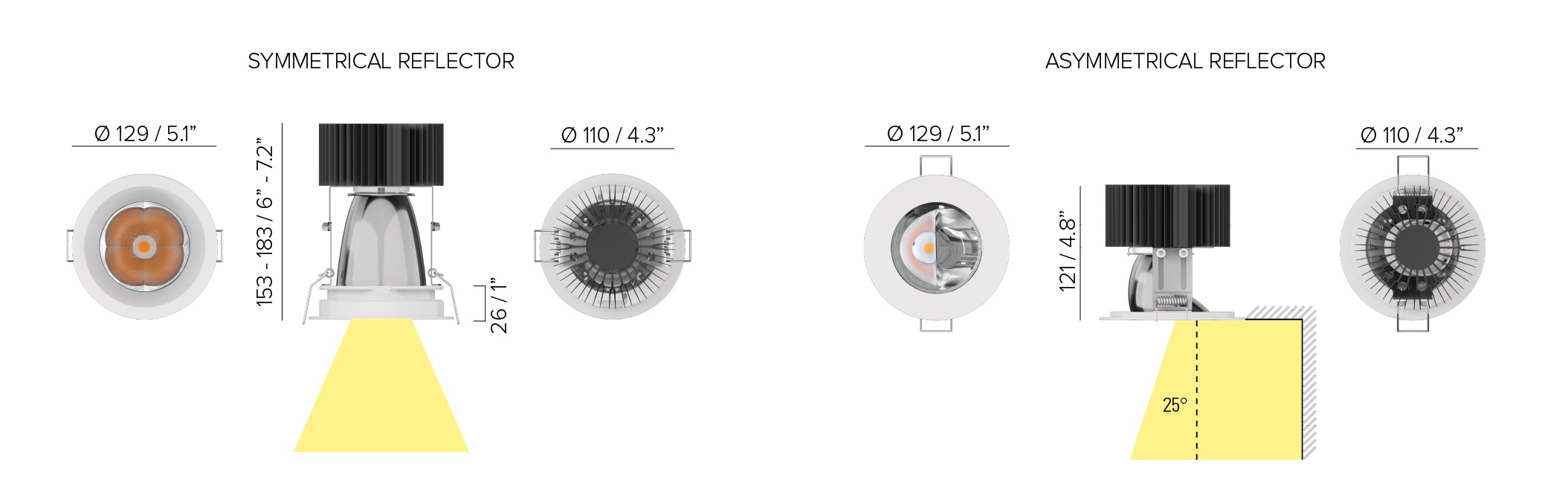

  • Diameter 5.1’’
  • Height symmetrical model 6’’ or 7.2″, height asymmetrical model 4.8’’
  • Thanks to the design of the reflector, the luminaire is totally glare free

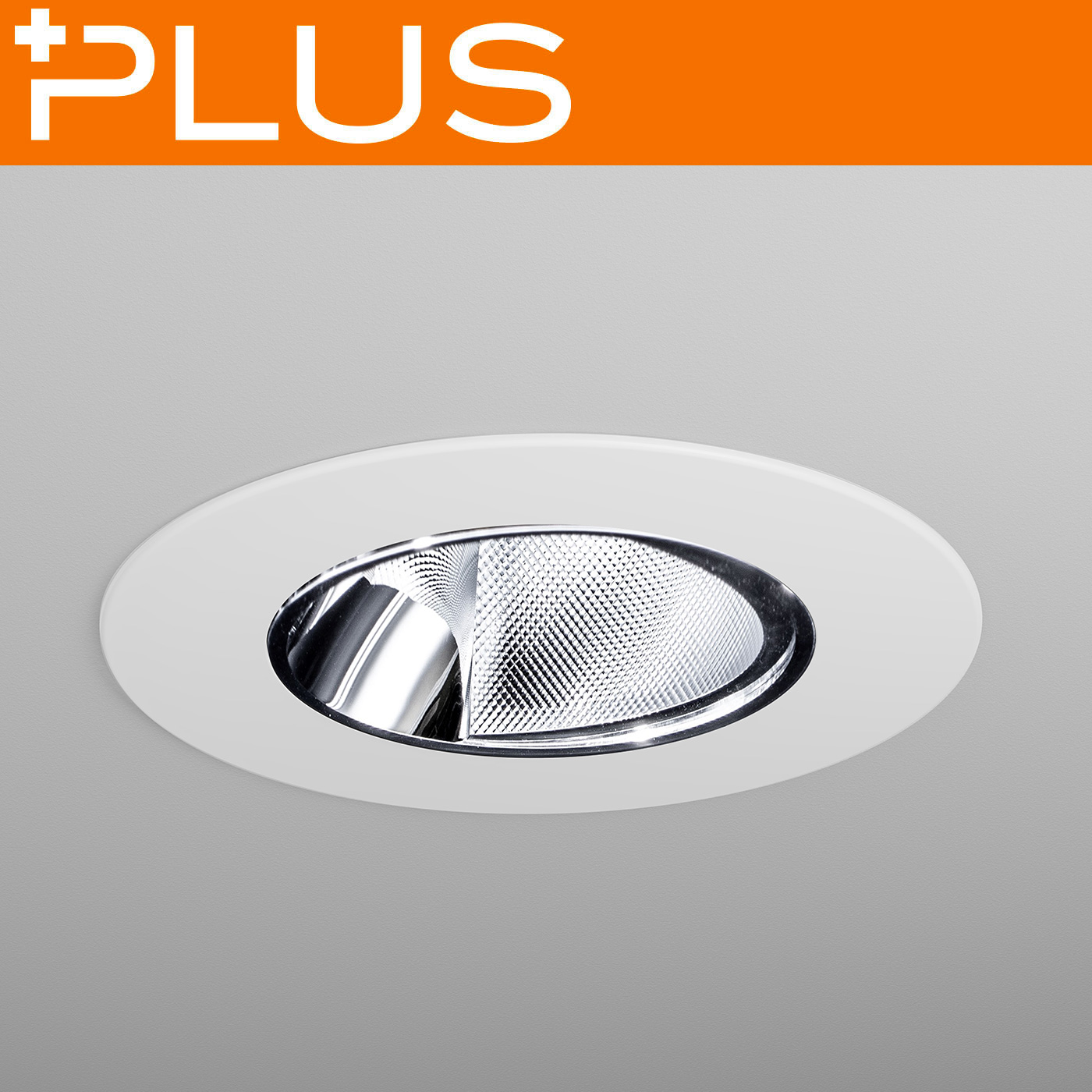

  • Available in two models: symmetrical reflector 30° (UGR < 10), 50° (UGR < 19) or asymmetrical reflector (wallwasher + 25°)

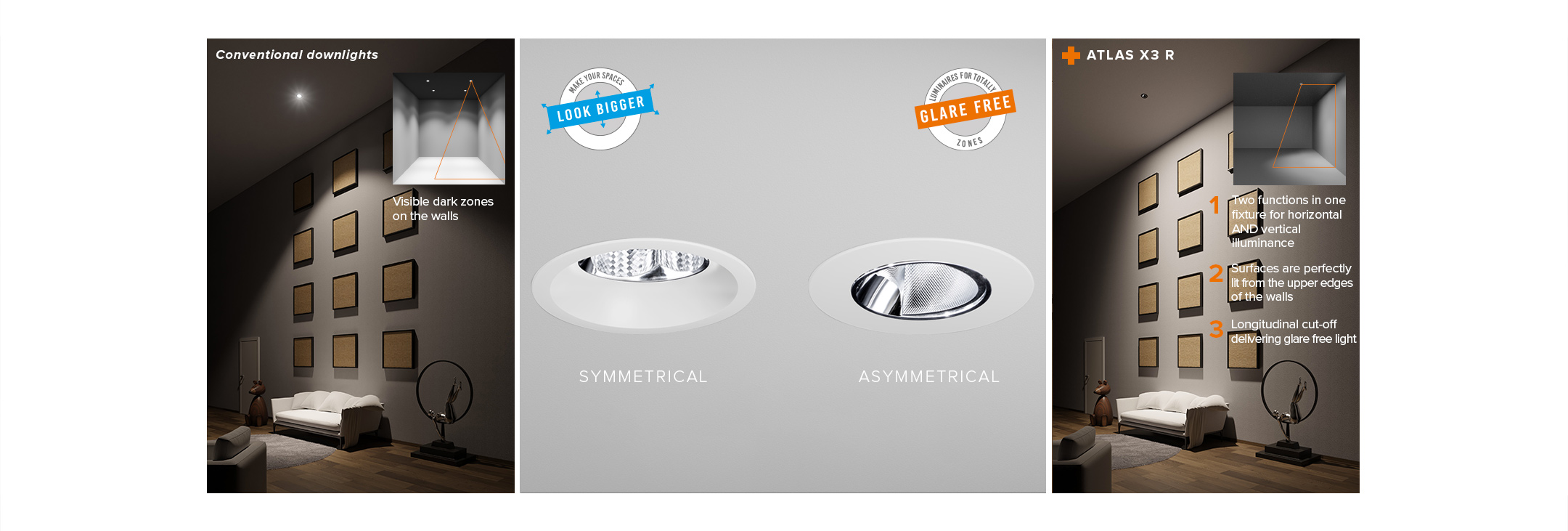

  • The asymmetrical model delivers 25° homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones

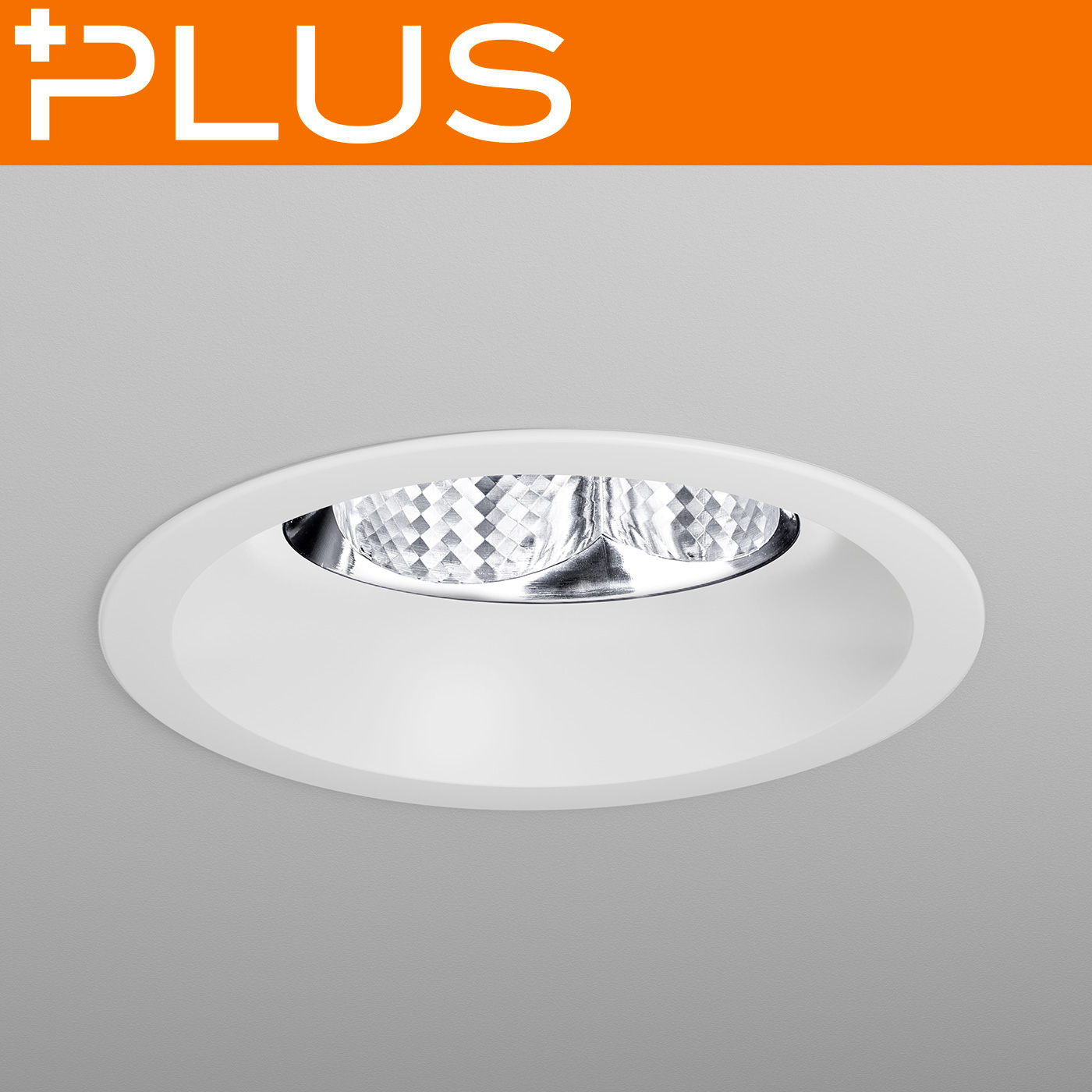

  • The symmetrical model 30° or 50° concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” or visible double beam spreads
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage 23W at 700 mA or 30W at 900 mA
  • Dimming options – push button, potentiometer, 0-10V, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • Suitable for dry location
  • Standards: UL 2108, CSA C22.2
