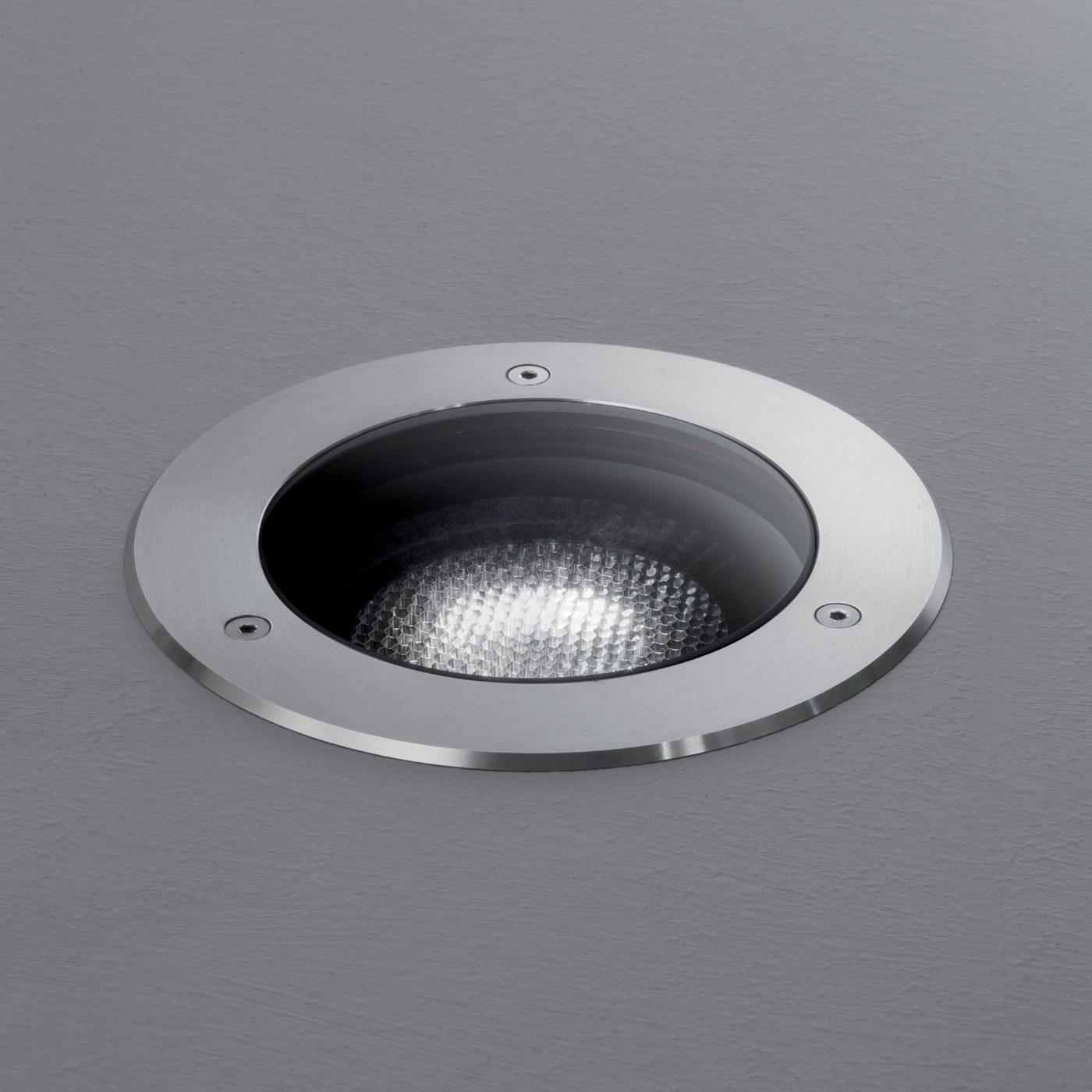

Merope 140 AD


Drive over uplight with adjustable light distribution

  • Drive over load of 3,5 tonnes

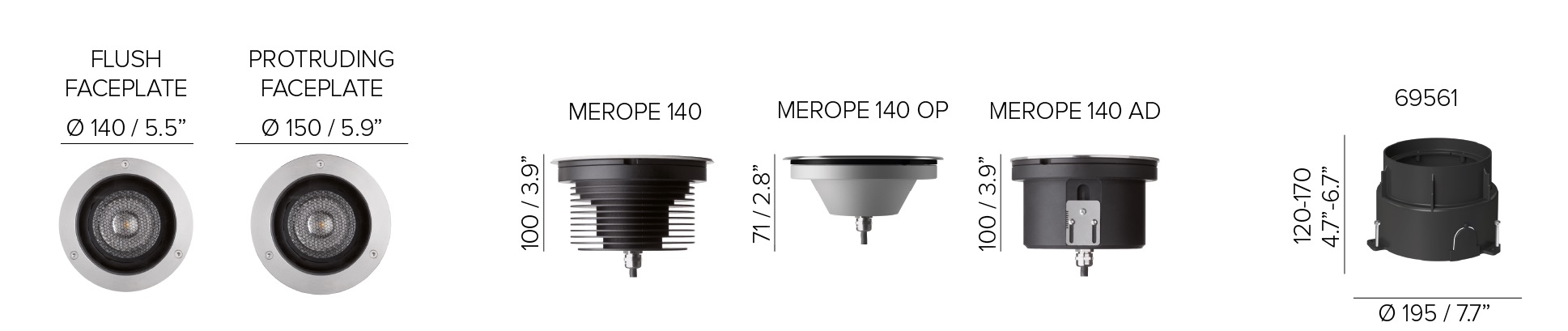

  • Diameter: flush faceplate 140 mm, protruding faceplate 150 mm
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture is installed into the housing without opening the optical compartment

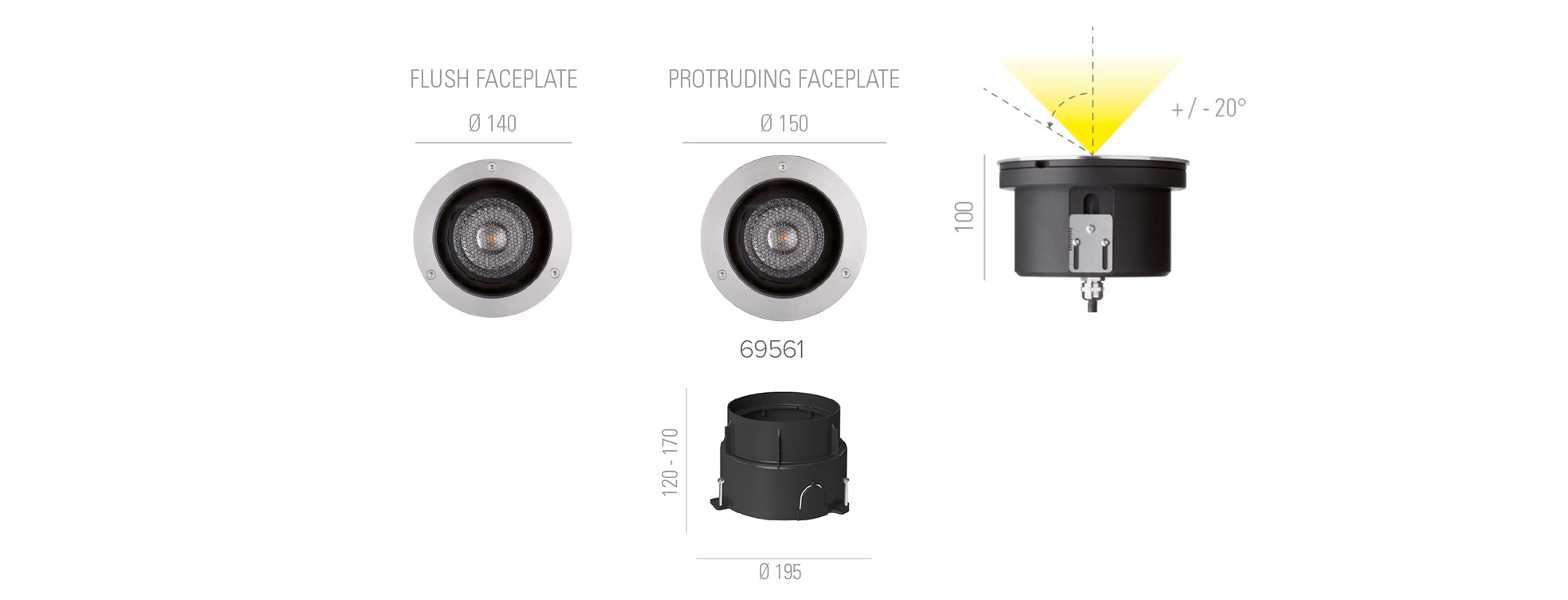

  • Beam angles: 12°, 24°, 32°, honeycomb for visual comfort included. Tool-less external aiming system complete with graduated scale, adjustable from 0° to 20°
  • Available with colour temperature of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 12W at 48V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60°C
  • Dimming options: push button, potentiometer, 0-10V, DALI, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
