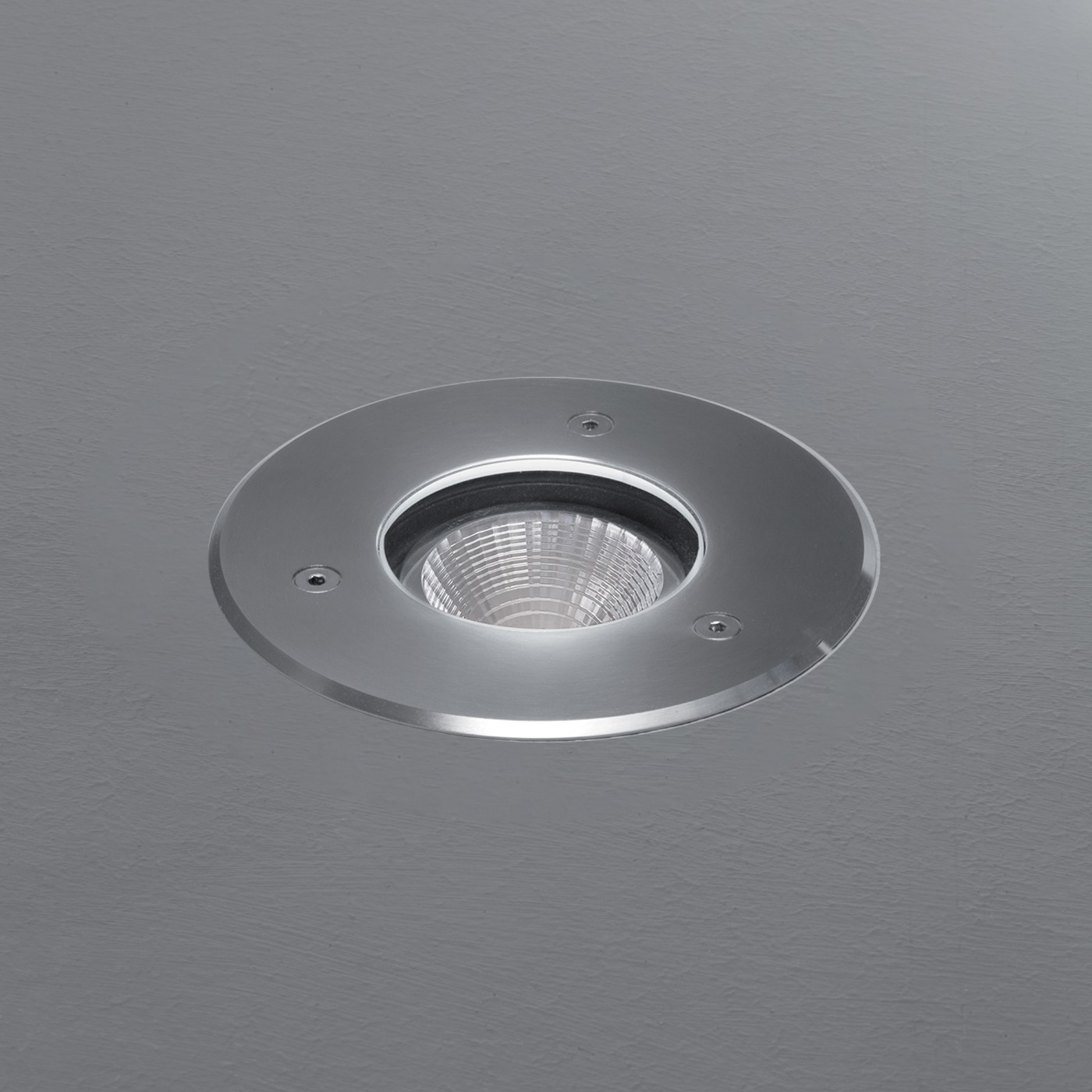

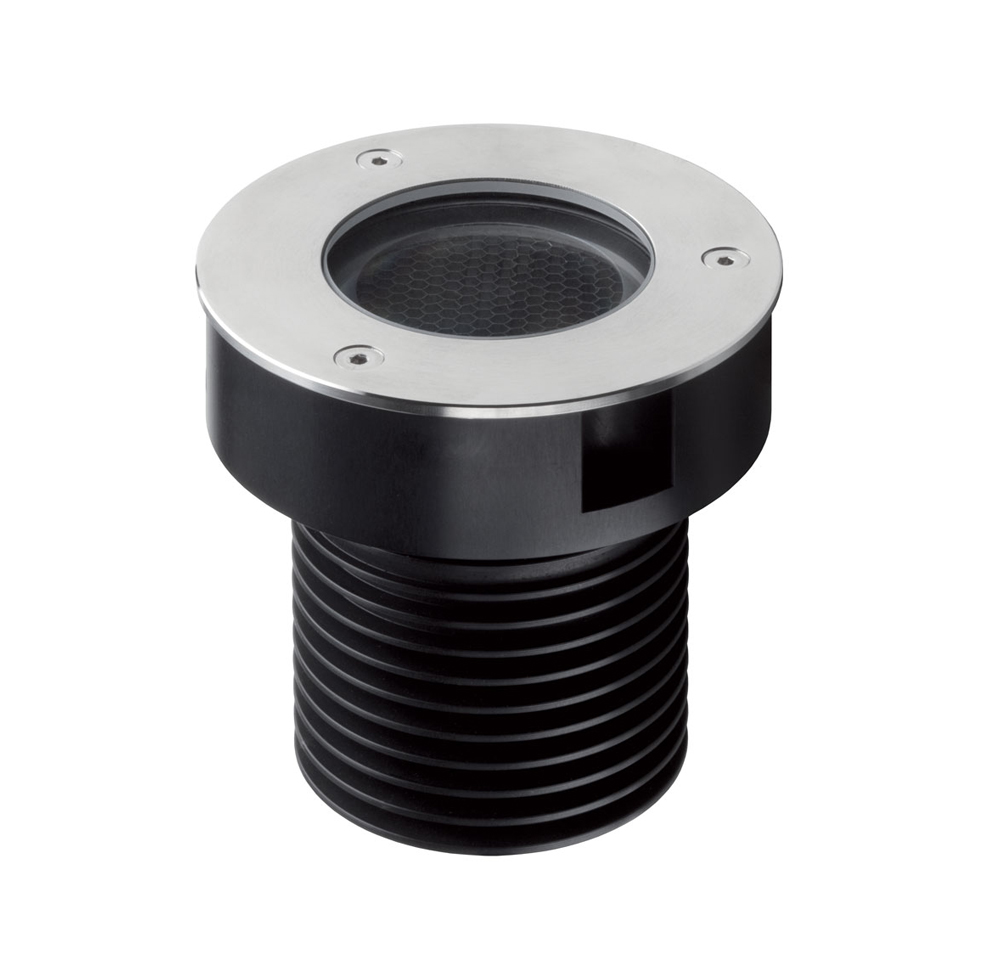

Merope 100


Drive over uplight

  • Drive over load of 3,5 tonnes

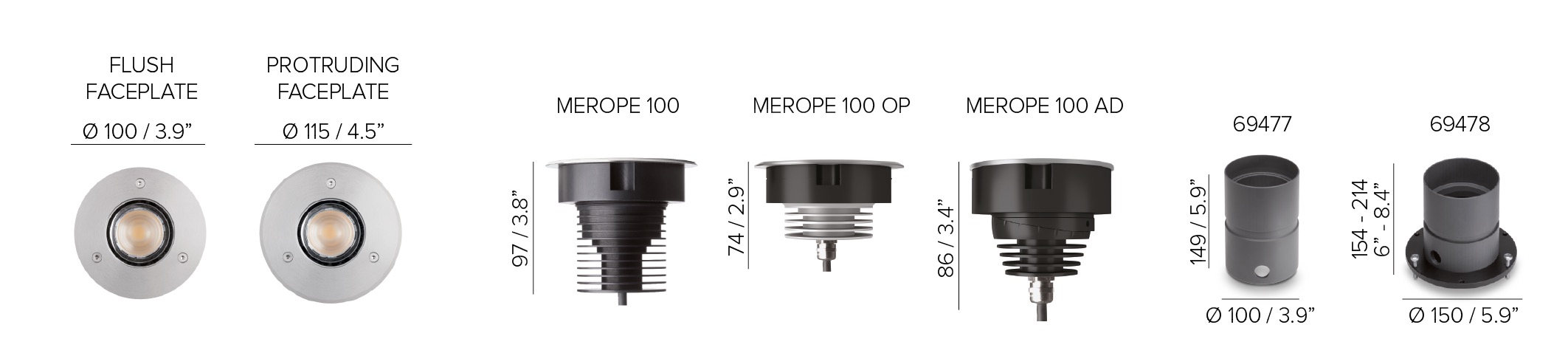

  • Diameter: flush faceplate 100 mm, protruding faceplate 115 mm
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture in installed without opening the optical compartment
  • Beam angles: 26°, 37°, 51°. Honeycomb for visual comfort to be separately ordered as accessory
  • Available with colour temperature of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 12W at 48V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60°C
  • Two wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, DMX. Dimming options depend on the power supply and additional control units to be separately ordered as accessories
