Button DO

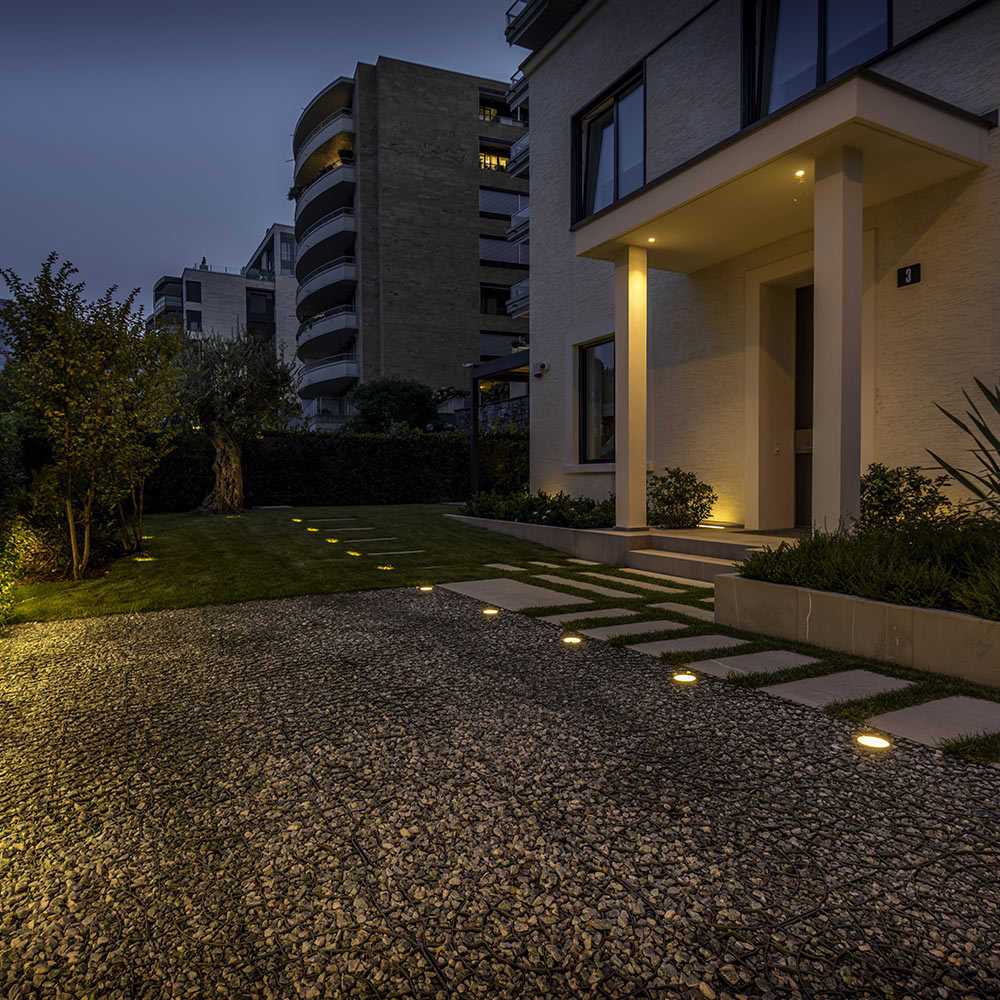

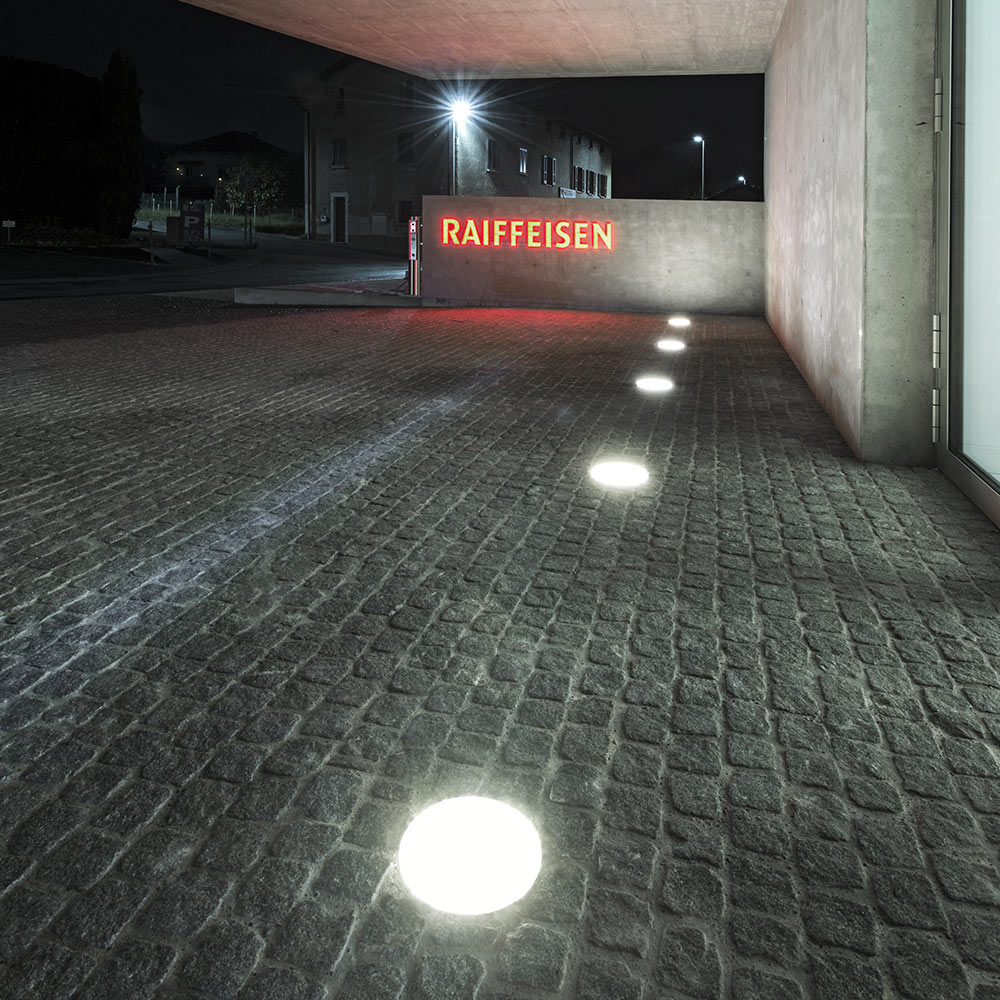

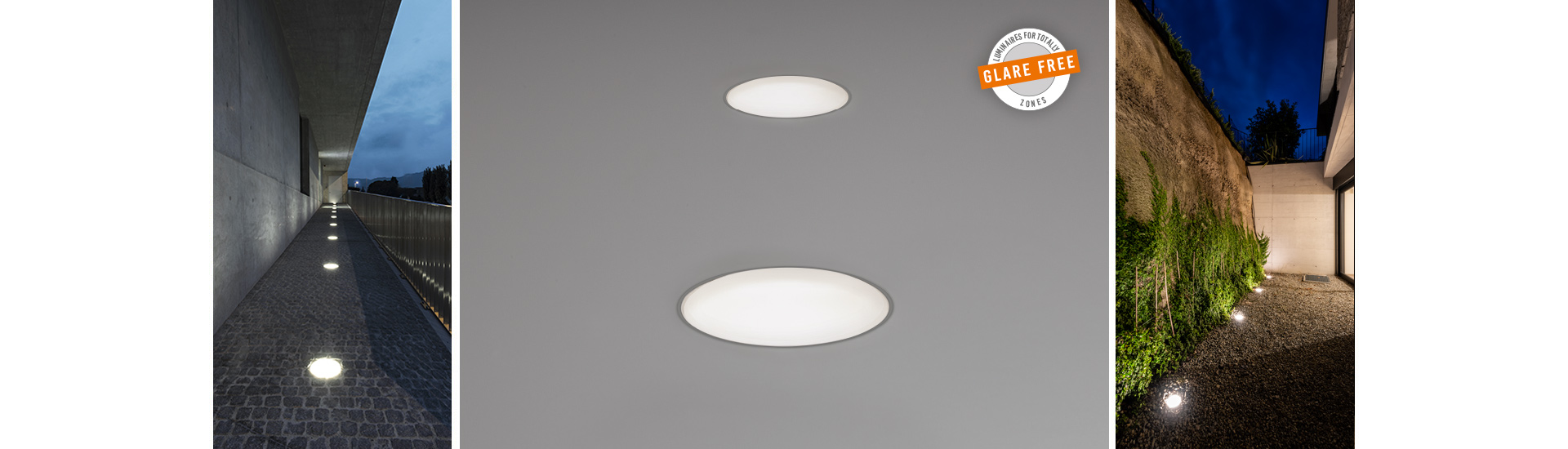

Round marker light with flush tempered glass diffuser for seamless in-ground installation

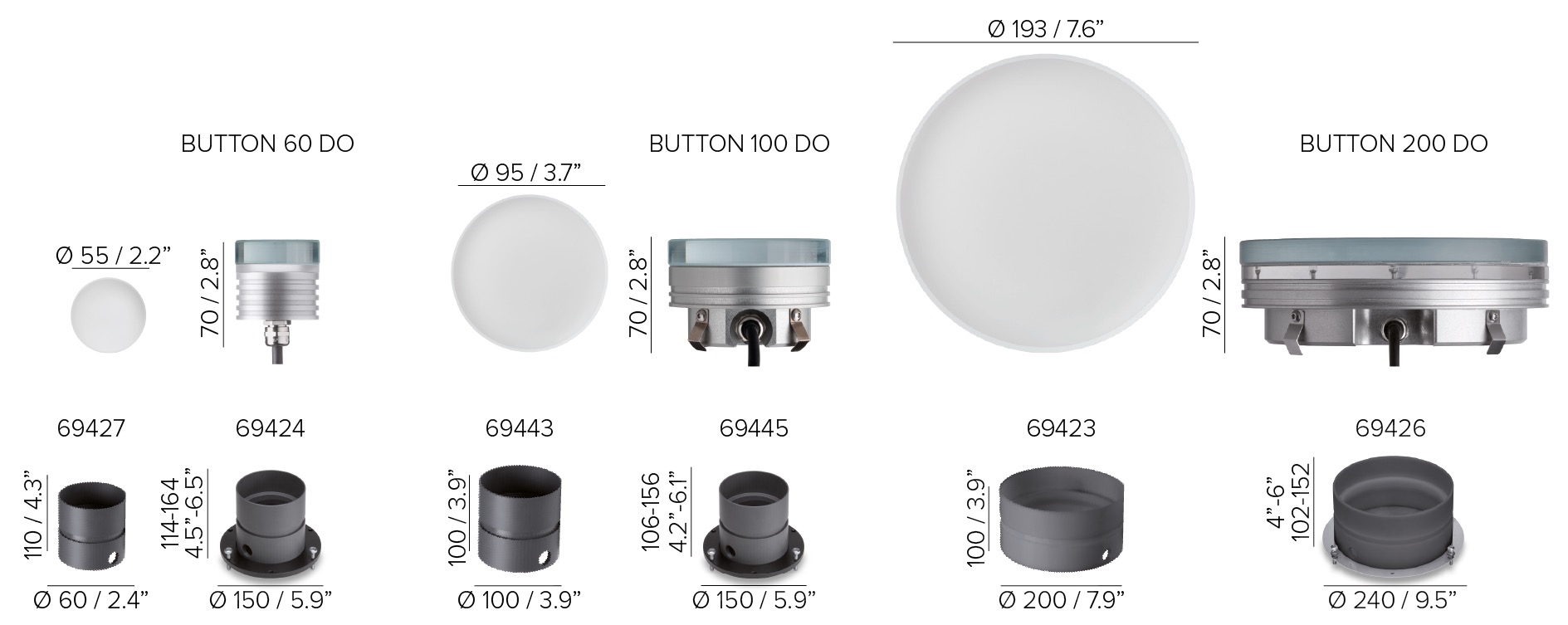

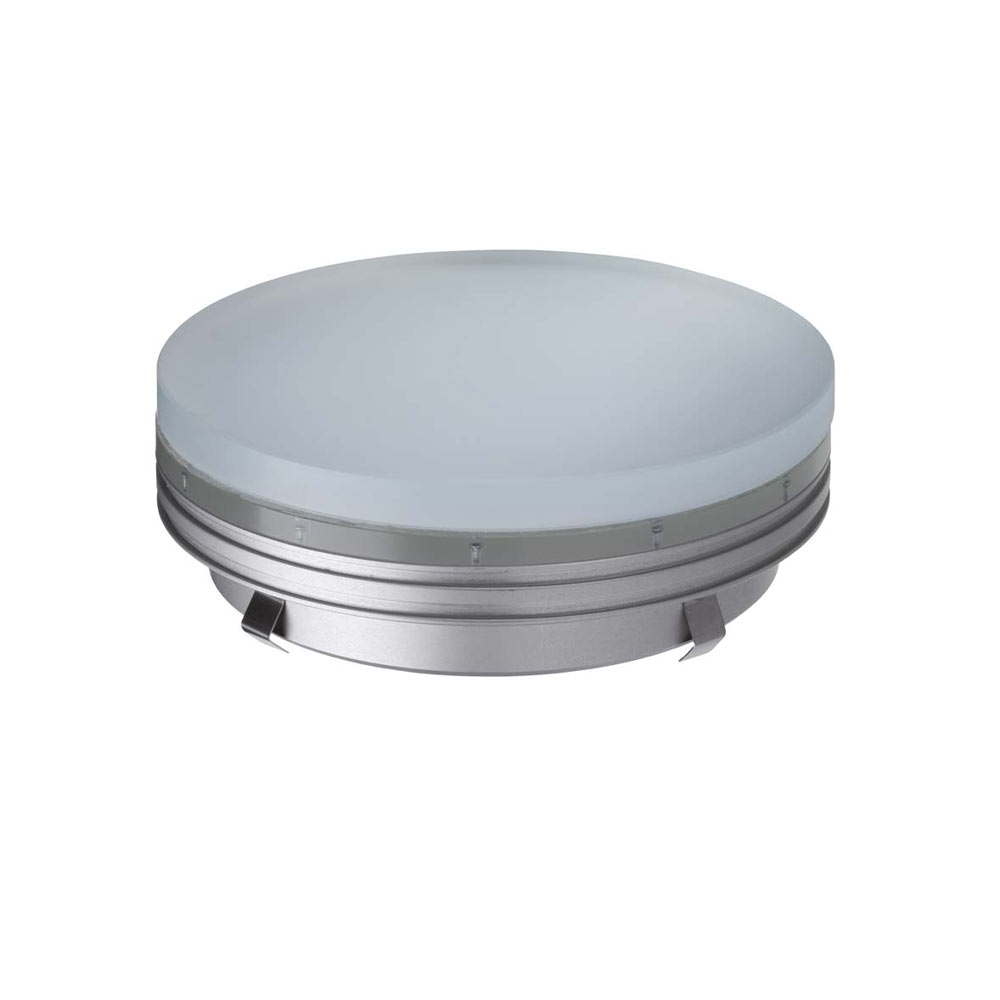

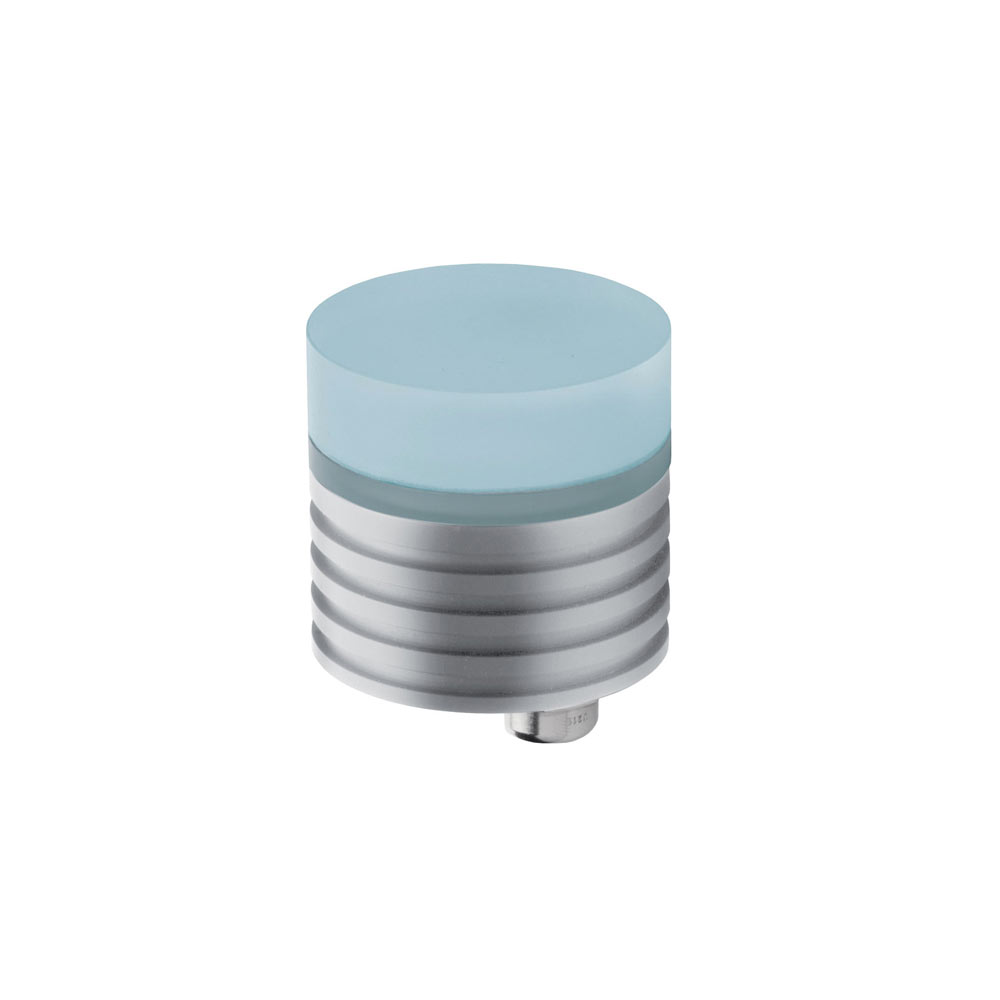

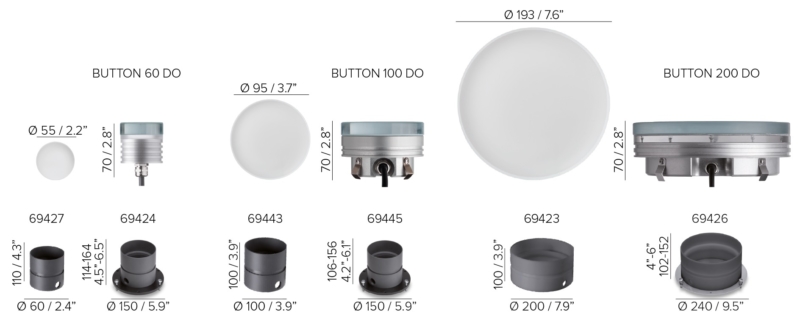

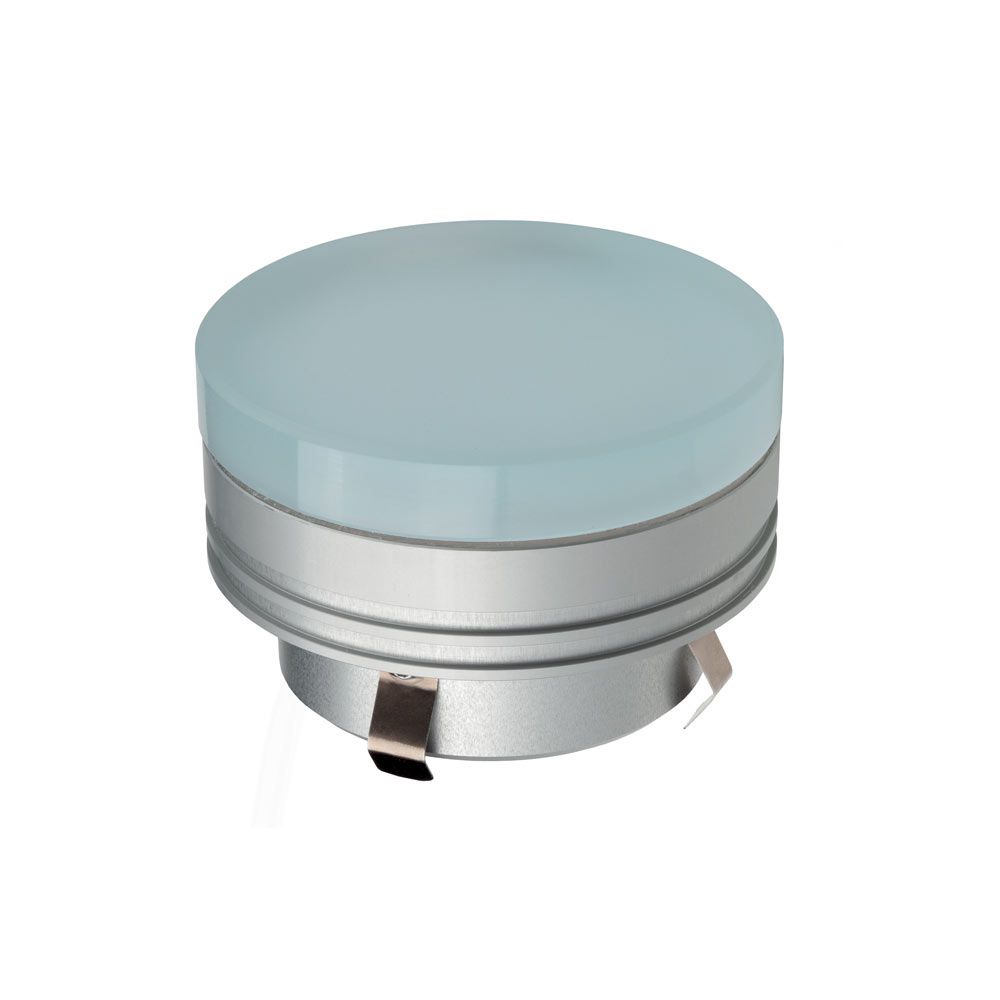

  • Available in three diameters: BUTTON 60 DO 55 mm – BUTTON 100 DO 95 mm – BUTTON 200 DO 193 mm
  • Drive over load of 2,5 tonnes

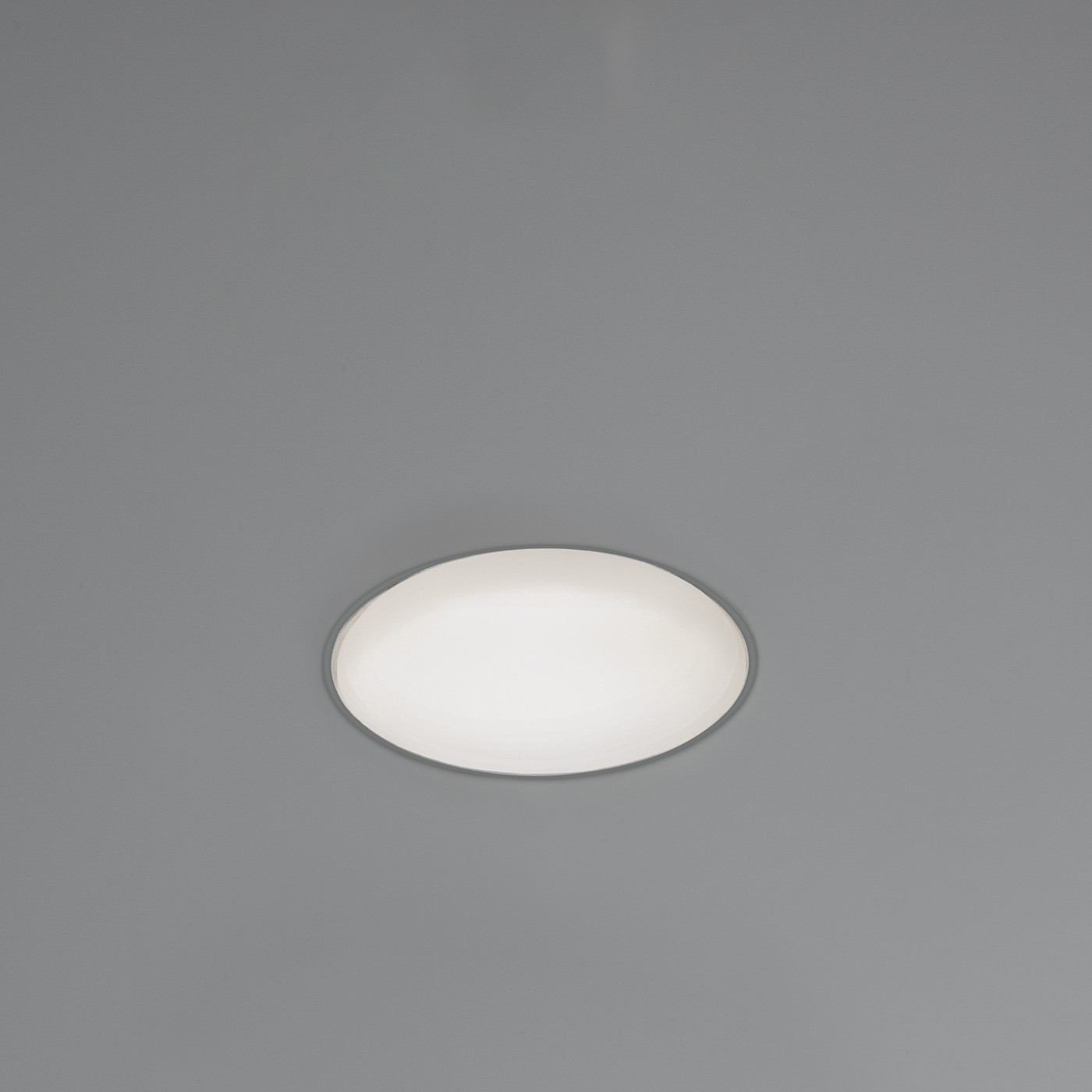

  • The surface appears evenly lit thanks to the thickness of the tempered glass and the distance from the LEDs. 100% glare-free luminaire
  • Built in protection from water infiltration and moisture. IP67
  • Available in colour temperatures of 2500K CRI93, 2800K CRI93 and 3800K CRI93 and RGB (BUTTON 60/100 DO only)
  • Wattage: BUTTON 60 DO: 2,3W at 48V DC – BUTTON 100 DO: 3W at 48V DC – BUTTON 200 DO: 10W at 48V DC
  • Built-in unpolarized electronic system. Protection against wrong connections for RGB
  • 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
