Button CL

Surface mounted luminaire with omnidirectional light distribution

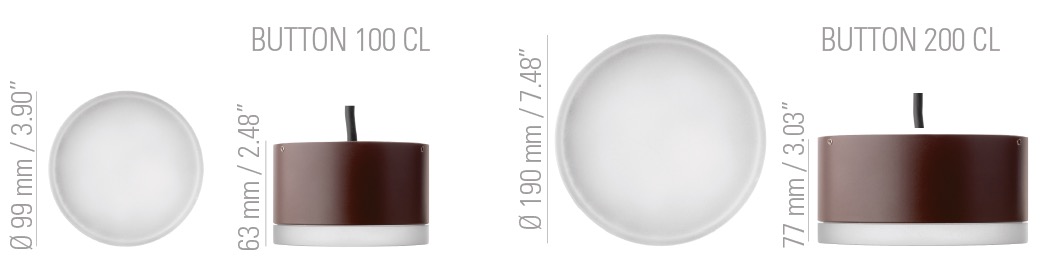

  • Available in two versions: BUTTON 100 CL, diameter 3.90” – BUTTON 200 CL diameter 7.48”
  • Diffuse and completely homogenous light distribution across the entire surface
  • Built in protection from water infiltration and moisture. IP67
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: BUTTON 100 CL: 8W at 24V DC – BUTTON 200 CL: 18W at 24V DC
  • Built-in unpolarized electronic system
  • 2 wires dimming 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 1598, CSA C22.2
