Button 200 SQ W

year 2017
project School
typology Square recessed wall luminaire
mounting To wall using housing box
length 203 x 203 mm / 7.99″ x 7.99″
height 81 mm / 3.19″
required depth 90 mm / 3.54″

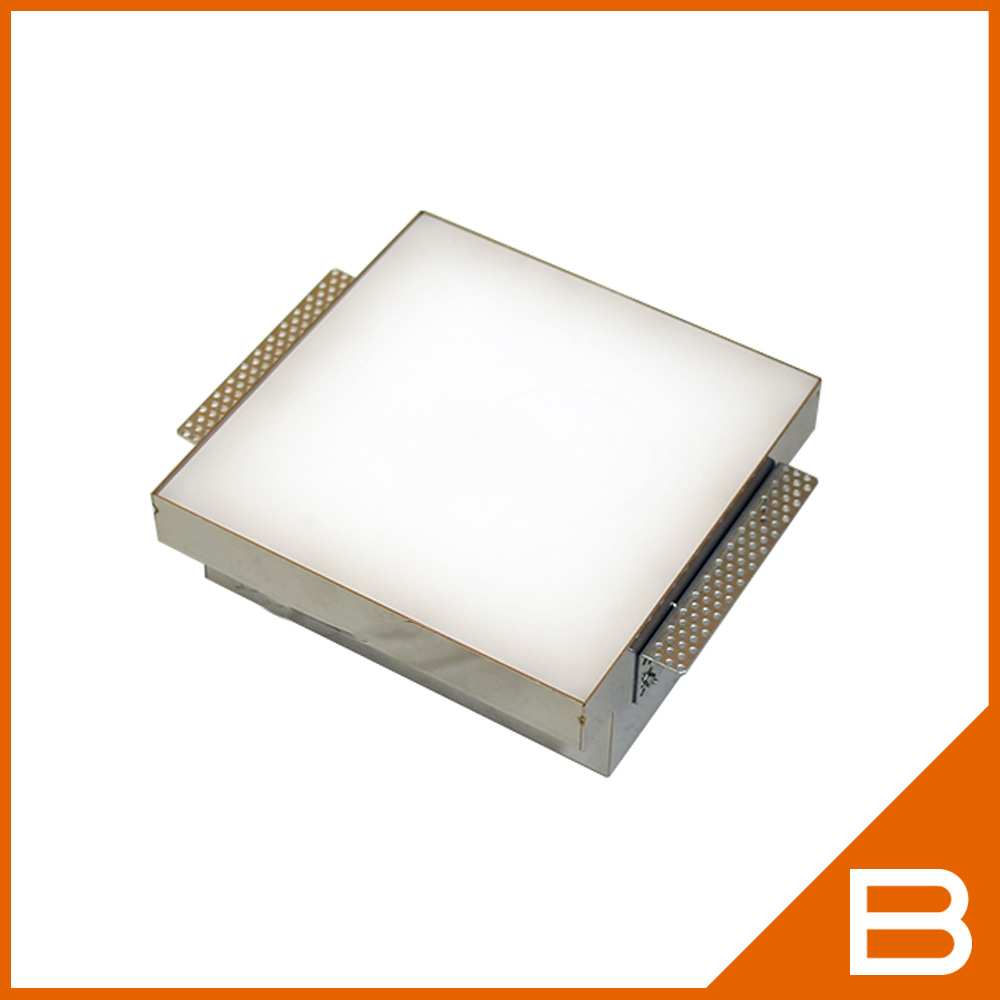

first fit requirement Yes, separate housing box:
wall cut out 230 mm x 230 mm / 9.06″ x 9.06″
construction Fixture: turning and milling aluminum. Diffuser complete with silicone gasket. Housing box aluminum.
finishes Fixture: anodized. DIffuser in white PMMA
ingress protection IP67
lamp quantity 1
lamp type LED array on printed circuit board. Remote power supply
lamp wattage 10W at 48V DC
special features Diffuse and completely homogenous light distribution across the entire surface. Magnets to hold fixture on position
colour temperatures 2900K CRI93
lumen maintenance 50.000hrs lifetime with lumen maintenance at L70
certifications CE
