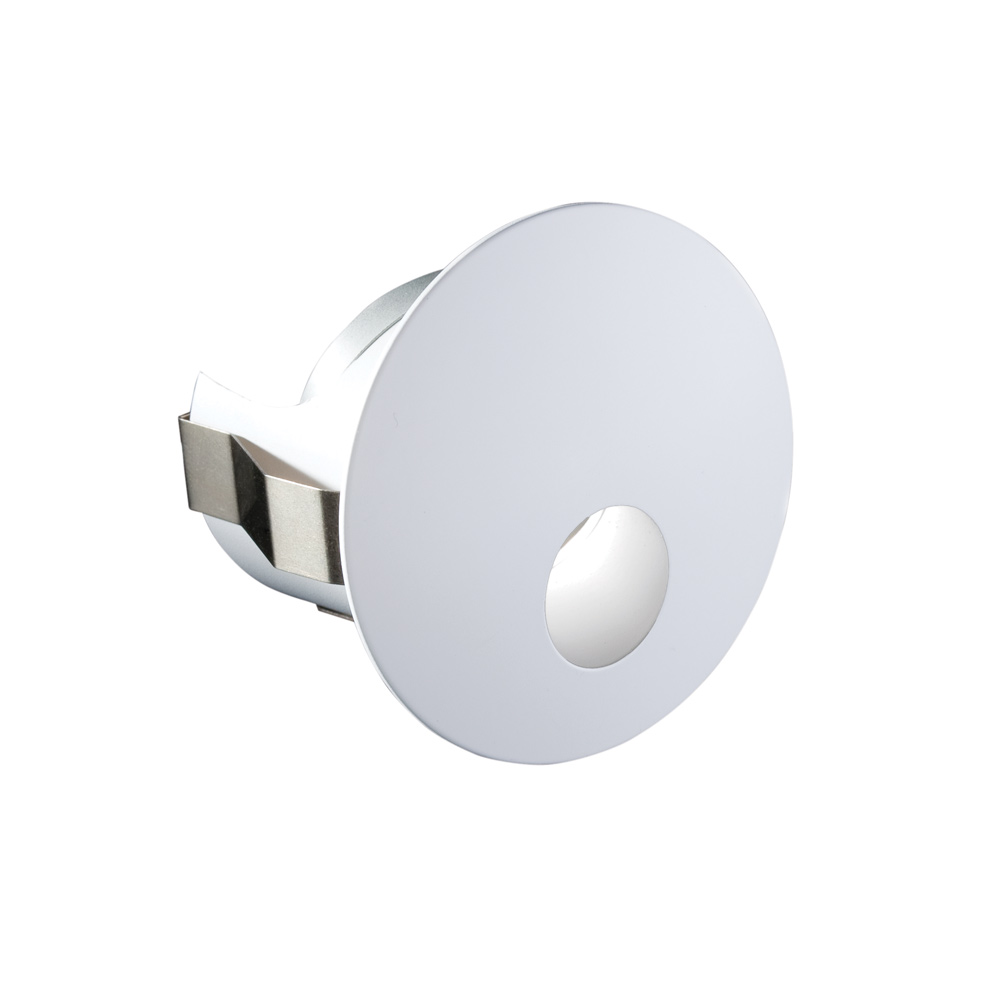

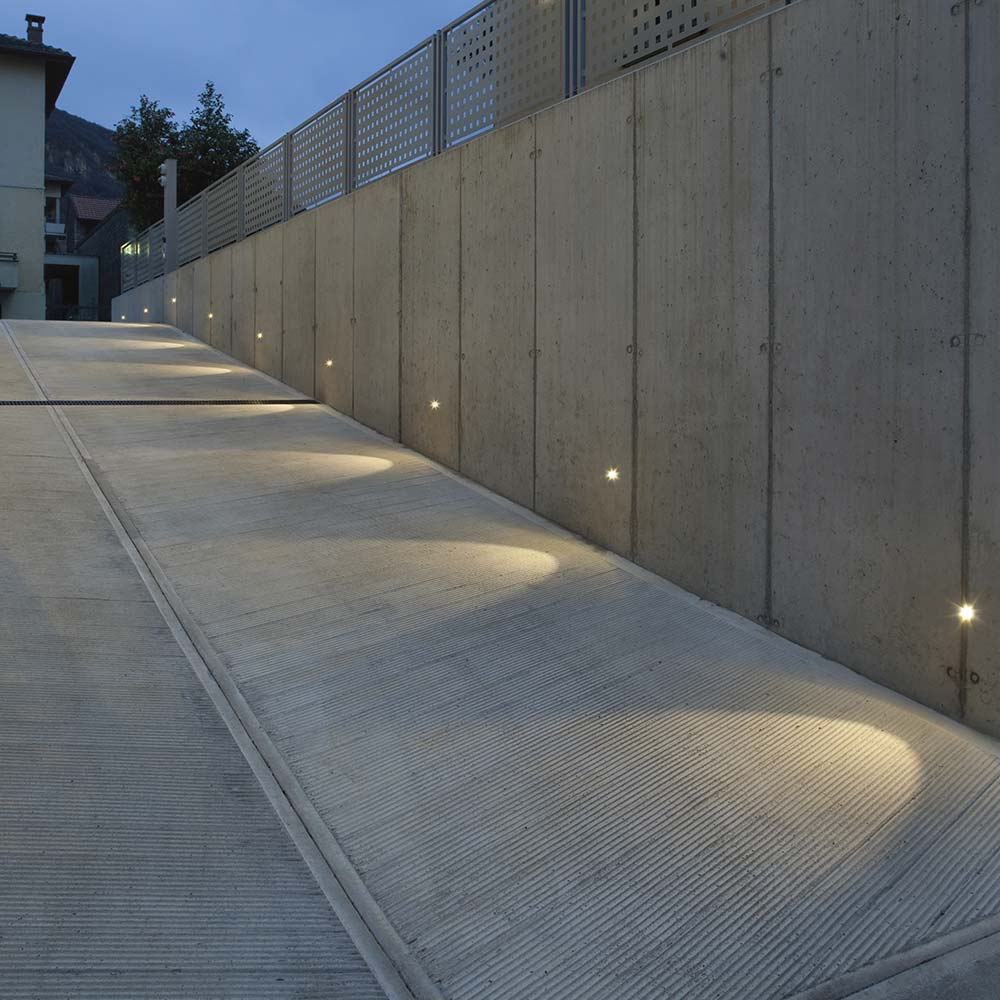

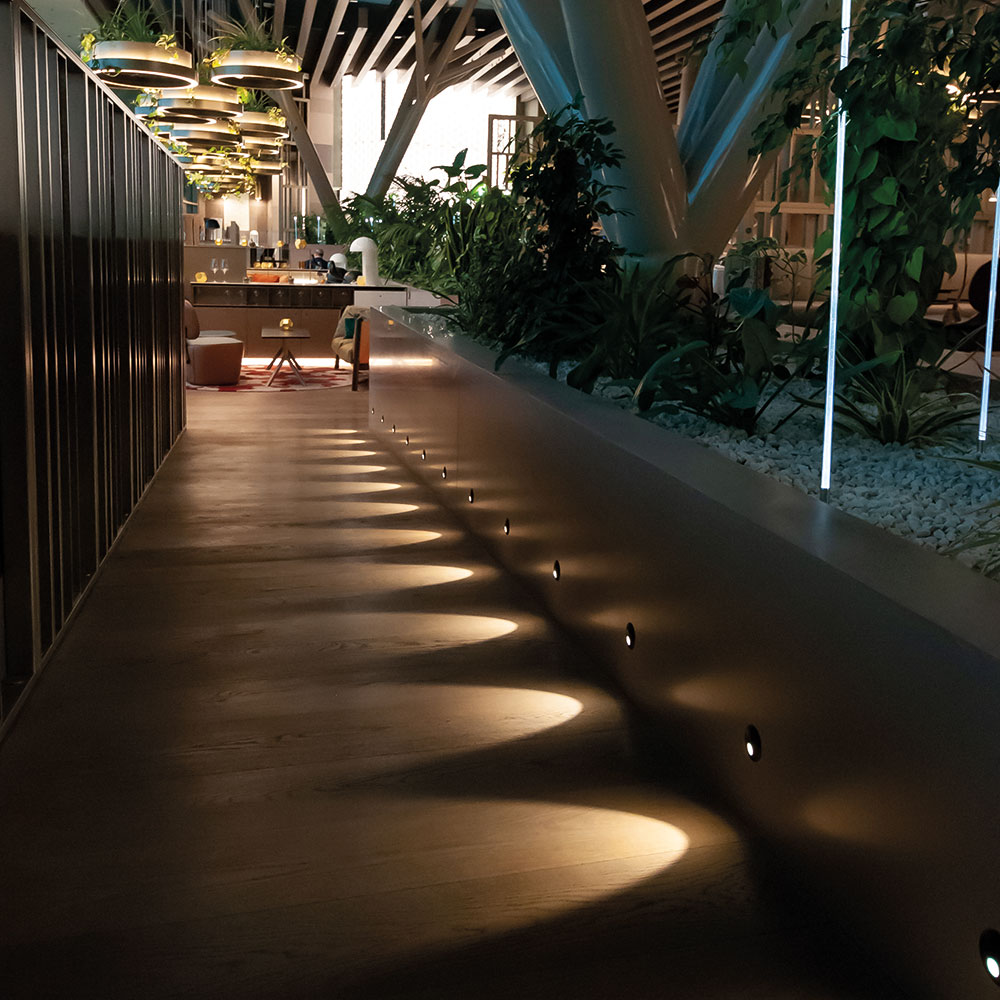

Compact step marker for indoor and outdoor use

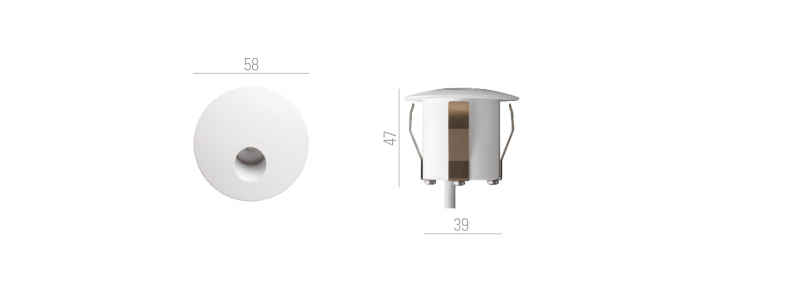

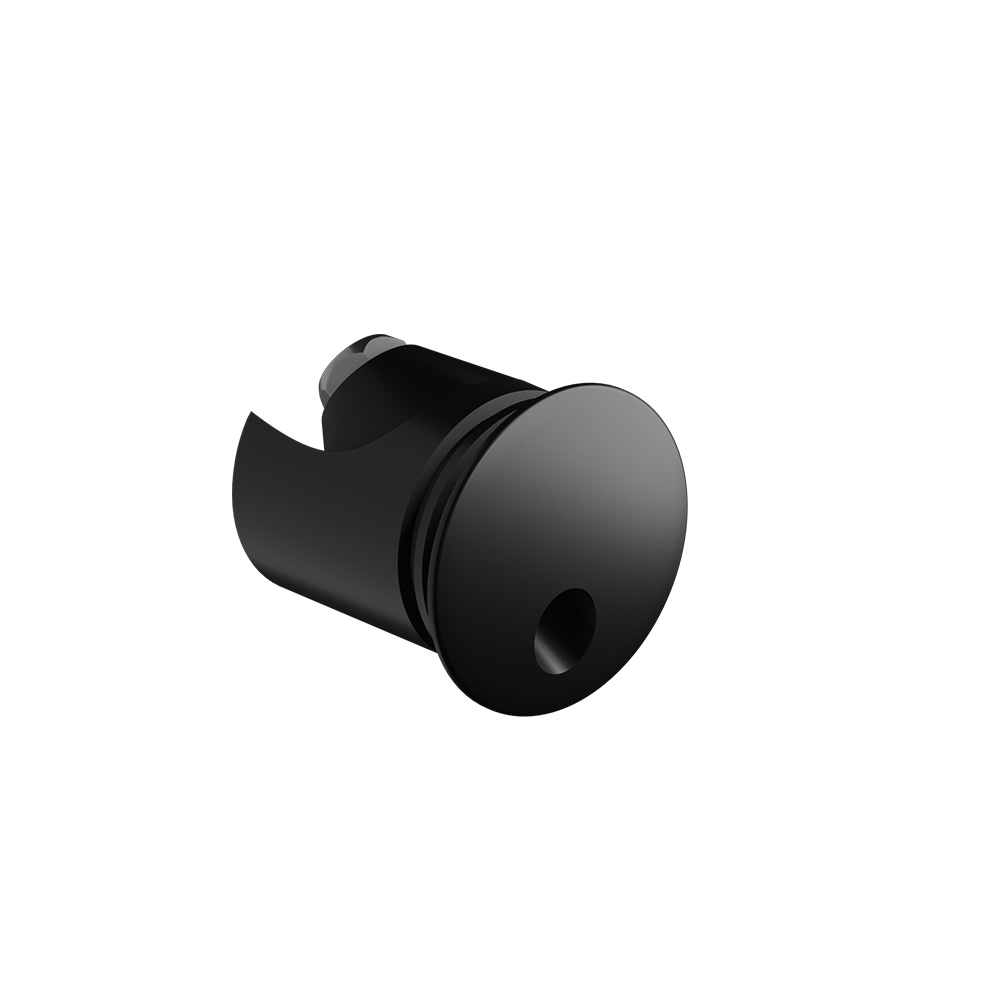

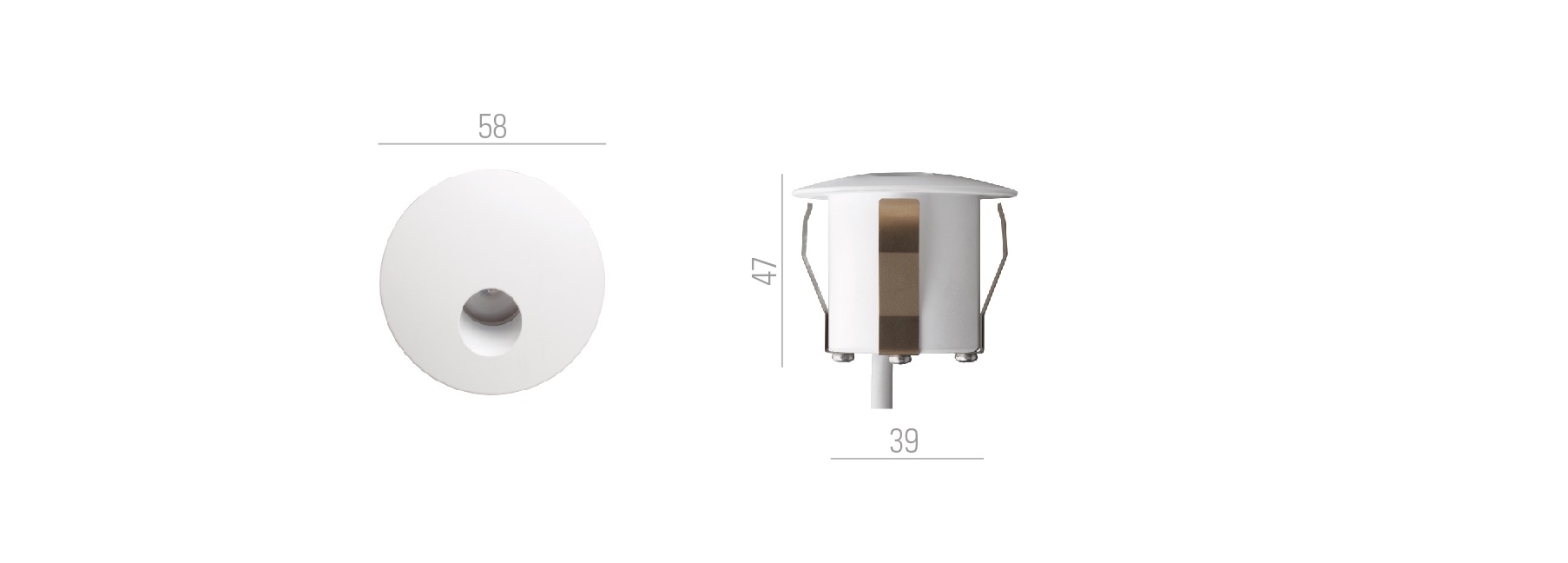

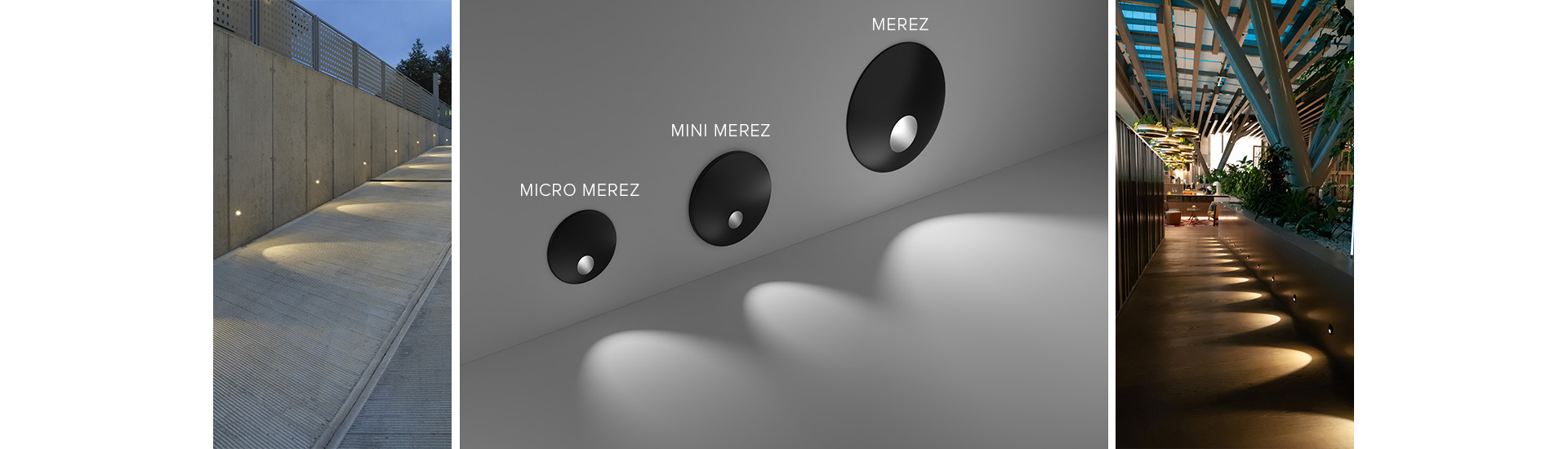

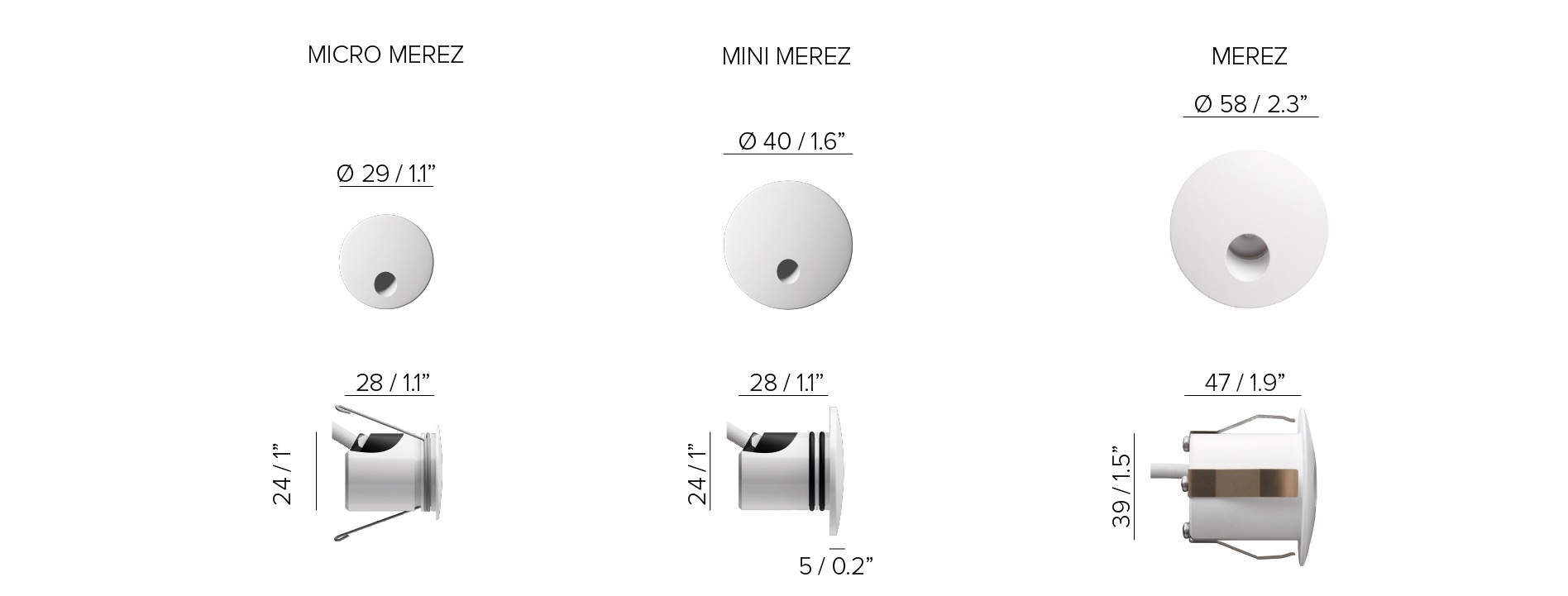

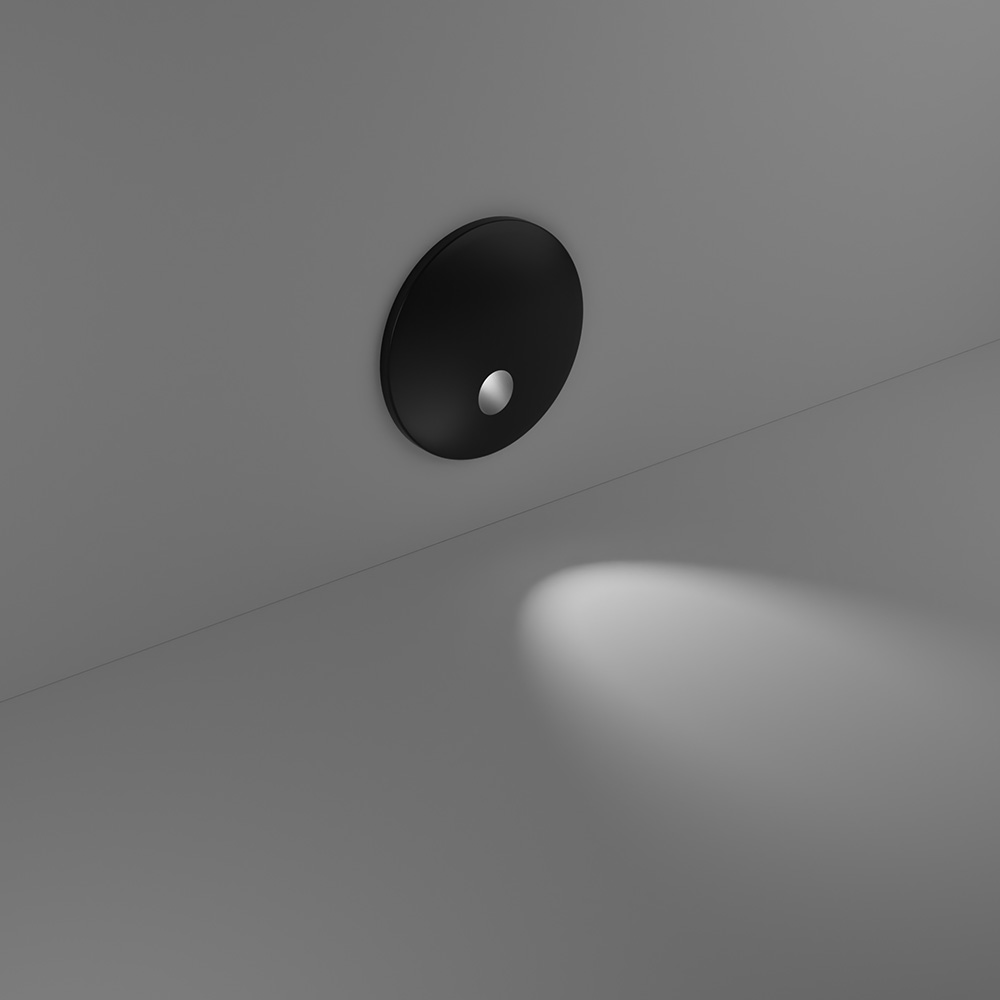

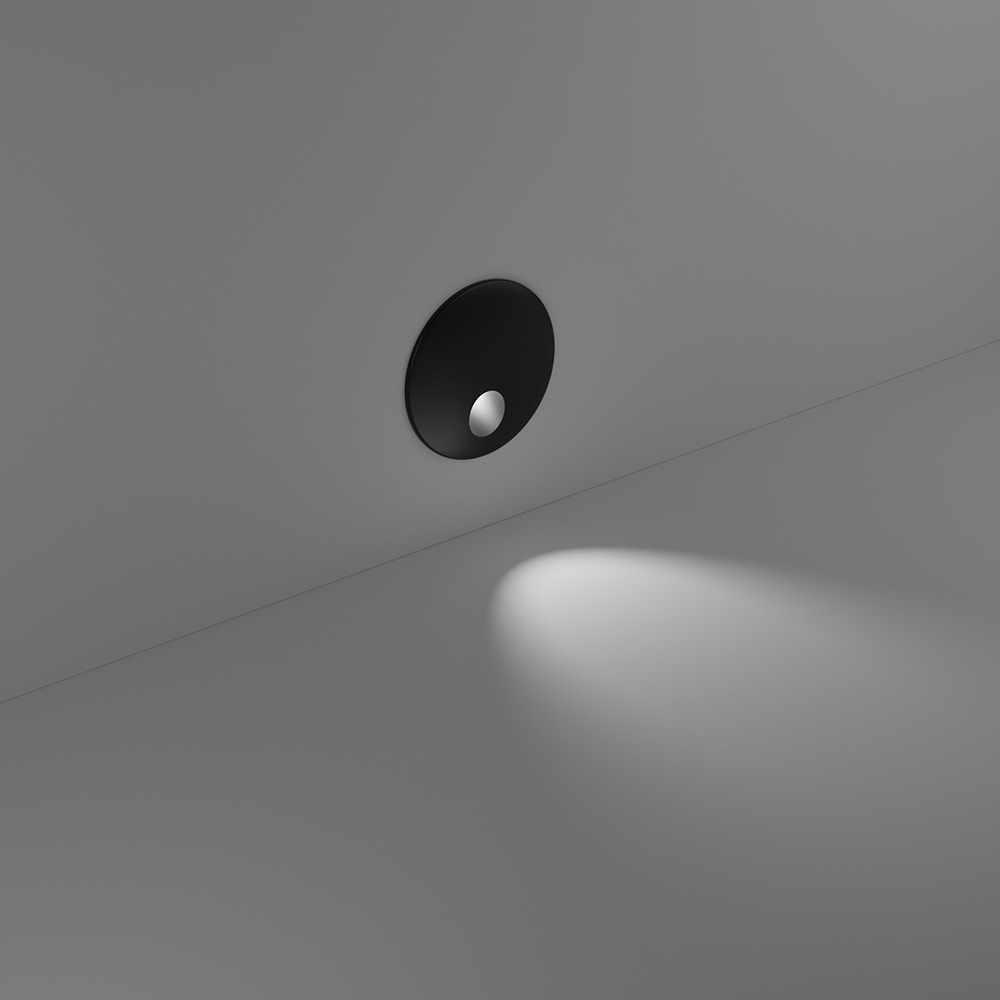

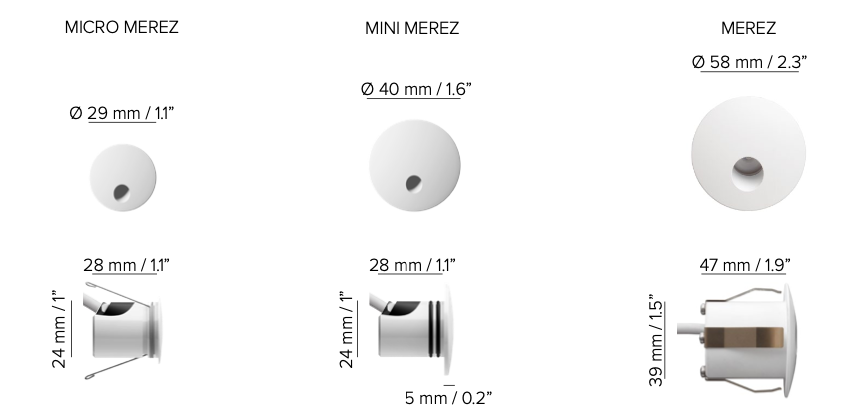

  • Available in three versions: MICRO MEREZ ∅28 mm – MINI MEREZ ∅ 40 mm – MEREZ ∅ 58 mm

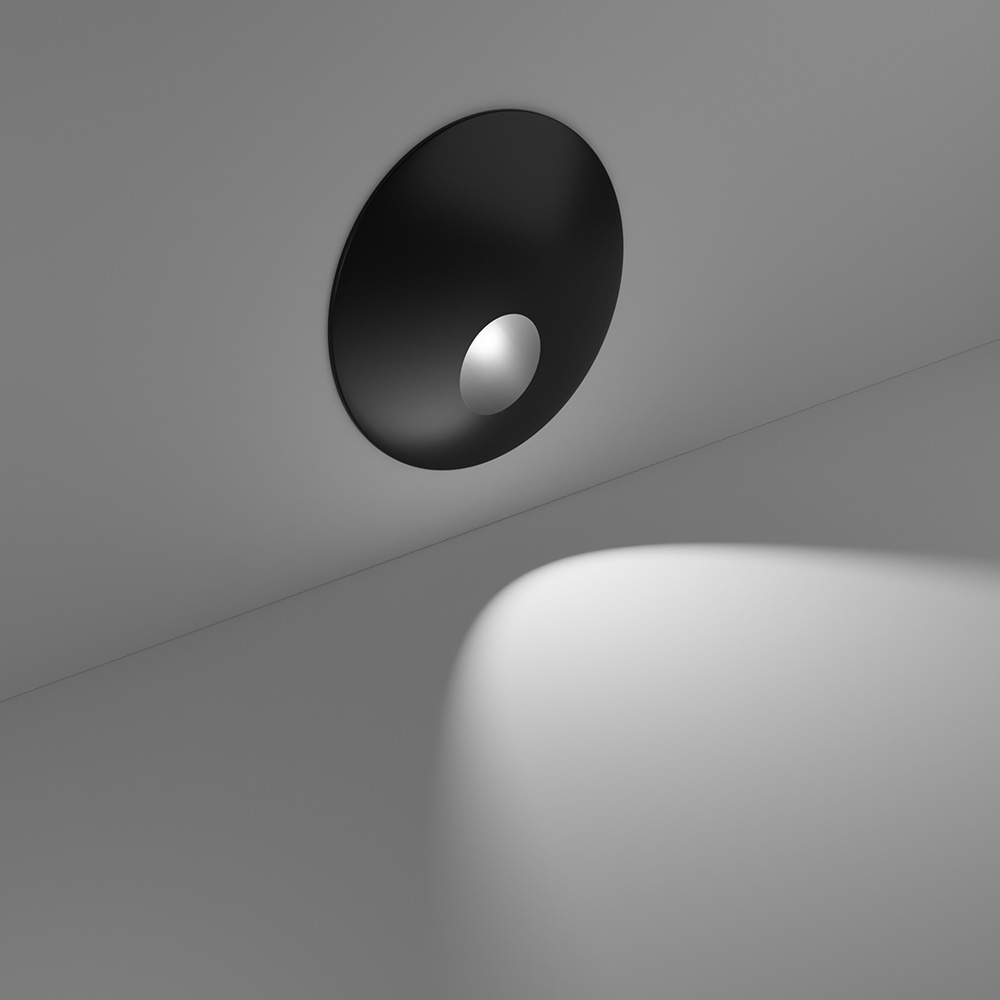

  • Optics on a 45° tilt for low glare
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93, 3000K CRI93
  • Wattage: MICRO MEREZ / MINI MEREZ 1W at 24V DC. MEREZ 3W at 48V DC
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. 24V DC: reverse polarity protection. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C
  • Dimming options: push button, potentiometer, 0-10V, DALI, DMX, KNX. Dimming options depend on power supply to be separately ordered as accessories
  • IP65
