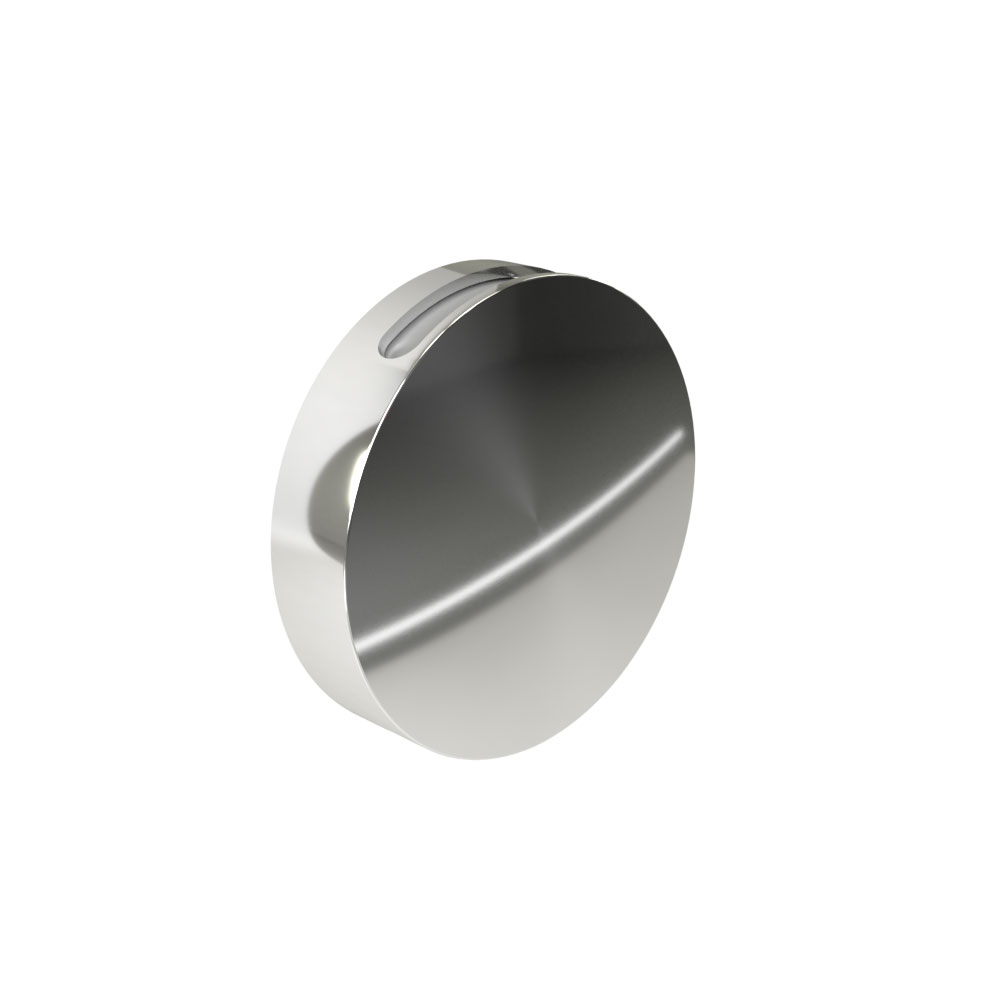

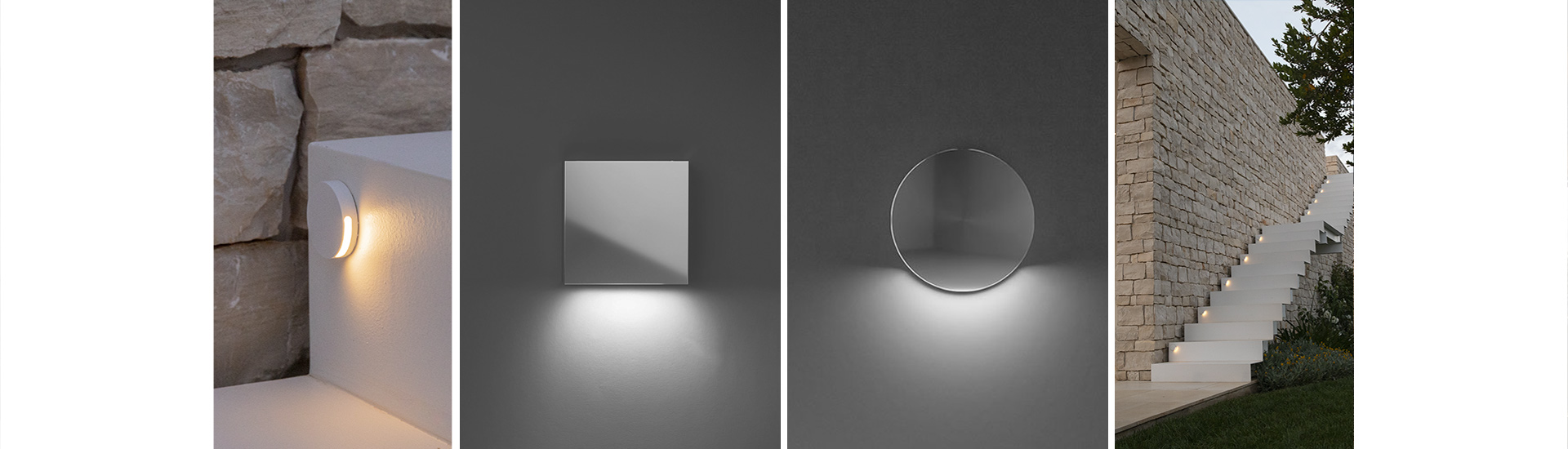

Round or square grazing wall luminaire with light emission on one or two sides. suitable for indoor (IP40) as well as outdoor (IP65)

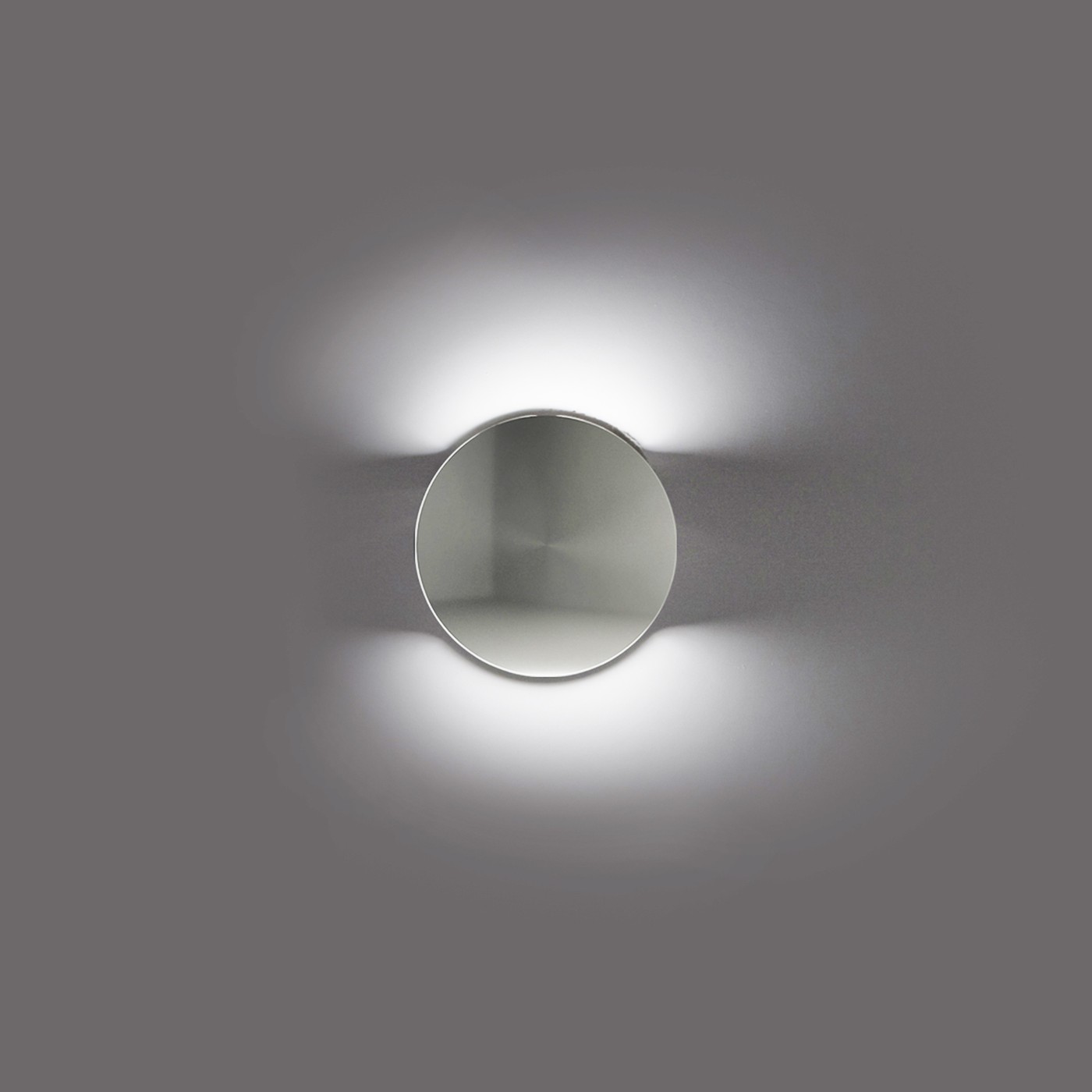

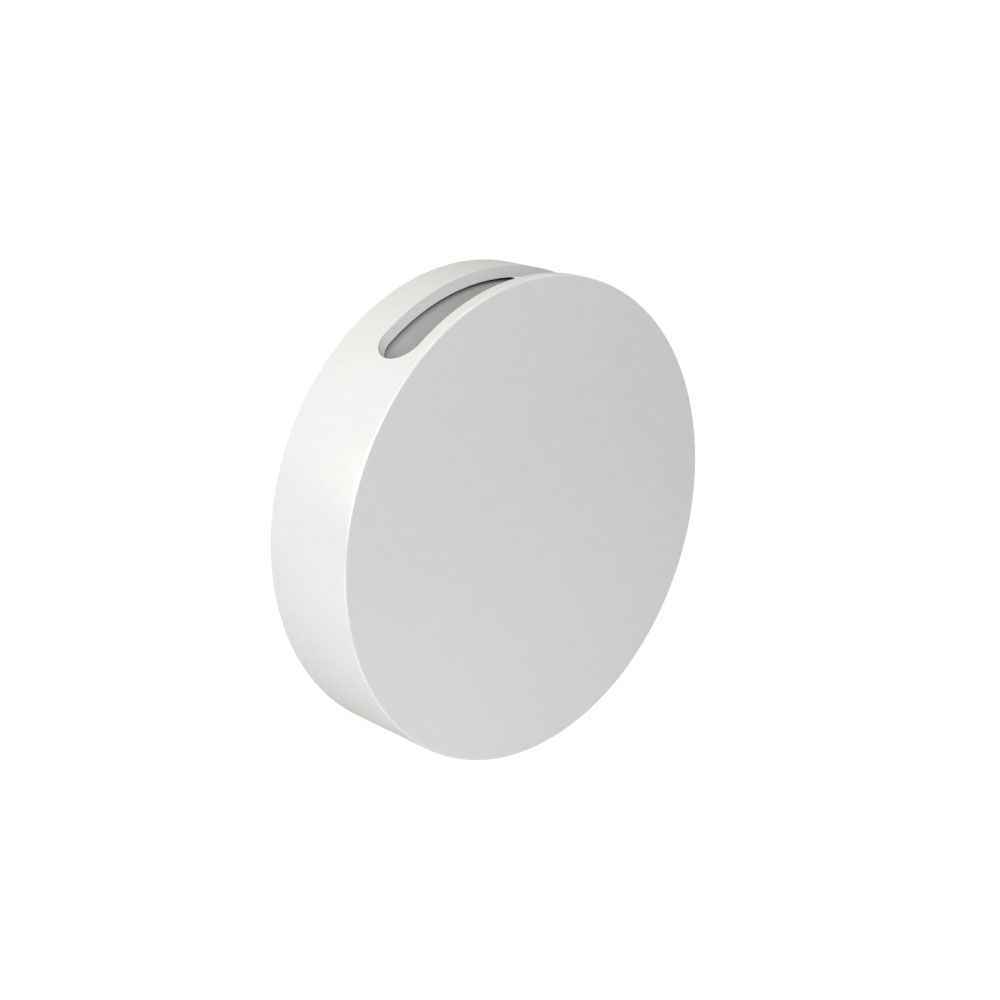

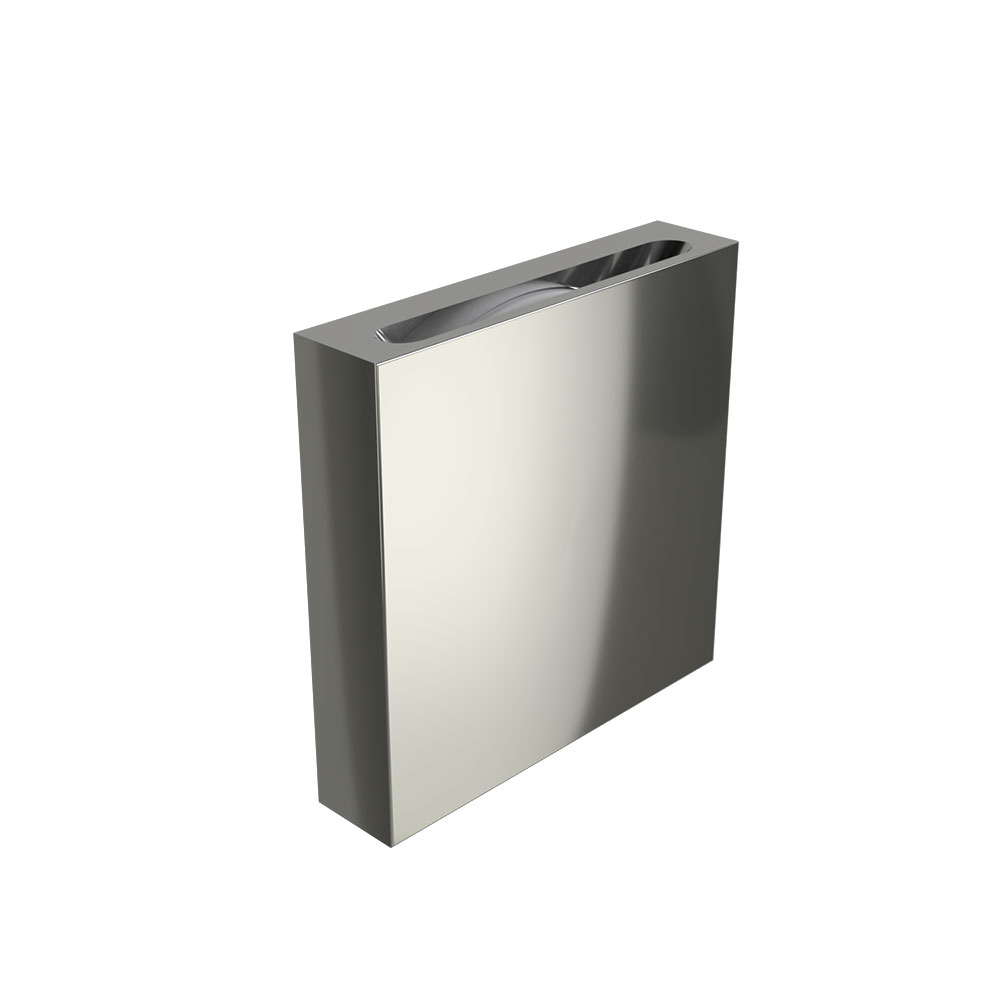

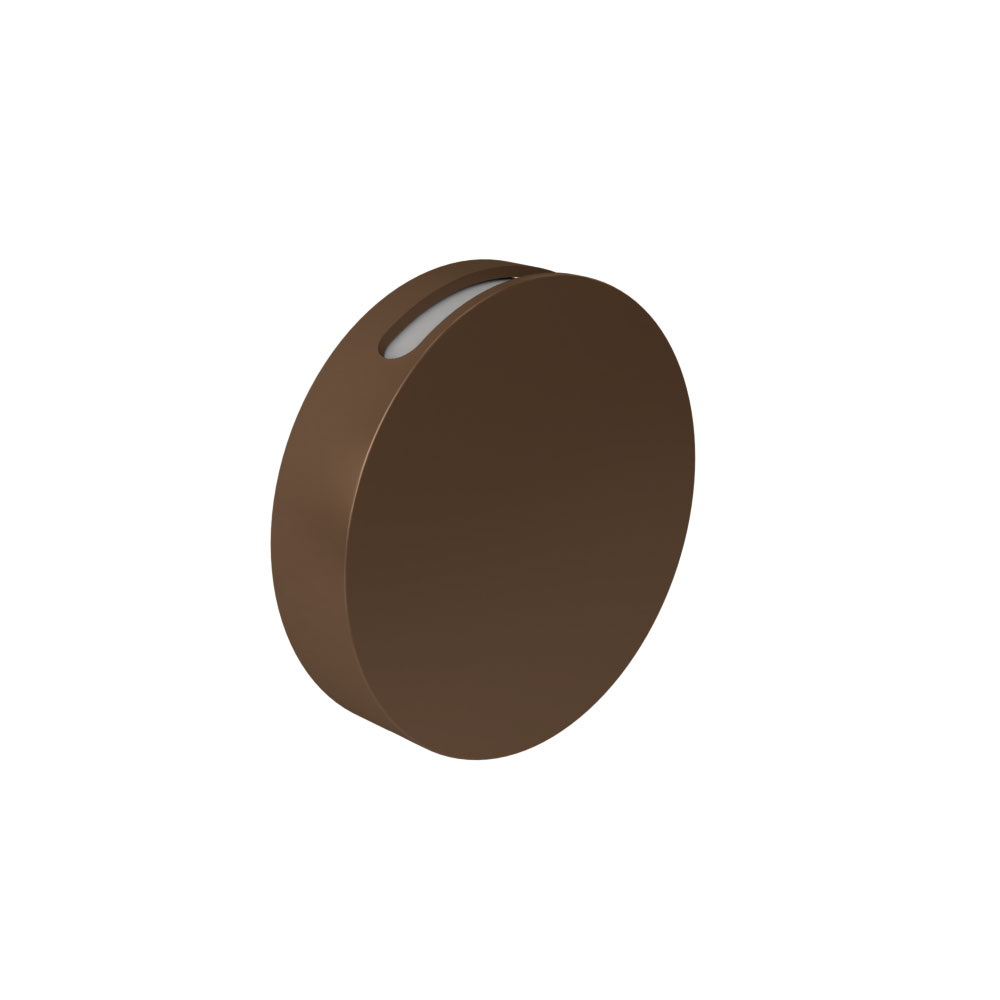

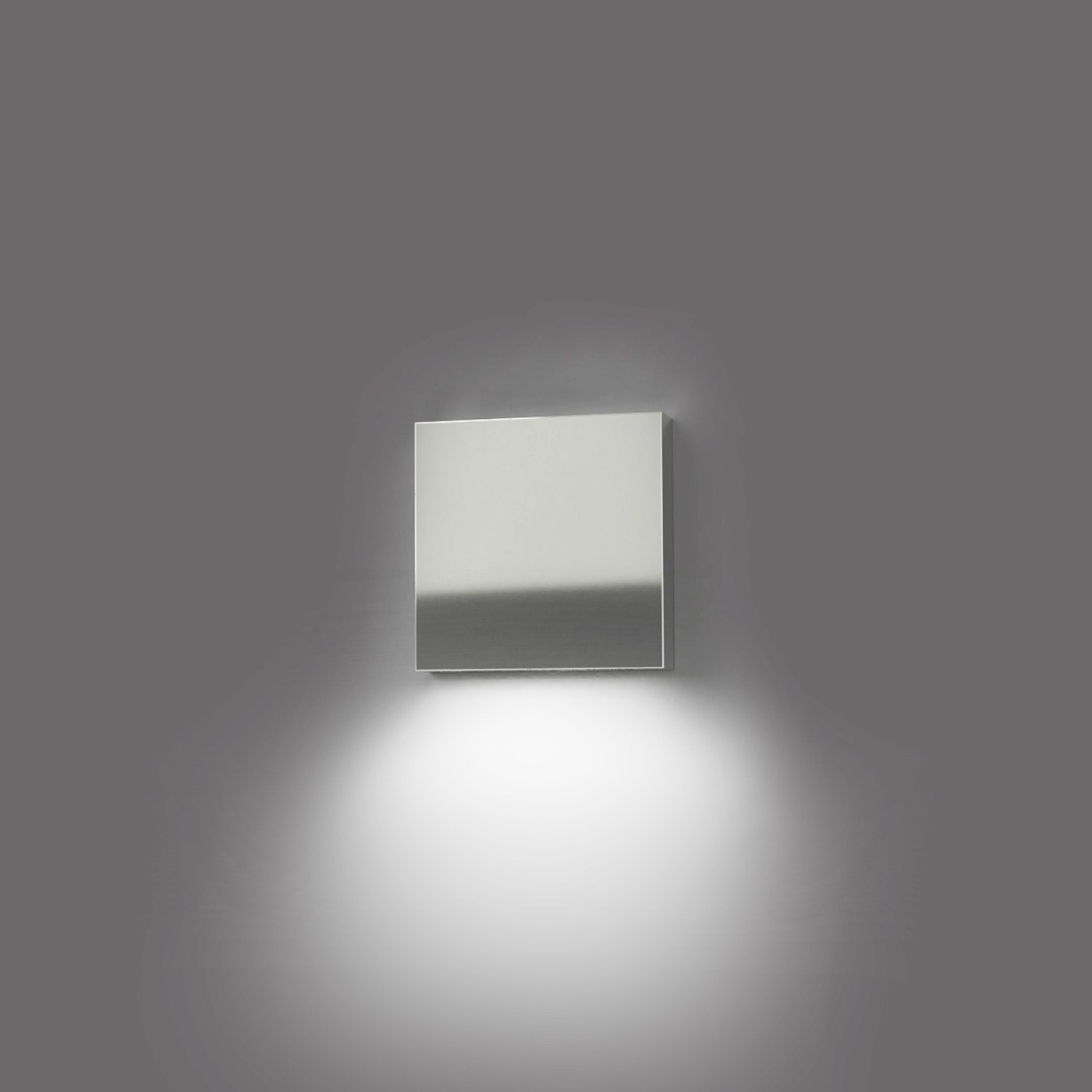

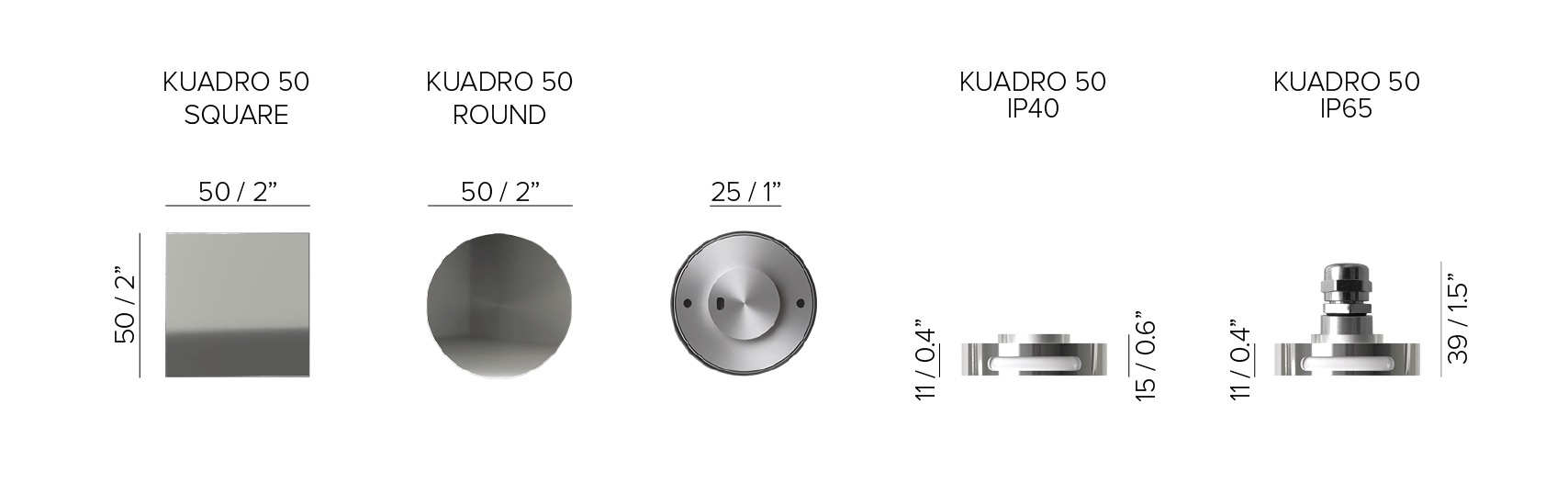

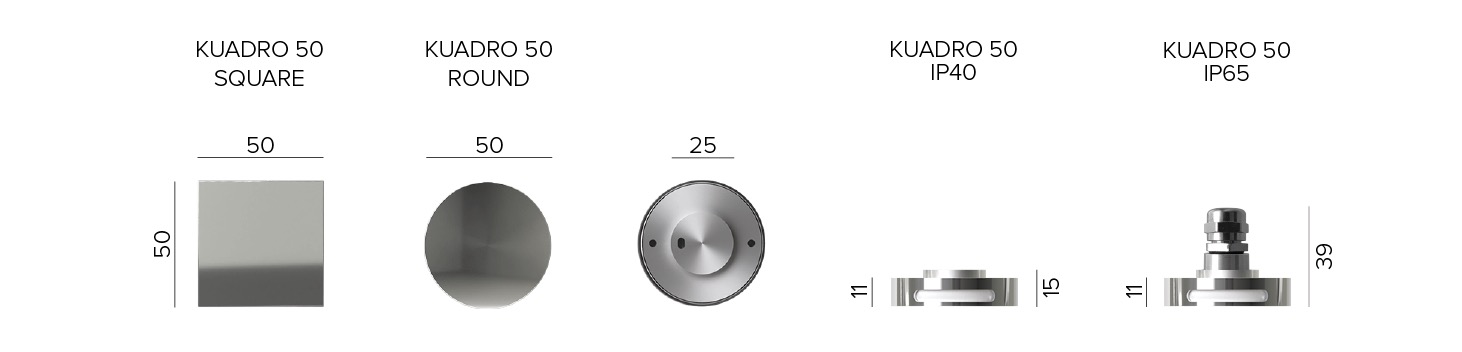

  • KUADRO 50 round: diameter 50 mm. KUADRO 50 square: 50 mm x 50 mm
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93 or 3000K CRI93
  • Wattage: 2W at 48V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60° C
  • 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP40/IP65
