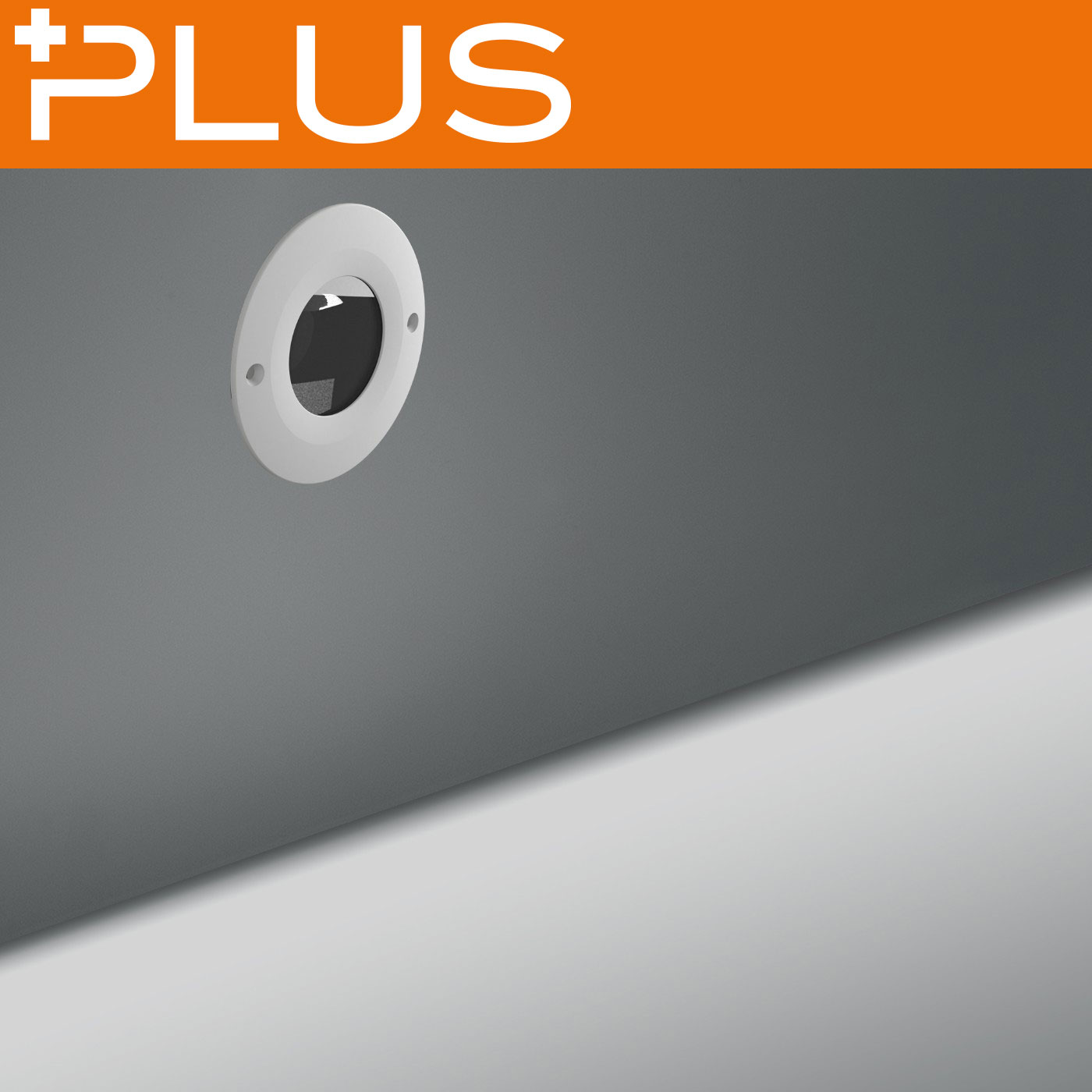

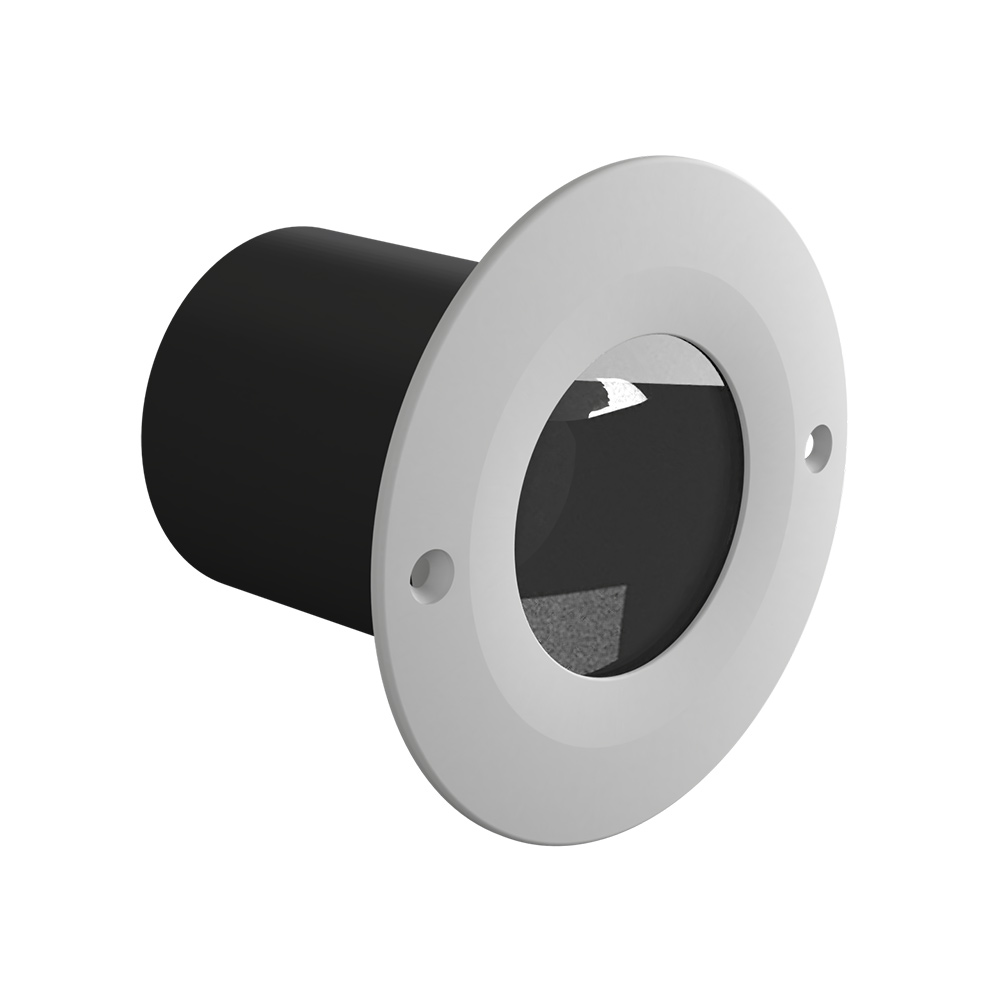

ATRIA FW

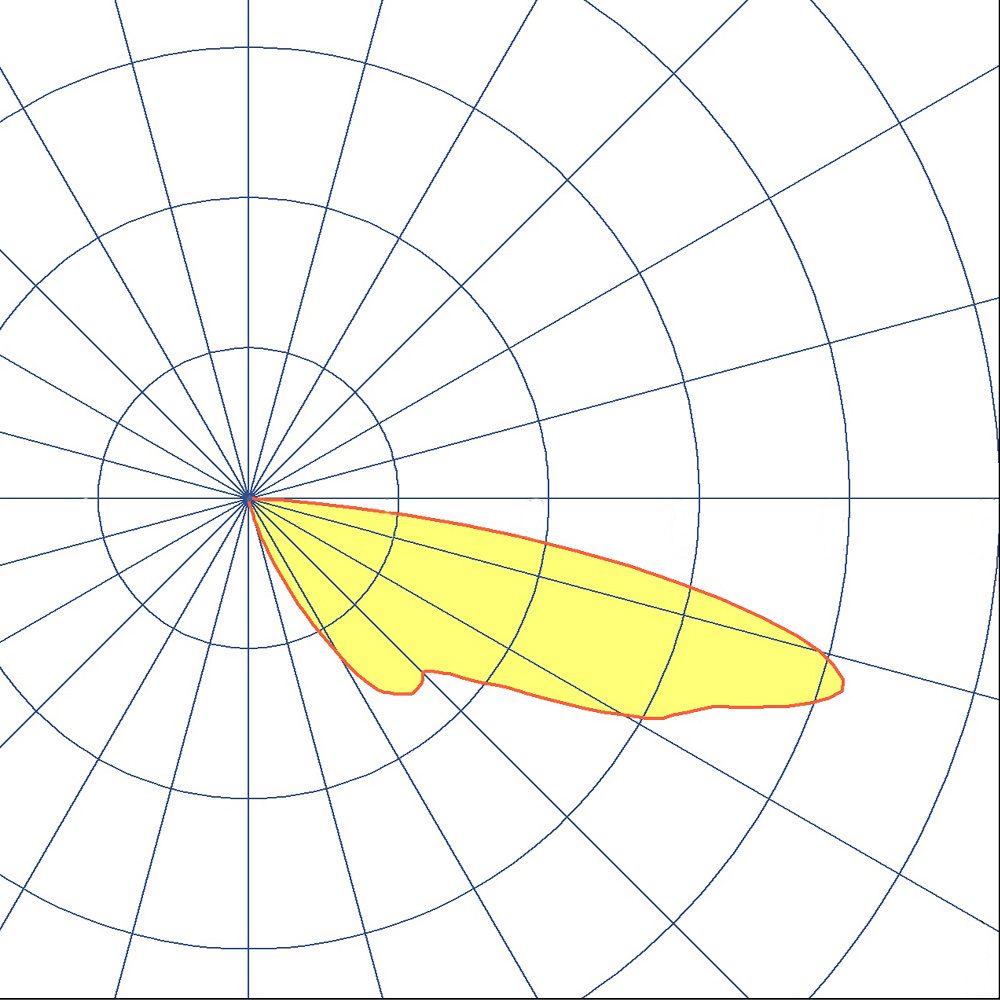

Recessed wall mounted glare free floorwasher, delivering asymmetric light distribution

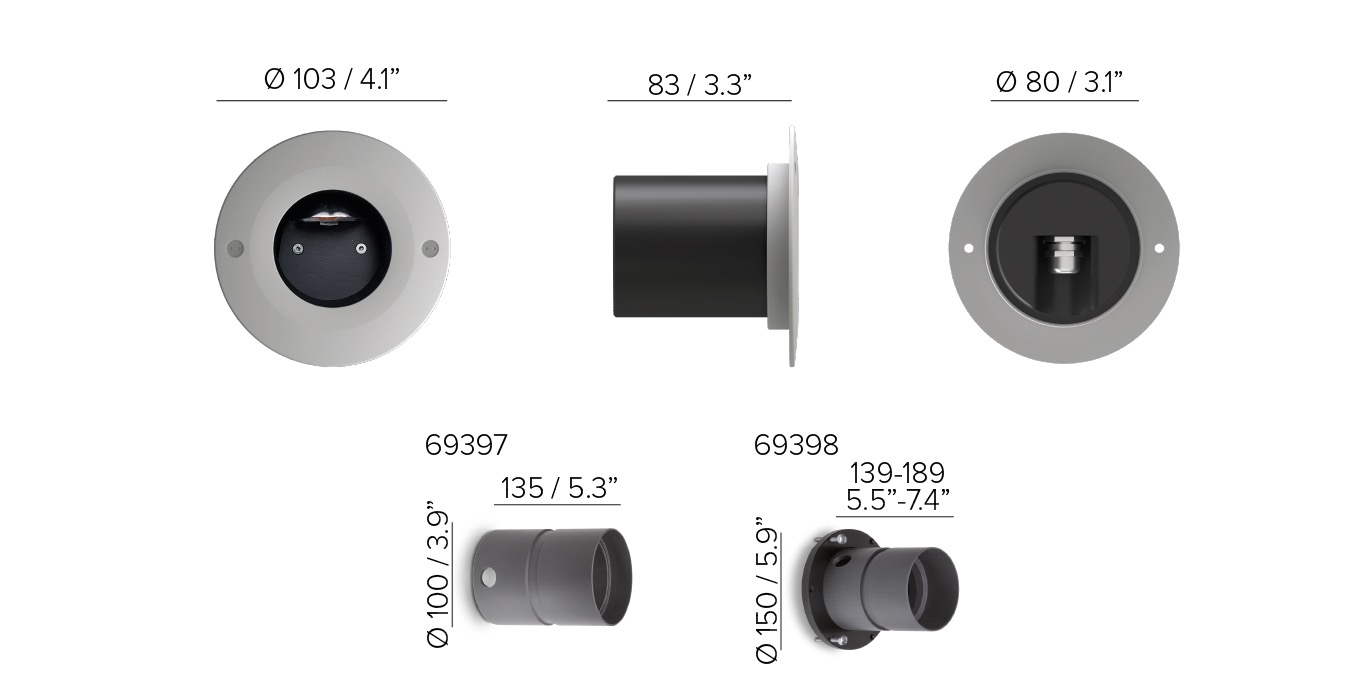

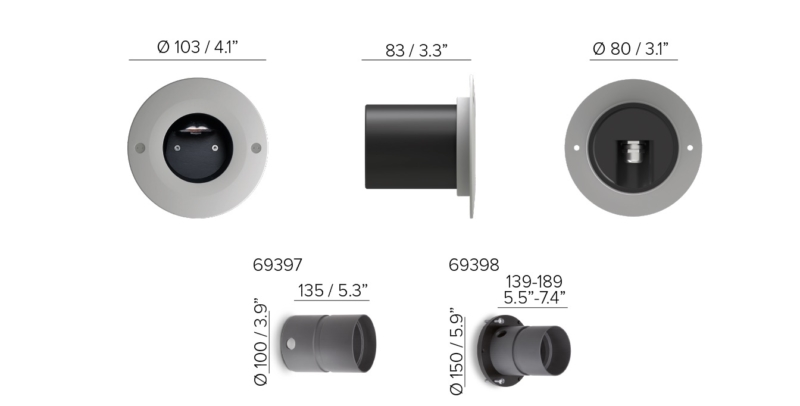

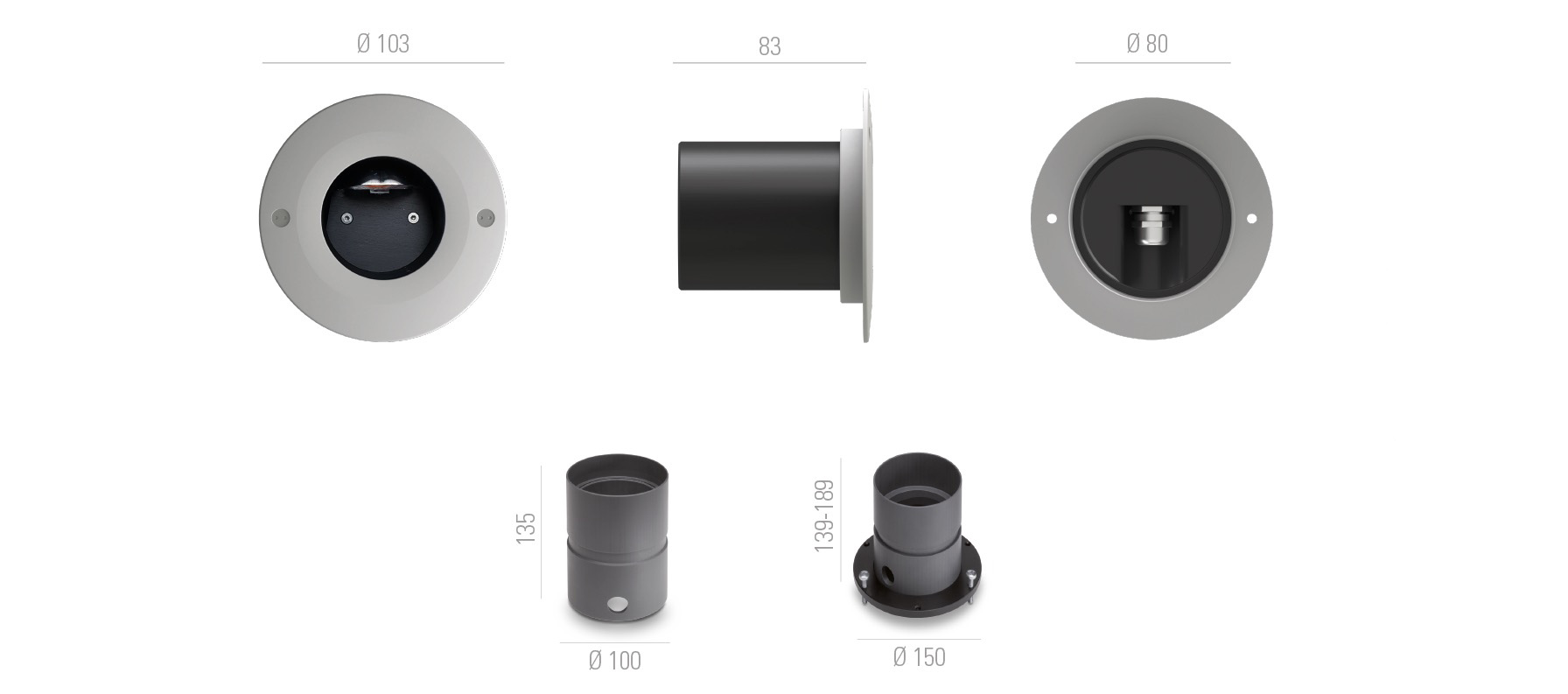

  • Diameter 103 mm

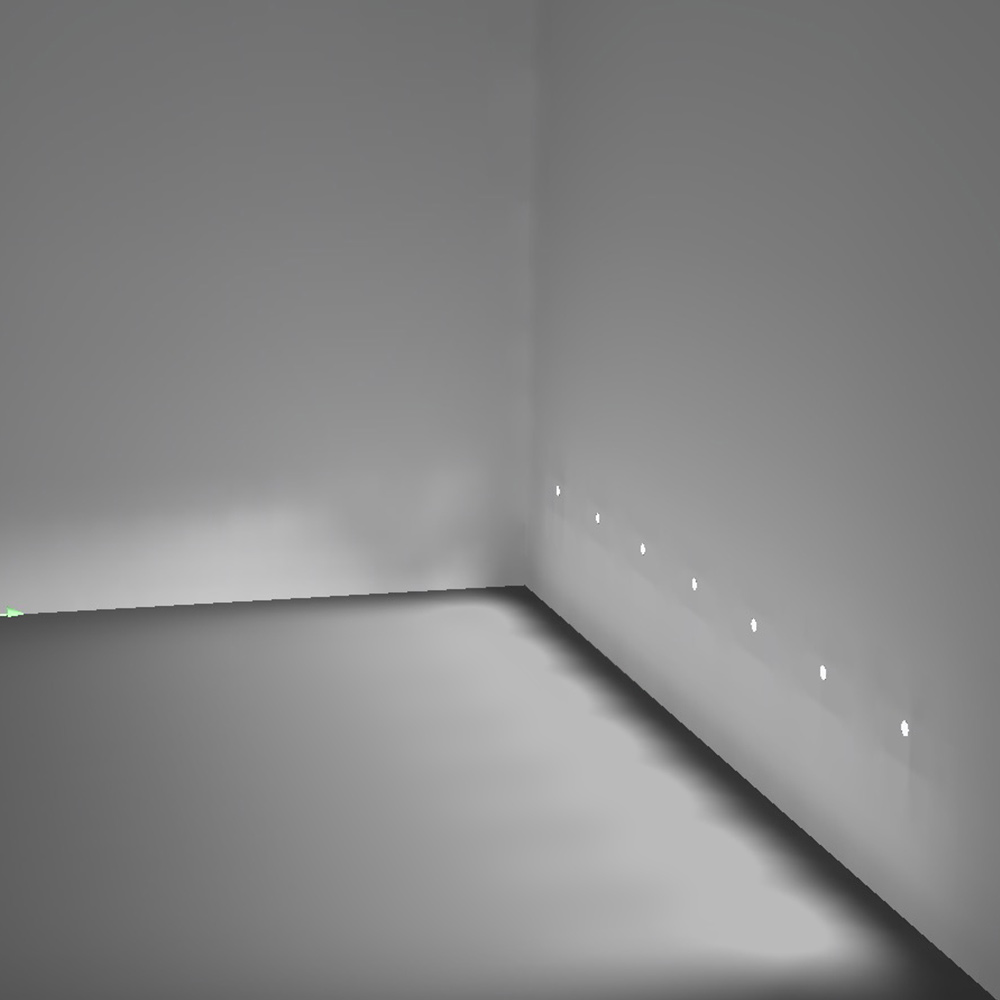

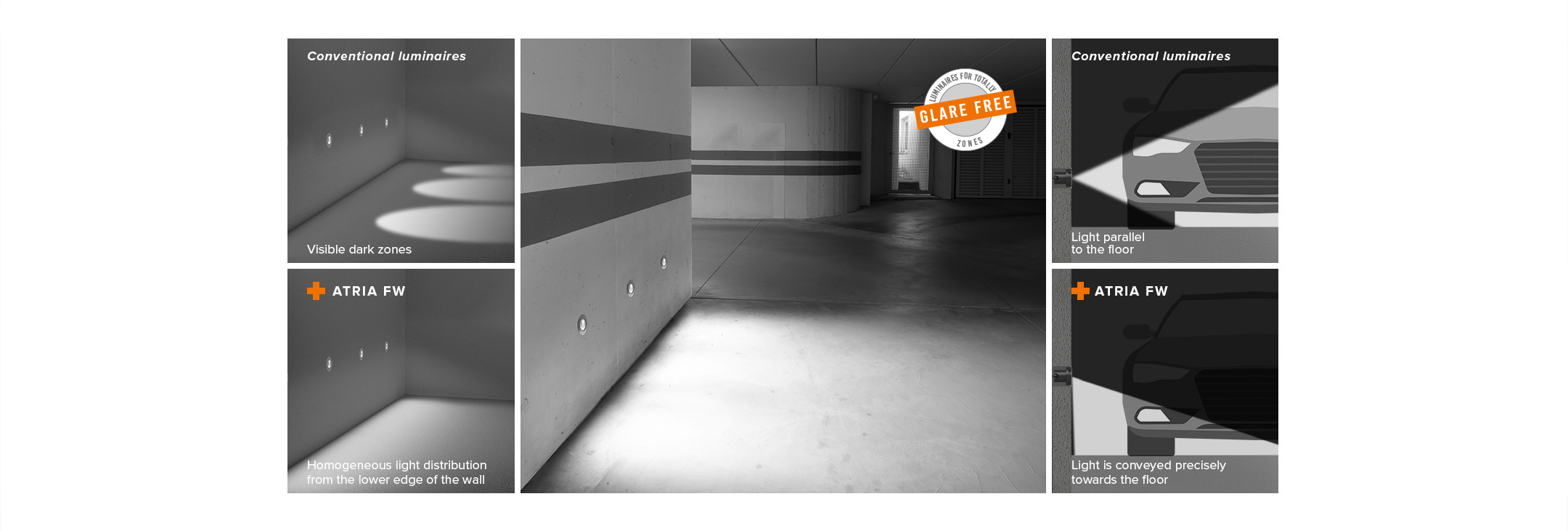

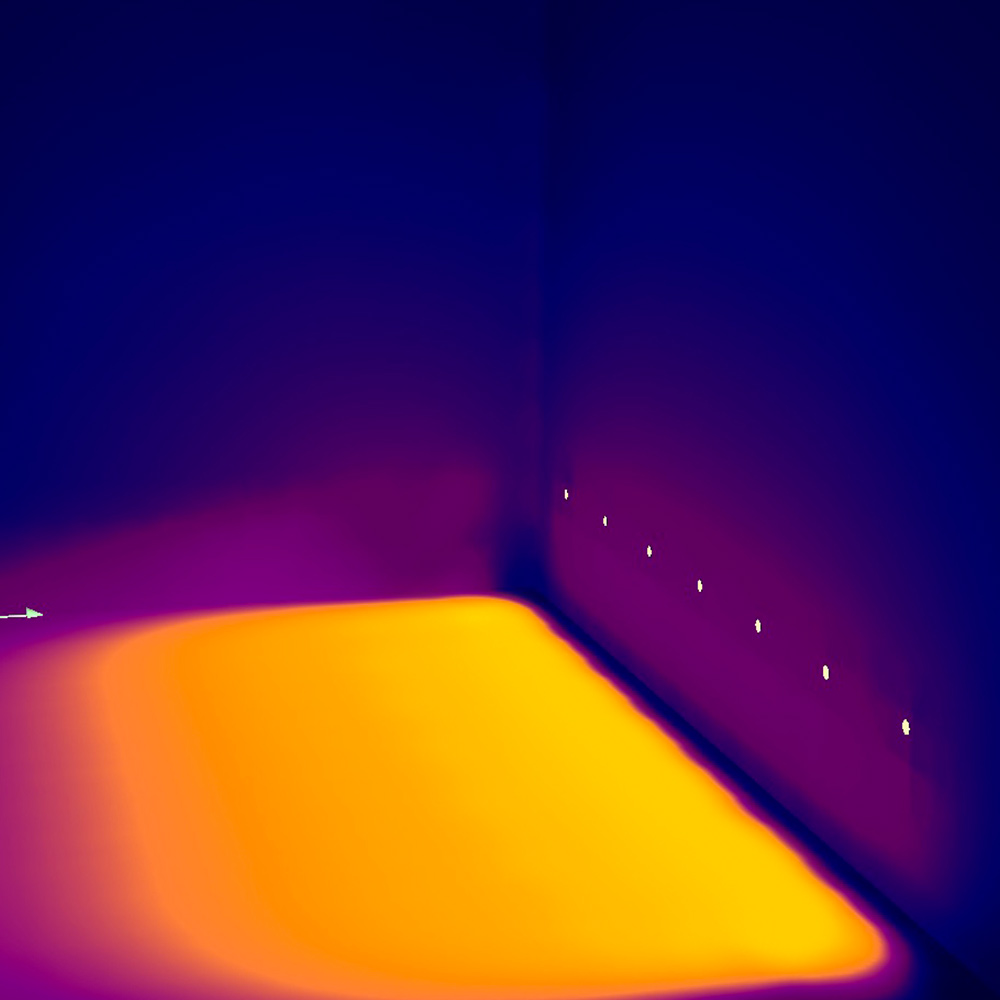

  • Thanks to the design of the reflector, the fixture is glare free delivering homogeneous light distribution on the floor
  • The floor wash is achieved from the lower edge of the wall with no visible dark zones
  • Available with colour temperature of 2200K CRI80, 2700K CRI93, 3000K CRI93 or 4000KCRI93
  • Wattage: 8W at 48V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60°C
  • Two wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP66
