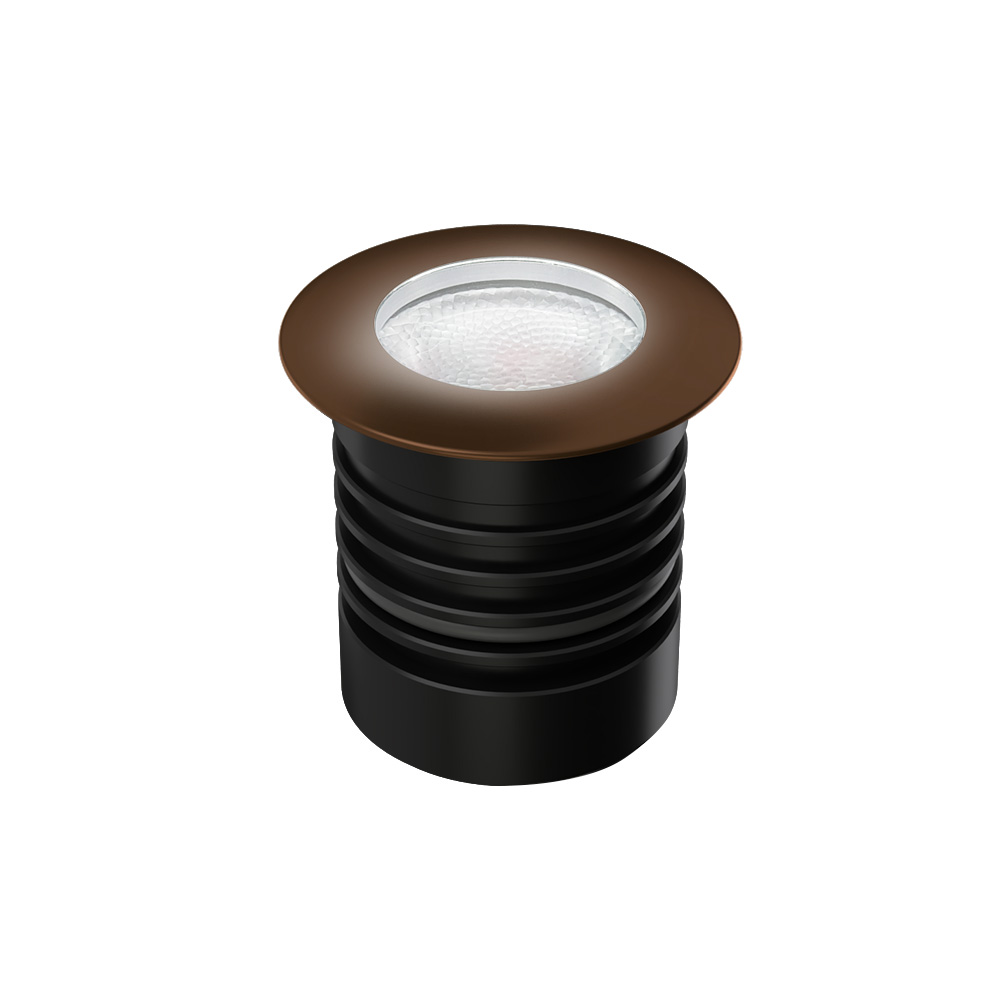

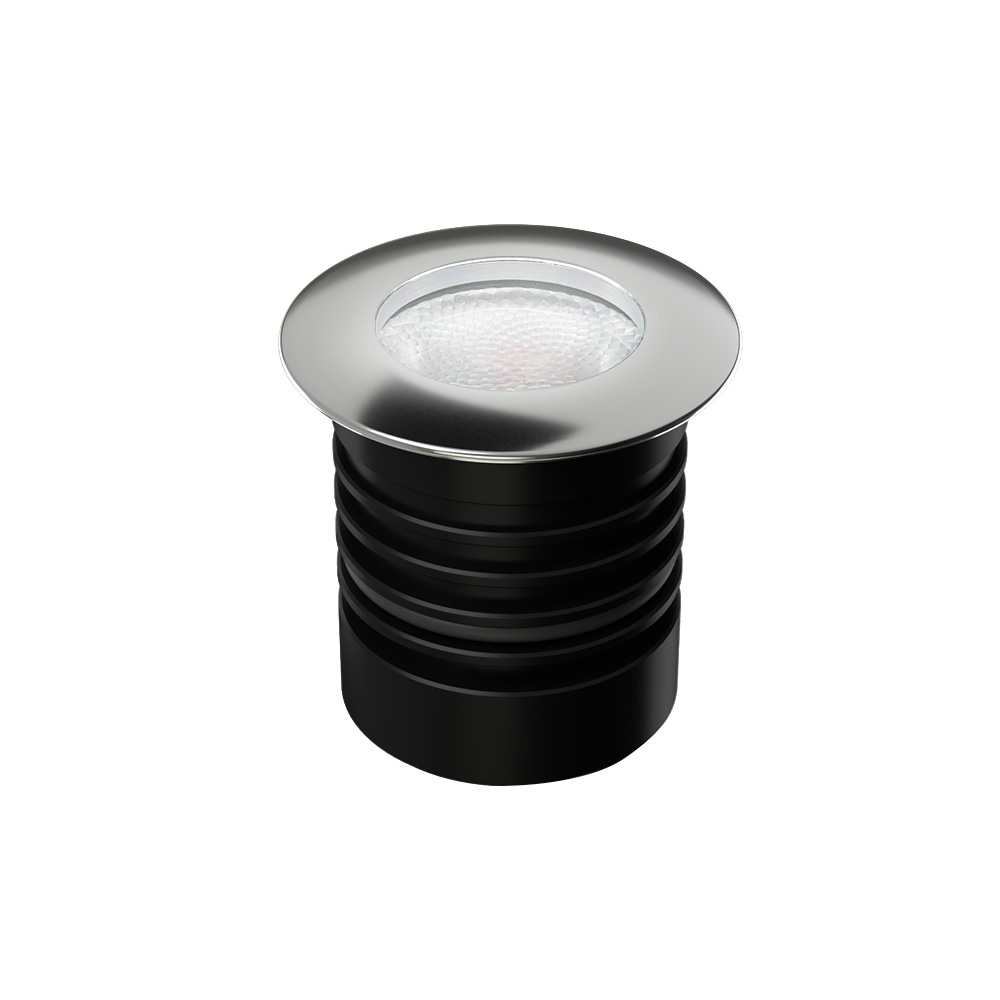

Atria Mini


Compact uplight or downlight for outdoor use

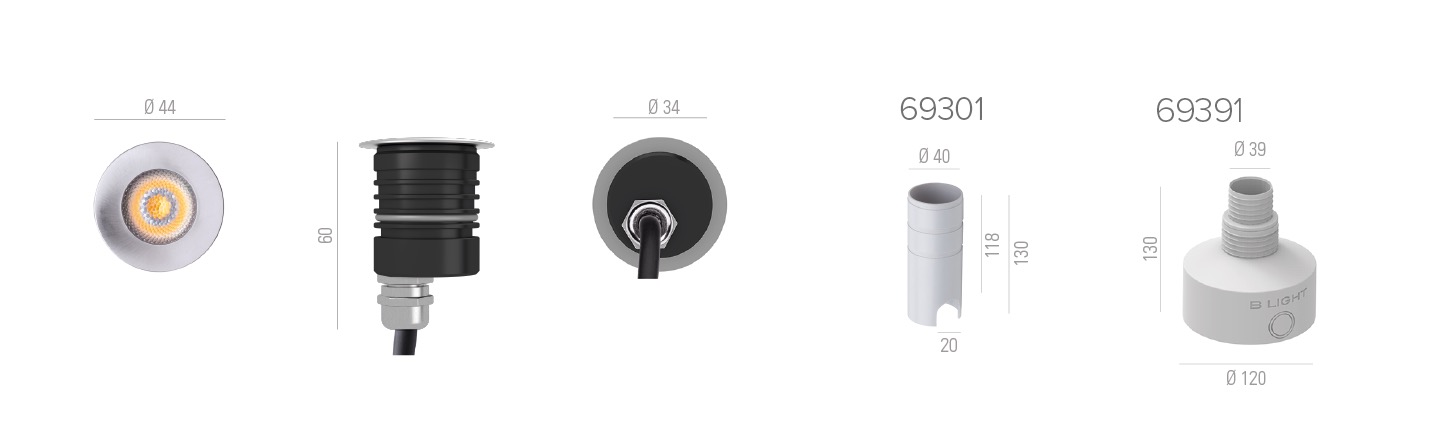

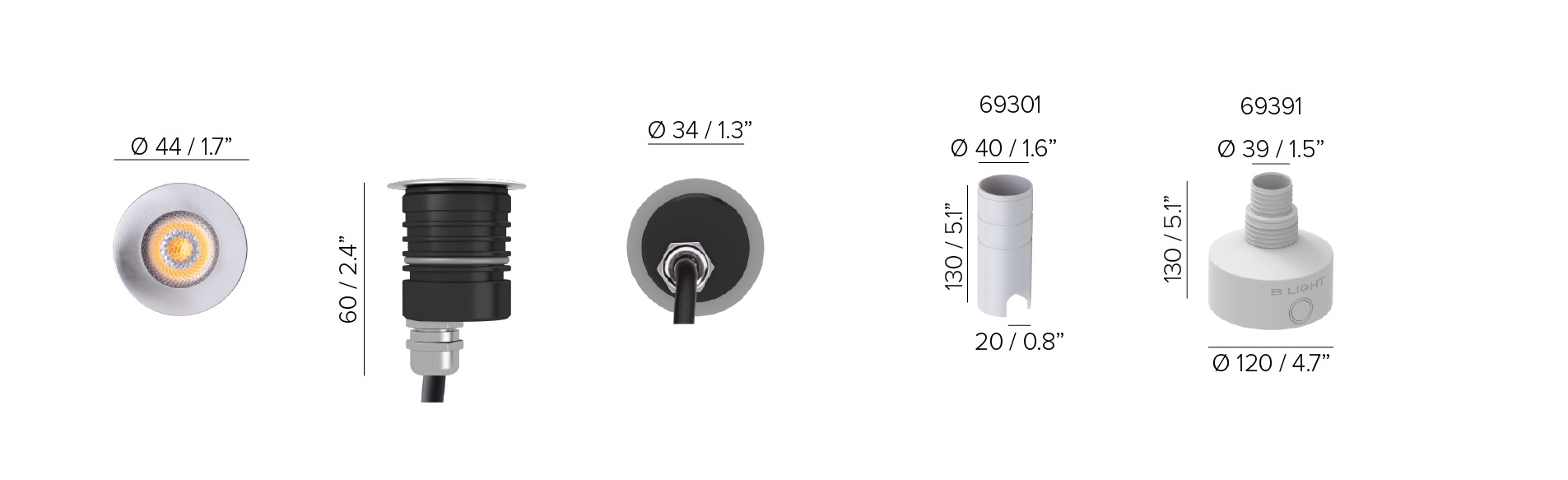

  • Diameter: 44 mm
  • Depth: 62 mm
  • Required depth: 80 mm on plasterboard, 130 mm on concrete
  • IP67. Built-in protection from water infiltration and moisture

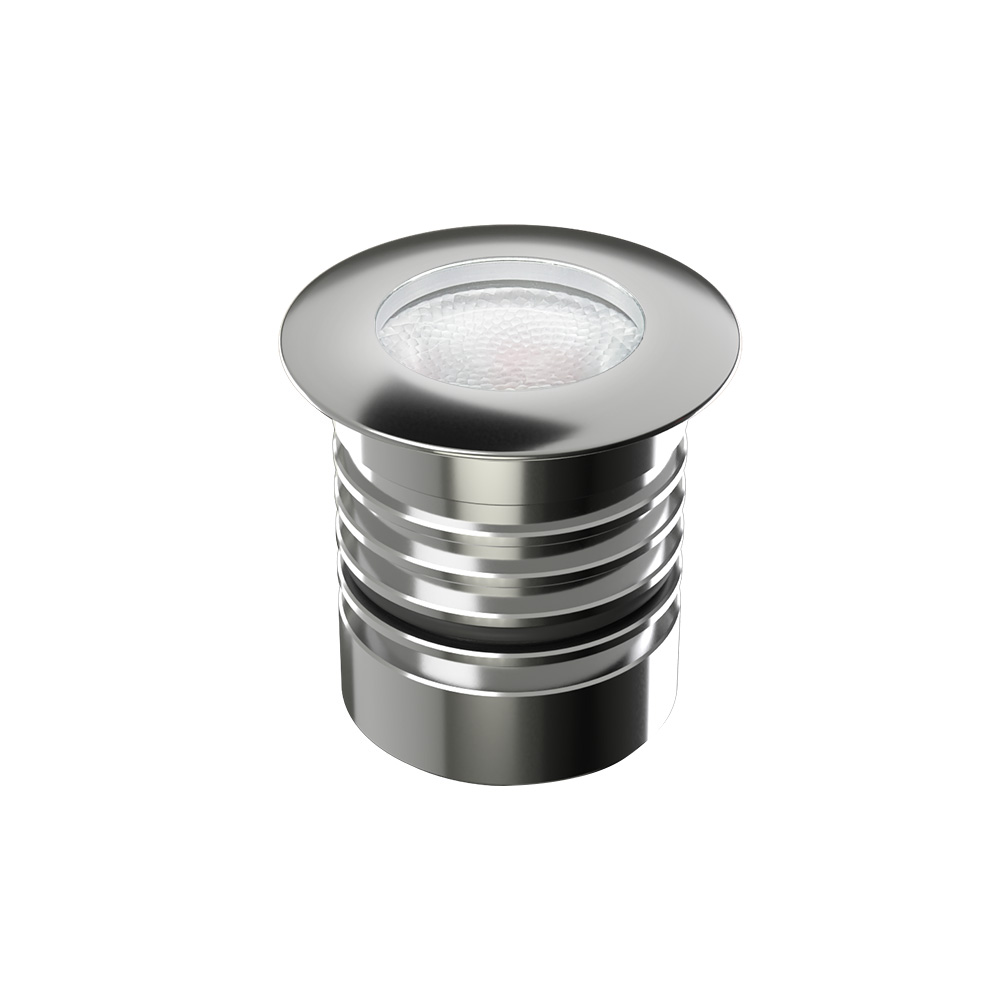

  • The stainless steel version can be installed in the most challenging exterior environments
  • Features two different optics: 20° and a 30°
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93 and 3000K CRI93
  • Wattage: 3W at 48V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60°C
  • Two wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
