PLUS ONE / PLUS ONE SQ

Invisible but powerful downlight for seamless integration with architecture

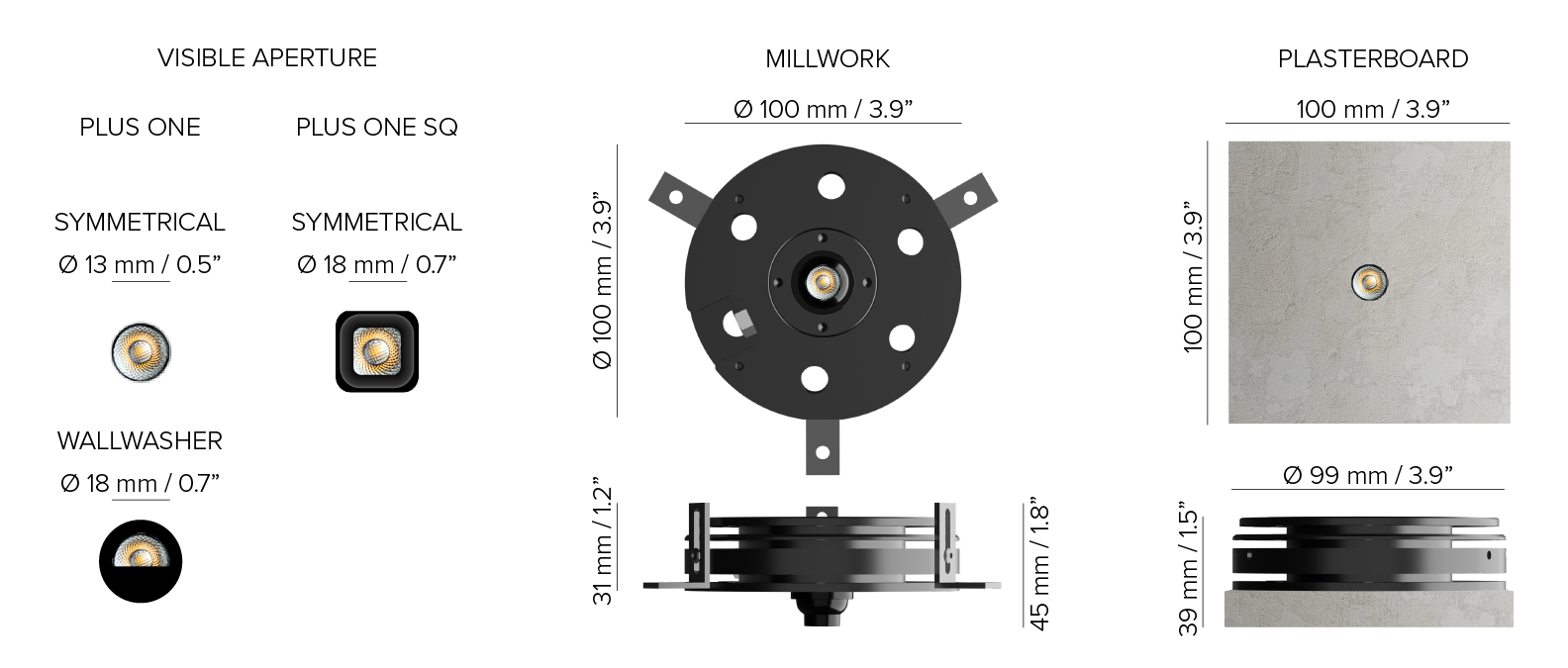

  • An invisible “dot” of only 0.5″ or 0.7″ of diameter hiding a powerful downlight
  • The luminaire can be installed into different materials such as plasterboard, marble, stone, wood, metal, acoustic ceiling, disappearing into the architecture
  • Installation as a single luminaire or in a system with one, two, three, five or more apertures
  • Thanks to the design of the reflector, the luminaire has a minimal glare

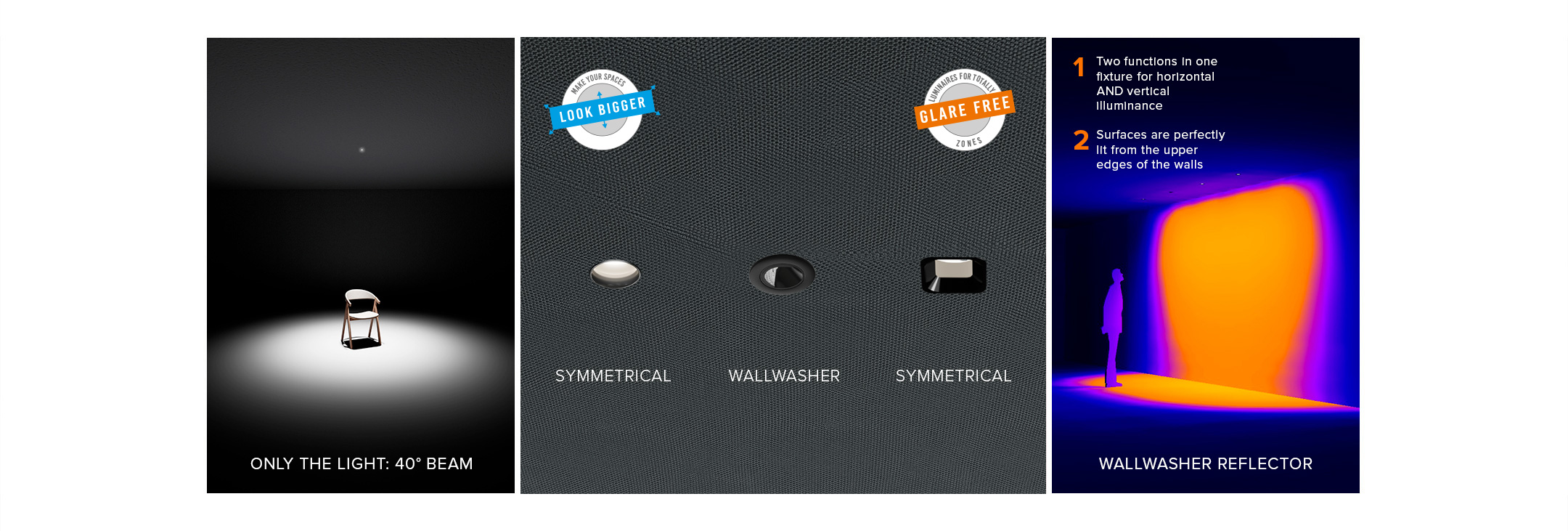

  • Available in two models: symmetrical reflector 20° or 40° that concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” meaning no double visible beams, or wallwasher reflector (wallwasher + 25°)
  • The wallwasher model delivers 25° on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • Available with color temperature: 2200K CRI90, 2700K CRI93, 3000K CRI93 or 4000K CRI93
  • Wattage: Type Non-IC: 9.5W at 1050mA (symmetrical), 8W at 900mA (wallwasher), 6.5W at 700mA (wallwasher 2200K). Vf 9V DC
    Type IC: 8W at 900mA (symmetrical), 7W at 800mA (wallwasher), 6.5W at 700mA (wallwasher 2200K). Vf 9V DC
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • IP30, IP40 or IP65
