Ellipse

Wall mounted step light totally flush with the wall for exterior and interior use

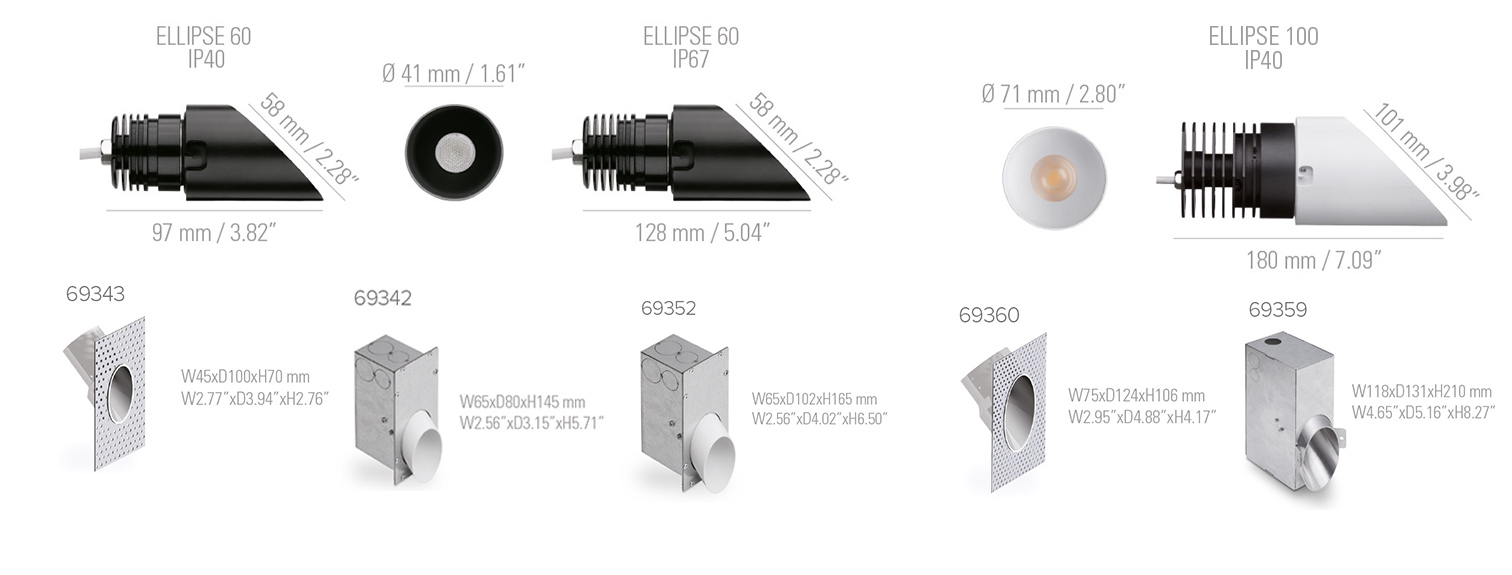

  • Available in three versions: ELLIPSE 60 code 64425 (dry location) 1.6”x 2.3” – ELLIPSE 60 code 66436 (wet location) 1.6”x 2.3” – ELLIPSE 100 (dry location) 2.8”x 4”
  • Deep recessed optics on a 45° tilt and reflector cup available also in black for low glare
  • Installation through a housing box to be separately ordered
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: ELLIPSE 60, 3W at 24V DC. ELLIPSE 100, 12W at 48V DC and 350 mA
  • 24V DC and 48V DC: features an on board DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to 140°F
  • Two wires dimming 1-10V. Other dimming options: push button, potentiometer, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Dry location and wet location
  • Standards: UL 2108, CSA C22.2
