DOT IN LINE

Invisible downlight for seamless integration with architecture

  • An invisible “dot” of only 0.5″ or 0.7″ of diameter hiding a powerful lightweight downlight
  • The luminaire can be installed into different materials such as marble, stone, wood, metal, acoustic ceiling, disappearing into the architecture
  • Installation as a single luminaire or in a system with one, two, three, five or more apertures
  • Thanks to the design of the reflector, the luminaire has a minimal glare
  • Available in two models: symmetrical reflector 20° or 40° that concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” meaning no double visible beams, or wallwasher reflector (wallwasher + 25°)
  • The wallwasher model delivers 25° on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • Available with color temperatures: 2200K CRI90, 2700K CRI93, 3000K CRI93 or 4000K CRI93

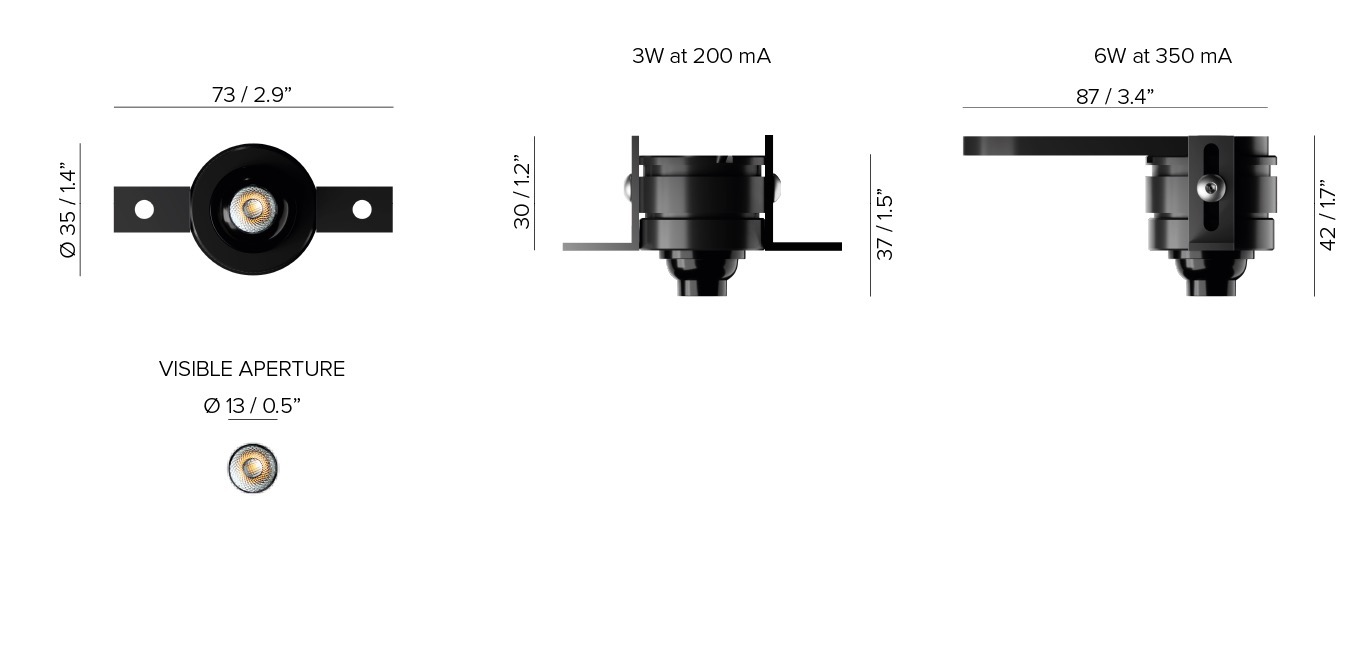

  • Wattage: 3W at 200 mA or 6W at 350 mA
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • Suitable for dry and wet location
  • Standards: UL 2108, CSA C22.2
