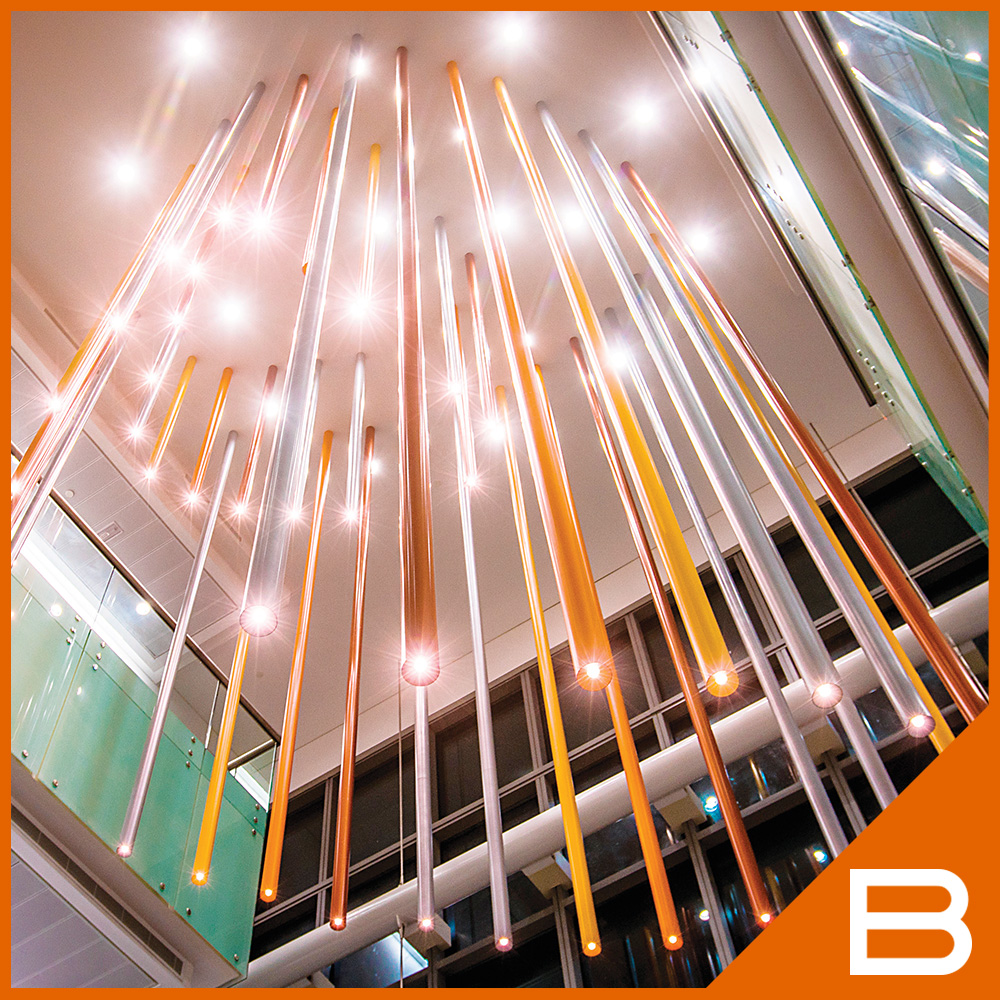

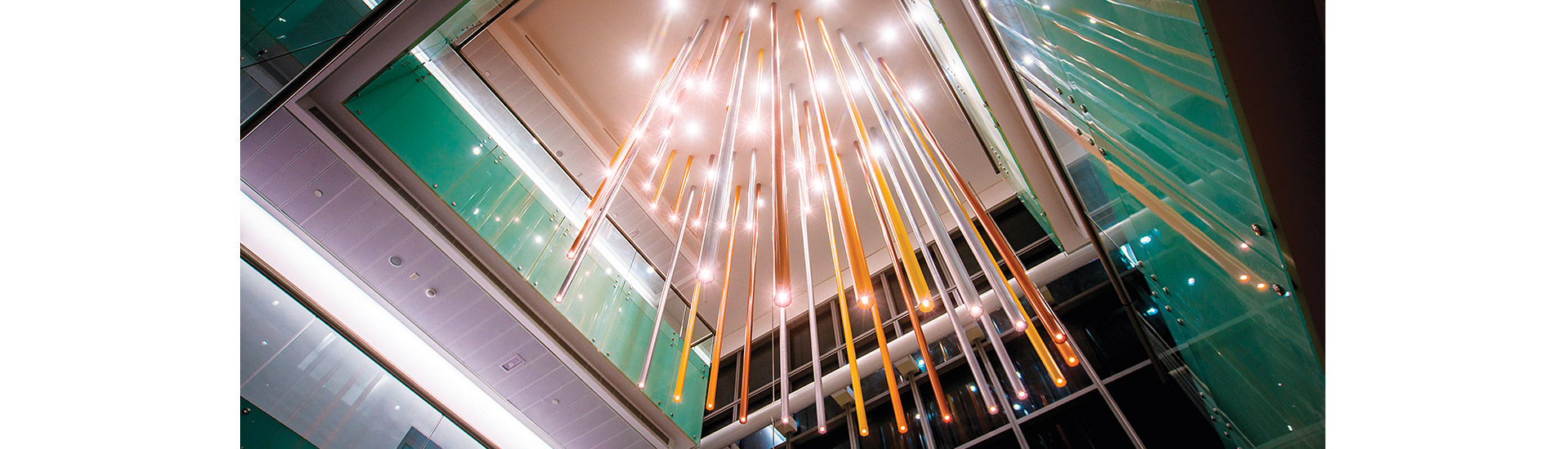

Dali Pipe Structure

year 2016
typology Five pipe structures in two sizes. Each structure consisting of 44 pipes with heights ranging from 0,22 m to 12 m
mounting To ceiling by fixing base
diameter 100 mm
height From 0,22 m up to 12 m
construction Fixture: turning and milling aluminum. Reflector and protective glass in polycarbonate
finishes Powder coated. Ten different RAL colours
ingress protection IP30
lamp quantity 1
lamp type Power LED. Remote DALI power supply
lamp wattage 6W each pipe at 350 mA
special features DALI dimmable
beam angle 36°
colour temperatures 3000K CRI93
lamp lumens 420lm
lumen maintenance 50.000hrs lifetime with lumen maintenance at L70
dimming options DALI
certifications CE
