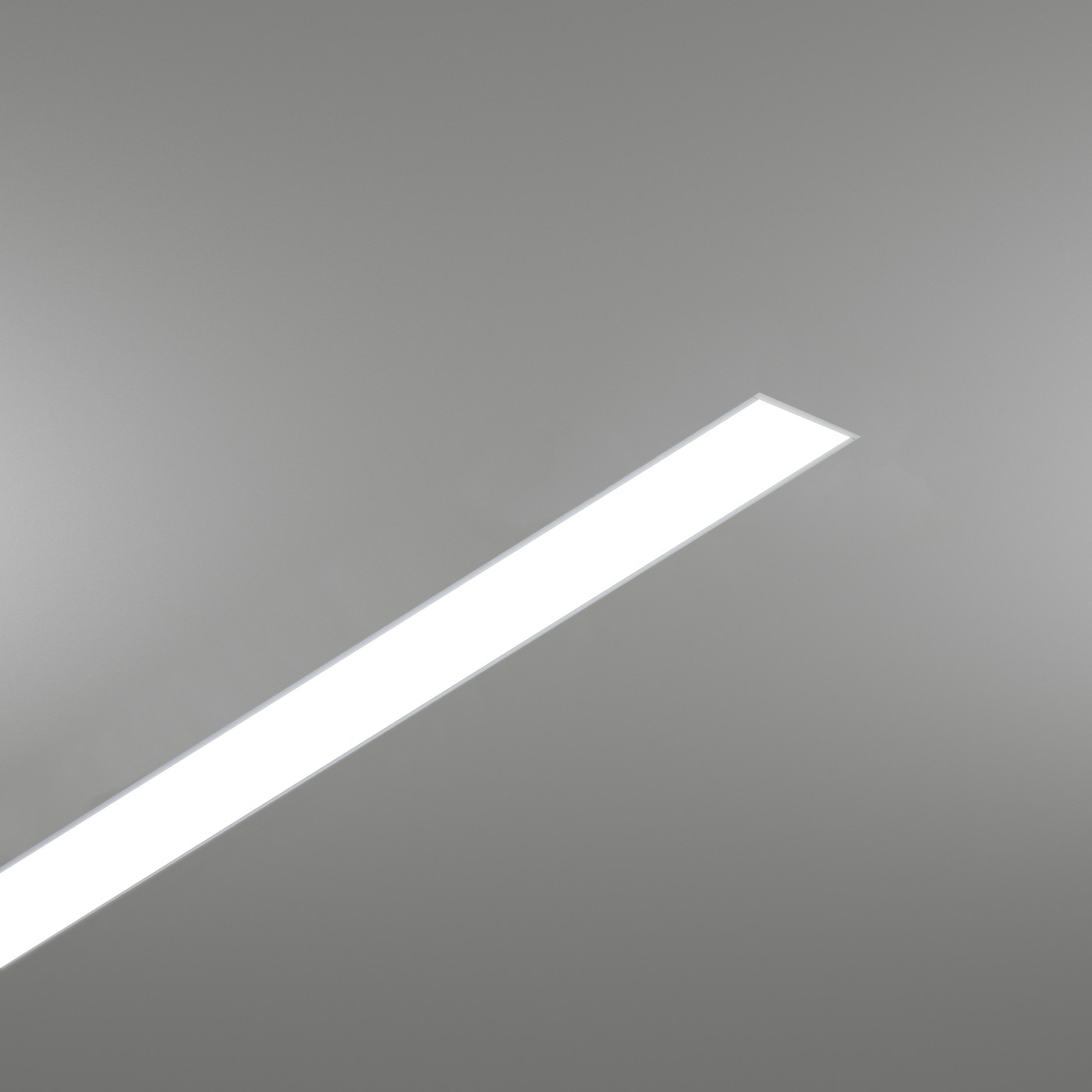

Inserto Medium 40 F / 40 F System

Linear recessed luminaire with minimal visual impact for a total integration with architecture

  • Mounting trimless in plasterboard
  • With a even light distribution across the entire surface

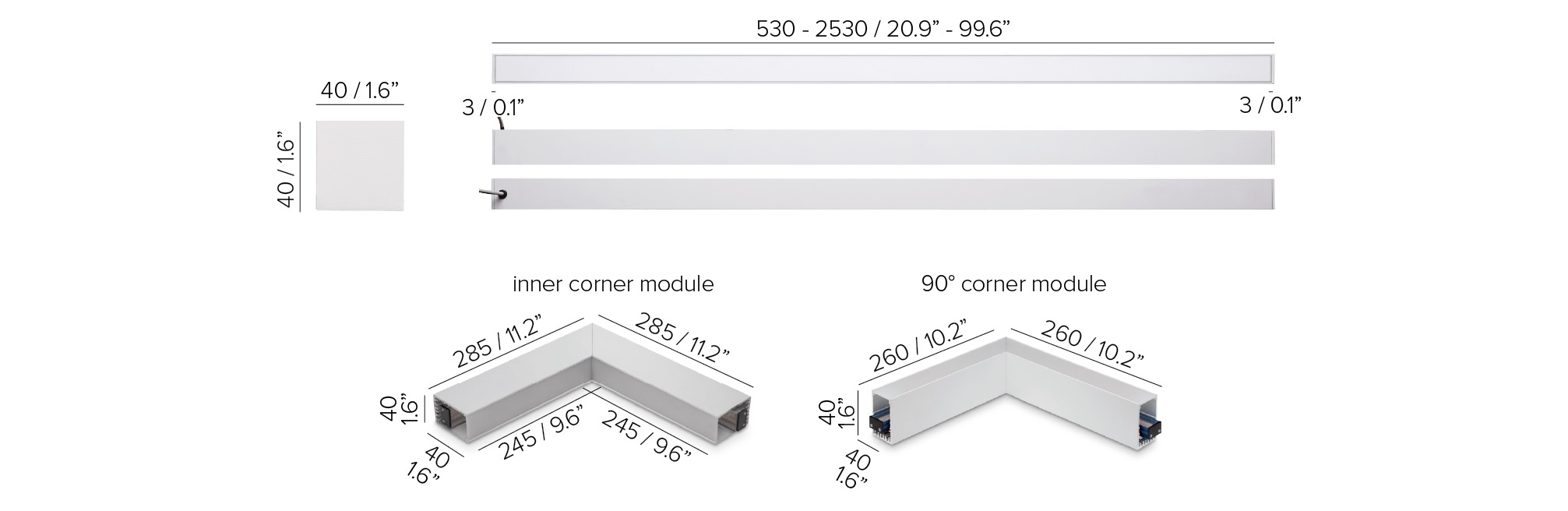

  • Available in increments of 250 mm: from 530 to 2530 mm and upon request available with custom measurements. Available also in the system version (Inserto 40 F System) with corner modules
  • Colour temperatures: 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Lamp wattage 40W per meter at 48V DC. Features on board DC driver that ensures overcurrent protection and it is not polarity sensitive
  • 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP40
