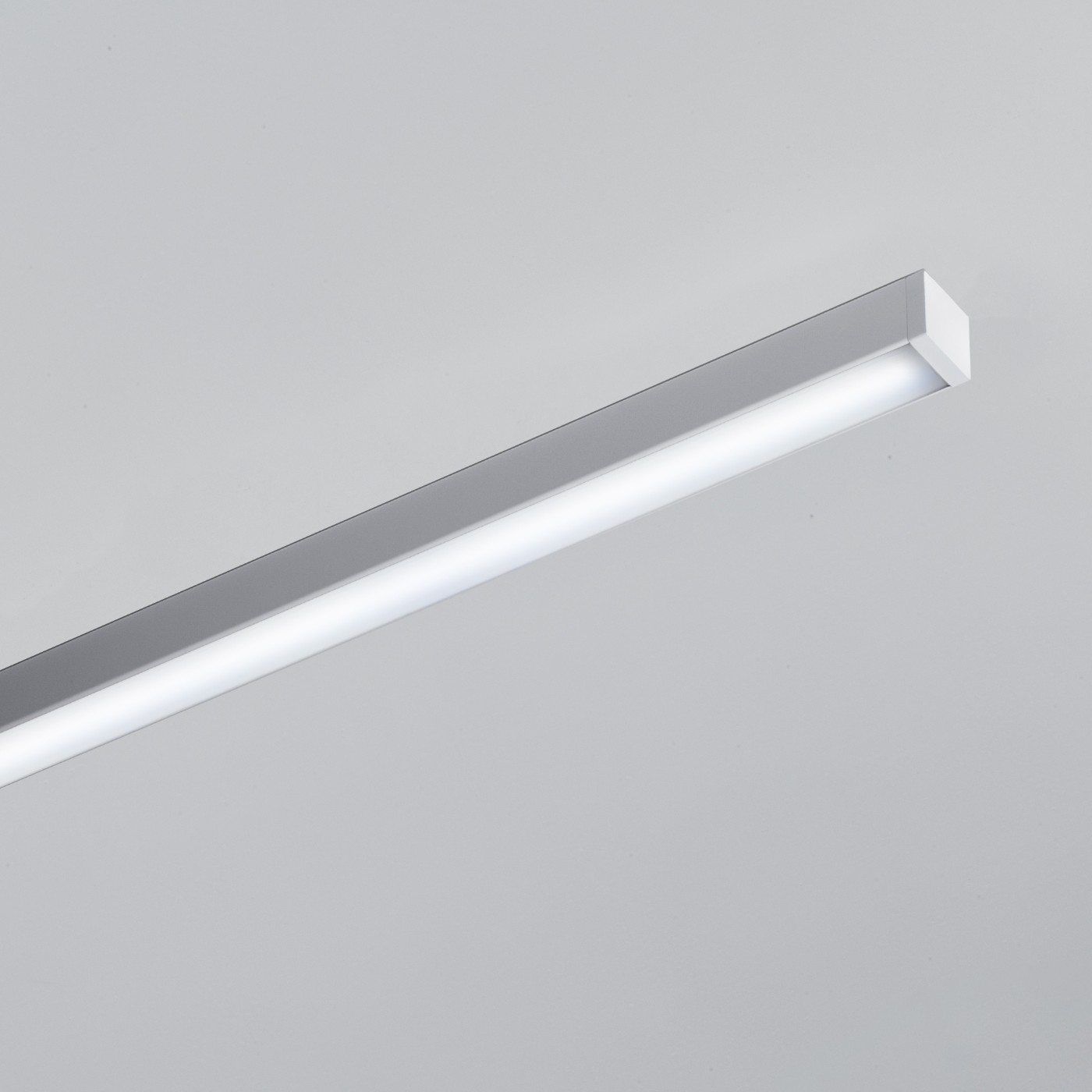

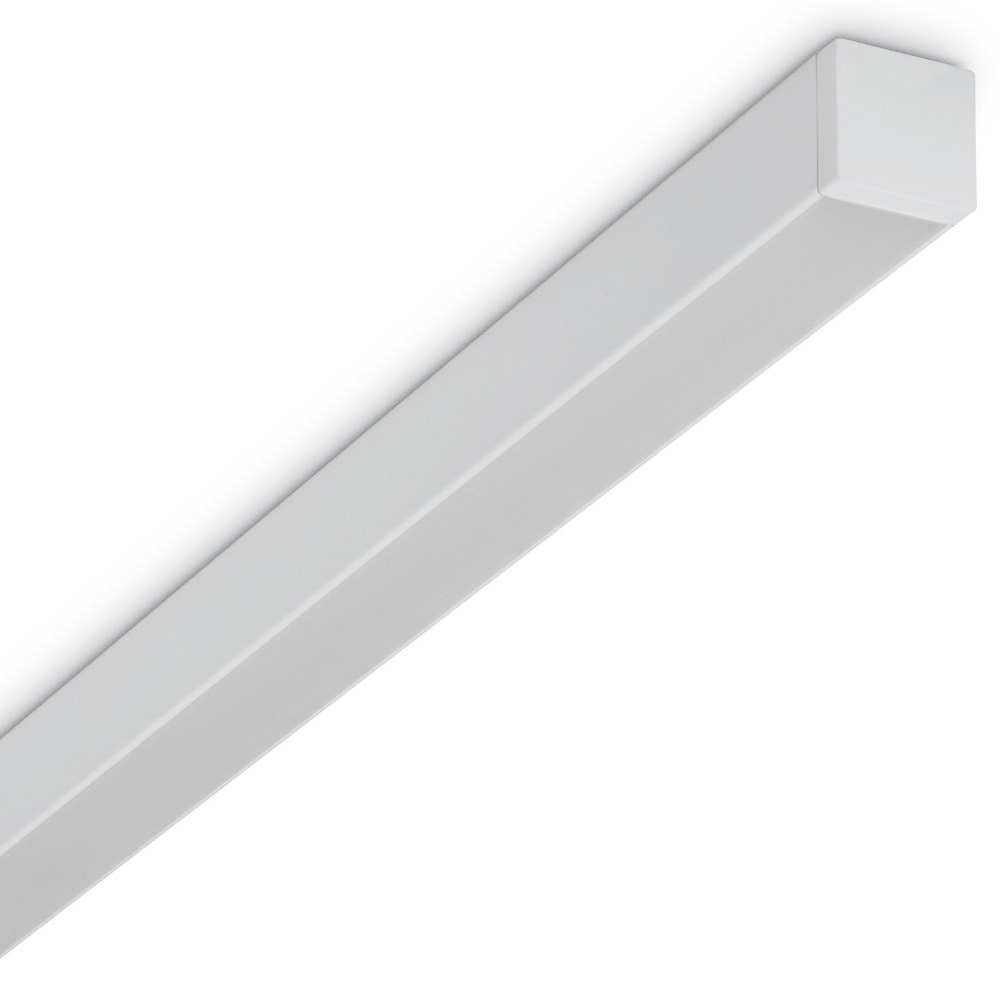

Inserto Mini CL / Mini CL-E

Linear compact luminaire with a width of only 18 mm and with an essential and minimal design and an even light distribution across the entire surface

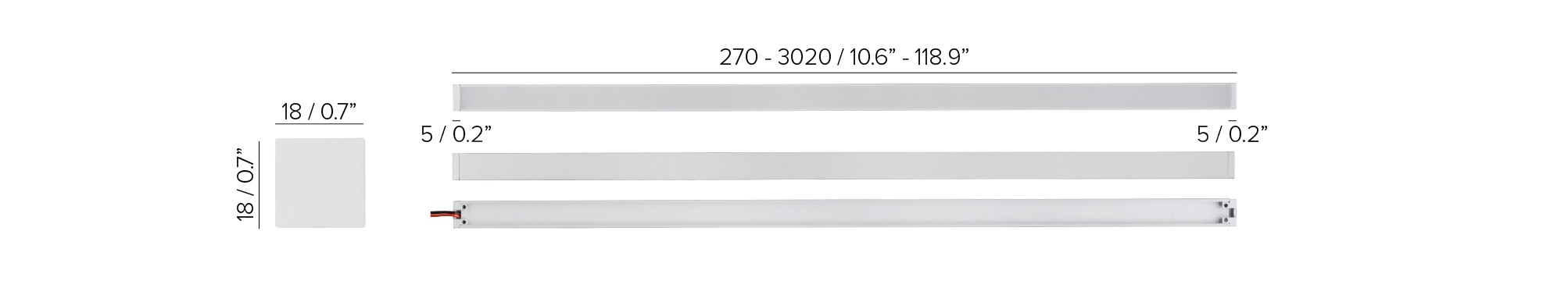

  • Available in increments of 250 mm : from 270 to 3020 mm, custom made lengths available on request
  • Concealed wiring and concealed clips mounting for clean design
  • INSERTO MINI CL: Lamp wattage 20W per meter at 48V DC, RGB 12W per meter at 24V DC. Features an board DC driver that ensures overcurrent protection and protection against wrong connections
  • INSERTO MINI CL-E: Lamp wattage 23W per meter at 24V DC. Features protection against wrong connections
  • Available with colour temperature 2700K CRI93, 3000K CRI93, 4000K CRI93 (INSERTO MINI CL-E: CRI90) and RGB
  • 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP40
