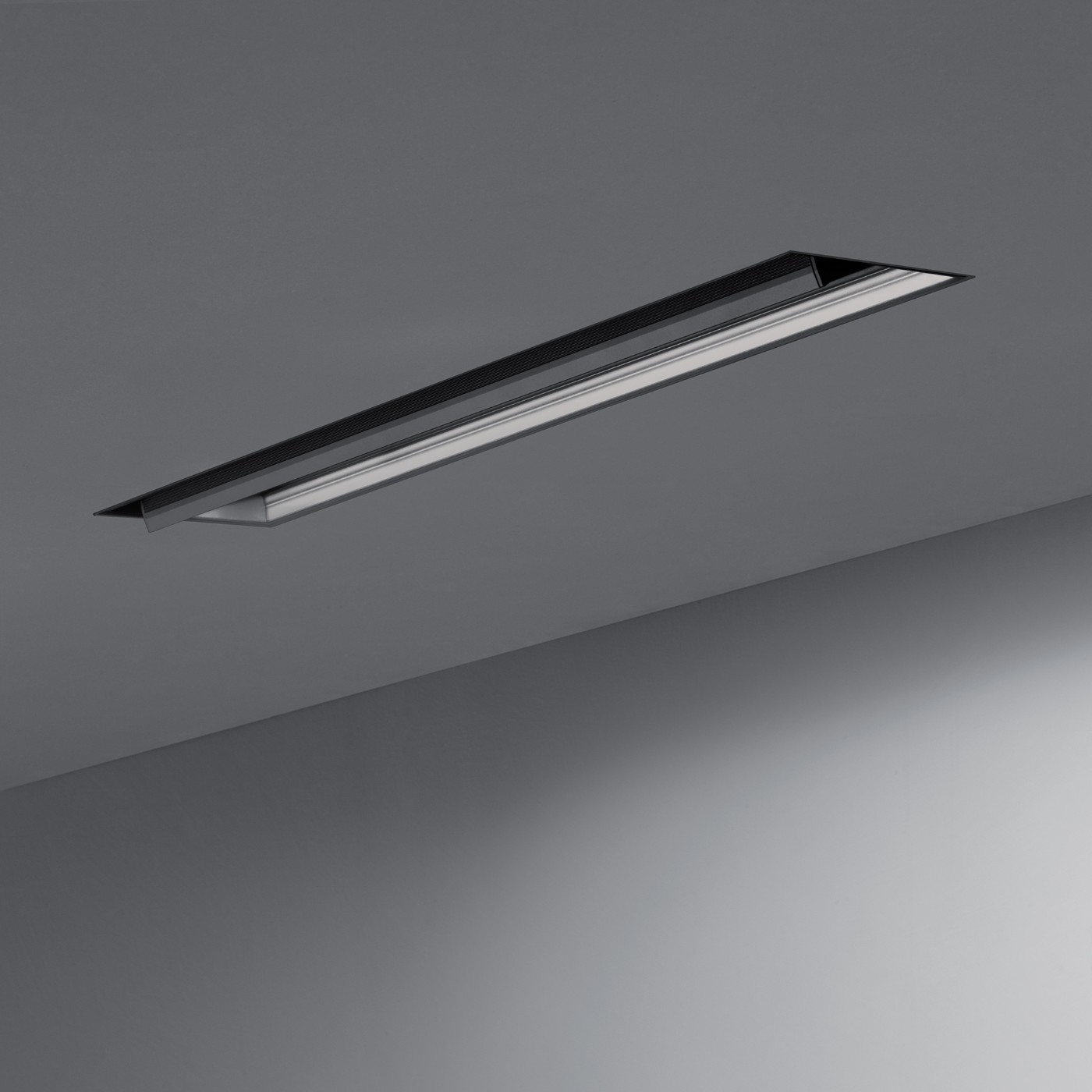

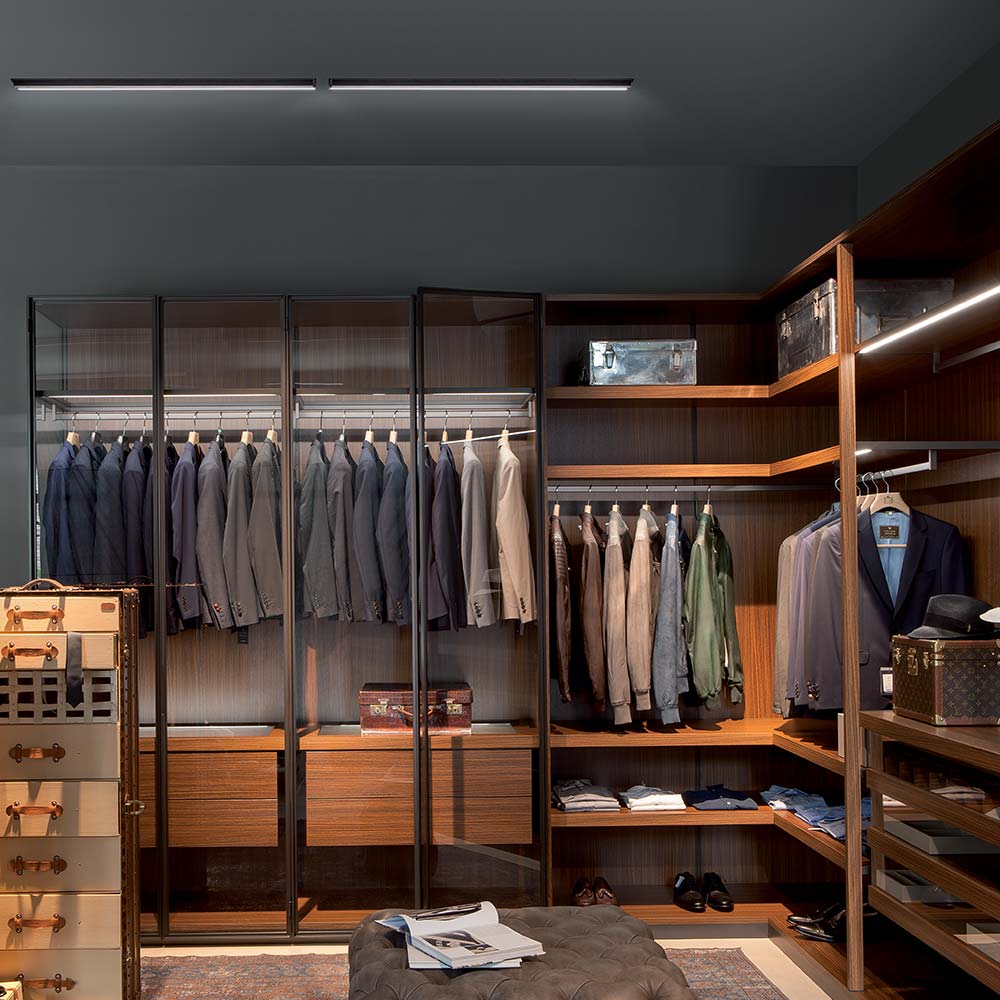

Trimless adjustable linear luminaire for plasterboard, it is ideal for retail and residential applications

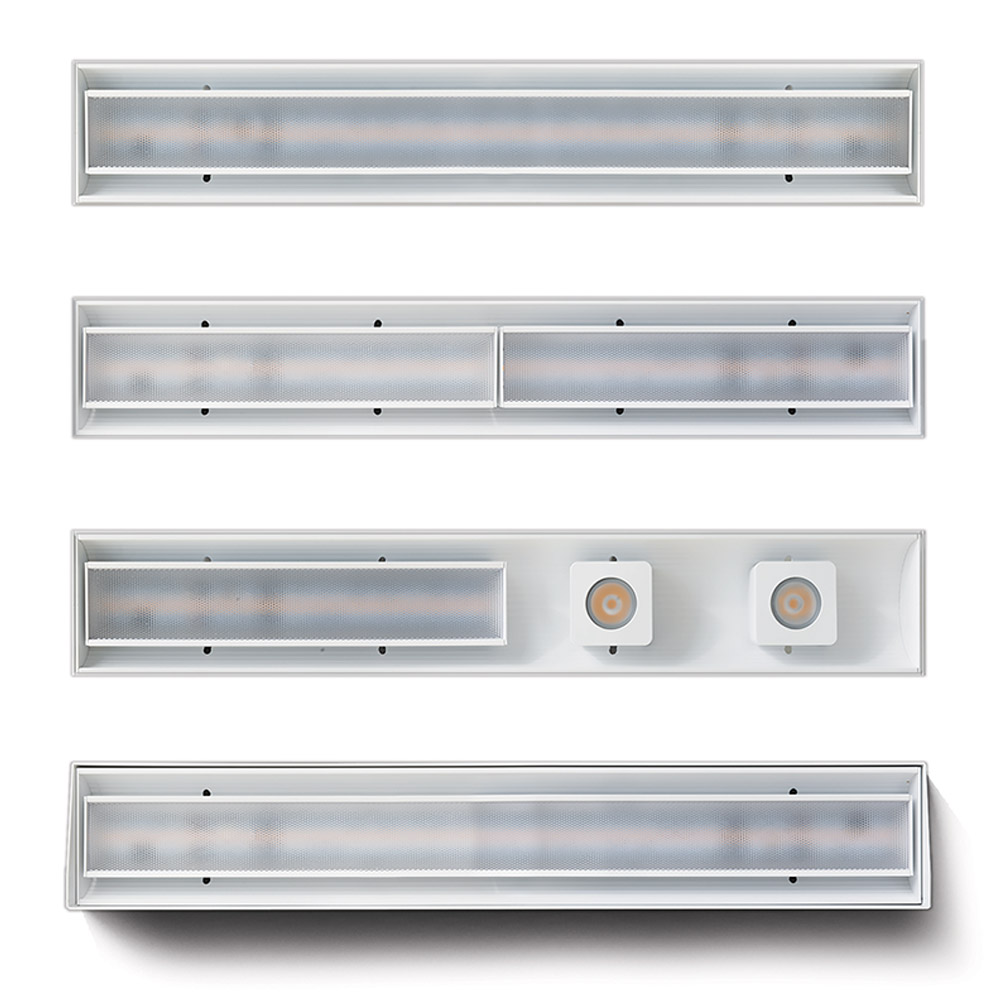

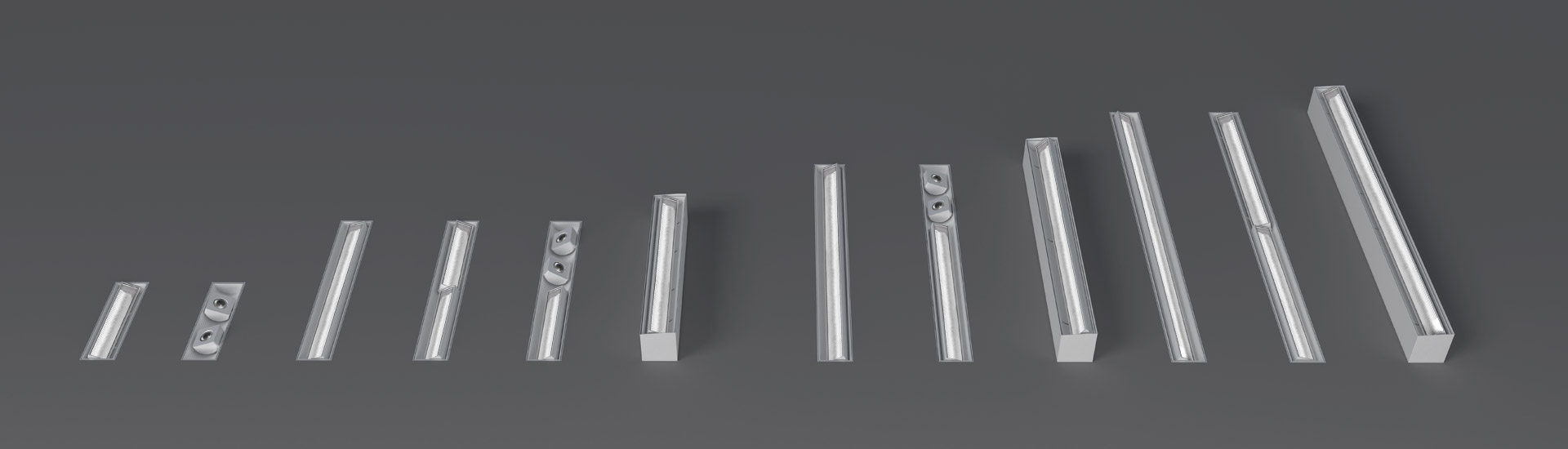

- Available with different lengths and layouts, with linear modules and projectors both independents and adjustable

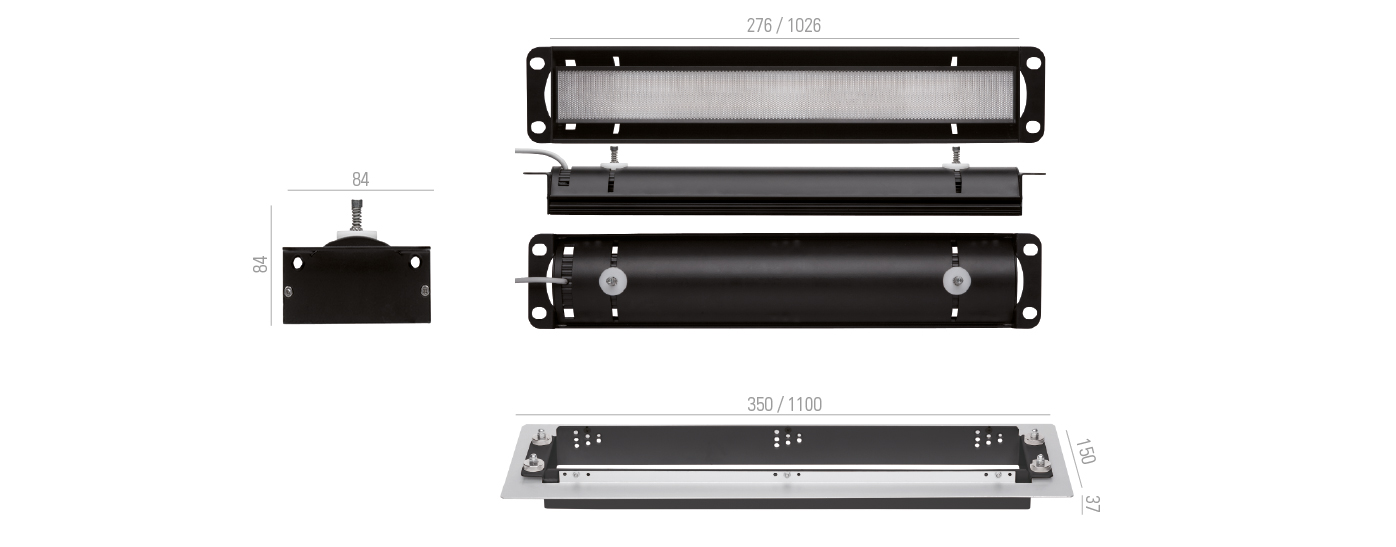

- Length modules: from 276 mm to 1026 mm

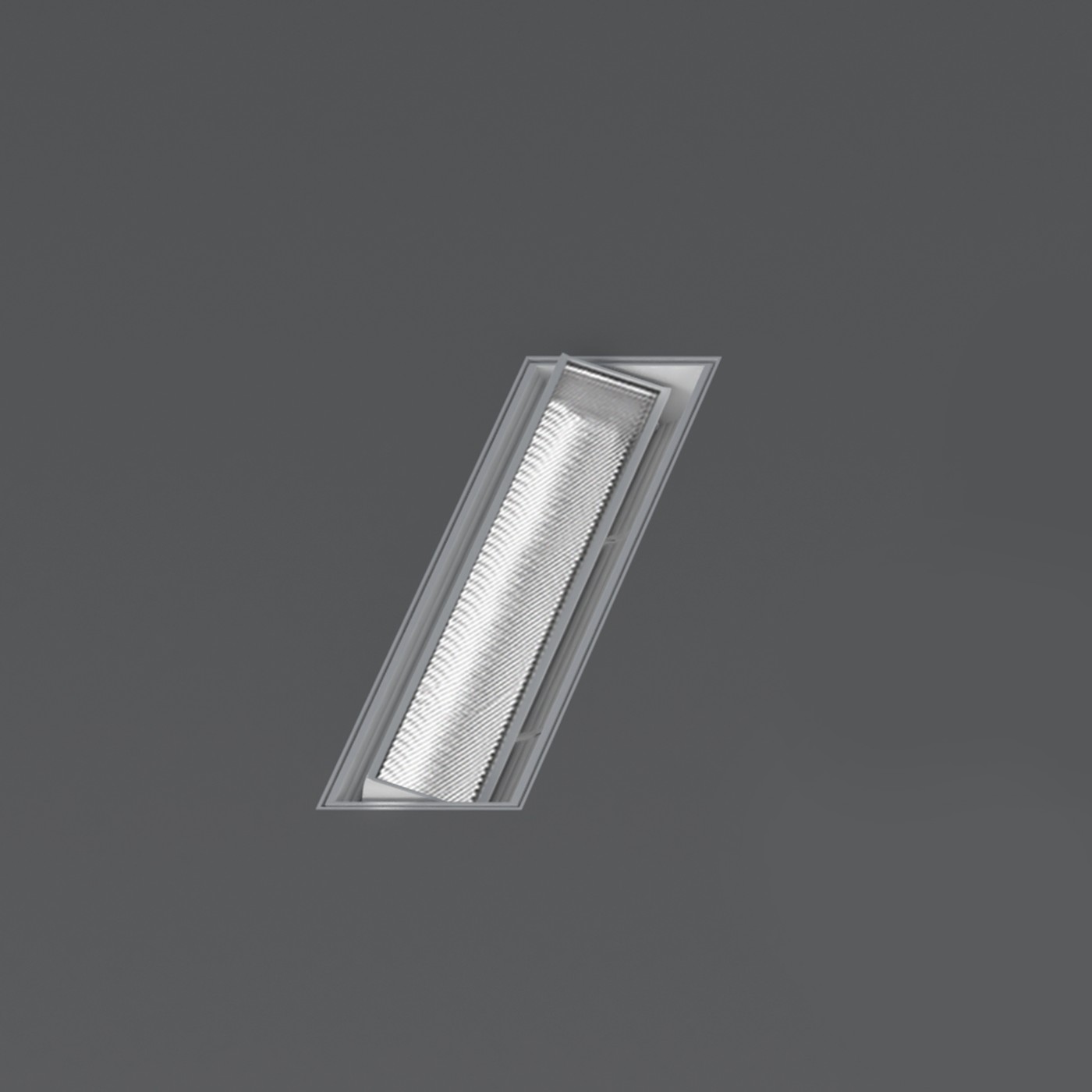

- Inclination angle adjustable from 0° to 35°
- Height adjustable mounting frame for ceiling thickness 13 – 15 – 19 – 25 mm
- Available in colour temperatures of 2700K CRI93 and 3000K CRI93
- Lamp wattage: from 12,5W to 50W at 48V DC
- Features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C
- 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
- IP40
Inserto Mini T / Mini T-E
Inserto Medium 40 F / 40 F System
Inserto Medium 65 F / 65 F System
Inserto Medium 65 T / 65 T System
