ATRIA XS R


Compact glare free downlight with symmetrical or asymmetrical light distribution

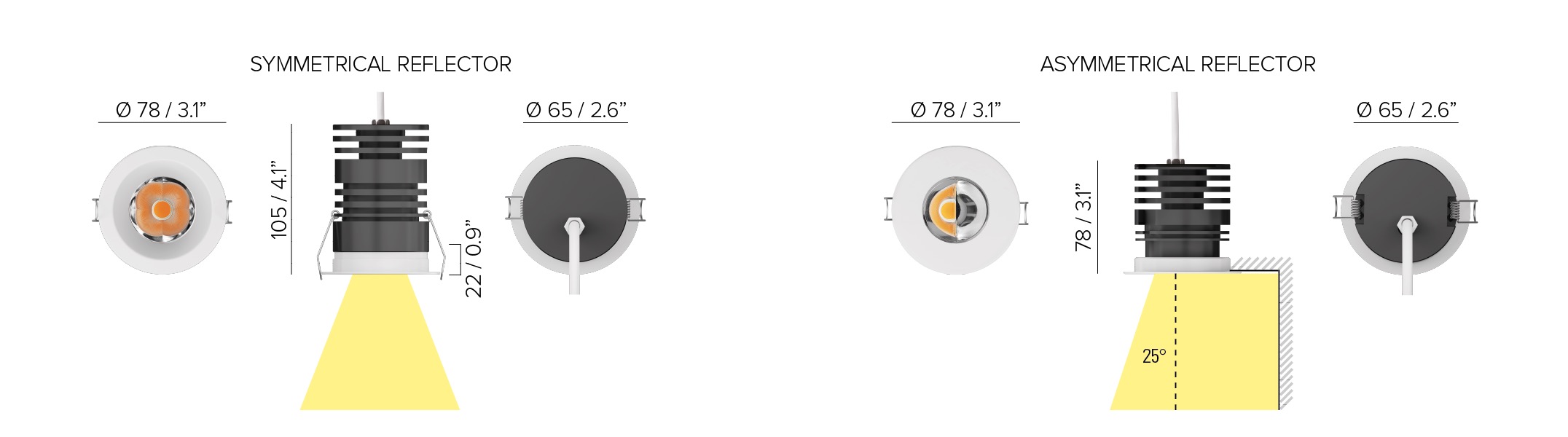

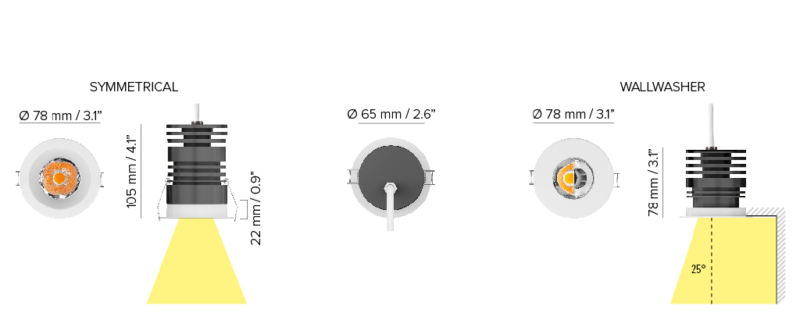

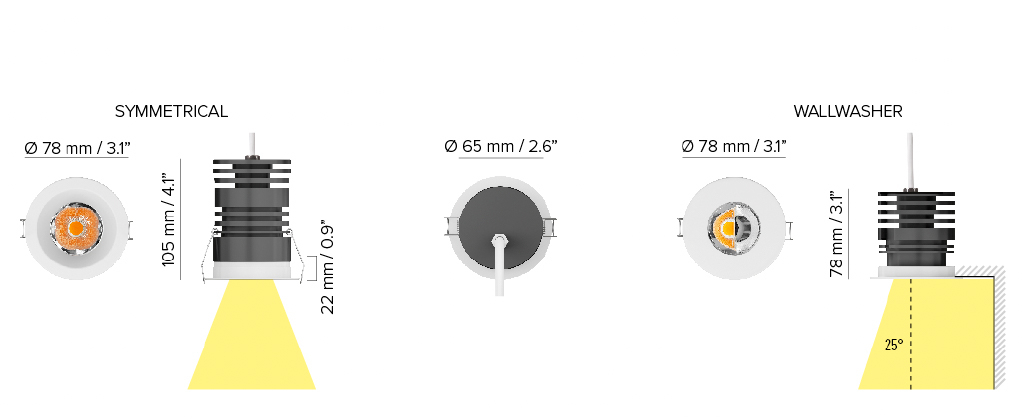

  • Diameter 78 mm
  • Height symmetrical model 105 mm, height asymmetrical model 78 mm
  • Thanks to the design of the reflector, the luminaire is totally glare free

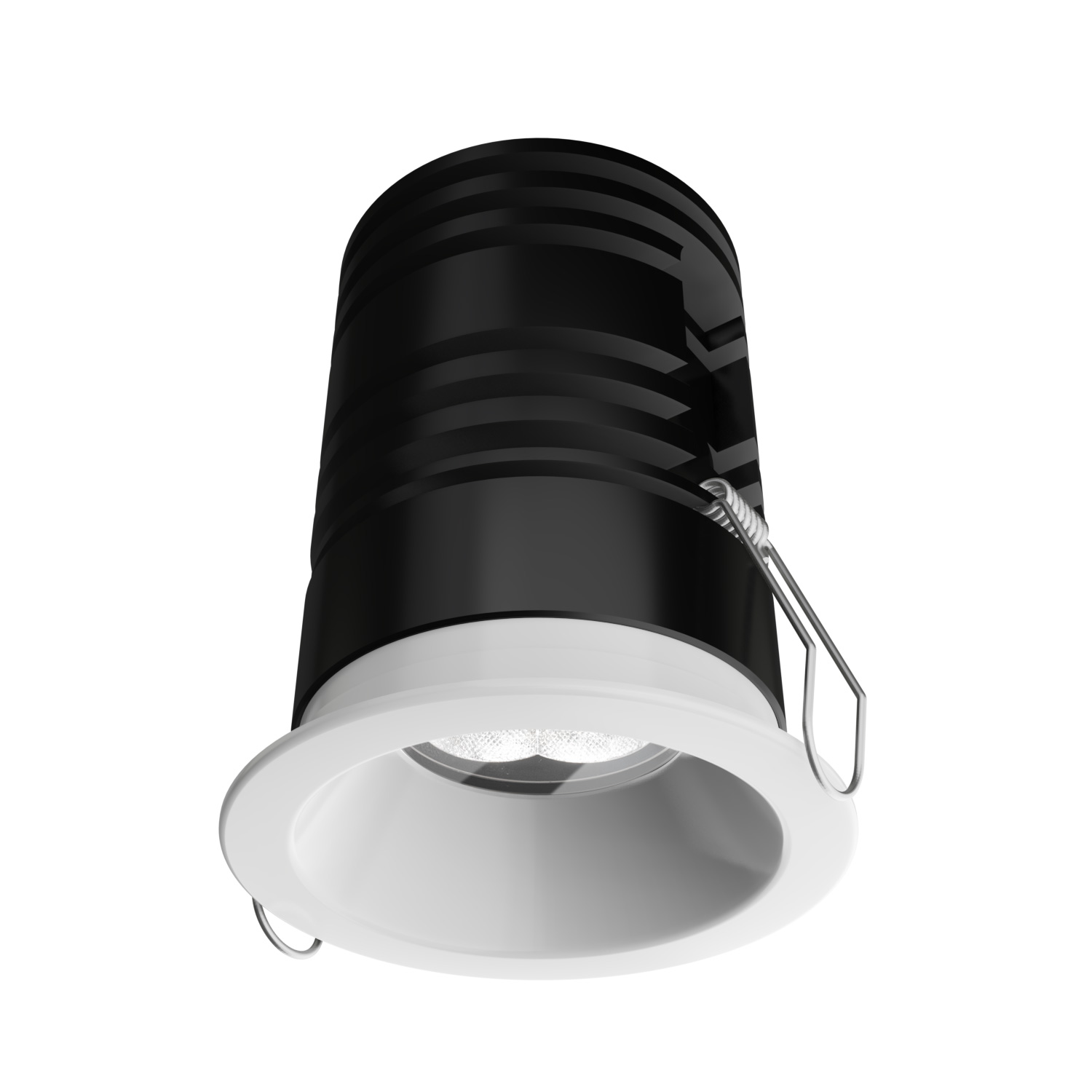

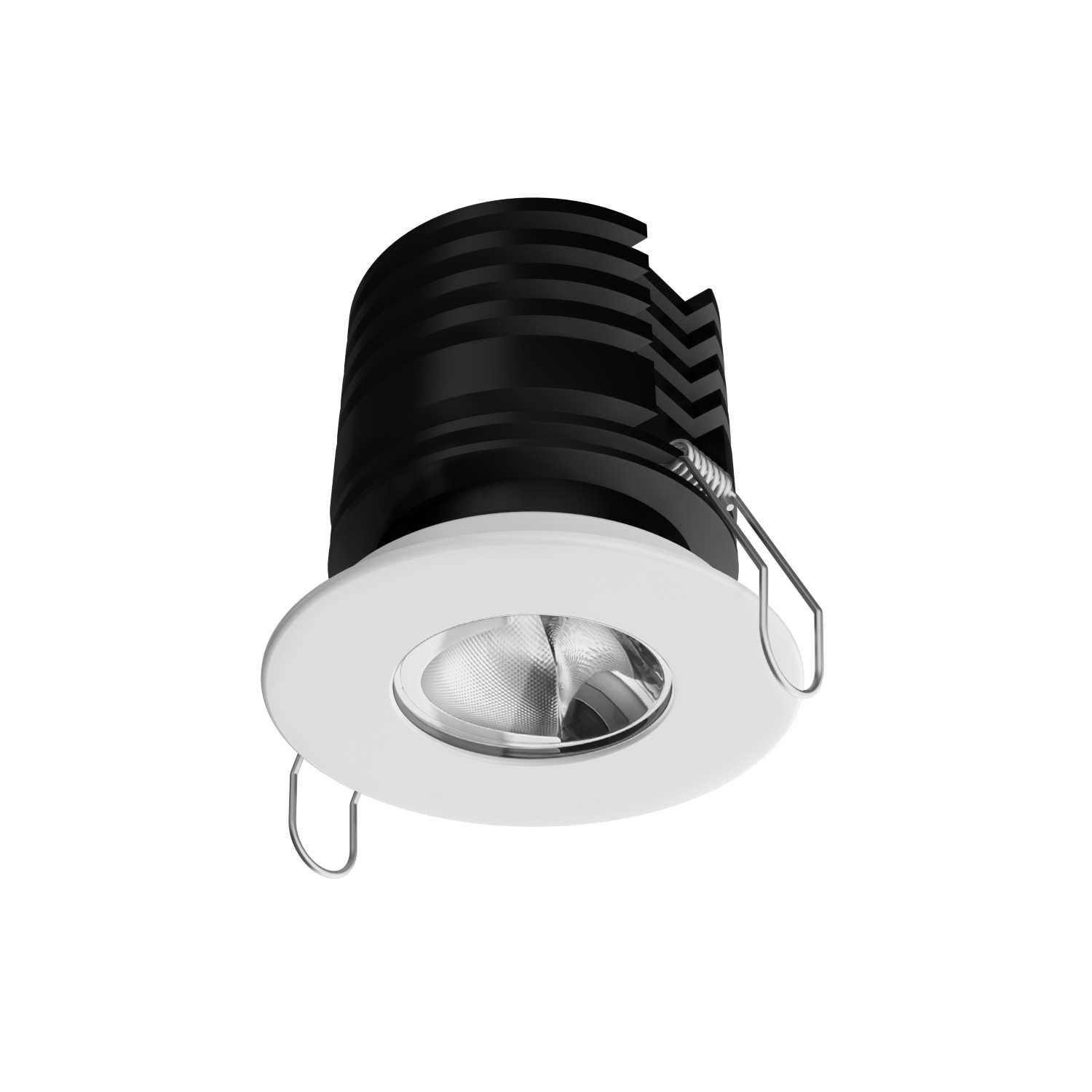

  • Available in two models: symmetrical reflector 30° (UGR < 10), 50° (UGR < 19), 70° (UGR < 25) or asymmetrical reflector (25° + wallwasher)
  • The asymmetrical model delivers homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • The symmetrical model 30°, 50° or 70° concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” or visible double beam spreads
  • Extensive CCT range: 2200K CRI93, 2700K, CRI93, 3000K CRI93, Tunable White 1800K – 4000K
  • Wattage 10W at 500 mA
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • IP30, IP44 or IP66
