OKKIO GRAPE CLUSTER

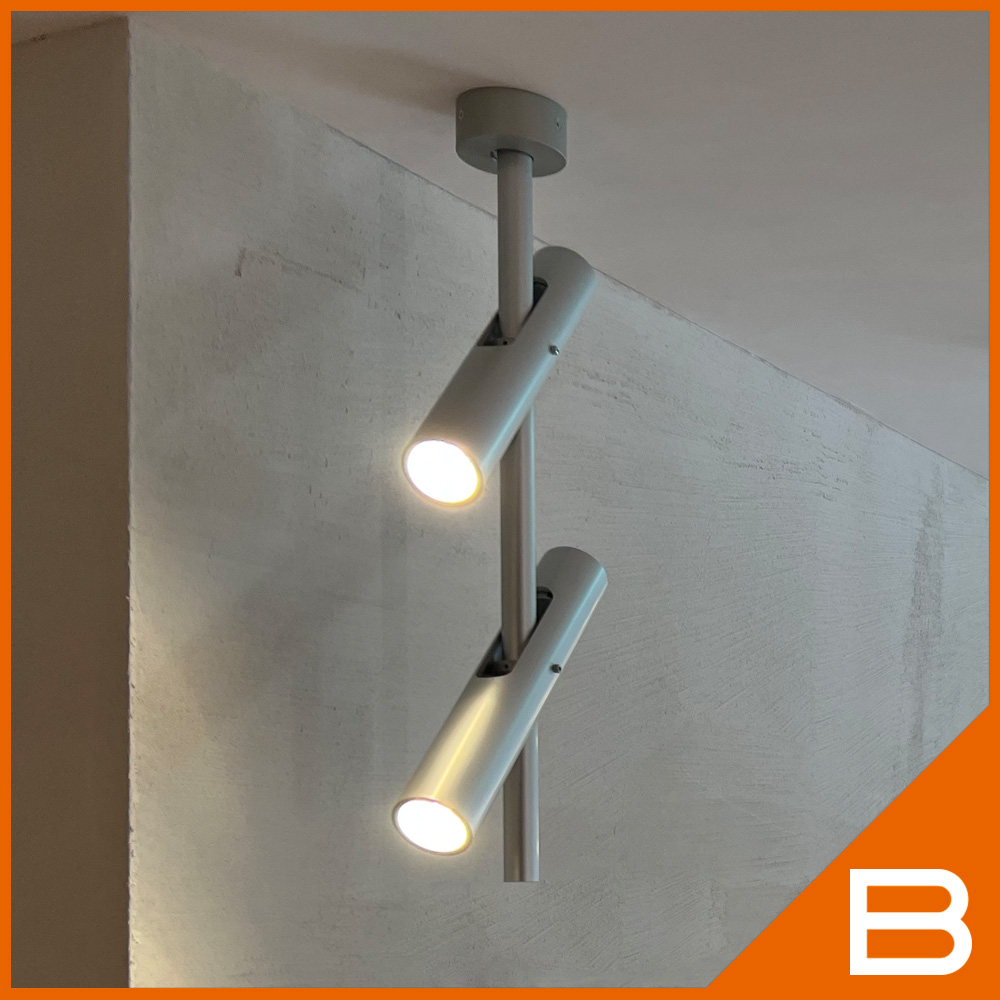

typology Ceiling or wall mounted system composed of adjustable cylinder projectors
mounting To ceiling using mounting plate or brackets
diameter Projector: 54 mm / 2.13”. Stem: 25 mm / 0.98”
height Six different heights:
580 mm / 23”
1460 mm / 57.5”
2250 mm / 89”
3160 mm / 124”
4322 mm / 170”
6929 mm / 273”
construction Fixture: turning and milling aluminum. Reflector and protective glass in polycarbonate
finishes Anodized grey
ingress protection IP20
lamp quantity 1
lamp type Power LED. Remote power supply
lamp wattage 12W at 350 mA
special features The projectors are adjustable 120° on the vertical plane and 330° on the horizontal plane. DALI dimmable
beam 37°
kelvin 3000K CRI93
lamp lumens 1320lm
dimming options DALI
lumen maintenance 50.000h L80
certifications CE
