Pole-top projector for accent lighting

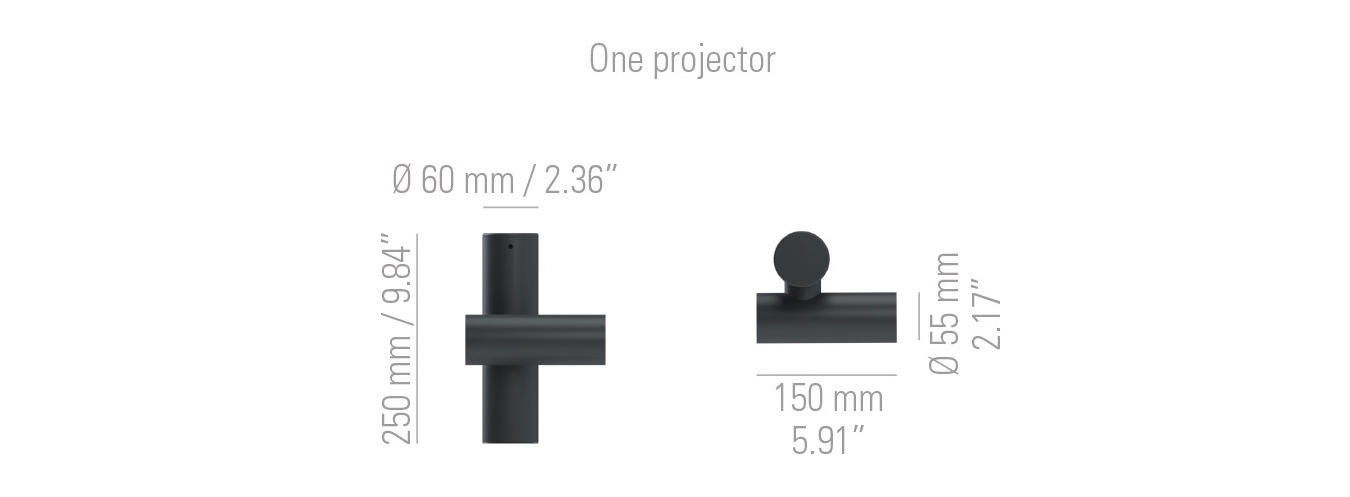

  • Projector diameter 2.17″, length 5.91”. Each projector is adjustable 355° on the horizontal plane and 360° on the vertical plan
  • Built in protection from water infiltration and moisture. Suitable for wet location
  • Beam angles: 20° and a 30°. Honeycomb for visual comfort to be specifically ordered
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93 and 3000K CRI93
  • Wattage: 5W at 24V DC per projector
  • Pole by others (not included): external diameter 2.36″, maximum internal diameter 2.05”
  • Built-in reverse polarity protection. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 140° F
  • Two wires dimming: 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Suitable for wet location
  • Standards: UL 2108, CSA C22.2
