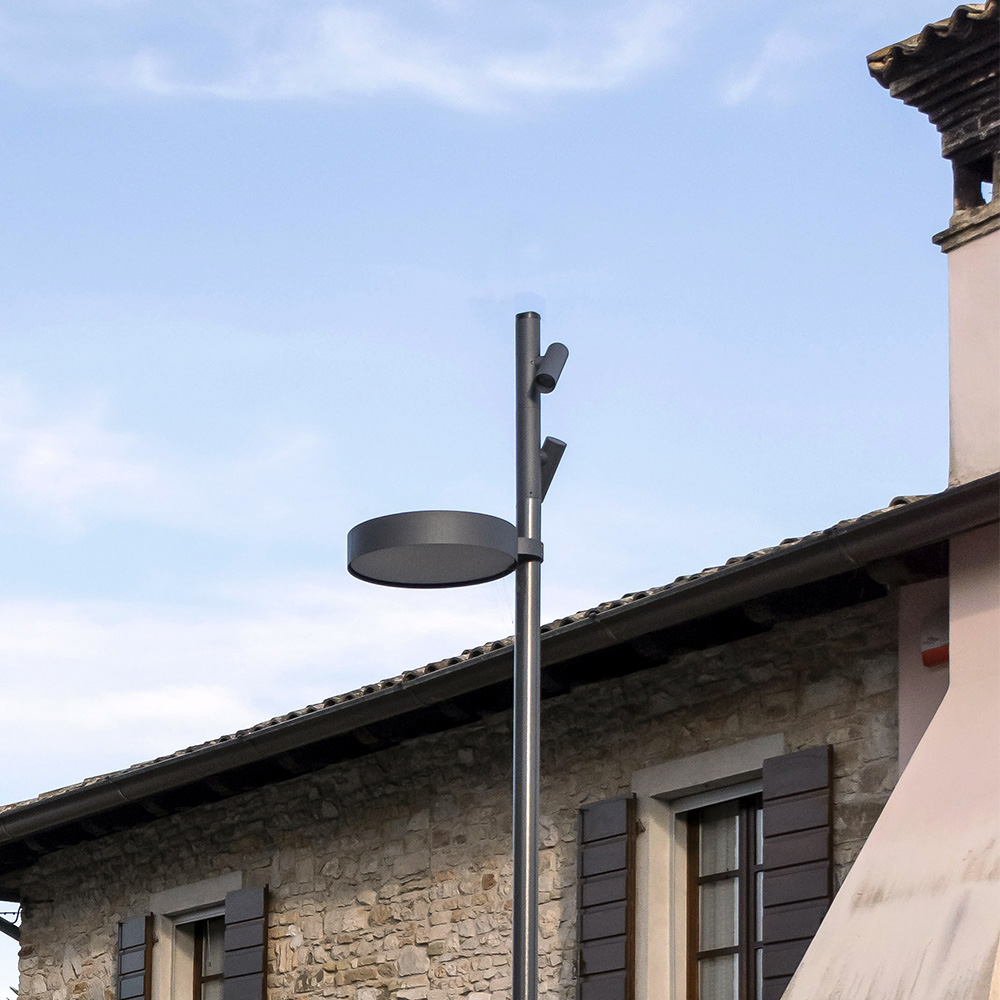

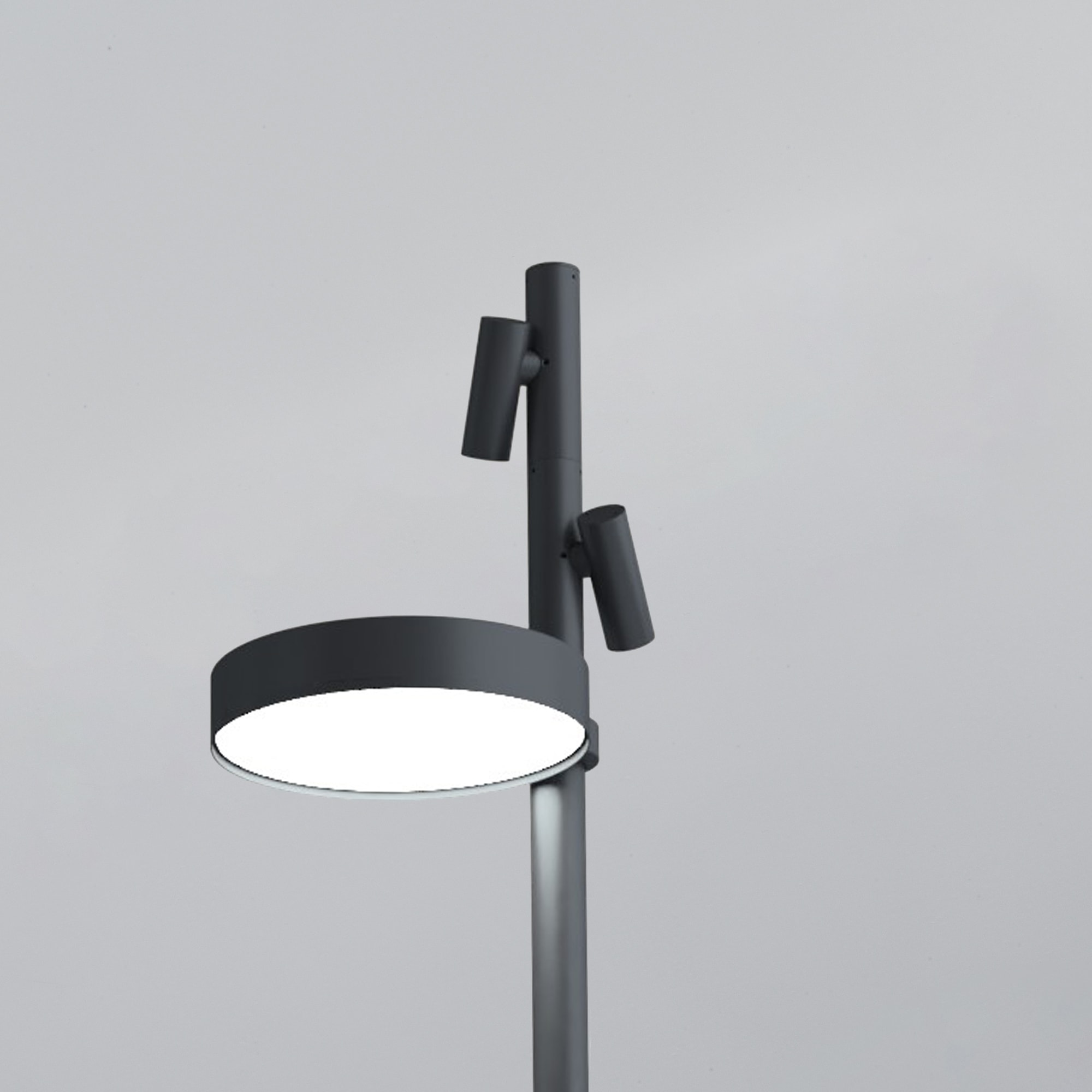

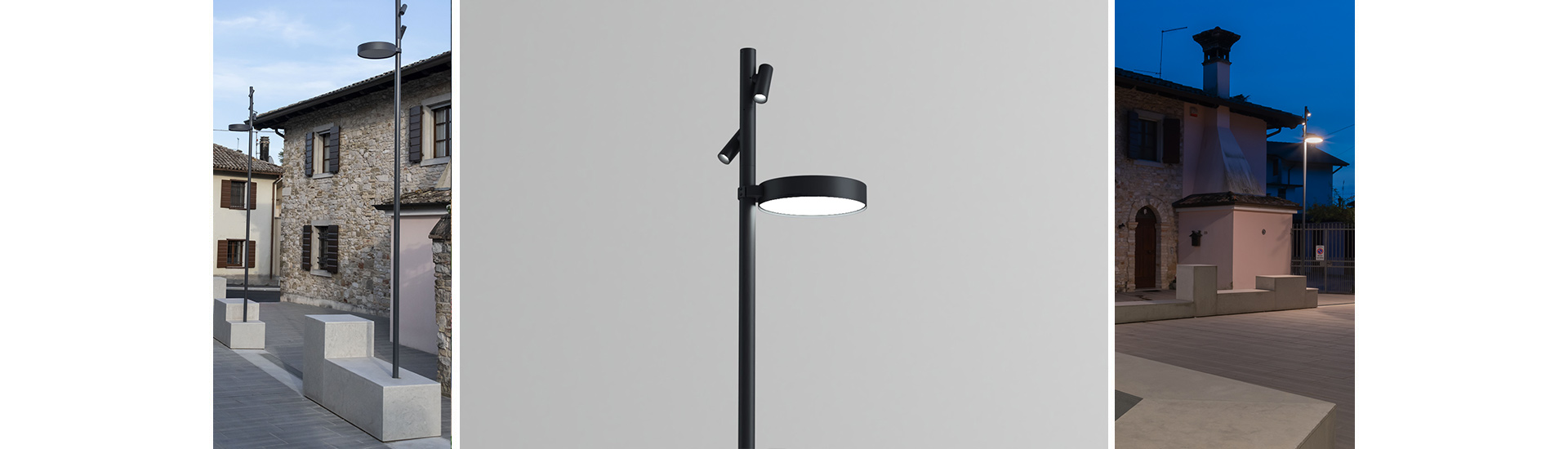

Lighting system consisting of a round module and two projectors

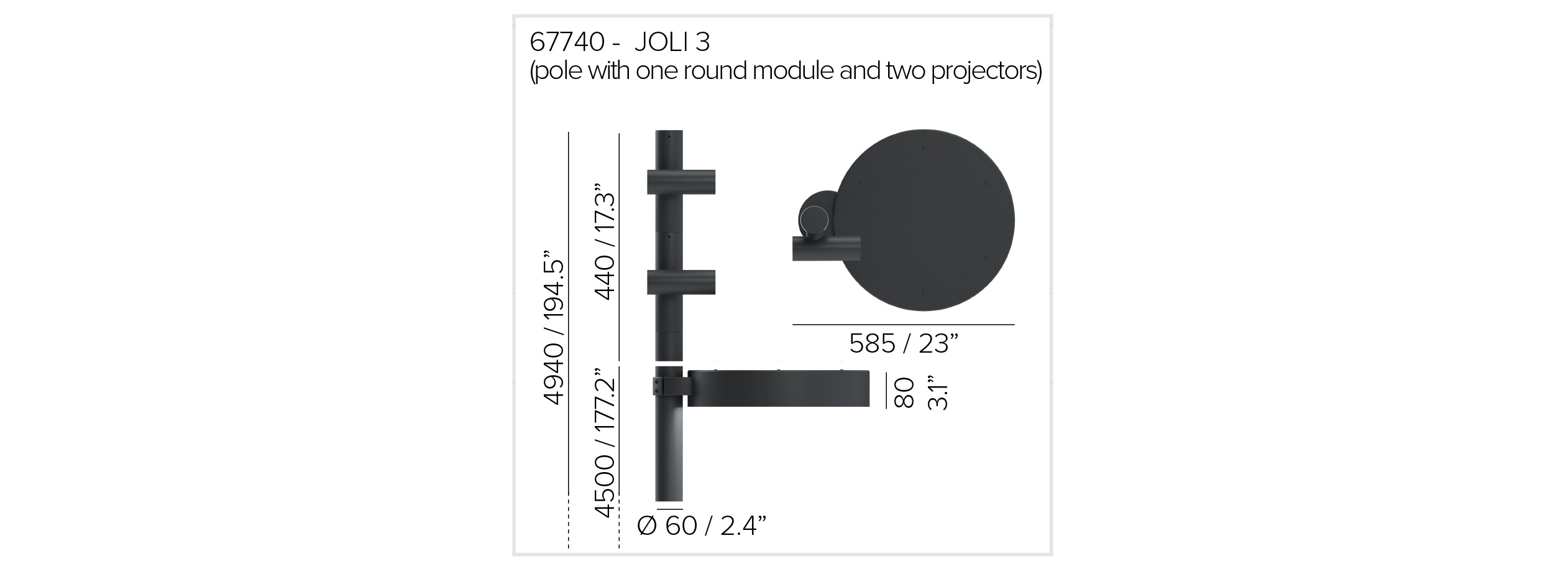

  • Pole height: 177.17″, pole diameter: 60 mm
  • N.2 projectors diameter: 55 mm. Each projector is adjustable 355° on the horizontal plane and 360° on the vertical plane. Round module: diffused and homogeneous light distribution across the whole lighting surface
  • Available optics: 20° or 30°. Honeycomb option for visual comfort
  • Available in colour temperatures of 2700K CRI93 and 3000K CRI93
  • Wattage: 60W (10W per head and 40W for round module) at 48V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to + 60°C
  • 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP65
