DOT 30

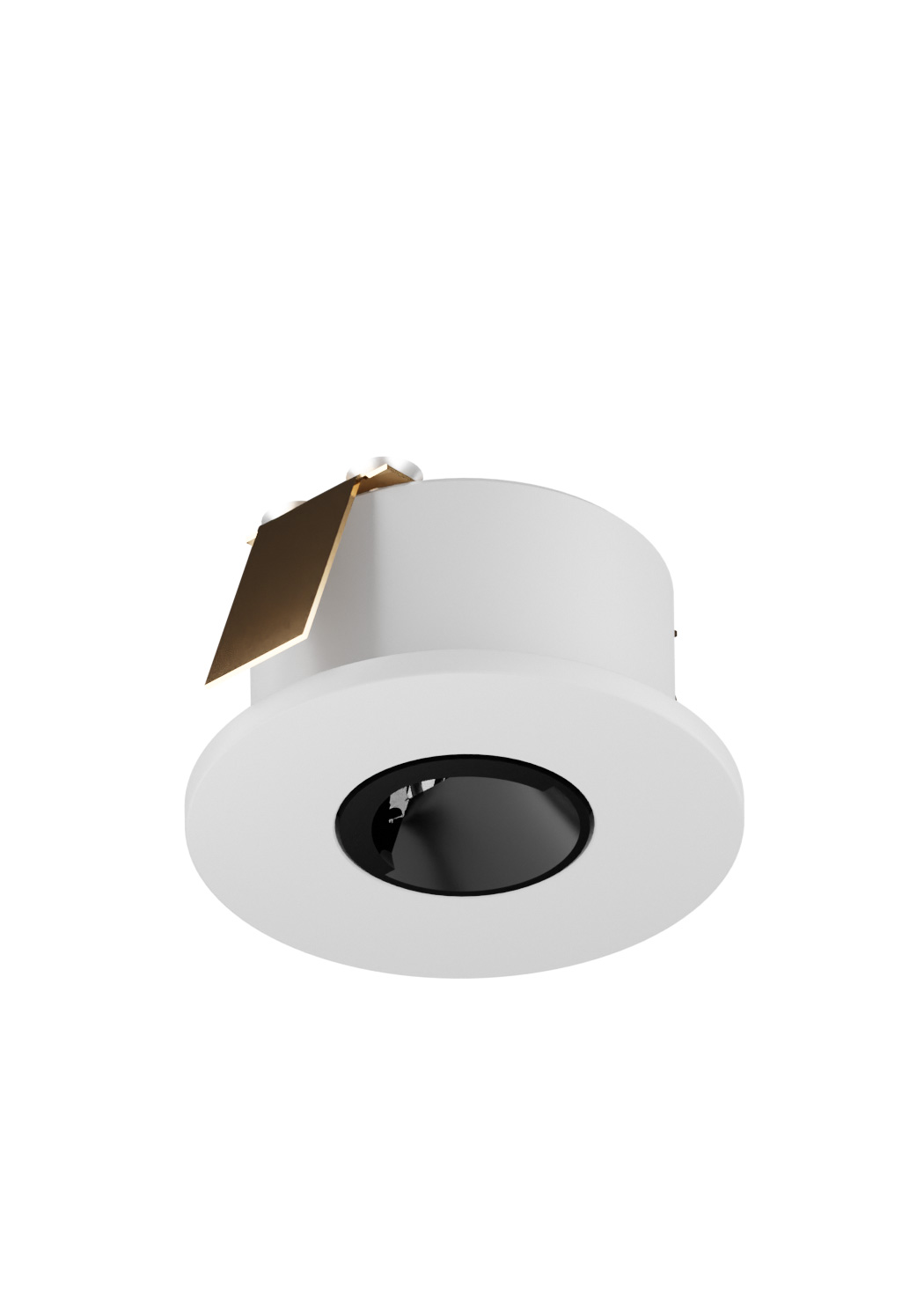

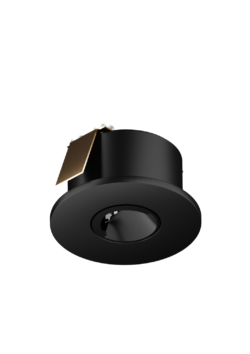

Compact luminaire for shelves with asymmetrical light distribution

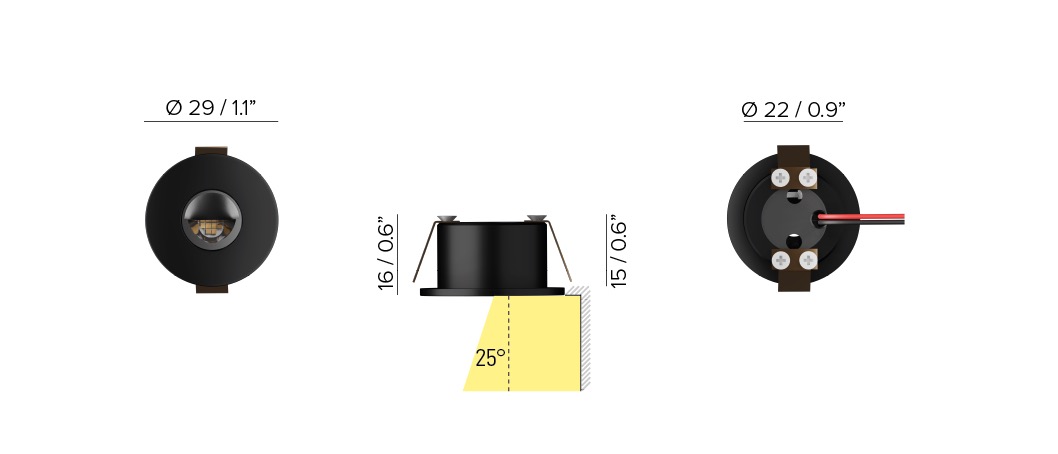

  • Diameter 29 mm, height 16 mm
  • The light aperture has a diameter of only 13 mm
  • Thanks to the design of the reflector, the luminaire is totally glare free

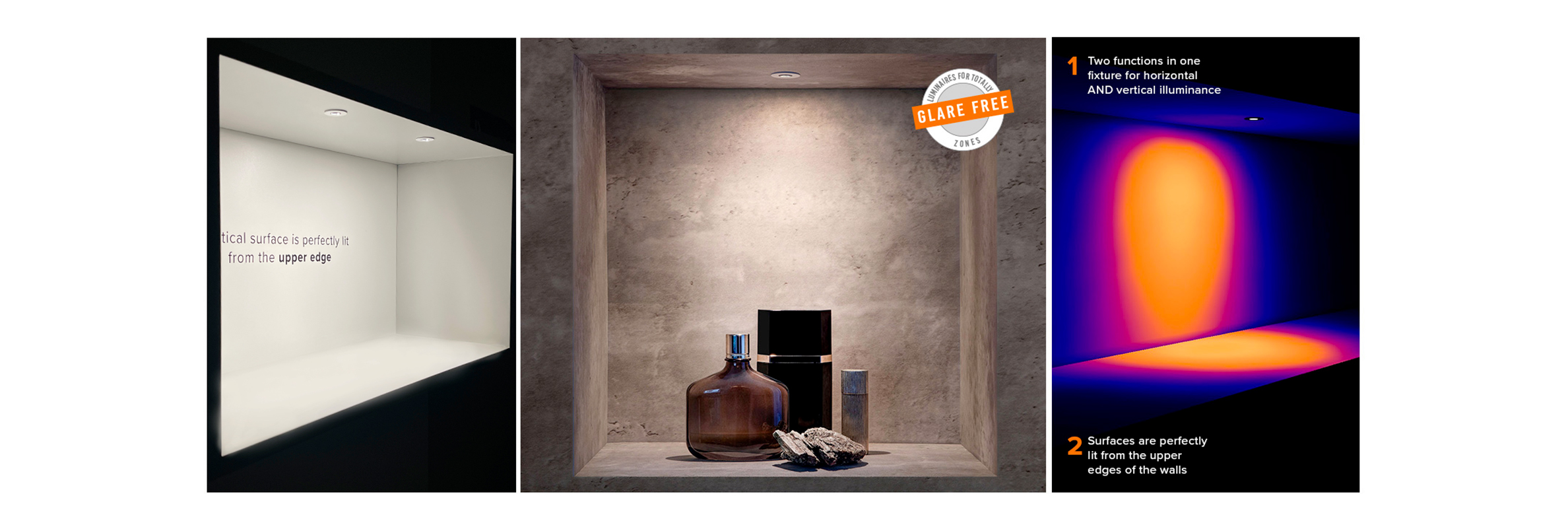

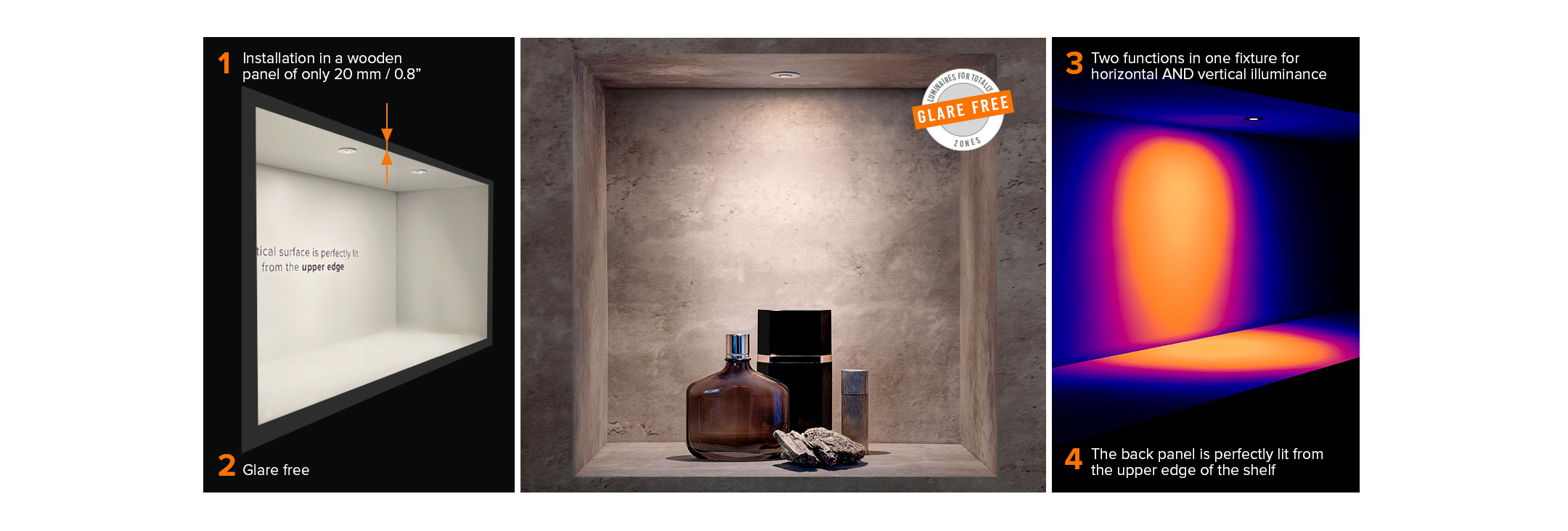

  • The luminaire delivers 25° on the horizontal surface and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • Available with color temperatures 4000K CRI93, 3000 CRI93 and 2700K CRI93
  • Wattage: 1W at 24V DC and 1,5W at 500mA. 24V DC: Min / max operating voltage: 20V – 30V
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • IP30
