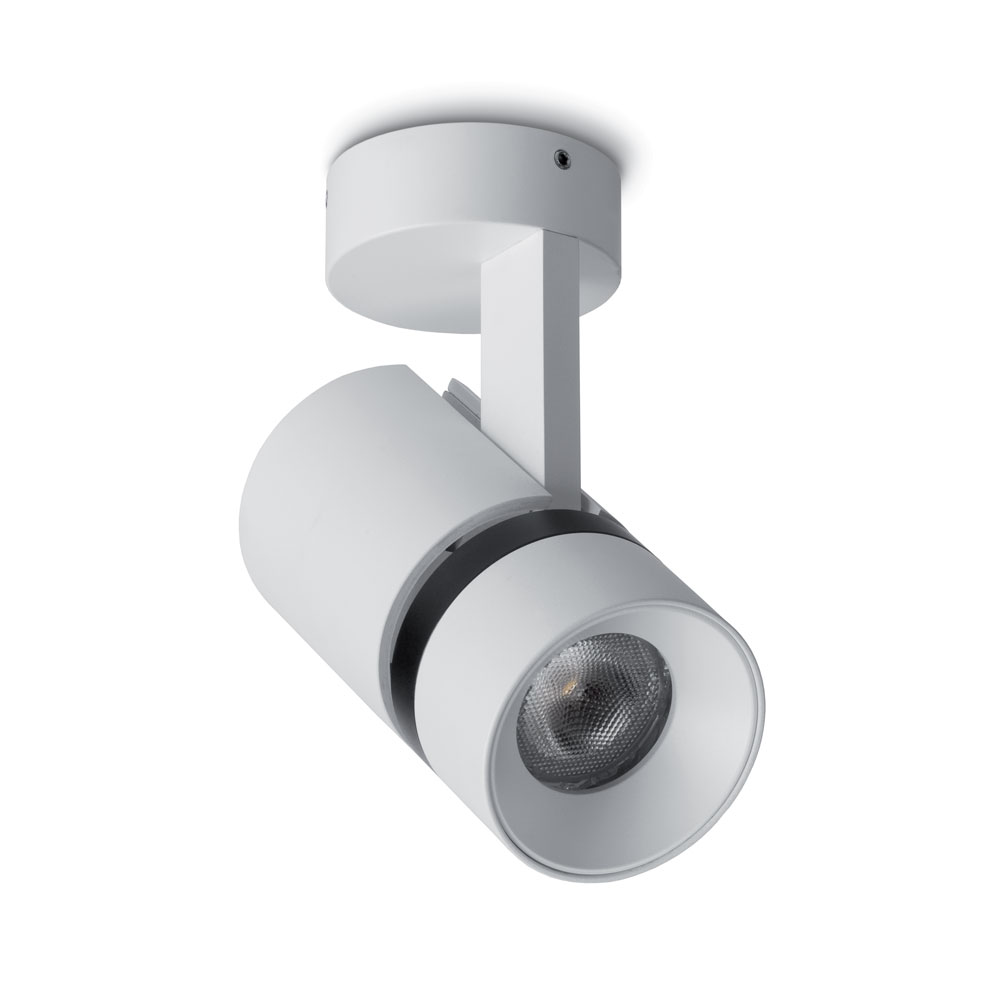

Cylinder 55

Indoor adjustable projector. An extremely pure element that evolves into a complex structure, an adjustable shape that determines and designs spaces

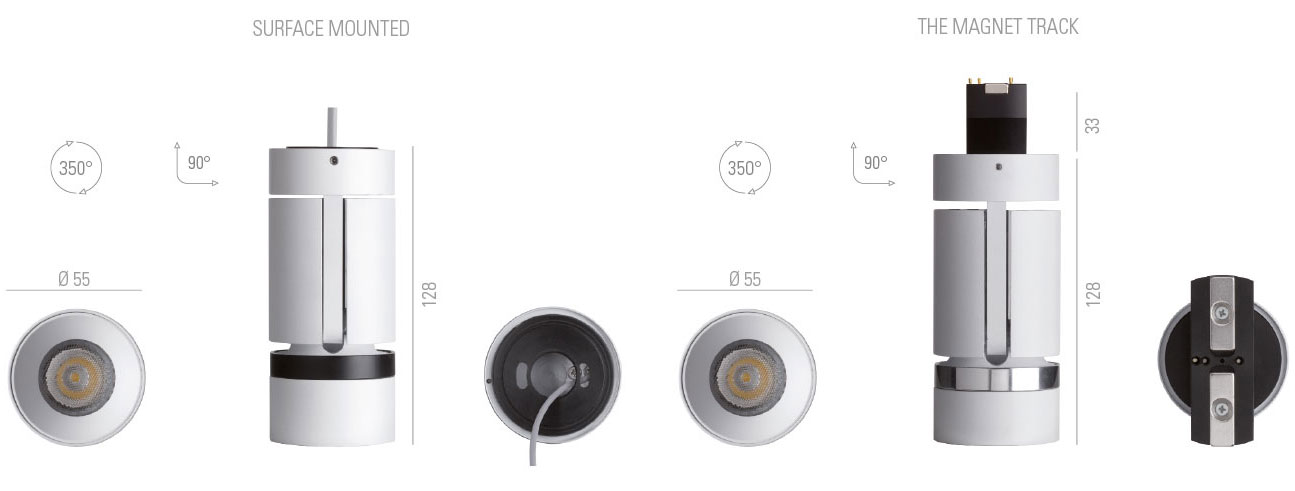

  • Diameter: 55 mm / 2.17”
  • Adjustable 350° on the horizontal plane and 90° on the vertical plane
  • Features a selection of three different optics delivering beam angles including a spot of 16°, a flood of 36° and a wide flood of 45°

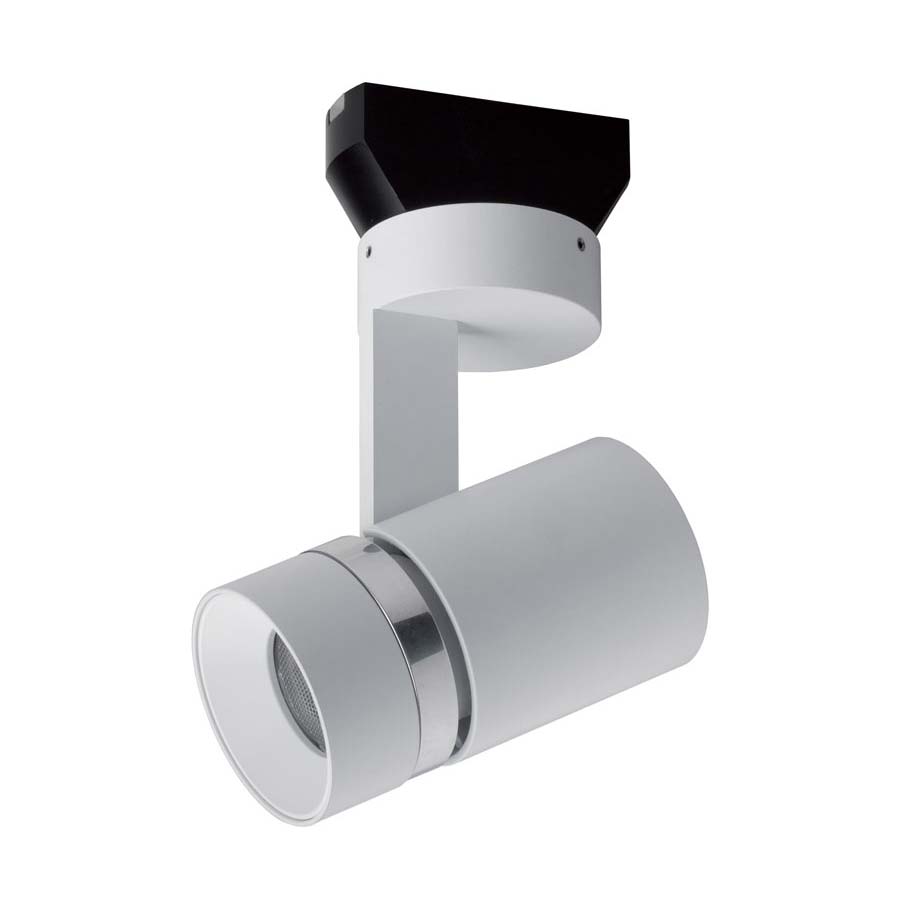

  • Mounting on surface or into The Magnet Track. For The Magnet Track version a magnetic fixing ensures the luminaire’s body can be quickly installed into The Magnet Track without the need for additional tools
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: 6W at 48V DC and 500 mA
  • 48V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to + 60°C / 140°F
  • Push button, potentiometer, 0-10V, DALI, DMX, KNX, Crestron. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • IP20
