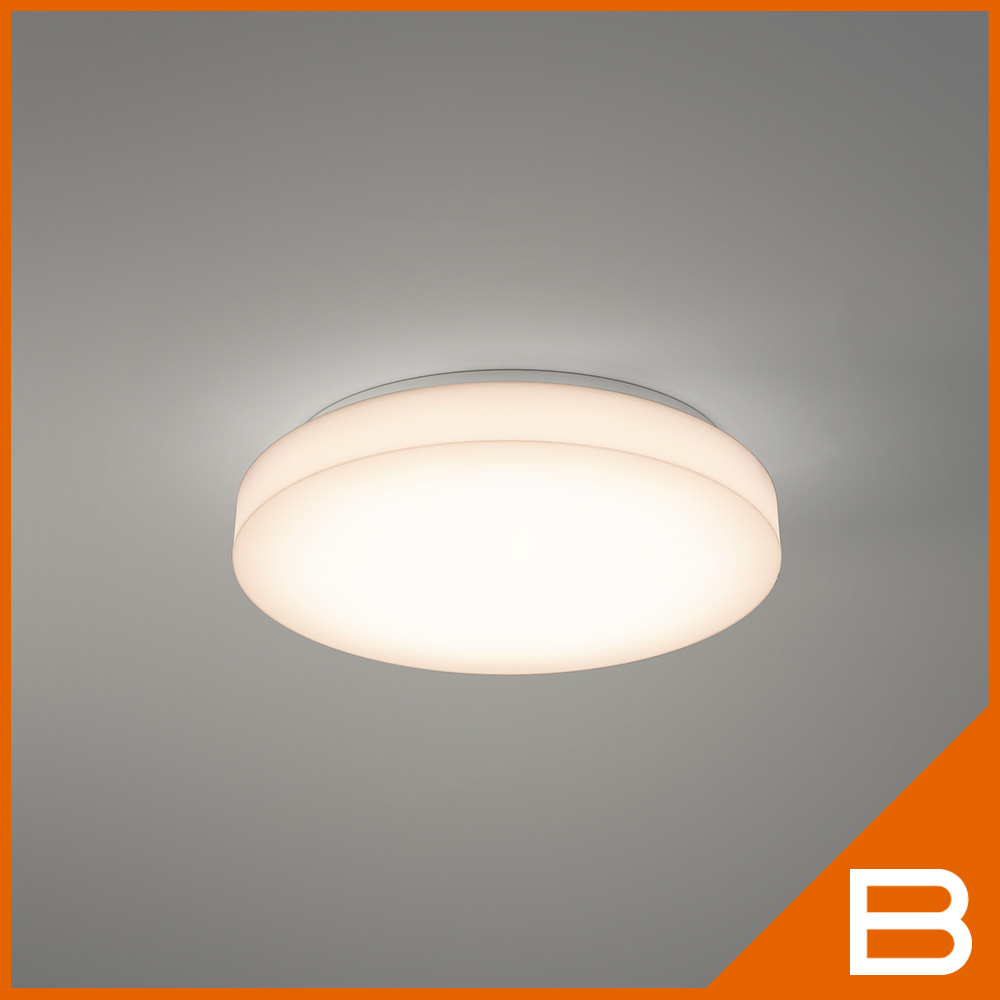

Puck CL

year 2018
typology Ceiling luminaire with diffused light distribution
mounting To ceiling using mounting plate
diameter PUCK 350 CL: 350 mm / 13.78″ – PUCK 600 CL: 600 mm / 23.62″
height 96 mm / 3.78″
construction Extruded aluminum fixture. Diffuser in matte opal PMMA
finishes Powder coated RAL9010
ingress protection IP20
lamp quantity 1
lamp type LED array on printed circuit board. DALI power supply integrated into fixture
lamp wattage PUCK 350 CL: 20W – PUCK 600 CL: 50W
special features Diffuse and completely homogenous light distribution across the entire surface. DALI dimmable
colour temperatures 3000K CRI93
lamp lumens PUCK 350 CL: 2040lm – PUCK 600 CL: 4890lm
lumen maintenance 50.000hrs lifetime with lumen maintenance at L70
dimming options DALI
certifications CE
