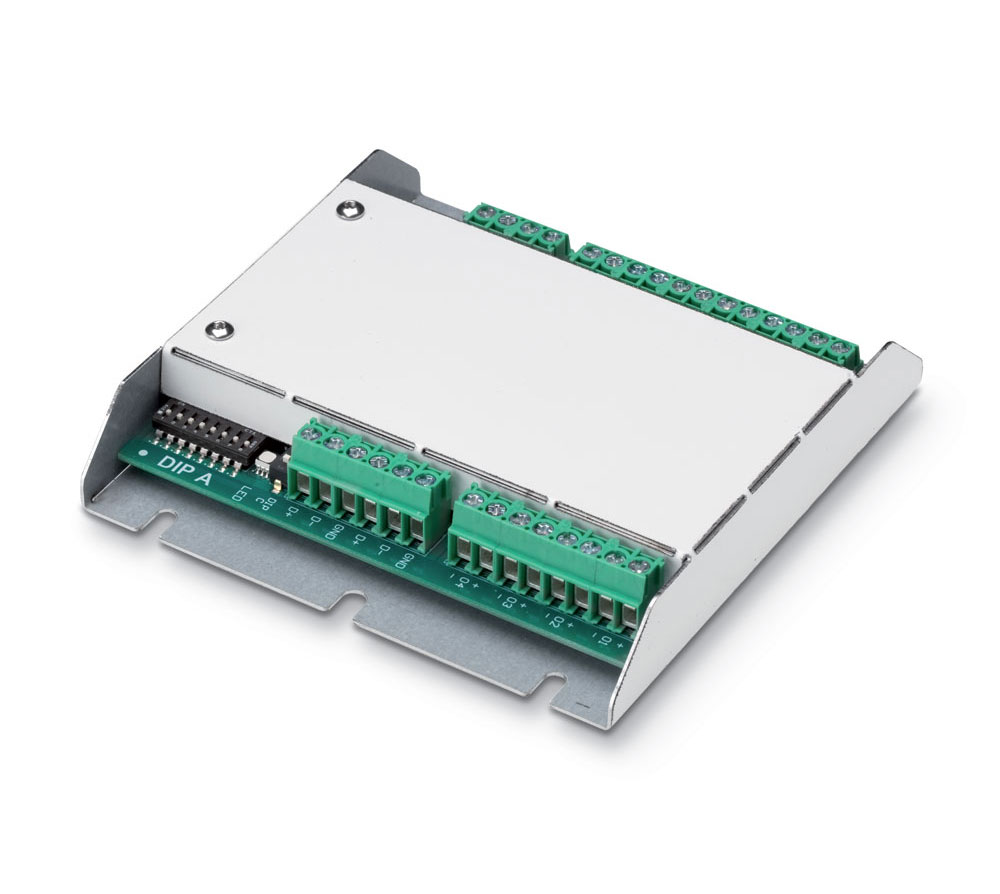

Smart Dimm Master 4 / Slave 4

24V DC (North America) and 48V DC dimmer interface

  • 24V DC (North America): maximum load of 240W, four independent channels and maximum load of 100W per channel. 48V DC: maximum load of 320W, four independent channels and maximum load of 100W per channel
  • Functioning by means of push button, potentiometer or 0-10V signal
  • Possibility to connect to the master, up to No. 32 SMART DIMM SLAVE 4 interfaces
  • No “Zebra stripes” effect: when dimming, dark bands are not visible in video recording and conferencing
  • IP20



24V DC (North America) and 48V DC DMX interface or dimmer interface slave



  • 24V DC (North America): maximum load of 240W, four independent channels and maximum load of 100W per channel. 48V DC: maximum load of 320W, four independent channels and maximum load of 100W per channel
  • When connected to the master interface, the dimming signals generated by the master are replicated to the slaves
  • No “Zebra stripes” effect: when dimming, dark bands are not visible in video recording and conferencing
  • IP20
