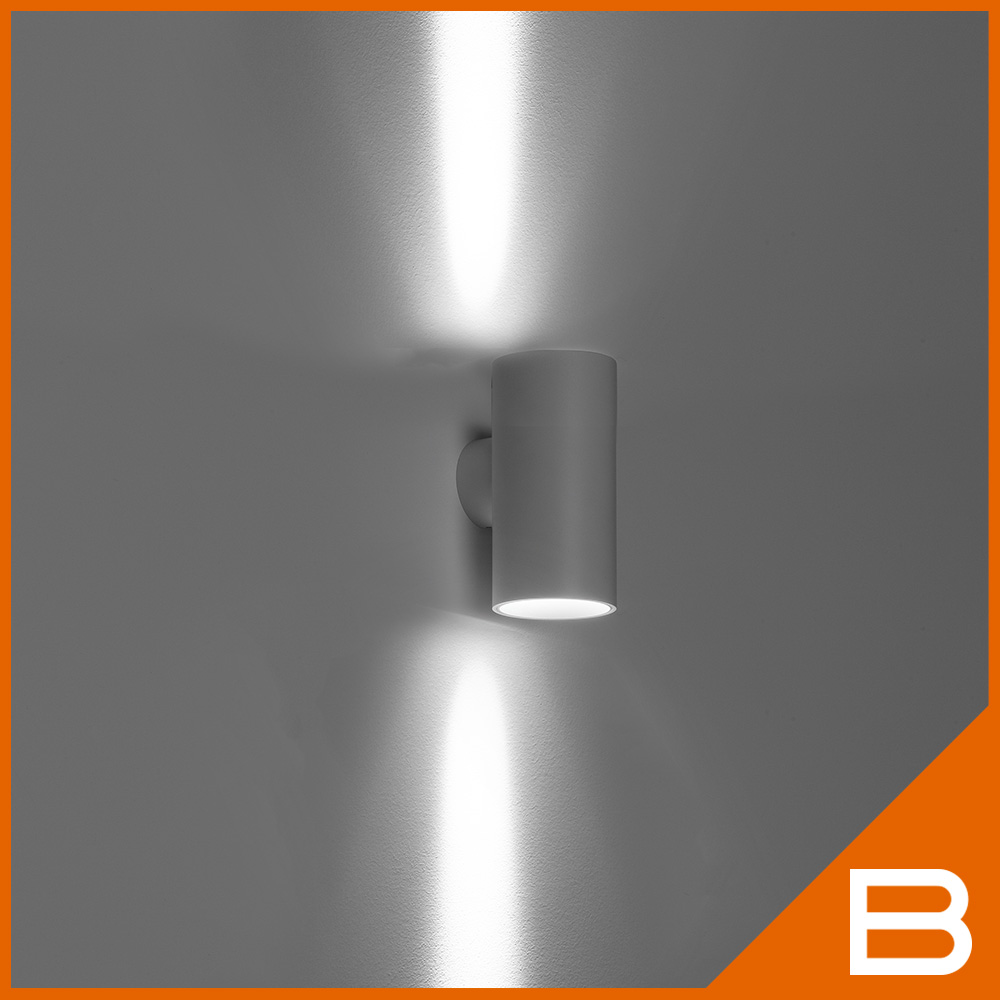

Okkio 50 W2, 3D

year 2016
typology Wall mounted cylinder luminaire with light emission on two sides (direct light and indirect light)
mounting To wall using mounting plate
diameter 50 mm / 1.97″
height 160 mm / 6.30″
construction Fixture: turning and milling aluminum. Lens: PMMA. Protective glass or PMMA complete with silicone gasket
finishes Powder coated
ingress protection IP67
lamp quantity 2
lamp type Power LED. Remote power supply
lamp wattage 10W at 24V DC (5W direct light, 5W indirect light)
lamp lumens 1020lm
beam angles
colour temperatures 3000K CRI93
lumen maintenance 50.000hrs lifetime with lumen maintenance at L70
certifications CE
