Merope 100 OP


Drive over inground projector with diffused light distribution

  • Drive over load of 7000 lbs

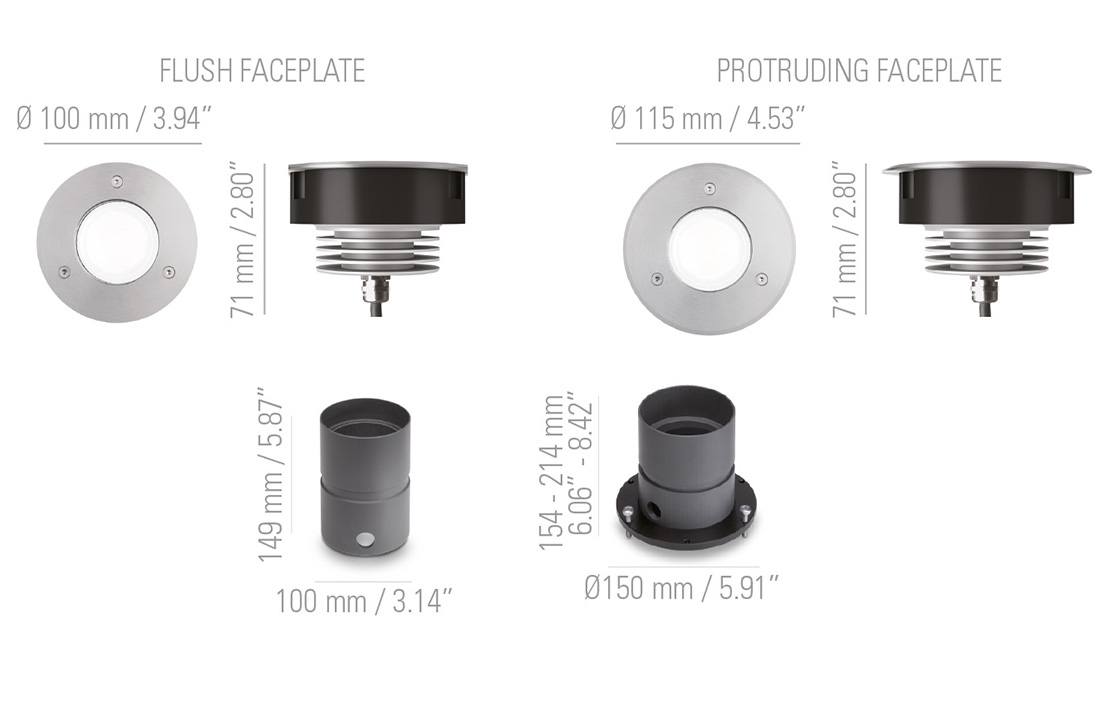

  • Diameter: flush faceplate 3.94”, protruding faceplate 4.53”
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture is installed without opening the optical compartment
  • Beam angle: diffused
  • Available with colour temperature of 2700K CRI93, 3000K CRI93 or 4000K CRI93
  • Wattage: 3W at 24V DC
  • Built-in unpolarized electronic system
  • 2 wires dimming: 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 1598, CSA C22.2
