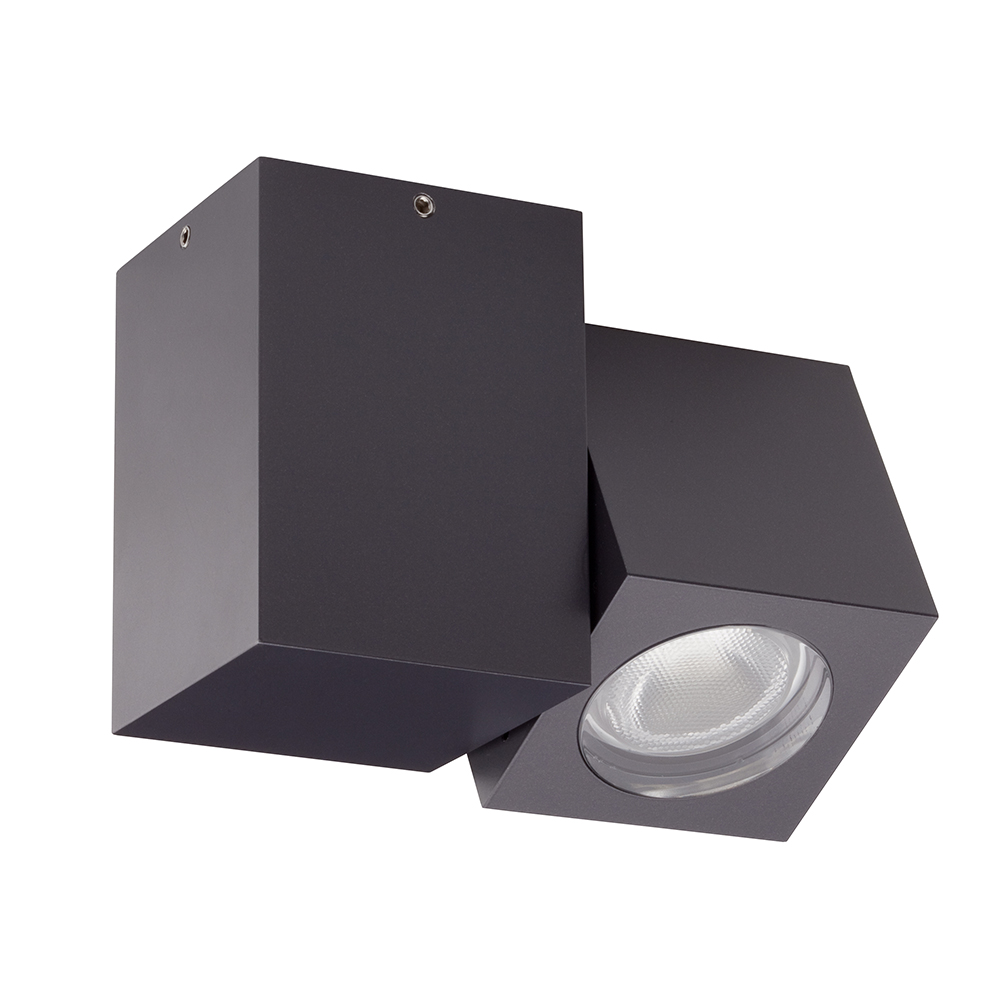

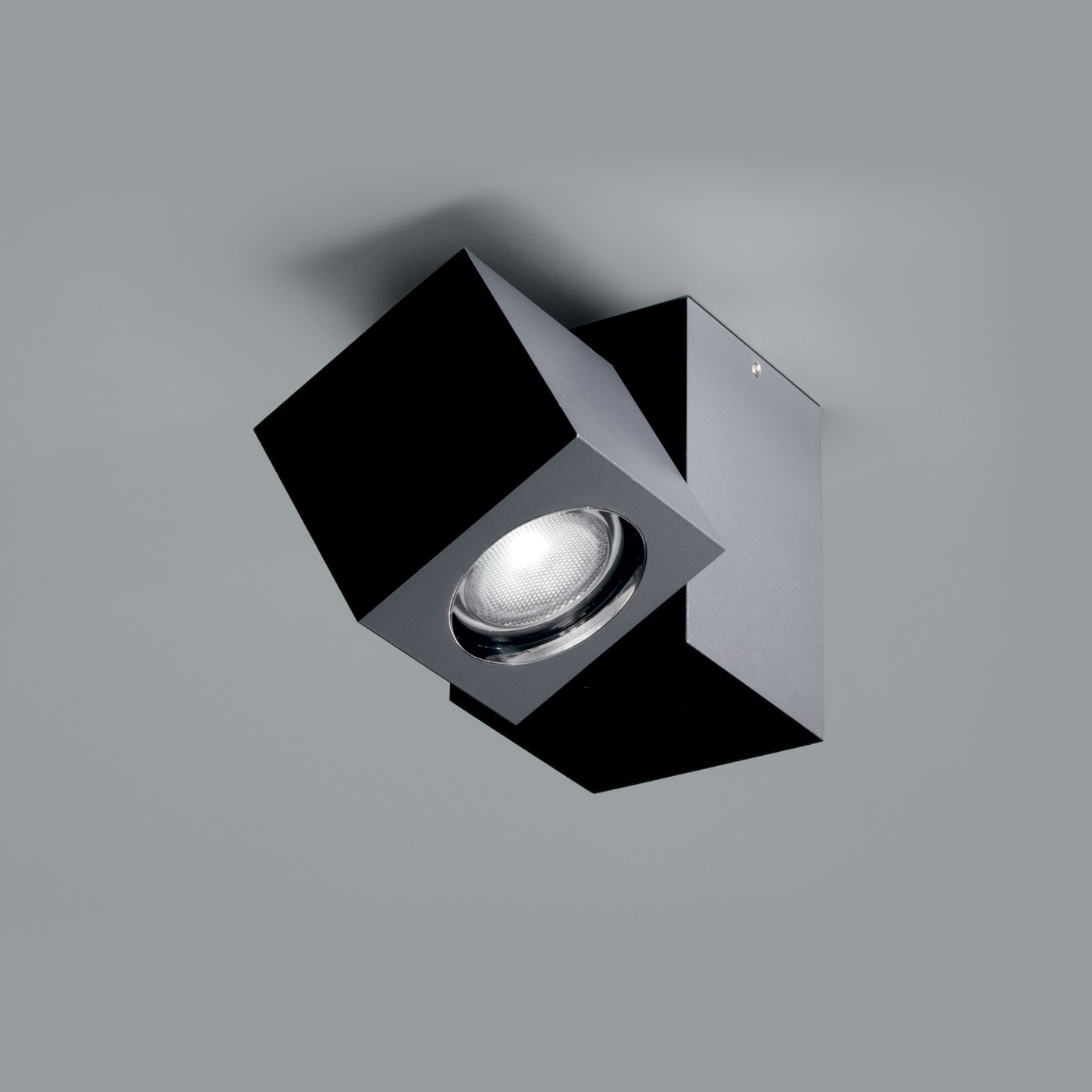

Kubo 54 UP

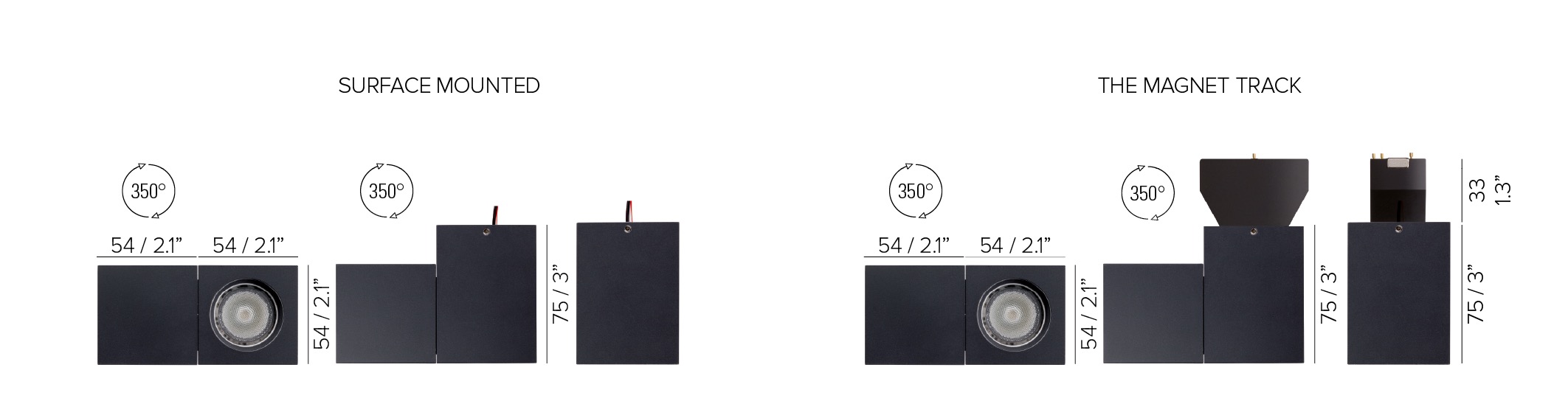

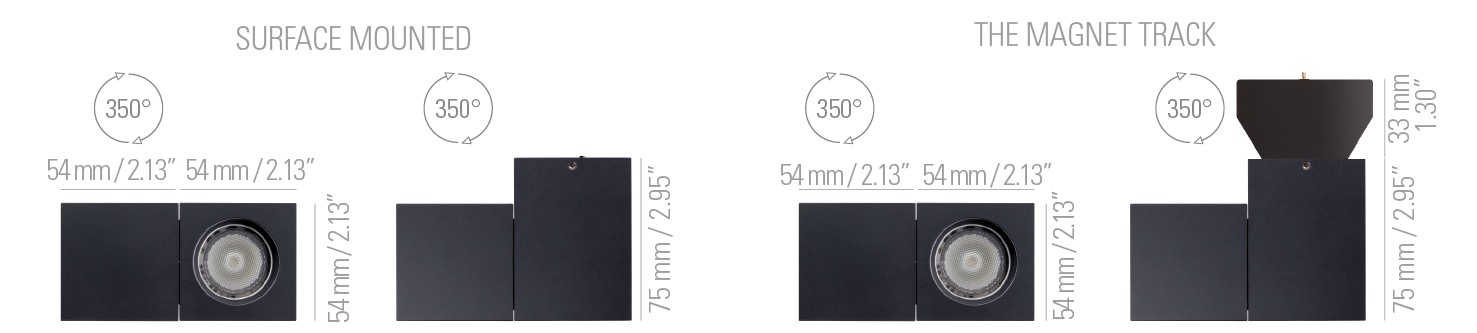

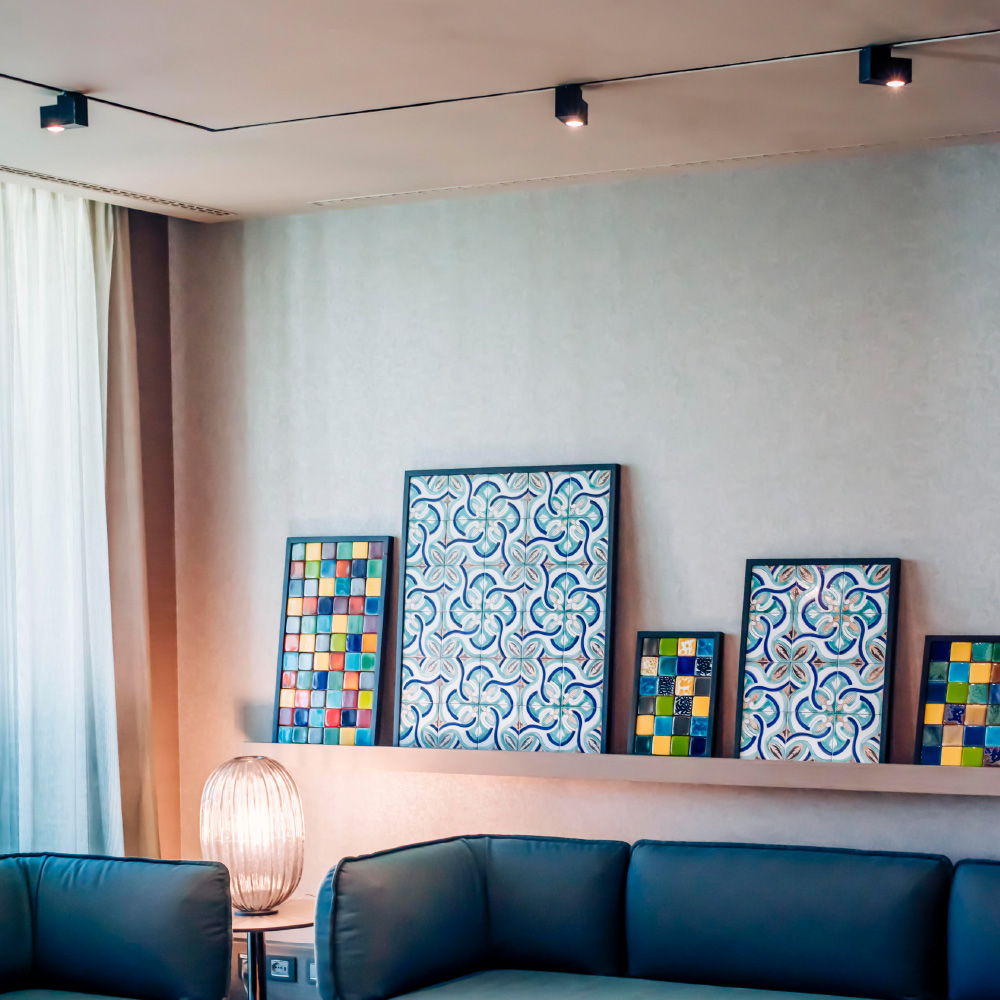

Adjustable projector surface mounted or mounted into The Magnet Track

  • 350° adjustment on the horizontal plane and on the vertical plane
  • Features a range of different optics: 16°, 36° and 45°
  • Available in colour temperatures of 2200K CRI80, 2200K CRI93, 2700K CRI93 or 3000K CRI93
  • Wattage: 5W at 24V DC and 350 mA
  • 24V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to 140° F
  • Dimming a due cavi: 1-10V, DALI. Ulteriori opzioni per dimmerare l’apparecchio come pulsante, potenziometro, DMX, KNX, dipendono dall’alimentazione e da centraline da ordinare separatamente come accessori
  • Suitable for dry location
  • Standards: UL 1598, CSA C22.2
