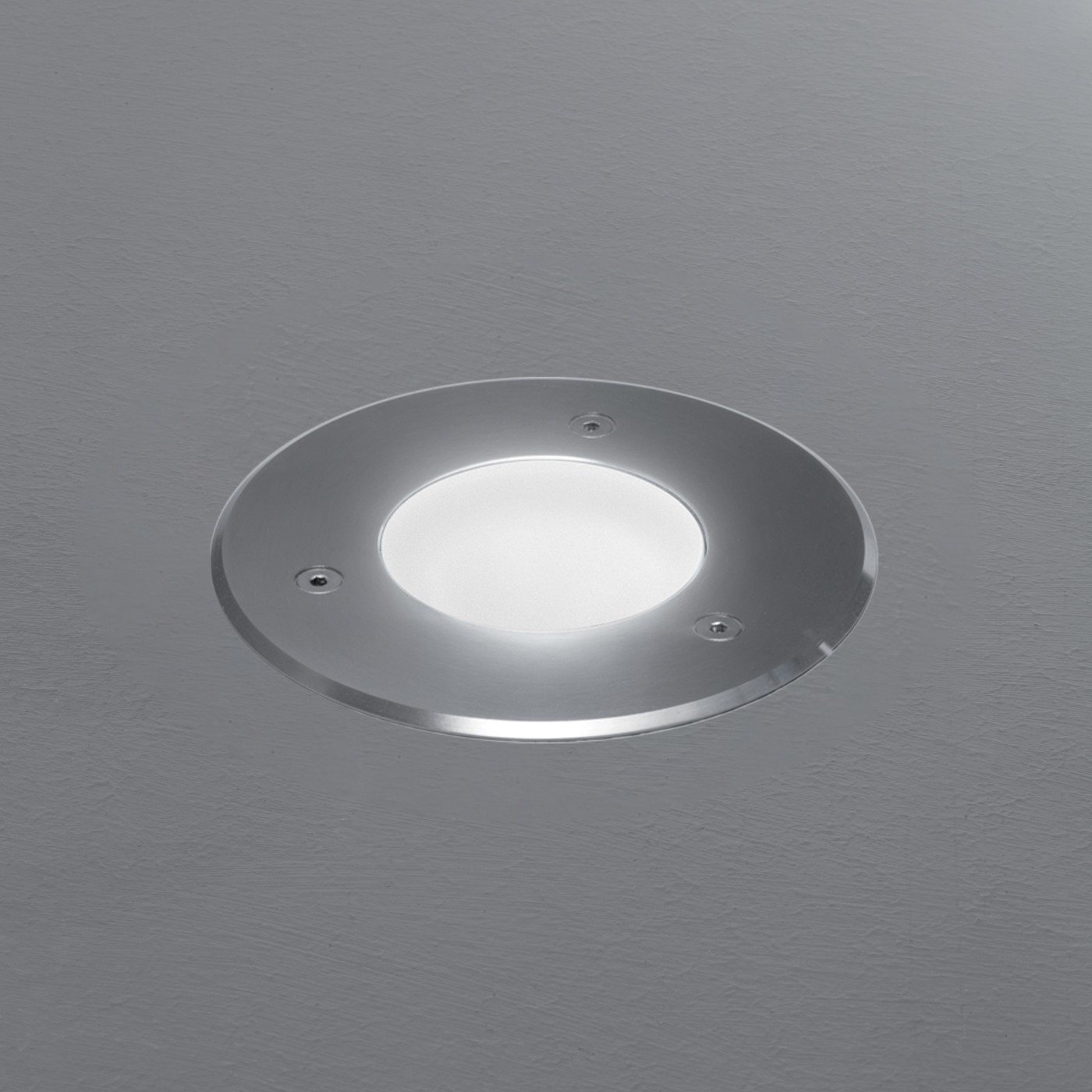

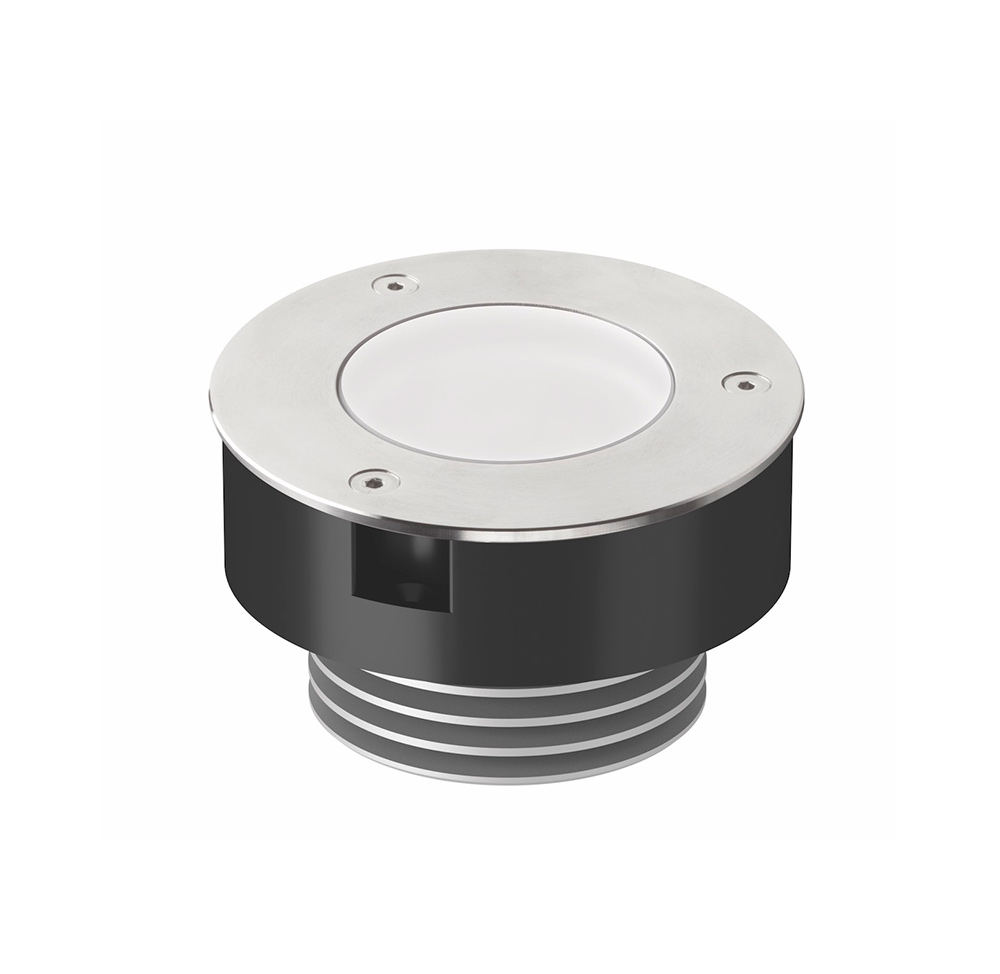

Merope 100 OP

Drive over inground projector with diffused light distribution

  • Drive over load of 3,5 tonnes

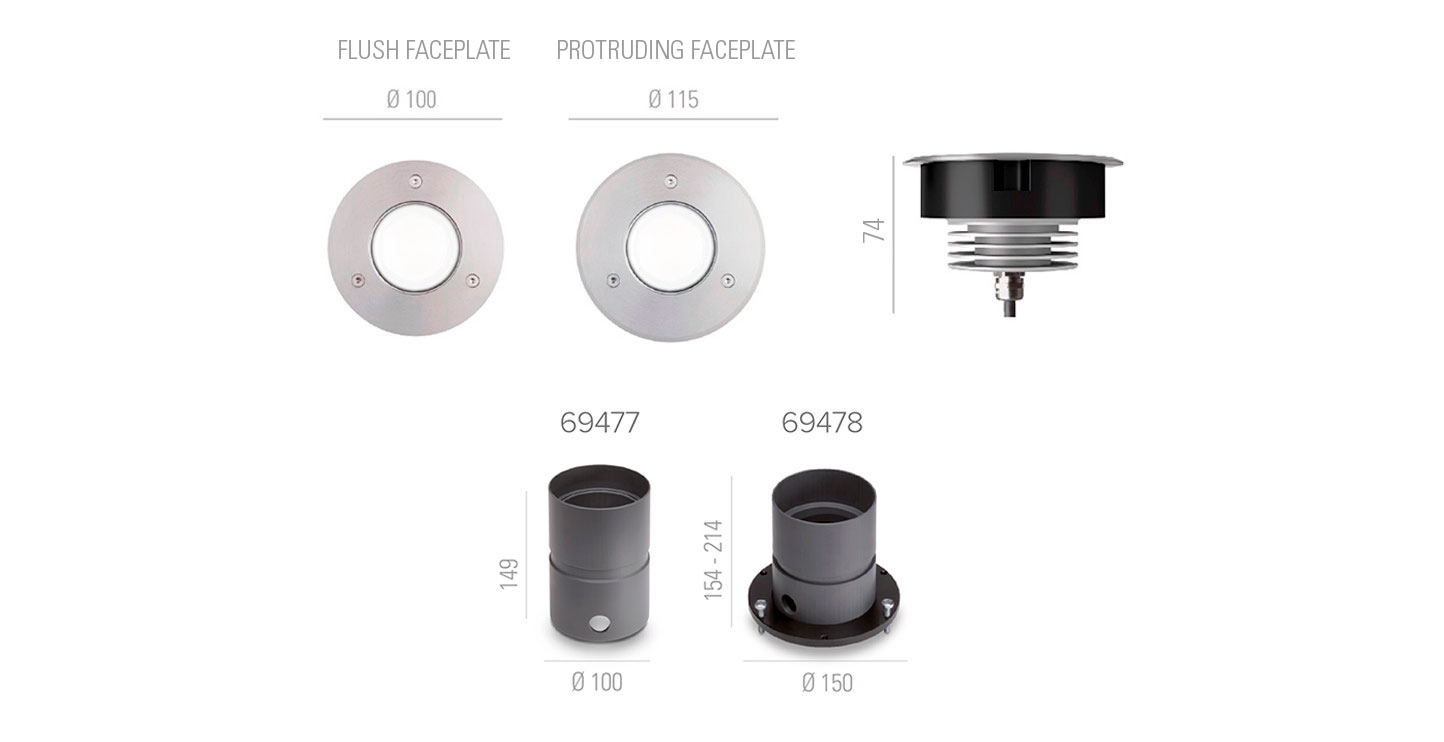

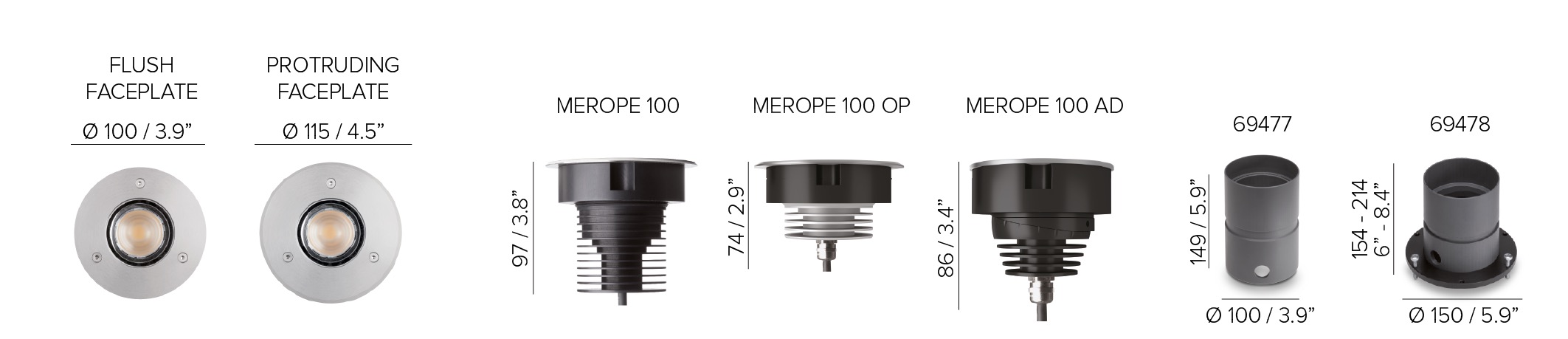

  • Diameter: flush faceplate 100 mm, protruding faceplate 115 mm
  • Built in protection from water infiltration and moisture. To guarantee a tightness IP67 over time, the fixture is installed without opening the optical compartment
  • Beam angle: diffused
  • Available with colour temperature of 2700K CRI93, 3000K CRI93 or 4000K CRI93
  • Wattage: 3W at 48V DC
  • Built-in unpolarized electronic system
  • 2 wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
